CN217949532U - A newly-increased constructional column for brick concrete structure wall body - Google Patents

Abstract

The utility model discloses a newly added construction column for a brick-concrete structure wall, which comprises a base and a connecting column installed on the top of the base. The top of the connecting column is fixedly equipped with a card slot, the top of the card slot is inserted with a sleeve through the connecting column, the top of the sleeve is fixedly installed with a top column, and the outer side of the card slot is fixedly installed with a fixed ring plate , both sides of the fixed ring plate are fixedly installed with connecting stabilizing ribs, and one side of the connecting stabilizing ribs is provided with a slope. The utility model can increase the tightness of the connection between the device and the brick-concrete structure wall by using the connecting stabilizing ribs. Increase the overall stability of the brick-concrete structure wall, and the design of the inclined surface can improve the convenience of installation of the device. At the same time, the column skeleton can effectively fix the steel bars inside the device, and at the same time, it changes the traditional method of binding steel bars. Improved work efficiency.

Description

A newly-added structural column used for brick-concrete structure walls

technical field

The utility model relates to a construction column, in particular to a newly added construction column used for a brick-concrete structure wall, and belongs to the technical field of construction engineering.

Background technique

The major of architectural engineering is mainly responsible for the teaching and management of the direction of architectural engineering for civil engineering majors. It mainly cultivates and masters the basic theories and basic knowledge of engineering mechanics, soil mechanics, surveying, building architecture and structural engineering. A general term for various buildings and engineering facilities based on material technology. Brick-concrete structure walls are often used in construction projects. Because brick-concrete structure walls are relatively simple, structural columns need to be added to enhance the overall structure of the building. The walls of multi-storey masonry-concrete structures should also be equipped with reinforced concrete structural columns, which are connected with the ring beams of each layer to form a space frame capable of resisting bending and shearing. effective measures.

The existing structural columns are relatively simple. Generally, a part of the wall is removed, and then the structural columns are built. Generally, they are built at the four corners of the outer wall, at the junction of the horizontal wall and the outer longitudinal wall at the staggered level, on both sides of the larger opening, and in large rooms. The junction of inner and outer walls, etc., but the existing structural columns cannot be installed in different positions, and most of the existing structural columns are assembled manually, which is inefficient.

Utility model content

The purpose of this utility model is to provide a newly added structural column for brick-concrete structure walls, so as to solve the problems raised in the above-mentioned background technology.

In order to achieve the above purpose, the utility model provides the following technical solutions: a newly added construction column for brick-concrete structure walls, including a base and a connecting column, the top of the base is fixedly installed with a card seat, and the card The inner side of the seat is inserted with a connecting column, the top of the connecting column is fixedly equipped with a card slot, the top of the card slot is inserted with a sleeve through the connecting column, the top of the sleeve is fixedly installed with a top column, and the card slot A fixed ring plate is fixedly installed on the outer side of the fixed ring plate, connecting stabilizing ribs are fixedly installed on both sides of the fixing ring plate, and a slope is arranged on one side of the connecting stabilizing rib.

Preferably, two sets of column skeletons are fixedly installed on the inner side of the connecting column, and steel bars are interspersed inside the column skeletons.

Preferably, a connection seat is fixedly installed on the inner side of the column skeleton, a cross bar is fixedly installed on one side of the connection seat, a fixed ferrule is fixedly installed on one end of the cross bar, and the inner side of the fixed ferrule is interspersed with rebar.

Preferably, a supporting frame is fixedly installed on the inner side of the card slot, and the inner side of the supporting frame is inserted into the steel bar.

Preferably, the fixed ring plate is provided with two sets of ring plates, and the fixed ring plates are connected by screw rods.

Compared with the prior art, the beneficial effects of the utility model are:

1. The utility model is a newly-added structural column for a brick-concrete structure wall, which can increase the tightness of the connection between the device and the brick-concrete structure wall through the use of connecting stabilizing ribs, and increase the overall stability of the brick-concrete structure wall. And the design of the inclined surface can improve the convenience of installation of the device. At the same time, the column frame can effectively fix the steel bars inside the device. At the same time, the traditional way of tying the steel bars has been changed, and the work efficiency has been improved.

2. The utility model is a newly added structural column for brick-concrete structure walls. The base can be used to fix and install the device, which improves the stability of the device installation and avoids the problem of shaking and collapse of the wall.

Description of drawings

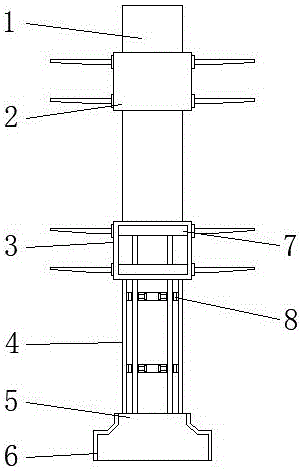

Fig. 1 is a schematic diagram of the internal structure of the utility model;

Fig. 2 is a schematic diagram of the overall structure of the utility model;

Fig. 3 is a structural schematic diagram of the utility model drug delivery device;

Fig. 4 is a schematic diagram of the structure of the fixed block of the present invention.

In the figure: 1. top column; 2. cover seat; 3. card slot; 4. connecting column; 5. card seat; 6. base; 7. supporting frame; 8. column frame; 1. Fixed ring plate; 11. Inclined surface; 12. Fixed ferrule; 13. Steel bar; 14. Cross bar; 15. Connecting seat.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Figures 1-4, the utility model provides a new construction column for brick-concrete structure walls, including a base 6 and a connecting column 4, the top of the base 6 is fixedly installed with a card holder 5, and the card holder 5 It is used to fix and install the connecting column 4 to increase the stability of the device installation. The connecting column 4 is inserted into the inner side of the card holder 5, and the connecting column 4 is located in the column body. At the same time, it is used to increase the overall strength of the brick-concrete structure wall. The connecting column 4 The top of the card slot 3 is fixedly installed, and the card slot 3 is used to install and fix the connecting columns 4 on the upper and lower sides. The top of the card slot 3 is inserted with a sleeve 2 through the connecting column 4, and the sleeve 2 can increase the length of the device. Or you can continue to install the connecting column 4 to increase the length of the device. The top of the sleeve 2 is fixedly equipped with a top column 1, and the outside of the draw-in groove 3 is fixedly installed with a fixed ring plate 10. The fixed ring plate 10 is used to fix the internal connection and stabilizing ribs. 9. At the same time, it is convenient to adjust the overall position of the connecting and stabilizing ribs 9. Both sides of the fixed ring plate 10 are fixedly equipped with connecting and stabilizing ribs 9, and one side of the connecting and stabilizing ribs 9 is provided with a slope 11, which improves the convenience of device installation.

In the utility model: two groups of column skeletons 8 are fixedly installed on the inner side of the connecting column 4, and the column skeletons 8 are used to form the columns, which is convenient to use concrete for pouring and increase the strength. Steel bars 13 are interspersed, and the steel bars 13 are used to increase the strength of the device.

In the utility model: the inner side of the column skeleton 8 is fixedly installed with a connecting seat 15, and the connecting seat 15 is used for fixedly connecting the cross bar 14 to improve the overall stability of the device. One side of the connecting seat 15 is fixedly installed with a cross bar 14, and the One end of the rod 14 is fixedly installed with a fixed ferrule 12, and the fixed ferrule 12 fixes the internal steel bar 13 to avoid the displacement of the steel bar 13, and the inner side of the fixed ferrule 12 is interspersed with a steel bar 13.

In the utility model: the inner side of the draw-in groove 3 is fixedly equipped with a supporting frame 7, the supporting frame 7 improves the overall strength of the device, and the inner side of the supporting frame 7 is plugged with a steel bar 13.

In the utility model: the fixed ring plate 10 is provided with two sets of ring plates, and the fixed ring plates 10 are connected by screw rods, and the ring plate and the screw rod are used together to adjust the fastening degree of the fixed ring plate 10, which is convenient for installation Make adjustments.

In the description of the utility model, it should be understood that the orientation or positional relationship indicated is based on the orientation or positional relationship shown in the drawings, which is only for the convenience of describing the utility model and simplifying the description, rather than indicating or implying Any device or element must have a specific orientation, be constructed and operate in a specific orientation, and thus should not be construed as limiting the invention.

In the present utility model, unless otherwise specified and limited, for example, it may be a fixed connection, or a detachable connection, or integrated; it may be a mechanical connection, or it may be an electrical connection; it may be a direct connection, or It can be indirectly connected through an intermediary, or it can be the internal communication of two elements or the interaction relationship between two elements. Unless otherwise clearly defined, those of ordinary skill in the art can understand the above terms in this document according to the specific situation. Concrete meaning in utility model.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (5)

1. The utility model provides a newly-increased constructional column for brick and concrete structure wall body, includes base (6) and installs at spliced pole (4), its characterized in that, the top fixed mounting of base (6) has cassette (5), spliced pole (4) have been inserted to the inboard of cassette (5), the top fixed mounting of spliced pole (4) has draw-in groove (3), cover seat (2) have been inserted through spliced pole (4) at the top of draw-in groove (3), the top fixed mounting of cover seat (2) has fore-set (1), the outside fixed mounting of draw-in groove (3) has stationary ring board (10), the both sides fixed mounting of stationary ring board (10) has connection stabilization muscle (9), one side of connecting stabilization muscle (9) is provided with inclined plane (11).

2. A newly added constructional column for a masonry-concrete structural wall as defined in claim 1 wherein: the steel bar connecting structure is characterized in that two sets of cylinder frameworks (8) are fixedly mounted on the inner side of the connecting column (4), and steel bars (13) are inserted into the inner sides of the cylinder frameworks (8).

3. The newly added constructional column for the brick and concrete structure wall as claimed in claim 2, wherein: the steel bar fixing and clamping device is characterized in that a connecting seat (15) is fixedly mounted on the inner side of the column body framework (8), a cross rod (14) is fixedly mounted on one side of the connecting seat (15), a fixing clamping sleeve (12) is fixedly mounted at one end of the cross rod (14), and a steel bar (13) penetrates through the inner side of the fixing clamping sleeve (12).

4. A newly added constructional column for a masonry-concrete structural wall as defined in claim 1 wherein: the inboard fixed mounting of draw-in groove (3) has braced skeleton (7), and the inboard and reinforcing bar (13) of braced skeleton (7) are pegged graft.

5. A newly added constructional column for a masonry-concrete structural wall as defined in claim 1 wherein: the fixed ring plates (10) are provided with two groups of ring plates, and the fixed ring plates (10) are connected by screw rods.
