CN217946499U - Vertical transmission device of Lithocarpus litseifolius leaf - Google Patents

Abstract

The utility model discloses a vertical conveying device for the blades of A. japonica, which comprises a protective shell, a support base, a feeding hopper and a hopper for discharging. The bottom of the inner cavity of the hopper is fixed with an inclined plate filter, the bottom of the plate filter is fixed with a funnel cover, the bottom of the funnel cover is hinged with a sealing plate, and the outer walls on both sides of the funnel cover are rotated. A telescopic cylinder for automatic opening and closing of the sealing plate. The utility model utilizes the plate filter set in the discharge hopper, cooperates with the setting of the funnel cover, the sealing plate and the telescopic cylinder, and can discharge and sieve the leaves of the arborescens that are transported by the vertical conveying mechanism in the protective shell, so that the The material discharged from the hopper contains less debris, so as to improve the production quality of the leaves of Mujiang Yeke, so as to improve the conveying quality of the leaves of Mu Jiang Yeke by the opposite conveying device.

Description

A kind of vertical transmission device for leaves

technical field

The utility model relates to the technical field of vertical conveying devices, in particular to a vertical conveying device for the blades of arborescens.

Background technique

The feeding and conveying of the traditional Mujiangyeke blade screening machine adopts an inclined open structure. During the material transmission process, there is a lot of dust, easy to leak and be polluted by the outside, the working environment is poor and the floor area is large. The vertical conveying equipment has a small footprint, a closed transmission process, and no dust leakage, which can effectively prevent the leaves from being polluted.

When vertical transmission equipment is used for the transmission of the leaves of Xingerleaf, it is unavoidable that there will be broken components in the leaves of Xingerifolia due to the transportation or unloading process, and the direct feeding of these broken Xingerifolia leaves through the vertical transmission equipment will cause The quality of the subsequent production of the leaves of A. japonica is reduced, and the vertical conveying device used today cannot screen out the broken leaves of the .

Utility model content

The purpose of this utility model is to provide a kind of vertical transmission device for the blades of Xingjiangyeke to solve the problems raised in the above-mentioned background technology.

In order to achieve the above purpose, the utility model provides the following technical solutions: a vertical transmission device for the blades of Ginger Yeke, comprising:

A protective shell, the inner cavity of the protective shell is provided with a vertical conveying mechanism for the vertical feeding of the leaves of Mujiang Yeke;

The supporting base is arranged at the bottom of the protective shell for supporting the protective shell;

The feeding hopper is fixedly connected with the bottom of one side of the protective shell, and is used for feeding the leaves of Mujiang Yeke;

The discharge hopper is fixedly communicated with the top of the other side of the protective shell, and is used for discharging the leaves of Mujiangyeke;

The bottom of the inner cavity of the hopper is fixedly provided with an inclined plate filter screen, the bottom end of the plate filter screen is fixedly provided with a funnel cover, and the bottom end of the funnel cover is hinged to be provided with a sealing plate. The outer walls on both sides of the cover are rotated and provided with telescopic cylinders for automatic opening and closing of the sealing plate.

Preferably, both sides and the bottom end of the hopper are open, the inner cavity of the funnel cover is wide at the top and narrow at the bottom, and the height of the plate filter close to the protective shell is higher.

Preferably, the vertical conveying mechanism includes two driving rollers, the two driving rollers are respectively rotatably arranged on the top and bottom of the inner cavity of the protective shell, and the outer wall transmission sleeves of the two driving rollers are provided with a timing belt, so The outer wall of the synchronous belt is fixedly provided with a plurality of feeding hoppers at regular intervals.

Preferably, the top of the protective shell is provided with a drive mechanism for the movement of the vertical conveying mechanism, the drive mechanism includes a drive motor fixed on the top of the outer wall of the protective shell, and the output shaft of the drive motor communicates with the The drive roller drive connection located on top of the protective housing.

Preferably, the linkage assembly includes a first pulley, a second pulley and a drive belt, the first pulley is set at the end of the driving roller at the corresponding position, and the second pulley is set at the output of the drive motor At the end of the shaft, the drive belt is sheathed on the outer walls of the first pulley and the second pulley.

Preferably, the bottom of the protective shell is fixedly provided with an arc-shaped filter screen through the opened installation hole, the inside of the support base is provided with a material guide chamber connected with the arc-shaped filter screen, and the outer wall of the support base is fixedly provided with There is a discharge pipe communicated with the material guide chamber.

Technical effect and advantage of the present utility model:

(1) The utility model utilizes the plate filter set in the discharge hopper, and cooperates with the setting of the funnel cover, the sealing plate and the telescopic cylinder, and can discharge and sieve the leaves of the arborescens that are transported by the vertical conveying mechanism in the protective shell, It makes the material discharged from the hopper contain less debris, so as to improve the production quality of the leaves of Mujiang Yeke, so as to improve the conveying quality of the leaves of Mu Jiang Yeke by the opposite conveying device;

(2) The utility model utilizes the arc-shaped filter screen, the material guide cavity and the discharge pipe provided on the protective shell and the supporting base, so that the leaves of the genus Lemongrass that enter the protective shell from the feed hopper can be screened initially, and some of them will be crushed. Chips are discharged, so that the quality of the leaves of Mujiang Yeke conveyed by the vertical conveying mechanism is higher, thereby further improving the quality of conveying the leaves of Mu Jiang Yeke.

Description of drawings

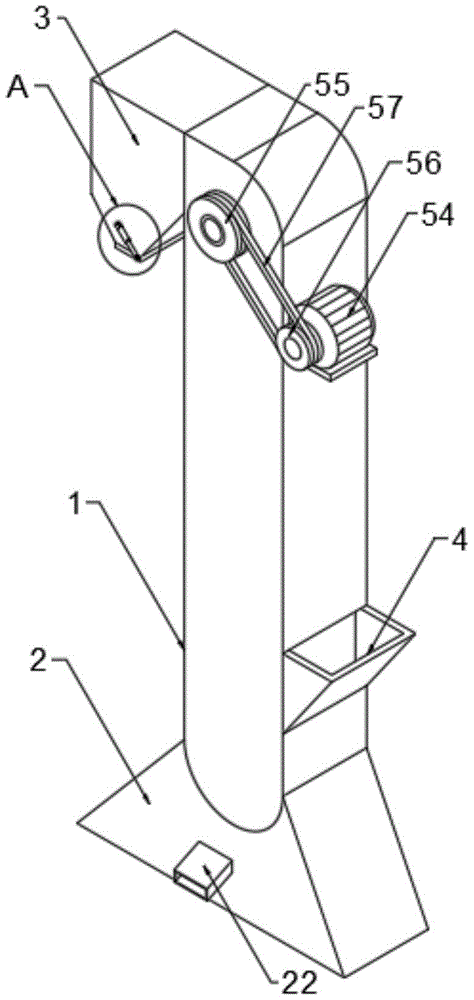

Fig. 1 is a schematic diagram of the three-dimensional structure of the utility model.

Fig. 2 is a frontal cross-sectional structural diagram of the utility model.

Fig. 3 is a schematic diagram of a partially enlarged structure at A in Fig. 1 of the present utility model.

In the figure: 1. Protective shell; 11. Curved filter screen; 2. Support base; 21. Material guide cavity; 22. Discharge pipe; 3. Discharge hopper; 31. Plate filter screen; 32. Funnel cover; 33. Sealing plate; 34, telescopic cylinder; 4, feed hopper; 5 vertical conveying mechanism; 51, driving roller; 52, synchronous belt; 53, retrieving hopper; Two pulleys; 57, transmission belt.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

The utility model provides a vertical transmission device for the blades of arborescens as shown in Figure 1-3, comprising:

The protective shell 1, the inner cavity of the protective shell 1 is provided with a vertical conveying mechanism 5 for the vertical feeding of the leaves of the genus Lemonensis, the top and the bottom of the protective shell 1 are in the shape of a semicircular head, and the bottom of the protective shell 1 is fixed through the opening installation hole An arc-shaped filter screen 11 is provided, and both the arc-shaped filter screen 11 and the plate-type filter screen 31 can be made by opening filter holes all over the surface of the stainless steel sheet, and the leaves of the genus Lemongrass that enter the protective shell 1 are preliminarily screened through the arc-shaped filter screen 11 Minute;

The supporting base 2 is arranged at the bottom of the protective shell 1, and is used for supporting the protective shell 1. The inside of the supporting base 2 is provided with a material guide chamber 21 connected with the arc-shaped filter screen 11, and the outer wall of the supporting base 2 is fixedly provided with The discharge pipe 22 that communicates with the material guide chamber 21 utilizes the opening of the material guide chamber 21, so that the debris filtered out from the arc-shaped filter screen 11 can enter in the material guide chamber 21, and along the material guide chamber 21 from The discharge pipe 22 is discharged;

The feed hopper 4 is fixedly communicated with the bottom of one side of the protective shell 1, and is used for feeding the leaves of Mujiang Yeke;

The discharge hopper 3, the two sides and the bottom of the discharge hopper 3 are open, fixedly communicated with the top of the other side of the protective shell 1, and used for the discharge of the leaves of Mujiang Yeke.

The bottom of the inner cavity of the discharge hopper 3 is fixedly provided with an inclined plate filter screen 31, and the bottom end of the plate filter screen 31 is fixedly provided with a funnel cover 32. A purpose of filtering can be achieved, so that the mixed debris can be filtered out and fall into the funnel cover 32 for storage. The bottom end of the funnel cover 32 is hinged with a sealing plate 33, and the inner cavity of the funnel cover 32 is upward. Wide and narrow at the bottom, the height of the plate filter 31 near the end of the protective shell 1 is relatively high, and the outer walls on both sides of the funnel cover 32 are rotated to be provided with a telescopic cylinder 34 for automatic opening and closing of the sealing plate 33, and the telescopic cylinder 34 and the drive motor 54 respectively pass through The external switch is electrically connected to the external power supply, and the telescopic cylinder 34 is used to extend and drive the sealing plate 33 to rotate around the hinge, and the port of the funnel cover 32 is opened to facilitate the discharge of the collected debris;

Vertical conveying mechanism 5 comprises two driving rollers 51, and two driving rollers 51 are respectively rotated and arranged on the top and the bottom of the inner cavity of protective shell 1, and the outer wall transmission sleeves of two driving rollers 51 are provided with synchronous belt 52, and the synchronous belt 52 The outer wall is fixedly provided with a plurality of fetching hoppers 53 at intervals, and the top of the protective shell 1 is provided with a driving mechanism for the movement of the vertical conveying mechanism 5. The driving mechanism includes a drive motor 54 fixedly arranged on the top of the outer wall of the protective shell 1, and the output of the drive motor 54 The shaft is connected to the drive roller 51 at the top of the protective shell 1 through the provided linkage assembly, and the output of the drive motor 54 drives one of the drive rollers 51 to rotate through the linkage assembly, so that the synchronous belt 52 can move circularly on the outer walls of the two drive rollers 51 , so that a plurality of retrieving hoppers 53 on the outer wall of the synchronous belt 52 can take materials and transport upwards from the leaves of the genus Lemongrass at the bottom of the inner cavity of the protective shell 1, and finally pour out from the connection position between the protective shell 1 and the hopper 3, and enter the outlet. Plate filter screen 31 loading and unloading of hopper 3;

The linkage assembly includes a first pulley 55, a second pulley 56 and a transmission belt 57. The first pulley 55 is driven to the end of the drive roller 51 at the corresponding position, and the second pulley 56 is driven to the end of the output shaft of the drive motor 54. At the end, the transmission belt 57 is sleeved on the outer wall of the first pulley 55 and the second pulley 56, and the synchronous transmission effect of the first pulley 55, the second pulley 56 and the transmission belt 57 is used to make the driving motor 54 stably drive The driving roller 51 rotates.

The working principle of the utility model: the blades of the genus japonica are poured into the protective shell 1 from the feed hopper 4, and the leaves of the genus japonica slide down to the position of the arc-shaped filter screen 11 in the protective shell 1, so that part of the debris in the leaves of the genus japonica leaves from the arc The shape filter screen 11 enters the material guide chamber 21 and is discharged from the discharge pipe 22, and then through the vertical conveying mechanism 5, the leaves of the genus Lemongrass in the protective shell 1 are transported from a low place to a high place and then discharged from the discharge hopper 3. When the leaves of Jiang Yeke roll down along the plate filter 31, debris with a smaller diameter leaks out from the mesh of the plate filter 31 and is stored in the funnel cover 32. The operator only needs to control the action of the telescopic cylinder 34 to make the telescopic cylinder 34 stretch. Long drives the sealing plate 33 to rotate and the bottom port of the funnel cover 32 can be opened.

In the description of the present utility model, unless otherwise clearly stipulated and limited, the terms "installation", "installation", "connection", "connection", and "fixation" should be understood in a broad sense, for example, it can be a fixed connection, or It can be a detachable connection or integrated; it can be a mechanical connection or an electrical connection; it can be a direct connection or an indirect connection through an intermediary; it can be the internal communication of two components or the interaction relationship between two components . Those of ordinary skill in the art can understand the specific meanings of the above terms in the present utility model in specific situations.

The standard parts used by the utility model can be purchased from the market, and the special-shaped parts can be customized according to the description and the accompanying drawings.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (6)

1. A vertical transmission device for the blades of A. japonica, comprising: A protective shell (1), the inner cavity of the protective shell (1) is provided with a vertical conveying mechanism (5) for vertical feeding of the leaves of Auranthus japonica; The supporting base (2) is arranged at the bottom of the protective shell (1), and is used for supporting the protective shell (1); The feed hopper (4) is fixedly communicated with the bottom of one side of the protective shell (1), and is used for feeding the leaves of Lemon japonica; The discharge hopper (3) is fixedly connected with the top of the other side of the protective casing (1), and is used for discharging the leaves of the genus Ginger Leaf; It is characterized in that: the bottom of the inner cavity of the discharge hopper (3) is fixedly provided with an inclined plate filter (31), and the bottom end of the plate filter (31) is fixed with a funnel cover (32). The bottom end of the funnel cover (32) is hingedly provided with a sealing plate (33), and the outer walls on both sides of the funnel cover (32) are rotatably provided with telescopic cylinders (34) for automatic opening and closing of the sealing plate (33). 2. a kind of vertical conveying device for the leaves of Xingjiang Yeke according to claim 1, is characterized in that, both sides and the bottom end of described hopper (3) are open shape, and the inside of described funnel cover (32) The cavity is wide at the top and narrow at the bottom, and the end of the plate filter (31) close to the protective shell (1) has a higher height. 3. a kind of vertical conveying device of the leaves of Xingjiang Yeke according to claim 1, is characterized in that, described vertical conveying mechanism (5) comprises two driving rollers (51), and two described driving rollers (51) The top and bottom of the inner cavity of the protective shell (1) are rotated respectively, and the outer wall transmission sleeves of the two driving rollers (51) are provided with a timing belt (52), and the outer walls of the timing belt (52) are fixedly arranged with Multiple fetch hoppers (53). 4. a kind of vertical conveying device for the leaves of Xingerifolia according to claim 1, characterized in that, the top of the protective casing (1) is provided with a driving mechanism for the movement of the vertical conveying mechanism (5), and the driving The mechanism includes a drive motor (54) fixedly arranged on the top of the outer wall of the protective shell (1), and the output shaft of the drive motor (54) is in transmission connection with the drive roller (51) on the top of the protective shell (1) through a set linkage assembly . 5. a kind of vertical transmission device for the leaves of Xingjiang Yeke according to claim 4, characterized in that, the linkage assembly comprises a first pulley (55), a second pulley (56) and a transmission belt (57), so that The transmission of the first pulley (55) is arranged on the end of the driving roller (51) at the corresponding position, the transmission of the second pulley (56) is arranged on the end of the output shaft of the drive motor (54), and the transmission belt ( 57) Sleeve on the outer walls of the first pulley (55) and the second pulley (56). 6. A kind of vertical transmission device for the blades of Ginger Leaf Kee according to claim 1, characterized in that, the bottom of the protective housing (1) is fixedly provided with an arc-shaped filter screen (11) through the mounting hole provided, and the The inside of the support base (2) is provided with a material guide cavity (21) connected to the arc-shaped filter screen (11), and the outer wall of the support base (2) is fixedly provided with an outlet connected to the material guide cavity (21). Feed tube (22).
