Metal waste recovery equipment for machinery manufacturing

technical field

The utility model relates to the field of mechanical manufacturing, in particular to a recycling device for metal debris used in mechanical manufacturing.

Background technique

Machinery manufacturing refers to the industrial sector engaged in the production of various power machinery, lifting and transportation machinery, chemical machinery, textile machinery, machine tools, tools, instruments, meters and other mechanical equipment. The production process of products refers to the whole process of turning raw materials into finished products. process. The production process of mechanical products generally includes: preparation of production and technology such as process design and design and manufacture of special process equipment, preparation of production plan, preparation of production materials, etc.; manufacturing of blanks such as casting, forging, stamping, etc.; processing of parts Cutting processing, heat treatment, surface treatment, etc.; product assembly such as final assembly, partial assembly, commissioning inspection, and painting; production services such as supply, transportation, storage, etc. of raw materials, purchased parts and tools, among which processing and cutting of parts A large amount of metal debris will be generated in the process, which needs to be recycled and reused.

However, in actual use, due to the use of a large amount of cutting fluid and lubricants in the process of mechanical manufacturing, the surface of metal chips will be attached with more cutting fluid or lubricants, which is not convenient for metal chips. Recycling and reuse, at the same time, because the inside of the metal debris will be doped with a certain amount of impurities such as plastics, it is not convenient to clean up impurities such as plastics.

Therefore, it is necessary to invent a kind of scrap metal recovery equipment for mechanical manufacturing to solve the above problems.

Utility model content

The purpose of this utility model is to provide a kind of metal debris recycling equipment for machinery manufacturing. Through the discharge bin, the metal scrap is put into the inside of the discharge bin for collection, and then the discharge bin is connected to the The outer wall of the positioning shaft fits together, and then the conveyor belt drives the discharge bin into the inside of the sink body, and the cleaning liquid is poured inside the sink body. When the discharge bin moves to the bottom of the middle of the sink body, the cam and the rotating wheel meet The bottom of the silo fits and rotates, so that the cam and the rotating wheel drive the discharge silo to vibrate, so that the cleaning liquid can evenly contact the metal chips, which is convenient for cleaning the cutting fluid and lubricant on the surface of the metal chips, so as to solve the problem in the technology the above deficiencies.

In order to achieve the above object, the utility model provides the following technical proposal: a kind of metal debris recovery equipment for mechanical manufacturing, including a shell, a connecting rod and a removal device, the inner wall of the shell is provided with a water tank body, and the bottom of the inner wall of the water tank body is A guide plate is welded, a discharge trough is set at the bottom of the water tank body, an auxiliary plate arranged obliquely is welded on the inner wall of the discharge trough, a servo motor is fixedly connected to one side of the outer wall of the casing, and the output end of the servo motor A cam is fixedly connected, the bottom of the cam is welded with a rotating shaft, the outer wall of the rotating shaft is provided with two rotating wheels, the outer wall of the other end of the cam is fixedly connected with a transmission belt, and the top of the transmission belt is fixedly connected with a friction wheel. Both sides of the top are welded with installation strips, the inner wall of the installation strip is slidably connected with the conveyor belt, the outer wall of the conveyor belt is fixedly connected with the positioning shaft, the top of the connecting rod is provided with an arc-shaped slot, and the connecting rod and the positioning shaft The top of the casing is provided with a slide slot through the clamping connection of the slot, and the impurity removal device is arranged on the inner wall of the slide slot.

Preferably, the number of the guide plates is set to two, and the two guide plates are symmetrically distributed on both sides of the horizontal center line of the casing, and the guide plates are arranged obliquely.

Preferably, there are two cams, and the two cams are symmetrically distributed on both sides of the horizontal centerline of the rotating shaft, and the bottom of the longest side of the cam is located in the same cross-section as the outer wall of the rotating wheel.

Preferably, the bottom of the connecting rod is rotatably connected to an auxiliary rod, the bottom of the auxiliary rod is welded to a discharge box, and the outer wall of the discharge box is provided with a plurality of water inlet grooves.

Preferably, the impurity removal device includes a slider, a connecting block, a push plate and a recovery box, the slider is arranged on the inner wall of the chute, the outer wall of the slider is welded with a connecting block, and the inner wall of the connecting block is welded with a push plate. A push plate is provided on the inner wall of the push plate.

Preferably, the push plate is arranged obliquely, the outer walls on both sides of the push plate are attached to the inner wall of the sink body, and the bottom of the push plate is lower than the top of the sink body.

In the above-mentioned technical scheme, the technical effects and advantages provided by the utility model:

1. Through the discharge bin, put the metal debris into the inside of the discharge bin for collection, and then fit the discharge bin to the outer wall of the positioning shaft through the card slot set on the top, and then the conveyor belt drives the discharge bin into the water tank Inside the body, there is cleaning liquid poured inside the sink body. When the discharge bin moves to the bottom of the middle of the sink body, the cam and the rotating wheel fit and rotate with the bottom of the discharge bin, so that the cam and the rotating wheel drive the discharge The bin vibrates, so that the cleaning fluid can evenly contact with the metal chips, which is convenient for cleaning the cutting fluid and lubricant on the surface of the metal chips;

2. Through the impurity removal device, after the metal debris is recovered and cleaned, the discharge bin is removed from the outer wall of the positioning shaft, and then the slider in the impurity removal device is put into the inside of the chute. The plastics and so on will float on the top of the cleaning liquid, push the push plate forward, so that the push plate will guide the metal debris floating on the upper layer into the interior of the recycling box for collection, and prevent the plastic in the metal debris from adhering to the sink body inner wall.

Description of drawings

In order to more clearly illustrate the technical solutions in the embodiments of the present application or the prior art, the accompanying drawings required in the embodiments will be briefly introduced below. For some embodiments described, those skilled in the art can also obtain other drawings according to these drawings.

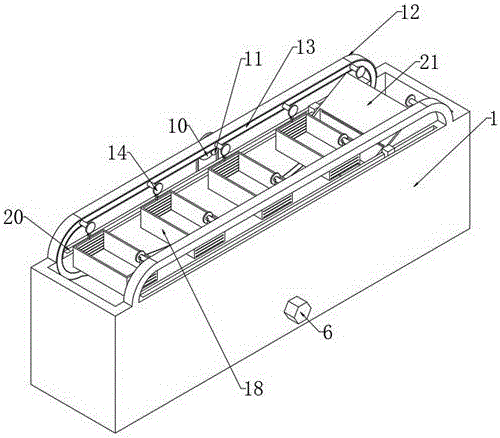

Fig. 1 is the perspective view of the utility model;

Fig. 2 is the perspective view of the second viewing angle of the utility model;

Fig. 3 is the three-dimensional sectional view of the utility model;

Fig. 4 is the three-dimensional view of the cam of the present utility model;

Fig. 5 is a perspective view of the impurity removal device of the present utility model;

Fig. 6 is a three-dimensional view of the discharging bin of the present invention.

Explanation of reference signs:

1. Shell; 2. Tank body; 3. Guide plate; 4. Outlet chute; 5. Auxiliary plate; 6. Servo motor; 7. Cam; 8. Rotary shaft; 9. Rotating wheel; 10. Transmission belt; 11. Friction wheel; 12, installation strip; 13, conveyor belt; 14, positioning shaft; 15, connecting rod; 16, card slot; 17, auxiliary rod; 18, discharge box; Impurity removal device; 2101, slide block; 2102, connecting block; 2103, push plate; 2104, recovery box.

Detailed ways

In order to make those skilled in the art better understand the technical solution of the utility model, the utility model will be further introduced in detail below in conjunction with the accompanying drawings.

The utility model provides a kind of metal debris recovery equipment for mechanical manufacturing as shown in Figure 1-6, which includes a shell 1, a connecting rod 15 and an impurity removal device 21. In the structure, the inner wall of the shell 1 is provided with a water tank body 2, and in the structure The bottom of the inner wall of the water tank body 2 is welded with a guide plate 3. In the structure, the bottom of the middle of the water tank body 2 is provided with a discharge trough 4. In the structure, the inner wall of the discharge trough 4 is welded with an inclined auxiliary plate 5. One side of the outer wall of the shell 1 in the structure The servo motor 6 is fixedly connected, the output end of the servo motor 6 in the structure is fixedly connected with the cam 7, the bottom of the cam 7 in the structure is welded with the rotating shaft 8, the outer wall of the rotating shaft 8 in the structure is provided with two rotating wheels 9, and the cam 7 in the structure is in addition The outer wall of one end is fixedly connected with a transmission belt 10, the top of the transmission belt 10 in the structure is fixedly connected with a friction wheel 11, the two sides of the top of the shell 1 in the structure are welded with mounting strips 12, and the inner wall of the mounting strip 12 is slidingly connected with a conveyor belt 13 in the structure. 13. The outer wall is fixedly connected with the positioning shaft 14. In the structure, the top of the connecting rod 15 is provided with an arc-shaped card slot 16. In the structure, the connecting rod 15 and the positioning shaft 14 are connected through the card slot 16. In the structure, the top of the shell 1 is provided with a chute. 20. In the structure, the impurity removal device 21 is arranged on the inner wall of the chute 20 .

Further, in the above technical solution, the number of guide plates 3 in the structure is set to two, and the two guide plates 3 are symmetrically distributed on both sides of the horizontal center line of the housing 1, and the guide plates 3 in the structure are arranged obliquely. The plate 3 can guide the debris deposited on the bottom of the inner wall of the water tank body 2 into the discharge tank 4 and discharge it, so as to prevent the debris from accumulating in the water tank body 2 .

Further, in the above-mentioned technical solution, there are two cams 7 in the structure, and the two cams 7 are symmetrically distributed on both sides of the horizontal center line of the rotating shaft 8, and the bottom of the longest side of the cam 7 in the structure is in contact with the rotating wheel 9. The outer wall is located at the same cross section, and the outer wall of the cam 7 and the rotating shaft 8 can be attached to the outer wall at the bottom of the discharge box 18 by rotating the cam 7 and the rotating shaft 8, and the discharging box 18 is pushed to vibrate on the inner wall of the tank body 2 , so that the cleaning liquid in the sink body 2 can clean the metal debris in all directions.

Further, in the above technical solution, the bottom of the connecting rod 15 in the structure is rotatably connected to the auxiliary rod 17, and the bottom of the auxiliary rod 17 in the structure is welded with a discharge box 18, and the outer wall of the discharge box 18 in the structure is provided with a plurality of water inlets 19, Cleaning liquid can be made to enter the inside of the discharge box 18 through the water inlet tank 19 to clean up the metal debris.

Further, in the above technical solution, the impurity removal device 21 in the structure includes a slider 2101, a connecting block 2102, a push plate 2103 and a recovery box 2104, the slider 2101 is arranged on the inner wall of the chute 20 in the structure, and the slider 2101 in the structure The outer wall is welded with a connecting block 2102, and the inner wall of the connecting block 2102 is welded with a push plate 2103 in the structure. The inner wall of the push plate 2103 is provided with a push plate 2103. Fitting with the inner wall of the sink body 2, the bottom of the push plate 2103 in the structure is lower than the top of the sink body 2, the slider 2101 is put into the inside of the chute 20, and then the push plate 2103 enters the inside of the cleaning liquid, thereby The push plate 2103 can guide the plastic impurities and oil stains floating on the surface of the cleaning solution into the recovery box 2104 .

The working principle of this utility:

With reference to the accompanying drawings 1-6 of the specification, when it is necessary to collect the metal scraps produced by machining, put the metal scraps into the inside of the discharge box 18, then introduce the cleaning solution into the tank body 2, and then put the The draw-in groove 16 in the connecting rod 15 on the top of the material box 18 engages with the outer wall of the positioning shaft 14, and the servo motor 6 is started to drive the cam 7 to rotate, and then the cam 7 drives the transmission belt 10 to rotate, so that the transmission belt 10 drives the sticker The combined conveyor belt 13 slides on the inner wall of the installation bar 12, and the conveyor belt 13 drives the positioning shaft 14 to move, so that the positioning shaft 14 drives the discharge box 18 to enter the inside of the cleaning liquid to clean the metal debris. When the discharge box 18 moves to the cam 7, the bottom of the discharge box 18 fits the outer wall of the cam 7 and the rotating wheel 9, and the servo motor 6 drives the cam 7 and the rotating wheel 9 to rotate so that the discharge box 18 can be shaken, so that the cleaning liquid can Enter the inside of the discharge box 18 to clean up the metal debris;

Referring to the accompanying drawings 1-6 of the specification, the heavier impurities in the metal debris enter the bottom of the tank body 2, and then guide the impurities into the discharge tank 4 through the guide plate 3 and discharge them. The lighter ones such as plastics and paper Chips and the like float on the top of the cleaning liquid, so that the impurities in the metal scraps and the cutting fluid attached to the surface can be cleaned, and then the discharge box 18 is removed from the outer wall of the slot 16, and the slider 2101 is loaded into the slider The inside of the tank 20, then the push plate 2103 enters the inside of the cleaning solution, and then pushes the push plate 2103 forward, and the bottom of the push plate 2103 enters the inside of the cleaning solution, and the oil stains and plastic sheets floating on the top of the cleaning solution can be tilted The provided push plate 2103 is introduced into the inside of the recovery box 2104 for recovery.

Some exemplary embodiments of the present utility model have been described above only by way of illustration. Undoubtedly, for those skilled in the art, without departing from the spirit and scope of the present utility model, various Modifications are made to the described embodiments. Therefore, the above drawings and descriptions are illustrative in nature and should not be construed as limiting the protection scope of the claims of the present utility model.

Claims (6)

1. The utility model provides a metal debris recovery plant for machine-building, includes shell (1), connecting rod (15) and edulcoration device (21), its characterized in that: the inner wall of the shell (1) is provided with a water tank body (2), the bottom of the inner wall of the water tank body (2) is welded with a guide plate (3), the bottom of the middle of the water tank body (2) is provided with a discharge tank (4), the inner wall of the discharge chute (4) is welded with an auxiliary plate (5) which is obliquely arranged, one side of the outer wall of the shell (1) is fixedly connected with a servo motor (6), the output end of the servo motor (6) is fixedly connected with a cam (7), a rotating shaft (8) is welded at the bottom of the cam (7), two rotating wheels (9) are arranged on the outer wall of the rotating shaft (8), the outer wall of the other end of the cam (7) is fixedly connected with a transmission belt (10), the top of the transmission belt (10) is fixedly connected with a friction wheel (11), mounting strips (12) are welded on two sides of the top of the shell (1), the inner wall of the mounting bar (12) is connected with a conveyor belt (13) in a sliding way, the outer wall of the conveyor belt (13) is fixedly connected with a positioning shaft (14), the top of the connecting rod (15) is provided with a circular arc-shaped clamping groove (16), the connecting rod (15) is clamped and connected with the positioning shaft (14) through a clamping groove (16), a sliding groove (20) is formed in the top of the shell (1), and the impurity removing device (21) is arranged on the inner wall of the sliding groove (20).

2. The metal scrap recycling apparatus for machine manufacturing according to claim 1, wherein: the number of deflector (3) sets up to two, two deflector (3) symmetric distribution is in the both sides of the horizontal center line of shell (1), deflector (3) are the slope setting.

3. The metal scrap recycling apparatus for machine building according to claim 1, wherein: cam (7) set up to two, two cam (7) symmetric distribution is in the both sides of the horizontal center line of rotation axis (8), the bottom on longest limit of cam (7) is located same cross section with the outer wall that rotates wheel (9).

4. The metal scrap recycling apparatus for machine building according to claim 1, wherein: connecting rod (15) bottom is rotated and is connected with auxiliary rod (17), auxiliary rod (17) bottom welding has blowing case (18), a plurality of intake chambers (19) have been seted up to blowing case (18) outer wall.

5. The metal scrap recycling apparatus for machine building according to claim 1, wherein: edulcoration device (21) include slider (2101), connecting block (2102), push pedal (2103) and collection box (2104), slider (2101) sets up in the inner wall of spout (20), the welding of slider (2101) outer wall has connecting block (2102), the welding of connecting block (2102) inner wall has push pedal (2103), push pedal (2103) inner wall is provided with push pedal (2103).

6. The metal scrap recycling apparatus for machine building according to claim 5, wherein: the push pedal (2103) is the slope setting, the outer wall of the both sides of push pedal (2103) and the inner wall laminating of basin body (2), the bottommost of push pedal (2103) is less than the top of basin body (2).
