Abstract

The utility model discloses a hollow plate cutting machine, which belongs to the related technical field of cutting, and comprises a device frame, a vibrating knife device and X and Y direction moving devices. The X and Y direction moving devices are installed on the device frame, and the X and Y direction moving devices The vibrating knife equipment is installed on the device frame, the discharge mechanism is installed on the device frame, the front limit structure is installed on the device frame, and the pushing mechanism is installed on the device frame; the discharge mechanism includes U-shaped frame, spring, top frame, motor , threaded rod 1, slider, hydraulic cylinder, connecting frame, motor 2, rubber wheel and table, the U-shaped frame is fixedly installed on the device frame, the table is rotatably installed on the U-shaped frame, and one end of the spring is fixedly installed on the table On the lower end face of the plate, the other end of the spring is fixedly installed on the U-shaped frame, the upper end face of the U-shaped frame is fixedly installed with a top frame, and a motor one is fixedly installed in the through hole of the top frame; to solve the problem that the cut hollow plate cannot The problem of taking out the first time to solve the trouble of manual retrieving.

Description

A hollow plate cutting machine

technical field

The utility model relates to the technical field related to cutting, in particular to a hollow plate cutting machine.

Background technique

Hollow board (also called hollow grid board, Wantong board, corrugated board, double wall board) English name is: ppplate sheet, is a light weight (hollow structure), non-toxic, non-polluting, waterproof, shockproof, anti-aging, Corrosion-resistant, colorful new material. Compared with cardboard structural products, hollow board has the advantages of moisture resistance and corrosion resistance.

The hollow plate is cut with a vibrating knife, and the efficiency is increased by 4-6 times compared with manual labor, saving materials and improving the material utilization rate by more than 10%. It is environmentally friendly, smoke-free and dust-free, and the product consumables are very few. , the cut board still stays in the raw material hollow board, and it is troublesome to remove it manually, and when cutting, the whole raw material hollow board needs to be cut before the cut board can be removed, which cannot be removed in the first step Take out the cut plate at a time.

Utility model content

The purpose of the utility model is to provide a hollow board cutting machine to solve the problem that the cut hollow board cannot be taken out at the first time, so as to solve the trouble of manual material removal.

In order to achieve the above purpose, the specific technical scheme of a hollow plate cutting machine of the present invention is as follows:

A hollow plate cutting machine, comprising a device frame, a vibrating knife device, and X and Y direction moving devices, the X and Y direction moving devices are installed on the device frame, and the X and Y direction moving devices are equipped with a vibrating knife device, so A discharge mechanism is installed on the device frame, a front-end limit structure is installed on the device frame, and a pushing mechanism is installed on the device frame; the discharge mechanism includes a U-shaped frame, a spring, a top frame, a motor, and a threaded rod. , slider, hydraulic cylinder, connecting frame, motor 2, rubber wheel and table board, the U-shaped frame is fixedly installed on the device frame, the table board is rotatably installed on the U-shaped frame, and one end of the spring is fixedly installed on the lower end surface of the table board The other end of the spring is fixedly installed on the U-shaped frame, the upper end surface of the U-shaped frame is fixedly installed with the top frame, and the motor one is fixedly installed in the through hole of the top frame, and one end of the threaded rod one is fixedly installed on the output of the motor one. On the top end, the other end of threaded rod one is rotatably installed in the groove provided on the top frame, the slider is slidably installed in the track groove provided on the top frame, the slider is threadedly connected with threaded rod one, and the slider is fixedly installed A hydraulic cylinder, the output end of the hydraulic cylinder is fixedly installed with a connecting frame, the connecting frame is fixedly installed with a motor two, and the output end of the motor two is fixedly installed with a rubber wheel.

Further, the front-end limit structure of the hollow plate includes a square frame, a lifting plate, and a lifting screw. The square frame is fixedly installed on the device frame, and a lifting plate is slidably installed in the square frame. The lifting screw communicates with the thread provided on the square frame. The holes are threaded, and the lifting screw is rotatably installed in the groove provided on the lifting plate.

Further, the pushing mechanism includes a motor three, a push block and a threaded rod two, the motor three is fixedly installed on the lower end surface of the device frame, one end of the threaded rod two is fixedly installed on the output end of the motor three, and the other end of the threaded rod two rotates Installed in the groove provided on the U-shaped frame, the push block is slidably installed in the bar-shaped through hole provided on the device frame, and the push block is threadedly connected with the threaded rod.

Further, the U-shaped frame is provided with a position-limiting protrusion.

Further, the table is provided with grooves for placing protrusions.

Further, the rubber wheel is provided with anti-slip lines in the circumferential direction.

Further, the U-shaped frame is fixedly installed with an arc tube for positioning, and the arc tube is placed inside the spring.

Further, the bottom surface inside the square frame is on the same level as the upper end surface of the table top.

The utility model has the advantages of:

1. There is no need to manually remove the cut hollow board from the raw material hollow board, saving manpower and working hours.

2. The cut hollow board can be taken out at the first time without affecting the cutting operation of the device, saving man-hours.

Description of drawings

Below in conjunction with accompanying drawing and concrete implementation method, the utility model is described in further detail,

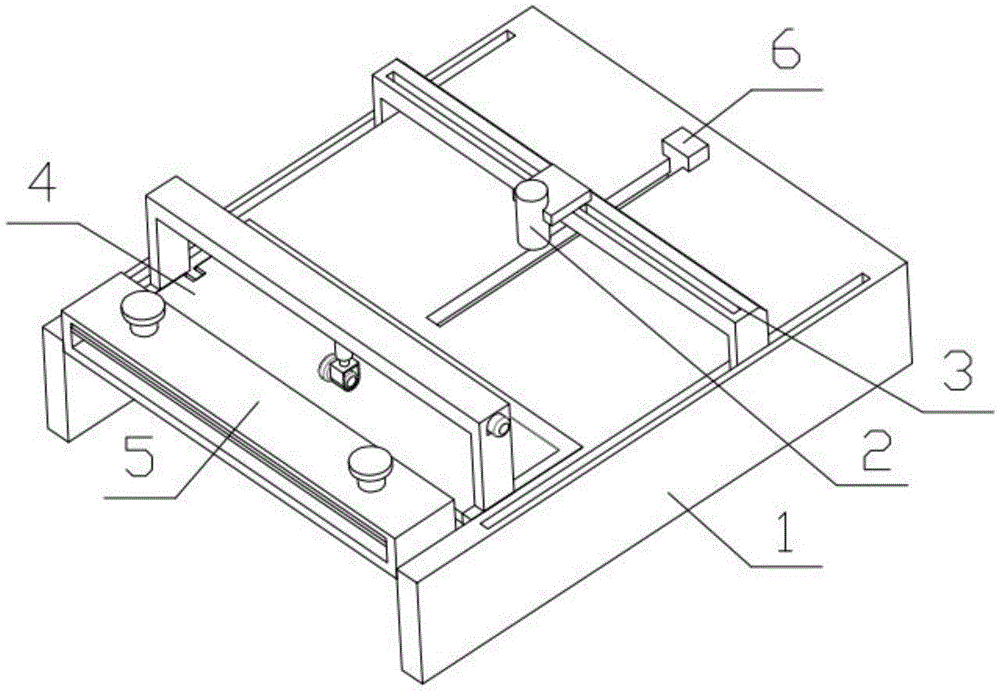

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the structural representation of the bottom view of the discharging mechanism of the present utility model;

Fig. 3 is the schematic sectional view of the discharging mechanism of the present utility model;

Fig. 4 is the structural representation of the top view of the discharging mechanism of the present utility model;

Fig. 5 is the schematic diagram of the enlarged structure of A in Fig. 4;

Fig. 6 is the structural representation of the U-shaped frame of the present utility model;

Fig. 7 is a structural schematic diagram of the installation position of the discharging mechanism and the pushing mechanism of the present invention;

Fig. 8 is a structural schematic diagram of the front-end limiting structure of the present invention;

Fig. 9 is a schematic cross-sectional view of the front-end limiting structure of the present invention.

Fig. 10 is a schematic cross-sectional view of the installation position of the pushing mechanism and the U-shaped frame of the present invention.

In the figure: device frame 1; vibrating knife equipment 2; X and Y direction moving equipment 3; discharge mechanism 4; front end limit structure 5; push mechanism 6; U-shaped frame 7; spring 8; top frame 9; motor one 10; threaded rod one 11; slide block 12; hydraulic cylinder 13; connecting frame 14; motor two 15; rubber wheel 16; table plate 17; square frame 18; lifting plate 19; 22; Threaded rod two 23; Protrusion 24; Groove 25; Track groove 26; Arc tube 27.

Detailed ways

The technical solutions of the utility model will be clearly and completely described below in conjunction with the accompanying drawings. Apparently, the described embodiments are part of the embodiments of the utility model, but not all of them. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

In the description of the present utility model, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer" The orientation or positional relationship indicated by etc. is based on the orientation or positional relationship shown in the drawings, which is only for the convenience of describing the utility model and simplifying the description, rather than indicating or implying that the device or element referred to must have a specific orientation, use a specific The azimuth structure and operation, therefore can not be construed as the limitation of the present utility model. In addition, the terms "first", "second", and "third" are used for descriptive purposes only, and should not be construed as indicating or implying relative importance.

Embodiment 1: As shown in Figure 1, Figure 2, Figure 3 and Figure 4, a hollow plate cutting machine includes a device frame 1, a vibrating knife device 2 and X and Y direction moving devices 3, and the device frame 1 is equipped with The X and Y direction mobile devices 3, the vibrating knife device 2 is installed on the X and Y direction mobile devices 3, the discharge mechanism 4 is installed on the device frame 1, the front end limit structure 5 is installed on the device frame 1, and the device frame 1 is installed A pusher mechanism 6 is installed; the discharge mechanism 4 includes a U-shaped frame 7, a spring 8, a top frame 9, a motor one 10, a threaded rod one 11, a slide block 12, a hydraulic cylinder 13, a connecting frame 14, a motor two 15, rubber Wheel 16 and table board 17, U-shaped frame 7 is fixedly installed on the device frame 1, and table board 17 is installed with rotation on U-shaped frame 7, and one end of spring 8 is fixedly installed on the lower end face of table board 17, and the other end of spring 8 One end is fixedly installed on the U-shaped frame 7, and the upper end surface of the U-shaped frame 7 is fixedly installed with a top frame 9, and a motor-10 is fixedly installed in the through hole of the top frame 9, and one end of the threaded rod-11 is fixedly installed on the motor-10 On the output end of the top frame, the other end of the threaded rod-11 is rotatably installed in the groove provided on the top frame 9, and the slide block 12 is slidably installed in the track groove 26 provided on the top frame 9, and the slide block 12 and the threaded rod-11 Threaded connection, a hydraulic cylinder 13 is fixedly installed on the slider 12, a connecting frame 14 is fixedly installed on the output end of the hydraulic cylinder 13, a motor two 15 is fixedly installed on the connecting frame 14, and a rubber wheel 16 is fixedly installed on the output end of the motor two 15 , set in this way, when the vibrating knife device 2 cuts the hollow plate, the pushing mechanism 6 pushes the hollow plate forward, so that the front end of the hollow plate is inserted into the front-end limiting structure 5, and the front-end limiting structure 5 limits it, Start the motor one 10, the motor one 10 moves the slide block 12 through the threaded rod one 11, realizes that the rubber wheel 16 is moved to the top of the cut hollow plate, pushes the rubber wheel 16 to move downward through the hydraulic cylinder 13, and the rubber wheel 16 and the The cut hollow board continues to move downwards after being in contact with the table board 17. At this time, the table board 17 is inclined downward, so that the cut hollow board and the raw material hollow board form a dislocation on the horizontal plane, start the motor 2 15, and the motor Two 15 drives the rubber wheel 16 to rotate, and the rubber wheel 16 rotates to push the cut hollow plate forward along the inclined surface of the table plate 17, so as to push the cut hollow plate out without affecting the cutting operation of the vibrating knife device 2. It not only saves manpower, but also can take out the cut hollow board in the first time.

Embodiment 2: Describe on the basis of Embodiment 1. As shown in FIG. 8 and FIG. 9, the front-end limit structure 5 of the hollow plate includes a square frame 18, a lifting plate 19, and a lifting screw 20, and the square frame 18 is fixedly installed on the On the device frame 1, a lifting plate 19 is slidably installed in the square frame 18, and the lifting screw 20 is threadedly connected with the threaded through hole provided on the square frame 18. , set in this way, adjust the height of the lifting plate 19 through the lifting screw 20, realize the adjustment of the distance between the lifting plate 19 and the square frame 18, and meet the limit requirements for hollow plates of different thicknesses.

Embodiment Three: Describe on the basis of Embodiment One, as shown in Figure 7 and Figure 10, pushing mechanism 6 comprises motor three 21, push block 22 and threaded rod two 23, and motor three 21 is fixedly installed on device rack 1 One end of the threaded rod two 23 is fixedly installed on the output end of the motor three 21, the other end of the threaded rod two 23 is rotatably installed in the groove provided on the U-shaped frame 7, and the push block 22 is slidably installed on the device frame 1 In the strip-shaped through hole provided above, the push block 22 is threadedly connected with the threaded rod two 23, so set, the threaded rod two 23 is driven by the motor three 21 to rotate, so that the push block 22 pushes the hollow plate to move forward.

Embodiment 4: Describe on the basis of Embodiment 1. As shown in FIG. 5 , the U-shaped frame 7 is provided with a protrusion 24 for positioning, and the table 17 is provided with a groove 25 for placing the protrusion 24 , set in this way, the protrusion 24 can limit the position of the table 17 to ensure that the position of the table 17 is level.

Embodiment 5: Explain on the basis of Embodiment 1, as shown in Figure 2 and Figure 3, the circumferential direction of the rubber wheel 16 is provided with anti-slip lines, so set, the anti-slip lines are set to increase the friction between the rubber wheel 16 and the hollow plate The role of force.

Embodiment 6: Describe on the basis of Embodiment 1, as shown in Figure 2, the U-shaped frame 7 is fixedly installed with an arc-shaped tube 27 for positioning, and the arc-shaped tube 27 is placed inside the spring 8, so set , The arc-shaped tube 27 has a position-limiting effect on the spring 8, so as to prevent the spring 8 from breaking when the spring 8 is squeezed due to excessive distortion.

Embodiment 7: Explain on the basis of Embodiment 2, as shown in Figure 1, the bottom surface inside the square frame 18 and the upper end surface of the table 17 are located on the same horizontal plane, so set, the plate can be pushed into the square frame 18 smoothly Inside.

Working principle: After the vibrating knife equipment 2 cuts the hollow plate, start the motor 3 21, and the motor 3 21 drives the threaded rod 2 23 to rotate, so that the push block 22 slides forward, thereby pushing the hollow plate to move forward, so that the hollow plate The front end is inserted into the gap between the square frame 18 and the lifting plate 19, and the position of the lifting plate 19 is adjusted by rotating the lifting screw 20. The distance between the square frame 18 and the lifting plate 19 can be preset in advance according to the thickness of the processed hollow plate. Start the motor one 10, the motor one 10 moves the slide block 12 through the threaded rod one 11, realizes that the rubber wheel 16 is moved to the top of the cut hollow plate, pushes the rubber wheel 16 to move downward through the hydraulic cylinder 13, and the rubber wheel 16 and the The cut hollow board continues to move downwards after being in contact with the table board 17. At this time, the table board 17 is inclined downward, so that the cut hollow board and the raw material hollow board form a dislocation on the horizontal plane, start the motor 2 15, and the motor Two 15 drives the rubber wheel 16 to rotate, and the rubber wheel 16 rotates to push the cut hollow plate forward along the inclined surface of the table plate 17, so as to push the cut hollow plate out without affecting the cutting operation of the vibrating knife device 2. It not only saves manpower, but also can take out the cut hollow board in the first time.

It can be understood that the utility model is described through some embodiments, and those skilled in the art know that various changes or equivalents can be made to these features and embodiments without departing from the spirit and scope of the utility model replace. In addition, the features and embodiments may be modified to adapt a particular situation and material to the teachings of the invention without departing from the spirit and scope of the invention. Therefore, the present utility model is not limited by the specific embodiments disclosed here, and all embodiments falling within the scope of the claims of the present application belong to the protection scope of the present utility model.

Claims (8)

1. A hollow plate cutting machine, comprising a device frame (1), vibrating knife equipment (2) and X and Y direction mobile equipment (3), said device frame (1) is equipped with X and Y direction mobile equipment ( 3), a vibrating knife device (2) is installed on the X- and Y-direction mobile equipment (3), and it is characterized in that a discharge mechanism (4) is installed on the device frame (1), and the device frame (1) is installed There is a front-end limiting structure (5), and a pushing mechanism (6) is installed on the device frame (1); Described discharge mechanism (4) comprises U-shaped frame (7), spring (8), top frame (9), motor one (10), threaded rod one (11), slide block (12), hydraulic cylinder (13 ), connecting frame (14), motor two (15), rubber wheel (16) and table plate (17), U-shaped frame (7) is fixedly installed on the device frame (1), and rotates on the U-shaped frame (7) Table (17) is installed, and an end of spring (8) is fixedly installed on the lower surface of table (17), and the other end of spring (8) is fixedly installed on the U-shaped frame (7), and U-shaped frame (7) ) is fixedly installed with a top frame (9), the through hole of the top frame (9) is fixedly equipped with a motor one (10), and one end of the threaded rod one (11) is fixedly mounted on the output end of the motor one (10) On the top, the other end of the threaded rod one (11) is rotatably installed in the groove provided on the top frame (9), and the slider (12) is slidably installed in the track groove (26) provided on the top frame (9). Block (12) is threadedly connected with threaded rod one (11), and hydraulic cylinder (13) is fixedly installed on the slide block (12), and the output end of hydraulic cylinder (13) is fixedly installed with connecting frame (14), connecting frame (14) ) is fixedly installed with motor two (15), and the output end of motor two (15) is fixedly installed with rubber wheels (16). 2. A hollow plate cutting machine according to claim 1, characterized in that, the front end stop structure (5) of the hollow plate comprises a square frame (18), a lifting plate (19) and a lifting screw (20), The square frame (18) is fixedly mounted on the device frame (1), and the lifting plate (19) is slidably installed in the square frame (18), and the lifting screw (20) is threadedly connected with the threaded through hole provided on the square frame (18) , the lifting screw (20) is rotatably installed in the groove provided on the lifting plate (19). 3. A kind of hollow plate cutting machine according to claim 1, characterized in that, the pushing mechanism (6) includes motor three (21), push block (22) and threaded rod two (23), motor three ( 21) fixedly installed on the lower end face of the device frame (1), one end of the threaded rod two (23) is fixedly mounted on the output end of the motor three (21), and the other end of the threaded rod two (23) is rotatably mounted on the U-shaped frame ( 7) In the groove provided on the top, the push block (22) is slidably installed in the bar-shaped through hole provided on the device frame (1), and the push block (22) is threadedly connected with the threaded rod two (23). 4. A hollow plate cutting machine according to claim 1, characterized in that, the U-shaped frame (7) is provided with a protrusion (24) for positioning. 5. A hollow board cutting machine according to claim 4, characterized in that, the table (17) is provided with a groove (25) for placing the protrusion (24). 6. A hollow plate cutting machine according to claim 1, characterized in that, the rubber wheel (16) is provided with anti-slip lines in the circumferential direction. 7. A hollow plate cutting machine according to claim 1, characterized in that, the U-shaped frame (7) is fixedly installed with an arc tube (27) for positioning, and the arc tube (27) is placed Inside of the spring (8). 8. A hollow plate cutting machine according to claim 2, characterized in that, the bottom surface inside the square frame (18) and the upper end surface of the table plate (17) are located on the same horizontal plane.
