Abstract
The utility model discloses a be used for fashioned log blowing device of warm-heading of aviation layer board nut relates to blowing device technical field, including fixed box and rack, the last fixed surface of fixed box is connected with the fixed plate, and the last fixed surface of fixed plate is connected with a plurality of pivots, and the lower extreme of a plurality of pivots runs through the relevant position of fixed plate upper surface respectively and extends to the relevant position of fixed box inner wall below, the equal fixedly connected with transfer roller in top of a plurality of pivot axle walls. The utility model discloses can carry out driven time to raw and other materials at a plurality of transfer rollers, press the briquetting according to the arc in the pressing means earlier and carry out raw and other materials spacing, just so can guarantee that raw and other materials can not rock when carrying out the conveying through the transfer roller, avoided if two transfer roller rotational speed are too fast, the condition that can lead to raw and other materials to come off from two corresponding transfer rollers takes place, improved the work efficiency of equipment, improved the practicality of equipment.
Description
Technical Field
The utility model relates to a blowing technical field, in particular to be used for fashioned former material blowing device of warm-heading of aviation layer board nut.
Background
The aviation support plate nut is produced through warm upsetting forming, some raw materials are inevitably placed before the warm upsetting forming, and the raw materials are subjected to discharging, calibrating, cutting, clamping and other processes.
A former material blowing device that is used for aviation layer board nut warm-heading fashioned traditionally uses the transfer roller to convey when conveying raw and other materials, but fails in the use and carries on spacingly to raw and other materials, if two transfer roller rotational speed are too fast, can lead to raw and other materials to drop from two corresponding transfer rollers to lead to the unable normal operating of equipment, reduced the work efficiency of equipment, the practicality is not high.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a former material blowing device for aviation layer board nut warm-heading shaping to solve and propose in the above-mentioned background art when conveying raw and other materials, use the transfer roller to convey usually, but fail to carry on spacingly to raw and other materials in the use, if two transfer roller rotational speed are too fast, can lead to raw and other materials to drop from two corresponding transfer rollers, thereby lead to the unable normal operating of equipment, reduced the work efficiency of equipment, the not high problem of practicality.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a former material blowing device for aviation layer board nut warm-heading shaping, includes fixed box and rack, the last fixed surface of fixed box is connected with the fixed plate, the last fixed surface of fixed plate is connected with a plurality of pivots, and the lower extreme of a plurality of pivots runs through the relevant position of fixed plate upper surface respectively and extends to the relevant position of fixed box inner wall below, and is a plurality of the equal fixedly connected with transfer roller in top of pivot axle wall, the lower surface of a plurality of transfer rollers rotate with the relevant position of fixed plate upper surface respectively and are connected, and are a plurality of the equal fixedly connected with driving gear in below of pivot axle wall, be provided with slewing mechanism in the fixed box, a plurality of fixed blocks of last fixed surface fixedly connected with of fixed plate, it is a plurality of the right side surface of fixed block all is seted up flutedly, and is a plurality of the inside of recess all is provided with pressing mechanism.
Preferably, slewing mechanism includes the motor, the lower surface of motor and the center department fixed connection of fixed box inner wall below front side, the output of motor and the lower extreme fixed connection of front side center department pivot, the corresponding one side of rear side the common meshing of one side surface relative of driving gear is connected with driven gear.
Preferably, the pressing mechanism includes an electric slide rail, a rear side surface of the electric slide rail is fixedly connected with a rear side of an inner wall of the groove, a sliding groove is formed in a front side of the inner wall of the groove, a moving block is slidably connected to an inner wall of the sliding groove, an electric slider is slidably connected to an inner wall of the electric slide rail, a rear side surface of the moving block is fixedly connected with a front side surface of the electric slider, a fixed rod is fixedly connected to a lower surface of the moving block, an arc-shaped pressing block is fixedly connected to a lower end of the fixed rod, and an opening is formed in a left side below the inner wall of the groove.
Preferably, the rack includes circular base, the first fixed axle of center department fixedly connected with of circular base upper surface, the circular fixed block of center department fixedly connected with of first fixed axle pole wall, the first round bar of the equal fixedly connected with in four sides of circular fixed block, it is a plurality of the equal fixedly connected with second round bar in one side of first round bar pole wall, raw and other materials have been placed to the top of rack.
Preferably, the left side and the right side of the lower surface of the fixing box are fixedly connected with supporting legs.
Preferably, the lower ends of the two driven gears are rotatably connected with second fixed shafts, and the lower ends of the two second fixed shafts are fixedly connected with the lower portions of the inner walls of the fixed boxes.
Preferably, the fixing plate is made of stainless steel.
The utility model discloses a technological effect and advantage:
1. through setting up the fixed box, the rack, the fixed plate, the apparatus further comprises a rotating mechanism, and a rotating shaft, the transfer roller, the driving gear, slewing mechanism, pressing mechanism, the fixed block, the recess, can carry out driven time to raw and other materials at a plurality of transfer rollers, it is spacing to carry out raw and other materials according to the briquetting through the arc in the pressing mechanism earlier, just so can guarantee that raw and other materials can not rock when carrying out the conveying through the transfer roller, if two transfer roller slew velocity are too fast, the condition that can lead to raw and other materials to drop from two corresponding transfer rollers takes place, the work efficiency of equipment is improved, the practicality of equipment is improved.
2. Through setting up circular base, second fixed axle, circular fixed block, first round bar, second round bar, raw and other materials, be convenient for place raw and other materials, place raw and other materials in the outside of a plurality of first round bars, it is spacing that corresponding second round bar carries out the annular to it, the condition of knoing can not appear, guarantees the stationarity of transportation.
3. Through setting up the supporting leg, can guarantee that equipment places subaerial more stable, set up the second fixed axle, can make two more steady rotations of driven gear, guarantee the normal operation of equipment, set up the fixed plate into stainless steel, improved its wearability and corrosion resistance, improved the life of equipment.
Drawings

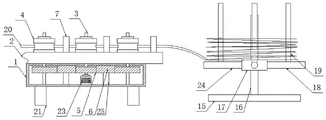

Fig. 1 is a schematic plan sectional view of the present invention.
Fig. 2 is a schematic view of the ground plan structure of the present invention.
Fig. 3 is a schematic view of the top-view section structure of the fixing box of the present invention.
Fig. 4 is a schematic view of the three-dimensional structure of the placing rack of the present invention.
Fig. 5 is a schematic view of the top plan structure of the fixing block of the present invention.
Fig. 6 is a schematic view of the right side plane structure of the fixing block of the present invention.
In the figure: 1. a fixing box; 2. a fixing plate; 3. a rotating shaft; 4. a conveying roller; 5. a driving gear; 6. a driven gear; 7. a fixed block; 8. a groove; 9. an electric slide rail; 10. an electric slider; 11. a moving block; 12. a chute; 13. fixing the rod; 14. an arc pressing block; 15. a circular base; 16. a first fixed shaft; 17. a round fixed block; 18. a first round bar; 19. a second round bar; 20. raw materials; 21. supporting legs; 23. a motor; 24. placing a rack; 25. a second fixed shaft; 26. and (4) opening.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts all belong to the protection scope of the present invention.
The utility model provides a be used for fashioned former material blowing device of warm-heading of aviation layer board nut as shown in fig. 1-6, including fixed box 1 and rack 24, the last fixed surface of fixed box 1 is connected with fixed plate 2, a plurality of pivots 3 of the last fixed surface of fixed plate 2, the lower extreme of a plurality of pivots 3 runs through the relevant position of fixed plate 2 upper surface respectively and extends to the relevant position of fixed box 1 inner wall below, the equal fixedly connected with transfer roller 4 in top of a plurality of pivot 3 axle walls, the lower surface of a plurality of transfer rollers 4 rotates with the relevant position of fixed plate 2 upper surface respectively and is connected, the equal fixedly connected with driving gear 5 in below of a plurality of pivot 3 axle walls, be provided with slewing mechanism in the fixed box 1, the last fixed surface of fixed plate 2 is connected with a plurality of fixed blocks 7, the right side surface of a plurality of fixed blocks 7 all sets up flutedly 8, the inside of a plurality of flutedly 8 all is provided with pressing mechanism, can carry out driven when a plurality of transfer rollers 4 carry out raw and expect 20, the arc pressing block 14 carries out spacing with raw and carry out the spacing with raw and carry out raw and can not take place the corresponding efficiency improvement from two transport equipment that the corresponding transport efficiency of the transfer roller 4, so can not take place the corresponding fast practicality of the handling equipment.
As shown in fig. 1 and 4, the placing frame 24 includes a circular base 15, a first fixing shaft 16 is fixedly connected to the center of the upper surface of the circular base 15, a circular fixing block 17 is fixedly connected to the center of the rod wall of the first fixing shaft 16, first round rods 18 are fixedly connected to four sides of the circular fixing block 17, second round rods 19 are fixedly connected to one sides of the rod walls of the first round rods 18, raw materials 20 are placed above the placing frame 24, the raw materials 20 are placed conveniently, the raw materials 20 are placed on the outer sides of the first round rods 18, the raw materials are annularly limited by the corresponding second round rods 19, knotting cannot occur, transportation stability is guaranteed, supporting legs 21 are fixedly connected to the left side and the right side of the lower surface of the fixing box 1, and accordingly the equipment can be placed on the ground more stably;
as shown in fig. 1 and 4, the lower extreme of two driven gear 6 all rotates and is connected with second fixed axle 25, the lower extreme of two second fixed axles 25 all with the below fixed connection of fixed box 1 inner wall, can make two driven gear 6 more steady rotation, guarantee the normal operating of equipment, the material of fixed plate 2 is the stainless steel, sets up fixed plate 2 into stainless steel material, has improved its wearability and corrosion resistance, has improved the life of equipment.
The utility model discloses theory of operation: when the device is used, one end of a raw material 20 on a placing rack 24 is placed between a corresponding group of conveying rollers 4, the raw material 20 penetrates through openings 26 in a plurality of fixed blocks 7 to control electric sliding rails 9 in a plurality of grooves 8, so that corresponding electric sliding blocks 10 in the plurality of electric sliding rails 9 move downwards, the plurality of electric sliding blocks 10 drive corresponding movable blocks 11 to move downwards, the other ends of the plurality of movable blocks 11 slide in corresponding sliding grooves 12, the plurality of movable blocks 11 drive corresponding fixing rods 13 to move downwards, the plurality of fixing rods 13 drive corresponding arc-shaped pressing blocks 14 to move downwards, the plurality of arc-shaped pressing blocks 14 press the raw material 20, the raw material 20 is not compressed, and the raw material 20 can slide and is only limited;
just can open motor 23 this moment, motor 23's output drives corresponding pivot 3 and rotates, thereby drive corresponding transfer roller 4 and rotate, drive corresponding driving gear 5 again and rotate, driving gear 5 at front side center drives the central driving gear 5 rotation of rear side, thereby drive two driven gear 6 and rotate on corresponding second fixed axle 25, and then drive a plurality of driving gear 5 of both sides and rotate, and then make a plurality of pivots 3 drive corresponding transfer roller 4 and rotate, thereby convey raw and other materials 20.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, those skilled in the art can still modify the technical solutions described in the foregoing embodiments or make equivalent substitutions on some technical features, and any modifications, equivalent substitutions, improvements, etc. made within the spirit and principles of the present invention should be included in the scope of the present invention.
Claims (7)
1. The utility model provides a former material blowing device that is used for aviation layer board nut warm-heading fashioned, includes fixed box (1) and rack (24), its characterized in that: the utility model discloses a fixed box, including fixed box (1), fixed box (2), the last fixed surface of fixed box (1) is connected with a plurality of pivots (3), and the lower extreme of a plurality of pivots (3) runs through the relevant position of fixed plate (2) upper surface respectively and extends to the relevant position of fixed box (1) inner wall below, and is a plurality of the equal fixedly connected with transfer roller in top (4) of pivot (3) axle wall, the lower surface of a plurality of transfer rollers (4) rotates with the relevant position of fixed plate (2) upper surface respectively and is connected, and is a plurality of the equal fixedly connected with driving gear (5) in below of pivot (3) axle wall, be provided with slewing mechanism in fixed box (1), the last fixed surface of fixed plate (2) is connected with a plurality of fixed blocks (7), and is a plurality of recess (8) are all seted up to the right side surface of fixed block (7), and is a plurality of the inside of recess (8) all is provided with pressing mechanism.
2. The raw material discharging device for the warm upsetting forming of the aviation supporting plate nut as claimed in claim 1, is characterized in that: slewing mechanism includes motor (23), the center department fixed connection of the lower surface of motor (23) and fixed box (1) inner wall below front side, the lower extreme fixed connection of the output of motor (23) and front side center department pivot (3), the corresponding one side of rear side the relative side surface of driving gear (5) meshes jointly and is connected with driven gear (6).
3. The raw material discharging device for the warm upsetting forming of the aviation supporting plate nut as claimed in claim 1, is characterized in that: the pressing mechanism comprises an electric sliding rail (9), the rear side surface of the electric sliding rail (9) is fixedly connected with the rear side of the inner wall of a groove (8), a sliding groove (12) is formed in the front side of the inner wall of the groove (8), a moving block (11) is connected to the inner wall of the sliding groove (12), an electric sliding block (10) is connected to the inner wall of the electric sliding rail (9) in a sliding mode, the rear side surface of the moving block (11) is fixedly connected with the front side surface of the electric sliding block (10), a fixing rod (13) is fixedly connected to the lower surface of the moving block (11), an arc-shaped pressing block (14) is fixedly connected to the lower end of the fixing rod (13), and an opening (26) is formed in the left side below the inner wall of the groove (8).
4. The raw material discharging device for the warm upsetting forming of the aviation supporting plate nut as claimed in claim 1, is characterized in that: the rack (24) comprises a circular base (15), a first fixing shaft (16) is fixedly connected to the center of the upper surface of the circular base (15), a circular fixing block (17) is fixedly connected to the center of the rod wall of the first fixing shaft (16), first round rods (18) are fixedly connected to four sides of the circular fixing block (17), a plurality of second round rods (19) are fixedly connected to one side of the rod wall of the first round rods (18), and raw materials (20) are placed above the rack (24).
5. The raw material discharging device for the warm upsetting forming of the aviation supporting plate nut as claimed in claim 1, is characterized in that: the left side and the right side of the lower surface of the fixed box (1) are fixedly connected with supporting legs (21).
6. The raw material discharging device for the warm upsetting forming of the aviation supporting plate nut as claimed in claim 2, is characterized in that: the lower ends of the two driven gears (6) are rotatably connected with second fixed shafts (25), and the lower ends of the second fixed shafts (25) are fixedly connected with the lower portions of the inner walls of the fixed boxes (1).
7. The raw material discharging device for the warm upsetting forming of the aviation supporting plate nut as claimed in claim 1, is characterized in that: the fixing plate (2) is made of stainless steel.
