Abstract

The utility model relates to the field of debris collection technical equipment, in particular to a debris collection device for metal processing machine tools. The bottom of the groove is connected with a compression groove, and the compression groove is set inside the debris compression collection box, and a collection box groove is opened on the right side of the debris compression collection box, and a collection box is placed in the collection box groove, and the collection box The left side of the box is connected with the compression groove. The beneficial effect of the utility model is: to ensure that the metal debris will not easily fall out of the collection device, thereby reducing the workload of the metal debris collection work; reducing the helical metal debris pile The storage space of the metal debris collection box is effectively utilized; compressing the spiral metal debris into metal debris blocks can reduce the cleaning work of the spiral metal debris and reduce the difficulty of cleaning work.

Description

Chip collection device for metal processing machine tools

technical field

The utility model relates to the field of debris collection technical equipment, in particular to a debris collection device for metal processing machine tools.

Background technique

Metal processing machine tools, as the name implies, are machine tools for processing metal materials. Metal processing machine tools can process metal materials into metal parts of mechanical equipment. Common metal processing machine tools include lathes, milling machines, grinding machines and drilling machines. Metal processing machine tools are used in mechanical engineering. , Vehicle engineering and other fields are widely used and play an extremely important role. Metal processing machine tools generally process metal through tools such as turning tools, milling cutters, and drills. Metal debris will be generated during the processing process. Common metal debris The way of chip collection is to install an anti-collection box or collection tank at the bottom of the machine tool, so that the metal chips generated during metal processing fall into the box to complete the collection of metal chips. For the metal chips that fall on the surface of the machine tool, It is to sweep it into the collection box by cleaning tools, and then carry out centralized cleaning and collection of metal debris in the machine tool box.

The lathes in metal processing machine tools generally produce spiral chips, which are generally long and large in size. When the spiral chips fall into the collection box, they will take up a lot of space. The collection box will be full soon after the work is carried out. After the collection box is filled with such spiral metal debris, the internal gap is still large, and the space of the collection box cannot be used effectively, and the spiral metal debris in the collection box is also It is not easy to collect and clean, and because the collection box at the bottom is far away from the workbench, some metal chips generated during metal processing are easy to fall out of the collection box during the falling process, which increases the difficulty of collecting metal chips.

Therefore, it is necessary to invent a chip collecting device for metal processing machine tools.

Utility model content

For this reason, the utility model provides a debris collection device for metal processing machine tools, which mainly includes a debris compression collection box, a collection groove is opened above the interior of the collection box, and a compression groove is connected to the bottom of the collection groove. The groove is set inside the debris compression collection box. A collection box groove is opened on the right side of the debris compression collection box. A collection box is placed in the collection box groove. The left side of the collection box is connected with the compression groove to Solve the problem that metal debris is easy to fall outside during the falling process, and the problem that metal spiral debris is difficult to clean after the collection box is full.

In order to achieve the above object, the utility model provides the following technical solutions: a debris collection device for metal processing machine tools, including a debris compression collection box and a compression groove, a collection groove is opened above the interior of the collection box, and the collection groove A slant plate is fixedly installed, and the bottom of the collection tank is connected with a compression groove, and the compression groove is set inside the debris compression collection box, and a collection box groove is opened on the right side of the debris compression collection box, and the collection box groove A collection box is placed inside, and the left side of the collection box communicates with the compression tank.

Preferably, inside the debris compression collection box, a cover plate chute is provided in the middle of the collection tank and the compression tank, and a cover plate is slidably connected to the cover plate chute, and the top of the cover plate is fixedly installed There is a handle.

Preferably, a telescopic cylinder groove is opened on the left side inside the debris compression collection box, and a secondary telescopic hydraulic cylinder is fixedly installed in the telescopic cylinder groove.

Preferably, the right side inside the compression tank is connected to the collection box, the left side inside the compression tank is slidably connected to a compression plate, and the expansion rod of the two-stage telescopic hydraulic cylinder is fixedly installed on the left side of the compression plate.

Preferably, the collection box includes a collection box body, the collection box body is slidably installed in the collection box groove, and the left and right sides of the collection box body are provided with collection box holes, and the size of the hole area of the collection box is the same as the area of the compression groove The size is exactly the same as the compression plate area size.

Preferably, the collection box includes a panel, the panel is installed and placed on the surface of the debris compression collection box, the front of the panel is fixedly equipped with handle 2, the back of the panel is fixedly installed with a fixed rod, and the other end of the fixed rod is fixed Mounted on the surface of the collection box.

The beneficial effects of the utility model are:

1. The location of the collection tank is very close to the operation table, which can ensure that most of the metal chips fall from the lathe operation table into the chip collection device, so that the chips will not easily fall out of the collection device, thereby reducing the metal scrap. workload of debris collection work;

2. The debris compression collection device can compress piles of spiral metal debris into massive metal debris blocks, reducing the space volume of the spiral metal debris pile, effectively utilizing the storage space of the collection box, and the three-dimensional metal debris The debris block can also reduce the cleaning work of spiral metal debris, reduce the difficulty of cleaning, and facilitate the subsequent storage and recycling of metal debris;

Description of drawings

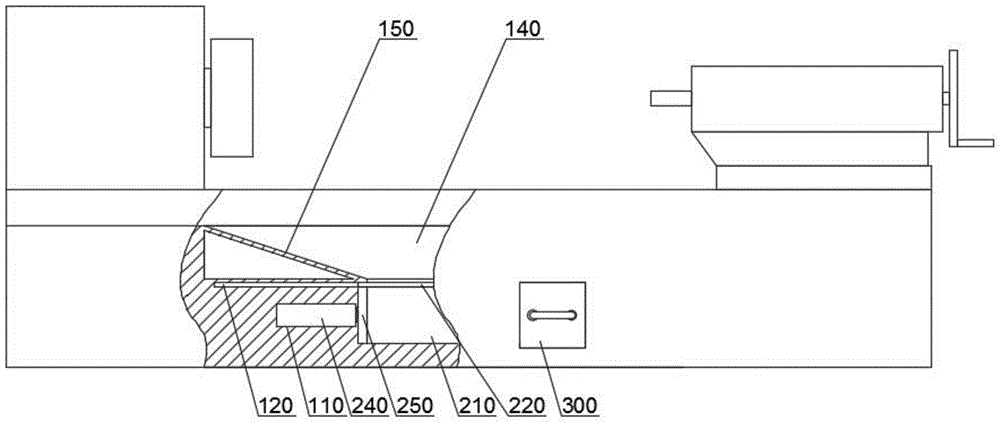

Fig. 1 is the front half sectional view that the utility model provides;

Fig. 2 is the top view that the utility model provides;

Fig. 3 is the full sectional view of the front provided by the utility model;

Fig. 4 is the right side sectional view that the utility model provides;

Fig. 5 is the schematic structural diagram of the collection box provided by the utility model;

Fig. 6 is a front sectional view of the collection box provided by the utility model.

In the figure: debris compression collection box 100, telescopic cylinder groove 110, cover chute 120, collection box groove 130, collection groove 140, inclined plate 150, compression groove 210, cover plate 220, handle 1 230, secondary telescopic hydraulic pressure Cylinder 240, compression plate 250, collection box 300, collection box body 310, collection box hole 320, fixed rod 330, panel 340, handle two 350.

Detailed ways

The preferred embodiments of the present utility model are described below in conjunction with the accompanying drawings. It should be understood that the preferred embodiments described here are only used to illustrate and explain the present utility model, and are not intended to limit the present utility model.

With reference to accompanying drawing 1-6, a kind of debris collection device for metal processing machine tool provided by the utility model comprises debris compression collection box 100 and compression groove 210, and debris compression collection box 100 plays a role in the spiral generated in the lathe work. The collection box 300 is equipped with a collection tank 140, the opening of the collection tank 140 is relatively close to the workbench, which can greatly reduce the metal debris generated during lathe processing from falling to the collector. Outside the box 300, a sloping plate 150 is fixedly installed in the collecting tank 140. The sloping plate 150 can gather metal debris falling on the sloping plate 150 at the bottom of the collecting tank 140, and the bottom of the collecting tank 140 is connected with a compression tank 210. Therefore, the metal chips can slide down into the compression groove 210 through the collection groove 140. The compression groove 210 is used to collect the spiral chips generated during the work of the metal processing machine tool, and compress the spiral chips to reduce the spiral chips. The volume of the chips, the compression groove 210 is set inside the debris compression collection box 100, the right side of the debris compression collection box 100 is provided with a collection box groove 130, and the left side of the collection box groove 130 is provided with a through hole to communicate with the compression groove 210. The front of the collection box groove 130 is also provided with a through hole, which can be connected with the front of the debris compression collection box 100. The collection box 300 is placed in the collection box groove 130. The collection box 300 can slide along the front through hole of the collection box groove 130. The collection box 300 is used to collect and store the compressed spiral metal chips, and it is also convenient to take out the processed spiral metal chips from the chip compression collection box 100. The left side of the collection box 300 is connected with the compression groove 210, so the compression groove The metal chips in the 210 can enter the collection box 300 from the left side of the collection box 300 .

Further, inside the debris compression collection box 100, a cover chute 120 is provided in the middle of the collection tank 140 and the compression tank 210, and a cover 220 is slidably connected to the cover chute 120, and the cover 220 can be placed on the cover Slide left and right in the chute 120 to connect or block the collection tank 140 and the compression tank 210, pull the cover plate 220 to make the spiral metal debris enter the compression tank 210 from the collection tank 140, close the cover plate 220 to prevent the compression tank The metal debris in 210 flies out from the compression groove 210 during the extrusion process, and a handle 230 is fixedly installed on the top of the cover plate 220, and the handle 230 is convenient for the staff to pull the cover plate 220 left and right;

Furthermore, the left side of the debris compression collection box 100 is provided with a telescopic cylinder groove 110, and the telescopic cylinder groove 110 is used to fix the secondary telescopic hydraulic cylinder 240, so as to ensure that the secondary telescopic hydraulic cylinder 240 can work smoothly and prevent the secondary telescopic hydraulic cylinder from 240 is shifted during work and causes a failure. A secondary telescopic hydraulic cylinder 240 is fixedly installed in the telescopic cylinder groove 110. The secondary telescopic hydraulic cylinder 240 can drive the compression plate 250 in the compression groove 210 to move back and forth, which is a compression helical metal Detritus works to provide power;

Further, the right side inside the compression tank 210 is connected with the collection box 300, the left side inside the compression tank 210 is slidably connected with the compression plate 250, the expansion rod of the secondary telescopic hydraulic cylinder 240 is fixedly installed on the left side of the compression plate 250, and the secondary telescopic The telescopic rod of the hydraulic cylinder 240 can drive the compression plate 250 to move left and right, and the compression plate 250 can squeeze the threaded metal scraps inside the compression tank 210 into the collection box 300 located on the right side of the compression tank 210. It can also compress the volume of threaded metal chips and compress them into three-dimensional metal chips, so as to facilitate the cleaning, movement and processing of threaded metal chips;

Further, the collection box 300 includes a collection box body 310, the collection box body 310 is a structure for the collection box 300 to accommodate and place metal scraps, the collection box body 310 is slidably installed in the collection box groove 130, and the left and right sides of the collection box body 310 A collection box hole 320 is provided, and metal scraps can enter the collection box body 310 from the collection box hole 320 on the left side. Out of the collection box 300, push the compressed metal debris block from the collection box hole 320 and the metal debris block can be taken out from the collection box body 310. The area of the collection box hole 320 is the same as that of the compression groove 210 and the compression plate 250 The size of the area is exactly the same, so as to ensure that the threaded metal debris is smoothly compressed into a metal debris block;

Further, the collection box 300 includes a panel 340, the panel 340 is installed and placed on the surface of the debris compression collection box 100, the front of the panel 340 is fixedly equipped with a handle 2 350, the handle 2 350 can easily pull the panel 340, and the back of the panel 340 is fixedly installed with Fixed rod 330, the other end of fixed rod 330 is fixedly installed on the surface of collection box 300, because collection box body 310 is far away from panel 340, fixed rod 330 is used for connecting collection box body 310 and panel 340, can facilitate the staff to collect box body 310 is pulled out from the collection box groove 130;

The use process of the present utility model is as follows: after the lathe is used, those skilled in the art will clean other spiral metal debris scattered on the lathe workbench into the collection tank 140, when the spiral metal debris enters from the collection tank 140 After entering the compression groove 210, pull the cover plate 220 to close the compression groove 210, and then start the secondary telescopic hydraulic cylinder 240, the secondary telescopic hydraulic cylinder 240 drives the compression plate 250 to move, and squeezes the spiral metal debris in the compression groove 210 Press it into the collection box body 310, so that it is compressed into a piece of metal debris in the collection box body 310. After the compression is completed, the compression plate 250 returns to its original position, and the handle 2 350 is pulled to pull the collection box 300 out of the collection box groove 130. , push the metal debris block from the collection box hole 320 to take out the metal debris block and place it in a fixed storage position, then put the collection box 300 back to its original position, and then pull the handle one 230 to open the cover plate 220 to prepare for the next crushing Chip collection.

The above are only preferred embodiments of the present utility model, and any person skilled in the art may use the above-mentioned technical solutions to modify the present utility model or modify it into an equivalent technical solution. Therefore, any simple modification or equivalent replacement made according to the technical solution of the utility model belongs to the protection scope of the utility model.

Claims (6)

1. A chip collection device for a metal working machine tool, comprising a chip compression collection box (100) and a compression groove (210), characterized in that: the collecting tank (140) is arranged above the inside of the collecting tank (300), the inclined plate (150) is fixedly mounted in the collecting tank (140), the compression tank (210) is arranged in the fragment compression collecting tank (100), the collecting tank groove (130) is arranged on the right side of the inside of the fragment compression collecting tank (100), the collecting tank (300) is placed in the collecting tank groove (130), and the left side of the collecting tank (300) is communicated with the compression tank (210).

2. The chip collecting device for a metal working machine according to claim 1, wherein: inside the debris compression collection box (100), a cover plate sliding groove (120) is formed in the middle of the collection groove (140) and the compression groove (210), a cover plate (220) is connected in the cover plate sliding groove (120) in a sliding mode, and a first handle (230) is fixedly installed at the top of the cover plate (220).

3. The chip collecting device for a metal working machine according to claim 1, wherein: a telescopic cylinder groove (110) is formed in the left side of the inner portion of the debris compression collection box (100), and a secondary telescopic hydraulic cylinder (240) is fixedly mounted in the telescopic cylinder groove (110).

4. A chip collecting device for a metal working machine according to claim 3, wherein: the right side in the compression groove (210) is communicated with the collection box (300), the left side in the compression groove (210) is connected with a compression plate (250) in a sliding mode, and a telescopic rod of the two-stage telescopic hydraulic cylinder (240) is fixedly installed on the left side of the compression plate (250).

5. A chip collecting apparatus for a metal working machine according to claim 1, wherein: the collecting box (300) comprises a collecting box body (310), the collecting box body (310) is slidably mounted in the collecting box groove (130), collecting box holes (320) are formed in the left side and the right side of the collecting box body (310), and the area size of the collecting box holes (320) is completely the same as that of the compression groove (210) and that of the compression plate (250).

6. The chip collecting device for a metal working machine according to claim 5, wherein: the collection box (300) comprises a panel (340), the panel (340) is installed and placed in the surface of the debris compression collection box (100), a second handle (350) is fixedly installed on the front side of the panel (340), a fixing rod (330) is fixedly installed on the back of the panel (340), and the other end of the fixing rod (330) is fixedly installed on the surface of the collection box (300).
