Abstract
The utility model provides a dust removal pipeline ash removal device, includes pipeline (1), pipeline (1) both ends are connected and are equipped with mount (2), two middle part is connected and is equipped with screw rod (4) between mount (2), cup joint on screw rod (4) and be equipped with deashing mechanism (6) that are used for clearing up on pipeline (1) inner wall, be equipped with a plurality of slides (5) in pipeline (1), deashing mechanism (6) are connected with slide (5) cooperation, deashing mechanism (6) are including removing frame (601), it is equipped with a plurality of recesses, and is a plurality of to remove frame (601) tip the recess fit is equipped with wheel (604), wheel (604) are connected with the recess cooperation through connecting axle (605), be equipped with link (602) in removing frame (601), link (602) middle part is equipped with screw hole (603). Compared with the prior art, the utility model the advantage lies in: accumulated dust in the pipeline can be efficiently cleaned, and the operation is convenient.
Description
Technical Field
The utility model relates to a pipeline deashing technical field specifically indicates a dust removal pipeline deashing device.
Background
Traditional manufacturing shop generally is equipped with dust pelletizing system, and dust pelletizing system generally includes dust removal pipeline, filter and dust exhausting fan, and the dust in with the workshop through dust removal pipeline suction to the filter discharge after filtering through dust exhausting fan. The horizontal dust removal pipeline is a dust removal pipeline section which is horizontally arranged in the dust removal pipeline, dust is very easy to accumulate in the horizontal dust removal pipeline, tools such as a scraper blade and a hairbrush are generally manually used for manually cleaning the accumulated dust in the pipeline, and the dust cleaning mode of the horizontal dust removal pipeline is high in labor intensity and low in dust cleaning efficiency.
SUMMERY OF THE UTILITY MODEL
The to-be-solved technical problem of the utility model is, overcome prior art shortcoming, provide a dust removal pipeline ash removal device, rational in infrastructure, accumulational dust in can high-efficient clearance pipeline, the simple operation.
For solving above-mentioned technical problem, a dust removal pipeline ash removal device, the pipeline comprises a pipeline, the connection of pipeline both ends is equipped with the mount, two the middle part is connected and is equipped with the screw rod between the mount, cup joint on the screw rod and be equipped with the deashing mechanism that is used for clearing up on the pipeline inner wall, be equipped with a plurality of slides in the pipeline, deashing mechanism is connected with the slide cooperation, deashing mechanism is including removing the frame, it is equipped with a plurality of recesses, and is a plurality of to remove a frame tip the recess fit in is equipped with the wheel, the wheel passes through the connecting axle and is connected with the recess cooperation, it is equipped with link one in the frame to remove, link one middle part is equipped with the screw hole.
Furthermore, the wheels correspond to the slideways one by one.
Furthermore, the first connecting frame is in a cross shape.
Further, a brush is arranged on the outer wall of the movable frame and attached to the inner wall of the pipeline.
Furthermore, one end of the screw rod penetrates through and extends out of the fixing frame, and the motor is connected to the end of the screw rod.
Furthermore, a cross-shaped connecting frame II is arranged in the fixing frame, a through hole is formed in the middle of the connecting frame II, and the inner diameter of the fixing frame is equal to that of the pipeline.
Compared with the prior art, the utility model the advantage lie in: the device is provided with the motor, the screw and the ash removal mechanism, so that dust accumulated in a pipeline can be efficiently removed, and the working intensity of workers is reduced; the wheel that the device was equipped with not only can make the deashing mechanism remove in the slide, makes the deashing mechanism can remove in the pipeline steadily with the screw rod cooperation moreover.
Drawings

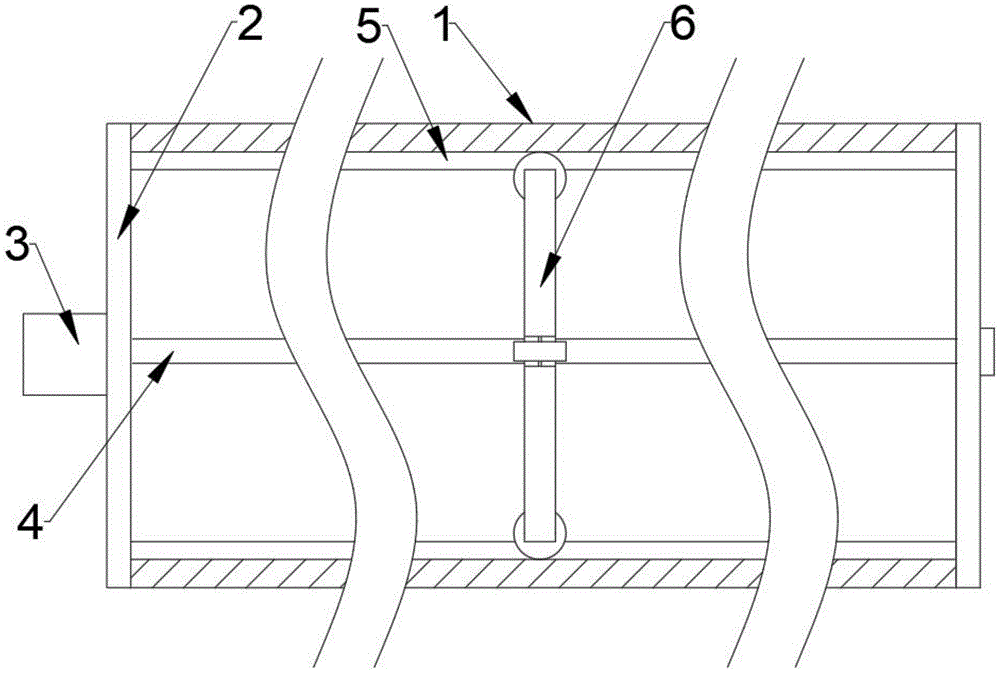

Fig. 1 is a schematic structural diagram of the ash removal device for the dust removal pipeline of the present invention.
Fig. 2 is a sectional view of the ash cleaning mechanism of the ash cleaning device for the dust removing pipeline of the utility model.
Fig. 3 is a side view of the fixing frame of the ash removing device for dust removing pipe of the present invention.
Fig. 4 is a partially enlarged view of a point a on fig. 2.
As shown in the figure: 1. a pipeline; 2. a fixed mount; 3. a motor; 4. a screw; 5. a slideway; 6. a dust removal mechanism; 7. a second connecting frame; 8. a through hole; 601. a movable frame; 602. a first connecting frame; 603. a threaded hole; 604. a wheel; 605. and (7) connecting the shafts.
Detailed Description
In the description of the present invention, it is to be understood that the terms "center", "lateral", "upper", "lower", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, but do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, are not to be construed as limiting the present invention. Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless otherwise specified. Furthermore, the term "comprises" and any variations thereof is intended to cover non-exclusive inclusions.
The present invention will be described in further detail with reference to the accompanying drawings.
With reference to the attached drawings 1, 2, 3 and 4, the dust removing device for the dust removing pipeline comprises a pipeline 1, wherein two ends of the pipeline 1 are connected with a fixed frame 2, a cross-shaped connecting frame II 7 is arranged in the fixed frame 2, a through hole 8 is formed in the middle of the connecting frame II 7, the inner diameter of the fixed frame 2 is equal to that of the pipeline 1, so that a moving frame 601 can discharge accumulated dust out of the pipeline 1, a screw rod 4 is connected to the middle between the two fixed frames 2, one end of the screw rod 4 penetrates through the fixed frame 2 and is provided with a motor 3, the motor 3 is controlled to be started, so that a dust removing mechanism 6 can start dust removing work, the operation is convenient, the dust removing mechanism 6 used for cleaning the inner wall of the pipeline 1 is sleeved on the screw rod 4, be equipped with a plurality of slides 5 in the pipeline 1, deashing mechanism 6 is connected with the cooperation of slide 5, deashing mechanism 6 is including removing frame 601, it is equipped with a plurality of recesses, a plurality of to remove frame 601 tip the recess fit in is equipped with wheel 604, wheel 604 and slide 5 one-to-one control, wheel 604 remove in slide 5, wheel 604 passes through connecting axle 605 and is connected with the recess cooperation, be equipped with link one 602 in the removal frame 601, link one 602 is the cross, can guarantee to remove the stability when frame 601 removes, be equipped with the brush on removing frame 601 outer wall, the laminating of brush and pipeline 1 inner wall is convenient for will pile up the dust clean up on pipeline 1 inner wall, a link 602 middle part is equipped with screw hole 603.
The utility model discloses when concrete implementation, when needing the deashing in the pipeline, open the motor, the motor drives the screw rod and rotates, under the drive of screw rod, the link moves at first, and the link drives and moves the frame and remove, and the wheel removes in the slide, removes the brush on the in-process removal frame outer wall and will pile up outside the dust on the inner wall clears up out the pipeline from a left side to the right side.
The present invention and the embodiments thereof have been described above, but the description is not limited thereto, and the embodiment shown in the drawings is only one of the embodiments of the present invention, and the actual structure is not limited thereto. In summary, those skilled in the art should understand that they should not be limited to the embodiments described above, and that they can design the similar structure and embodiments without departing from the spirit of the invention.
Claims (6)
1. The utility model provides a dust removal pipeline ash removal device, includes pipeline (1), its characterized in that: pipeline (1) both ends are connected and are equipped with mount (2), two middle part is connected and is equipped with screw rod (4) between mount (2), cup joint on screw rod (4) and be equipped with deashing mechanism (6) that are used for clearing up on pipeline (1) inner wall, be equipped with a plurality of slides (5) in pipeline (1), deashing mechanism (6) are connected with slide (5) cooperation, deashing mechanism (6) are including removing frame (601), it is equipped with a plurality of recesses, and is a plurality of to remove frame (601) tip the recess fit is equipped with wheel (604), wheel (604) are connected with the recess cooperation through connecting axle (605), be equipped with link (602) in removing frame (601), link (602) middle part is equipped with screw hole (603).
2. The dust removal pipeline ash removal device as claimed in claim 1, wherein: the wheels (604) correspond to the slide ways (5) one by one.
3. The dust removal pipeline ash removal device of claim 1, wherein: the first connecting frame (602) is in a cross shape.
4. The dust removal pipeline ash removal device of claim 1, wherein: the outer wall of the moving frame (601) is provided with a brush, and the brush is attached to the inner wall of the pipeline (1).
5. The dust removal pipeline ash removal device of claim 1, wherein: one end of the screw rod (4) penetrates through the fixing frame (2) to extend out, and the motor (3) is connected to the end of the screw rod (4).
6. The dust removal pipeline ash removal device of claim 1, wherein: a cross connecting frame II (7) is arranged in the fixing frame (2), a through hole (8) is formed in the middle of the connecting frame II (7), and the inner diameter of the fixing frame (2) is equal to that of the pipeline (1).
