A stirring tank for anti-rust oil processing

technical field

The utility model relates to the technical field of antirust oil processing, in particular to a stirring tank for antirust oil processing.

Background technique

Anti-rust oil is an oil solvent with reddish-brown appearance and anti-rust function. It is composed of oil-soluble corrosion inhibitor, base oil and auxiliary additives. According to the performance and usage, the anti-rust oil can be divided into fingerprint removal type anti-rust oil, water-diluted anti-rust oil, solvent-diluted anti-rust oil, anti-rust and lubricating dual-purpose oil, sealed anti-rust oil, replacement type anti-rust oil, Thin layer oil, antirust grease and vapor phase antirust oil, etc.

Before the anti-rust oil is produced, it is necessary to use a mixing tank to stir the anti-rust oil, so that the substances in the anti-rust oil can be mixed better, so as to ensure the final product quality of the anti-rust oil. When the mixing tank is used for the anti-rust oil After the mixing is completed, due to the high viscosity of the anti-rust oil itself, when transporting the stirred anti-rust oil, because the existing mixing tank does not have the function of scraping the anti-rust oil on the inner wall of the mixing tank, and then when the output After the feed port is opened, the anti-rust oil will flow out from the discharge port due to its own gravity, but the anti-rust oil adsorbed on the inner wall of the mixing tank cannot flow out of the mixing tank smoothly, and it needs to stand for a long time to make the anti-rust oil on the inner wall The oil flows out from the inside of the mixing tank, which is not conducive to the discharge of the stirred anti-rust oil, reduces the efficiency of the anti-rust oil discharged from the mixing tank, and then delays the subsequent processing of the anti-rust oil, and ultimately reduces the entire anti-rust oil processing. the progress of the project.

Utility model content

(1) Solved technical problems

Aiming at the deficiencies of the prior art, the utility model provides a mixing tank for anti-rust oil processing, which has the advantages of being more conducive to the discharge of the anti-rust oil and making the agitation of the anti-rust oil more uniform, and solves the problems caused by the existing stirring tank. The tank does not have the function of scraping the anti-rust oil on the inner wall of the mixing tank, which reduces the efficiency of discharging the anti-rust oil from the mixing tank.

(2) Technical solution

In order to achieve the above purpose of being more conducive to the discharge of the anti-rust oil and to make the agitation of the anti-rust oil more uniform, the utility model provides the following technical proposal: a stirring tank for processing anti-rust oil, including a stirring tank, the shape of the stirring tank The bottom of the mixing tank is constricted, the inside of the mixing tank is provided with a sound insulation layer, the top of the mixing tank is provided with a feed port, the bottom of the mixing tank is connected to a discharge port, and the top of the mixing tank is fixedly connected to a motor, which is located on the eccentric of the top of the mixing tank. The bottom output end of the motor extends to the inside of the stirring tank, the surface of the bottom output end of the motor is fixedly sleeved with the main gear, the inside of the stirring tank is equipped with a stirring device, and the inside of the stirring tank is provided with a convenient discharge device.

Preferably, the stirring device includes a stirring rod, the stirring rod is located at the center of the stirring tank, the surface of the stirring rod is fixedly sleeved with a pinion gear, the main gear is engaged with the pinion gear, and the surface of the stirring rod is fixedly connected with three stirring blades , the structures on the three stirring blades are the same, and a first channel is opened on the surface of the stirring blades.

Preferably, the convenient discharge device includes a threaded rod, which is threadedly connected to the center of the top of the stirring tank, and a first groove is opened inside the stirring rod, and the bottom of the threaded rod extends through the inner wall of the stirring tank to the first groove Inside, the bottom in the first groove is rotatably connected with a rotating rod.

Preferably, the bottom of the threaded rod is fixedly connected with a slide bar, and the top of the rotating bar is provided with a chute, and the slide bar is slidably connected inside the chute, and the bottom of the slide bar and the chute are in the shape of an isosceles trapezoid and correspond to each other. match.

Preferably, a third channel is opened on the front side of the stirring blade, a second groove is opened on the rear side of the stirring blade, a scraper is slidably connected to the inside of the second groove, and the rear side of the scraper is inclined.

Preferably, the surface of the rotating rod is fixedly sleeved with three gears, and the structures on the three gears are all the same, and three second channels are opened inside the first groove, and the three second channels are respectively located in the first groove On the front and rear sides of the top, the second channel communicates with the third channel, and the positions of the three second channels are consistent with the three gears.

Preferably, the surface of the gear is meshed with a tooth plate, the tooth plate extends through the first groove and the second channel to the inside of the third channel, the tooth plate is slidingly connected in the second channel and the third channel, and the tooth plate is away from the third channel. One side of the gear is fixedly connected with the front side of the scraper.

(3) Beneficial effects

Compared with the prior art, the utility model provides a stirring tank for anti-rust oil processing, which has the following beneficial effects:

1. The mixing tank for anti-rust oil processing rotates the threaded rod when outputting the stirred anti-rust oil, the rotation of the threaded rod drives the rotation of the rotating rod, and finally drives the three scrapers to leave from the inside of the three second grooves, Finally, three scrapers are used to scrape the oil inside the mixing tank, thereby effectively avoiding too much anti-rust oil when leaving the mixing tank. The anti-rust oil is relatively sticky and adsorbed on the inner wall of the mixing tank, which is not easy to remove from the mixing tank. The internal discharge can effectively promote the discharge of the anti-rust oil in the mixing tank, which is more conducive to improving the use effect of the overall device.

2. The mixing tank for anti-rust oil processing, by retracting the three scrapers into the second groove, can effectively prevent the three scrapers from generating a large friction force on the inner wall when the three mixing blades are working normally. , and then has a blocking effect on the rotation of the three stirring blades, effectively improving the smoothness of the three stirring blades during stirring, avoiding the influence of the three scrapers on it, and effectively improving the flexibility of the overall device in use. It is more conducive to the use of the overall device.

3. The stirring tank for anti-rust oil processing, by turning on the motor, finally drives the three stirring blades to start stirring the anti-rust oil, and then effectively makes the internal substances of the anti-rust oil pass through the stirring process during the production process, and then mixes more Evenly and effectively improve the production quality of anti-rust oil.

4. The mixing tank for anti-rust oil processing, because the rear side of the scraper is inclined, so that the area of the scraper on the side that contacts the inner wall of the mixing tank is smaller, which is more conducive to the scraper's impact on the anti-rust oil on the inner wall of the mixing tank. The scraping effect can promote the discharge of anti-rust oil from the mixing tank.

Description of drawings

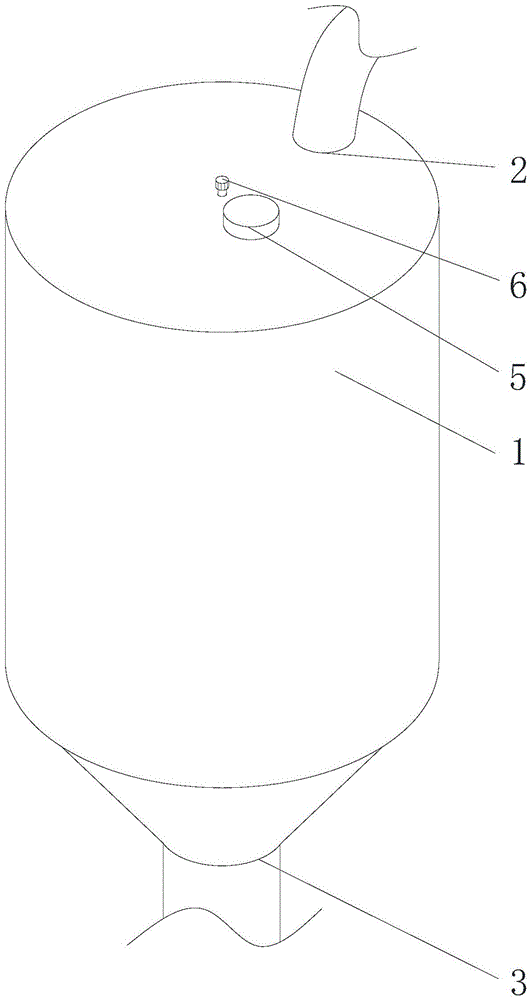

Fig. 1 is a structural representation of a stirring tank for rust-proof oil processing of the present utility model;

Fig. 2 is the structural representation in the mixing tank of the present utility model;

Fig. 3 is a structural schematic diagram of the first groove of the utility model;

Fig. 4 is a structural schematic diagram of the chute of the utility model.

In the figure: 1. Stirring tank; 2. Feed inlet; 3. Discharge port; 4. Sound insulation layer; 5. Motor; 6. Threaded rod; 7. Stirring rod; 8. Stirring blade; 9. First channel; 10, the first groove; 11, the gear; 12, the tooth plate; 13, the second channel; 14, the third channel; 15, the second groove; 16, the scraper; 17, the rotating rod; 18, the chute; 19, slide bar; 20, main gear; 21, auxiliary gear.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Figures 1-4, the utility model provides a new technical solution: a stirring tank for anti-rust oil processing includes a stirring tank 1, and the shape of the stirring tank 1 is a shrinking bottom, which is beneficial to the inside of the stirring tank 1. The material is more convenient to leave from the inside of the mixing tank 1, and has a promoting effect on the discharge. The inside of the mixing tank 1 is provided with a sound insulation layer 4, and the sound insulation layer 4 is located inside the inner wall of the mixing tank 1. The material of the sound insulation layer 4 is foam, etc. Furthermore, the noise in the mixing tank 1 can be effectively cut off by the sound insulation layer 4, so as to prevent excessive noise in the mixing tank 1 from affecting the workman's normal work. The top of the mixing tank 1 is provided with a feed inlet 2, and The bottom is connected with a discharge port 3, and the top of the stirring tank 1 is fixedly connected with a motor 5, which is located at the eccentric position of the top of the stirring tank 1, and the bottom output end of the motor 5 extends to the inside of the stirring tank 1, and the bottom output end of the motor 5 The surface is fixedly sleeved with a main gear 20, and the inside of the stirring tank 1 is connected with a stirring rod 7 for rotation. The pinion gear 21 is meshed and connected. The surface of the stirring rod 7 is fixedly connected with three stirring blades 8. The structures on the three stirring blades 8 are all the same. The surface of the stirring blades 8 is provided with a plurality of first channels 9. The specific number depends on the actual situation. Certainly.

When the anti-rust oil needs to be stirred, the anti-rust oil is transported from the feed port 2 to the inside of the mixing tank 1, and the discharge port 3 is in a closed state at this time, and then the motor 5 is turned on, and the motor 5 starts to drive the main gear 20 to rotate , the main gear 20 rotates to drive the auxiliary gear 21 to rotate, and the rotation of the auxiliary gear 21 drives the stirring rod 7 to start to rotate, and the rotation of the stirring rod 7 drives three stirring blades 8 to rotate inside the stirring tank 1, and the three stirring blades 8 start to rotate the stirring tank 1 Stir and mix the anti-rust oil in the machine to complete the work of stirring and mixing the anti-rust oil.

Turning on the motor 5 finally drives the three stirring blades 8 to start stirring the anti-rust oil, and then effectively makes the internal substances of the anti-rust oil pass through the stirring process during the production process, and then mixes more evenly, effectively improving the anti-rust oil production quality.

Since a plurality of first passages 9 are provided on the stirring blade 8, the antirust oil is continuously passed through the inside of the first passage 9 when the antirust oil is stirred in the stirring tank 1, thereby increasing the stirring area of the antirust oil, Improve the stirring and mixing efficiency of the anti-rust oil, and promote the stirring of the anti-rust oil.

The top center of the stirring tank 1 is threadedly connected with a threaded rod 6, and the inside of the stirring rod 7 is provided with a first groove 10, and the bottom of the threaded rod 6 runs through the inner wall of the stirring tank 1 and extends to the inside of the first groove 10. The bottom in the groove 10 is rotatably connected with a turning bar 17, the bottom of the threaded rod 6 is fixedly connected with a slide bar 19, and the top of the turning bar 17 is provided with a chute 18, and the slide bar 19 is slidably connected in the inside of the chute 18, and the slide bar 19 Sliding up and down inside the chute 18, the bottom of the slide bar 19 and the shape of the chute 18 are isosceles trapezoidal and consistent, and the movement range of the slide bar 19 is effectively limited by the chute 18, so that 19 slide bars It can move up and down, while the slide bar 19 slips off from the inside of the chute 18, thereby affecting the normal operation of the slide bar 19, and the slide bar 19 can not only drive the rotation bar 17 to rotate under the rotation of the threaded rod 6, but also Can enter the inside of the sliding groove 18 when the threaded rod 6 rotates and moves downward.

After the antirust oil has been stirred, it is necessary to output the antirust oil in the mixing tank 1. At this time, the threaded rod 6 is turned, and the threaded rod 6 rotates and moves downwards to drive the slide bar 19 to start rotating and move downwards. Threaded rod 6 is not rotating slide bar 19 and also no longer rotates, and now slide bar 19 rotates and drives chute 18 to start to rotate, and chute 18 rotates and drives turning bar 17 to start to rotate.

Through the meshing connection between the main gear 20 and the auxiliary gear 21, the motor 5 can drive the stirring rod 7 to rotate without affecting the follow-up movement of the threaded rod 6 to drive the rotating rod 17, which is more conducive to the stable operation of the whole device.

The rotation of the threaded rod 6 then drives the slide bar 19 to rotate and then drives the rotating rod 17 to rotate, and then the self-locking property of the rotating rod 17 can be guaranteed due to the threaded connection between the threaded rod 6 and the top wall of the stirring tank 1. When the rod 6 is turned, the rod 17 will not rotate, thereby ensuring the normal operation of the follow-up structure.

The front side of stirring blade 8 is provided with a third passage 14, and the rear side of stirring blade 8 is provided with a second groove 15, and the inside of the second groove 15 is slidably connected with a scraper 16, and the scraper 16 is in the second groove 15. The inside of the scraper 16 slides back and forth, the rear side of the scraper 16 is inclined, and the surface of the rotating rod 17 is fixedly sleeved with three gears 11. The structures on the three gears 11 are the same, and the inside of the first groove 10 is provided with three second gears. Channel 13, the three second channels 13 are respectively located on the front and rear sides of the top in the first groove 10, the second channel 13 communicates with the third channel 14, the positions of the three second channels 13 and the three gears 11 are consistent, The surface of the gear 11 is meshed with a toothed plate 12, the toothed plate 12 extends through the first groove 10 and the second channel 13 to the inside of the third channel 14, and the toothed plate 12 is slidably connected in the second channel 13 and the third channel 14 , the tooth plate 12 slides back and forth in the second channel 13 and the third channel 14 , and the side of the tooth plate 12 away from the gear 11 is fixedly connected to the front side of the scraper 16 .

The rotation of the rotating rod 17 drives the three gears 11 to start to rotate, the rotation of the three gears 11 drives the three toothed plates 12 to start moving away from the gears 11, and the three toothed plates 12 then drive the three scrapers 16 to move away from the gears 11 Move until the scraper 16 moves to the inner wall of the stirring tank 1 and stops the rotation of the threaded rod 6, then opens the discharge port 3, and the rust-proof oil that has been stirred flows out from the discharge port 3. At this time, the three stirring The blade 8 is still rotating, and then drives the three scrapers 16 to scrape off the anti-rust oil on the inner wall of the mixing tank 1, so that the anti-rust oil leaves from the inside of the mixing tank 1.

By rotating the threaded rod 6 when the stirred anti-rust oil is output, the rotation of the threaded rod 6 drives the rotation rod 17 to rotate, and finally drives the three scrapers 16 to leave from the inside of the three second grooves 15, and finally uses three scrapers 16 Scrape oil on the inside of the mixing tank 1, so as to effectively avoid too much anti-rust oil when leaving the mixing tank 1. Due to the relatively thick and adsorbed on the inner wall of the mixing tank 1, it is not convenient to remove from the mixing tank 1. The internal discharge can effectively promote the discharge of the anti-rust oil in the mixing tank 1, which is more conducive to improving the use effect of the overall device.

Since the rear side of the scraper 16 is inclined, the area of the scraper 16 in contact with the inner wall of the mixing tank 1 is smaller, which is more conducive to the scraping effect of the scraper 16 on the anti-rust oil on the inner wall of the mixing tank 1. The discharge of anti-rust oil from the mixing tank 1 has a promoting effect.

After the stirred anti-rust oil leaves the inside of the mixing tank 1, the threaded rod 6 is rotated in reverse, and the rotation of the threaded rod 6 finally drives the rotating rod 17 to reverse, and the reverse rotation of the rotating rod 17 drives the three gears 11 to reverse, and the three gears 11 reverse Drive the three toothed plates 12 to reverse and finally drive the three scrapers 16 to re-enter the inside of the second groove 15 .

By returning the three scrapers 16 to the inside of the second groove 15, it is possible to effectively avoid the three scrapers 16 from producing a large frictional force on the inner wall when the three stirring blades 8 are working normally, and then to the three stirring blades. The rotation of 8 has a blocking effect, which effectively improves the smoothness of the three stirring blades 8 during stirring, avoids the influence of the three scrapers 16 on it, effectively improves the flexibility of the overall device in use, and is more conducive to the overall use of the device.

Working principle: After the anti-rust oil is stirred, it is necessary to pour the anti-rust oil into the mixing tank 1 and output it. At this time, turn the threaded rod 6, and the threaded rod 6 rotates and moves downward to drive the sliding rod 19 to start rotating and at the same time go down Move, when threaded rod 6 is not rotating slide bar 19 also no longer rotates, now slide bar 19 rotates and drives chute 18 to start to rotate, and chute 18 rotates and drives turning bar 17 to start to rotate.

The rotation of the rotating rod 17 drives the three gears 11 to start to rotate, the rotation of the three gears 11 drives the three toothed plates 12 to start moving away from the gears 11, and the three toothed plates 12 then drive the three scrapers 16 to move away from the gears 11 Move until the scraper 16 moves to the inner wall of the stirring tank 1 and stops the rotation of the threaded rod 6, then opens the discharge port 3, and the rust-proof oil that has been stirred flows out from the discharge port 3. At this time, the three stirring The blade 8 is still rotating, and then drives the three scrapers 16 to scrape off the anti-rust oil on the inner wall of the mixing tank 1, so that the anti-rust oil leaves from the inside of the mixing tank 1.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (7)

1. A stirring tank for antirust oil processing, comprising a stirring tank (1), characterized in that: the shape of the stirring tank (1) is a bottom contraction shape, and the inside of the stirring tank (1) is provided with a sound insulation layer (4 ), the top of the stirring tank (1) is provided with a feed inlet (2), the bottom of the stirring tank (1) is connected with a discharge port (3), and the top of the stirring tank (1) is fixedly connected with a motor (5), the motor (5) Located eccentrically on the top of the mixing tank (1), the bottom output end of the motor (5) extends to the inside of the mixing tank (1), and the surface of the bottom output end of the motor (5) is fixedly sleeved with the main gear (20) , the inside of the stirring tank (1) is provided with a stirring device, and the inside of the stirring tank (1) is provided with a device for discharging. 2. A kind of stirring tank for anti-rust oil processing according to claim 1, characterized in that: said stirring device comprises a stirring rod (7), and the stirring rod (7) is located at the center of the stirring tank (1), The surface of the stirring rod (7) is fixedly sleeved with a pinion gear (21), the main gear (20) is meshed with the pinion gear (21), and the surface of the stirring rod (7) is fixedly connected with three stirring blades (8), three The structures on the stirring blades (8) are all the same, and a first channel (9) is opened on the surface of the stirring blades (8). 3. A kind of stirring tank for anti-rust oil processing according to claim 2, characterized in that: the convenient discharging device comprises a threaded rod (6), which is threadedly connected to the bottom of the stirring tank (1). At the center of the top, the inside of the stirring rod (7) is provided with a first groove (10), and the bottom of the threaded rod (6) extends through the inner wall of the stirring tank (1) to the inside of the first groove (10). The bottom in the groove (10) is rotatably connected with a rotating rod (17). 4. A stirring tank for anti-rust oil processing according to claim 3, characterized in that: the bottom of the threaded rod (6) is fixedly connected with a sliding rod (19), and the top of the rotating rod (17) is provided with a Chute (18), slide bar (19) is slidably connected in the inside of chute (18), and the bottom of slide bar (19) and the shape of chute (18) all are isosceles trapezoid and match. 5. A stirring tank for anti-rust oil processing according to claim 4, characterized in that: the front side of the stirring blade (8) is provided with a third passage (14), and the rear side of the stirring blade (8) A second groove (15) is provided, and a scraper (16) is slidably connected to the inside of the second groove (15), and the rear side of the scraper (16) is inclined. 6. A stirring tank for anti-rust oil processing according to claim 5, characterized in that: the surface of the rotating rod (17) is fixedly sleeved with three gears (11), and the three gears (11) are The structures are all the same, the inside of the first groove (10) is provided with three second passages (13), and the three second passages (13) are respectively located on the front and back sides of the top in the first groove (10), and the second passage (13) communicates with the third passage (14), and the positions of the three second passages (13) are consistent with the three gears (11). 7. A stirring tank for anti-rust oil processing according to claim 6, characterized in that: the surface of the gear (11) is meshed with a toothed plate (12), and the toothed plate (12) runs through the first groove (10) and the second channel (13) extend to the inside of the third channel (14), the tooth plate (12) is slidingly connected in the second channel (13) and the third channel (14), and the tooth plate (12) is away from One side of the gear (11) is fixedly connected with the front side of the scraper (16).
