Abstract

The utility model belongs to the medical field, in particular to an operation heating pad. It specifically includes a heating pad body and a controller. The heating pad body is human-shaped, including a head pad, a limb pad and a trunk pad. The head pad, limb pads and torso pad are connected by a connected by a rope; the controller is connected with the heating pad body for controlling the heating of the electric heating pad body. The utility model provides an operation heating pad, the purpose of which is to keep warm for patients during operation.

Description

A surgical heating pad

technical field

The utility model belongs to the medical field, in particular to an operation heating pad.

Background technique

When a patient needs to perform a surgical operation, in order to facilitate the operation, the patient usually can only wear less thinner clothing. And in the part that needs to be operated on, the patient usually directly exposes the skin of this part.

And because patients undergo some complicated operations, the operations often last for a long time. Therefore, during the operation, patients often feel very cold (especially in winter and in regions with low temperature). At the same time, after the operation, because the patient is in a state of low body temperature during the operation, the patient usually suffers from complications such as chills, hypothermia, and delayed recovery.

Utility model content

The utility model provides an operation heating pad, the purpose of which is to keep warm for patients during operation.

In order to achieve the above object, the utility model provides a surgical heating pad, which includes a heating pad body and a controller. Both the body part and the torso pad part are separated from each other and connected by connecting ropes;

The controller is connected with the heating pad body and is used to control the heating of the heating pad body.

In this solution, by arranging the heating pad body to fit the human body, the heating pad body can continuously heat the human body, so that the temperature of the human body can be maintained at a normal level, and the body temperature of the patient can be avoided from falling. At the same time, the heating pad in this solution adopts the design that the head pad part, the trunk pad part and the limb pad part are separated, so that the heating pad body can better adapt to different postures of the patient. And through the setting of the connecting rope, wrinkles on the heating pad are avoided.

Further, in order to realize heating to different temperatures for different positions, the controller in this solution is separately connected to the head pad, limb pad and trunk pad in the heating pad body. The controller can control the head pad, the limb pad and the torso pad to be raised to different temperatures respectively, so as to adapt to different thermal insulation requirements.

Further, in order to better realize the heat preservation of the patient, so the limbs pad part and the trunk pad part in this scheme all include heating layer and thermal insulation layer (the head pad part needs to breathe for the patient, so the head pad part only including the heating layer). The heating layer and the thermal insulation layer of the limb pad part or the trunk pad part can cooperate with each other respectively, and then respectively constitute a cylindrical accommodating space for accommodating the limbs or the torso. The heating layer is used for heating the patient, and the thermal insulation layer is used for keeping the patient warm.

Further, in order to allow the patient's limbs or torso to be accommodated in the cylindrical accommodating space formed by the limb pad or the trunk pad, a connecting portion is provided between the heating layer and the thermal insulation layer. The connecting part can separate the heating layer and the heat preservation layer. Therefore, when the human body needs to enter between the heating layer and the thermal insulation layer, the heating layer and the thermal insulation layer can be separated through the connecting portion; Fasten the heating and insulation layers together.

Further, the connecting part in this solution may specifically be a zipper, a button or a Velcro, so that the heating layer and the insulation layer can be quickly separated and connected.

Further, in order to avoid cross-infection among patients, a treatment layer is detachably arranged on the inner surface of the heating layer and the heat preservation layer. As each patient uses the heating pad, a new therapeutic layer can be placed on the heating pad. At the same time, after the patient finishes using the heating pad, the used treatment layer can be disassembled and discarded.

Furthermore, in order to fix the heating pad body firmly and prevent the heating pad body from sliding during use, the bottom of the heating pad body in this solution is also provided with a fixing part. The fixing part is used to detachably connect the heating pad body to the operating table, and when the heating pad body needs to be used, the heating pad body is fixedly connected to the operating table through the fixing part. When the heating pad body is not needed, the heating pad body is separated from the operating table.

The beneficial effects of the utility model are: by placing the heating pad under the body of the human body, when the patient is undergoing surgery, the heating pad can continuously heat the patient, thus preventing the patient from being in a low temperature state for a long time. bad symptoms.

Description of drawings

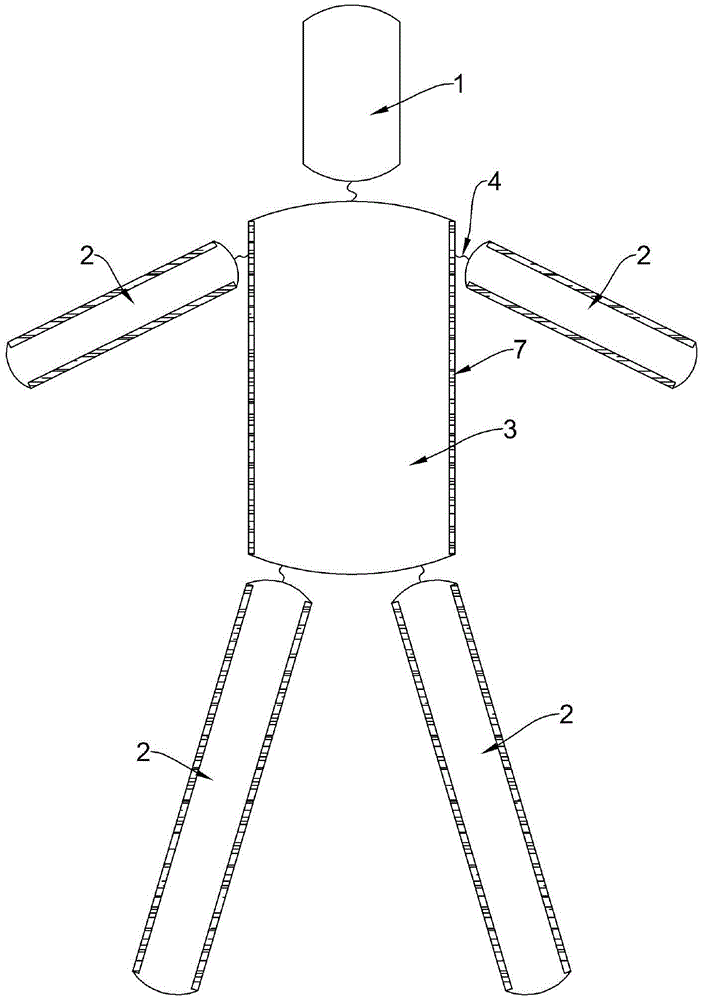

Fig. 1 is a schematic structural diagram of a surgical heating pad.

Figure 2 is a cross-sectional view of the torso pad portion.

Reference numerals include: head cushion part 1 , limb cushion part 2 , trunk cushion part 3 , connecting rope 4 , heating layer 5 , heat preservation layer 6 , connection part 7 , and treatment layer 8 .

Detailed ways

In order to make the purpose, technical solutions and advantages of the embodiments more clear, the utility model will be further described in detail below in conjunction with the drawings and embodiments. It should be understood that the specific embodiments described here are only used to explain the utility model, and are not intended to limit the utility model.

The embodiment is basically shown in Figure 1 to Figure 2, a surgical heating pad, including a heating pad body and a controller. The heating pad body is used to be placed under the body of the human body, thereby heating the human body and preventing the body temperature from dropping. The heating pad body is human-shaped and includes a head pad part 1 , a limb pad part 2 and a trunk pad part 3 . The head pad part 1 is used for heating and insulating the head of the human body, the limb pad part 2 is used for heating and insulating the limbs of the human body (comprising both hands and both feet), and the trunk pad part 3 is used for heating and insulating the trunk part of the human body. Heat insulation.

The head pad part 1 , the limb pad part 2 and the torso pad part 3 are separated from each other and connected by a connecting rope 4 . When the human body is in different postures, the limbs and torso can then be adjusted so that the limbs and torso heating pad fits the human torso.

The heating pad body is connected with the controller, and the controller is used to control the heating pad, so that the heating pad can heat the human body when the operation is required, and stop heating after the operation is over. At the same time, the heating temperature of the heating pad body can also be controlled (when the external temperature is different , the heating temperature will be different).

The controller in this embodiment is connected to the head pad part 1, the limb pad part 2 and the trunk pad part 3 respectively. Therefore, according to different usage conditions, different parts of the heating pad can be controlled to be heated.

Both the limb pad part 2 and the trunk pad part 3 in this embodiment include a heating layer 5 and a thermal insulation layer 6 . The heating layer 5 is used for heating, and the thermal insulation layer 6 is used for preventing the heat loss of the human body. The heating layer 5 and the thermal insulation layer 6 are connected by a connecting portion 7 . The heating layer 5 and the insulating layer 6 cooperate with each other to form a cylindrical accommodation space. The accommodating space is used for accommodating the limbs and the torso of the human body, so as to keep the human body warm and the heat of the human body will not be lost.

The heating layer 5 in this embodiment is specifically an electric heating pad, and its heating structure is the same as that of an existing electric heating blanket, so details are not repeated here.

The connecting part 7 in this embodiment is a zipper, a button or a Velcro. When the connection part 7 is separated, then the heating layer 5 and the insulation layer 6 are separated from each other, and are used to accommodate the patient's limbs and torso; Limbs and torso are accommodated.

At the same time, when in use, the thermal insulation layer 6 and the heating layer 5 at the site to be operated can be separated, so as to avoid blocking the operation.

In this embodiment, a treatment layer 8 is provided on the inner surfaces of the heating layer 5 and the heat preservation layer 6 , and the treatment layer 8 is detachably connected to the heat preservation layer 6 and the heating layer 5 . Specifically, it can be Velcro or double-sided adhesive tape. When the heating pad is used, the therapeutic layer 8 can then be provided on the heating pad to avoid cross-contamination between patients and to facilitate repeated use of the heating pad.

At the same time, a fixing part is also provided on the heating pad body, and the fixing part is used to fix the heating pad on the operating table when in use. The fixing part may specifically be a fixing rope, and the fixing rope may fix the heating pad body by binding.

In the following, a further detailed description will be given through specific implementation methods: when the patient needs to undergo surgery, the surgical pad body in this embodiment can be fixed on the operating table. The head pad part 1 in this embodiment can keep the patient's head warm, the limb pad part 2 is used to heat and keep the limbs of the human body, and the trunk pad 3 is used to heat and keep the torso of the human body. At the same time, according to the different postures that the patient needs to maintain, the head cushion part 1, the limb cushion part 2 and the trunk cushion part 3 can be moved to fit the human body.

What is described above is only the embodiment of the utility model, and common knowledge such as the specific structure and characteristic known in the scheme is not described too much here. It should be pointed out that for those skilled in the art, under the premise of not departing from the structure of the utility model, some deformations and improvements can also be made, and these should also be regarded as the protection scope of the utility model, and these will not affect the utility model. Effects of novel implementations and utility of patents. The scope of protection required by this application shall be based on the content of the claims, and the specific implementation methods and other records in the specification may be used to interpret the content of the claims.

Claims (7)

1. A surgical heating pad, characterized by: the heating pad comprises a heating pad body and a controller, wherein the heating pad body is human-shaped and comprises a head pad part (1), four limb pad parts (2) and a body pad part (3), and the head pad part (1), the four limb pad parts (2) and the body pad part (3) are mutually separated and connected through a connecting rope (4);

the controller is connected with the heating pad body and is used for controlling the heating pad body to generate heat.

2. A surgical heating pad according to claim 1, wherein: the controller is respectively connected with the head pad part (1), the four-limb pad part (2) and the body pad part (3) in the heating pad body and is used for respectively controlling the temperature of the head pad part (1), the four-limb pad part (2) and the body pad part (3).

3. A surgical heating pad according to claim 1, wherein: the limb cushion part (2) and the body cushion part (3) comprise a heating layer (5) and a heat preservation layer (6), wherein the heating layer (5) and the heat preservation layer (6) are mutually matched and are constructed into a cylinder shape, and the limb cushion part and the body cushion part are used for containing limbs and the body of a human body.

4. A surgical heating pad according to claim 3, wherein: the heating layer (5) is detachably connected with the heat preservation layer (6) through a connecting part (7), and the connecting part (7) is used for separating the heating layer (5) from the heat preservation layer (6).

5. A surgical heating pad according to claim 4, wherein: the connecting part (7) is a zipper, a button or a magic tape.

6. A surgical heating pad according to claim 3, wherein: the inner surfaces of the heating layer (5) and the heat preservation layer (6) are both detachably provided with a treatment layer (8).

7. A surgical heating pad according to claim 1, wherein: the heating pad body surface still is provided with the fixed part, the fixed part be used for with the heating pad body is connected with the operating table.
