Abstract

The utility model discloses a multifunctional constraining glove, which belongs to the technical field of medical devices and comprises: a functional layer, a constraining layer and a liftable shielding layer, the functional layer and the two side edges of the liftable shielding layer are connected through detachable parts, and the constraining layer Set in the middle of the functional layer and the liftable shielding layer, the inner layer of the constraining layer and the outer layer of the functional layer are bonded, stitched or welded; wherein, the functional layer is filled with soft elastic material, and the constraining layer is in the shape of a glove with five fingers separated, and constrained The fingertips of the layers are provided with openings. The constraining gloves provided by this application can not only effectively restrain the patient's hands, but also alleviate the problem of hand edema in the process of wearing the gloves, and the detachable parts on both sides of the shielding layer can be opened, and the After the shielding layer is lifted upwards, the patient's fingertips are exposed, which is convenient for clinical nurses to monitor the patient's blood sugar and blood oxygen saturation. The application is reasonable in design, easy to operate, and has a wide range of clinical application prospects.

Description

A kind of multifunctional restraint glove

technical field

The utility model relates to the technical field of medical devices, in particular to a multifunctional restraint glove.

Background technique

When patients are cognitively impaired, unconscious, restless, and poorly compliant, they tend to remove breathing tubes, nasogastric tubes, urinary tubes, and intravenous infusion tubes by themselves. Self-injury or he-injury behaviors are prone to occur. Therefore, these patients often need to use medical restraint gloves to restrain their wrists.

With the restraint gloves currently used clinically, when the patient wears restraint gloves, because the five fingers cannot move freely, and the patient's hand is restrained for a long time, the patient's hand will swell, which will cause the patient's anxiety and other emotions, even restlessness of patients struggle to break free from the restraint glove. After the patient breaks free, there is a risk of self-extubation. In order to prevent the patient from breaking free from the restraint glove, the clinical nurse can only tie the restraint belt on the glove very tightly. risk of skin damage. Simultaneously, the constraint gloves in the prior art are unfavorable for nurses to observe the peripheral blood supply situation of patients' hands and to monitor blood sugar. After using restrictive gloves to the patient, the wristband with patient-related information recorded on the patient's wrist is often covered by the glove, which is not conducive to medical staff to check the patient's relevant information.

Therefore, there is an urgent need for a multifunctional restraint glove to solve the above-mentioned problems in the prior art.

Utility model content

For this reason, the utility model provides a multi-functional restraint glove, to solve the cumbersome clinical operation of the restraint glove used clinically in the prior art, the easy occurrence of hand edema after the patient's hand is restrained, and the unfavorable effect on the patient's blood sugar and peripheral blood. Cyclic monitoring issues.

In order to achieve the above object, the utility model provides the following technical solutions:

According to the utility model, a multifunctional restraint glove is provided, comprising: a functional layer, a restraint layer and a liftable shielding layer, the functional layer and the two side edges of the liftable shielding layer are connected by detachable parts, and the restraint The layer is arranged in the middle of the functional layer and the liftable shielding layer, and the inner layer of the constraining layer and the outer layer of the functional layer are bonded, stitched or welded;

Wherein, the functional layer is filled with a soft elastic material, the constraining layer is in the shape of a glove with five fingers separated, and the finger ends of the constraining layer are provided with openings.

Further, the liftable shielding layer is shorter than the constraining layer, and the wrist of the constraining layer is exposed on the outer side.

Further, it also includes a wrist fixing strap, the wrist fixing strap is arranged on the wrist of the constraining layer, and the two side edges of the wrist fixing strap are connected by Velcro.

Further, it also includes a transparent fixed window, the transparent fixed window is arranged on the outer surface of the wrist of the constraining layer, the upper side edge of the transparent fixed window is connected with the outer surface of the constrained layer, and the transparent fixed window can be along The upper side edge of the transparent fixed window is raised, and the lower side edge of the transparent fixed window is connected to the constraining layer through a second detachable component.

Further, the second detachable component is a snap button assembly.

Further, it also includes a strap, the strap is arranged on the wrist of the functional layer, and the strap is arranged under the wrist fixing strap, and the two ends of the strap are connected by buckles ;

It also includes a limit band, the limit band is arranged at intervals along the wrist of the functional layer, and the strap passes through the limit band transversely.

Further, the detachable component is a zipper.

Further, the indwelling needle tube fixing belt is also included, and the indwelling needle tube fixing belt is arranged on the outer wrist of the functional layer.

Further, both the constraining layer and the flip-up shielding layer are made of pure cotton breathable material.

Further, the functional layer is made of fluffy cotton or sponge.

The utility model has the following advantages:

The multifunctional restraint gloves provided by this application are provided with a functional layer, a restraint layer and a liftable shielding layer, wherein the functional layer is filled with soft elastic materials, such as space cotton, memory foam or sponge material, or in the process of wearing gloves, the hand When grasping, due to the soft and elastic characteristics of the elastic material, the patient will not scratch himself or damage the extension of the pipeline. After the patient's hand is restrained on the hospital bed, the functional layer can raise the patient's hand to prevent hand edema, and the elastic contraction performance of the functional layer enables the patient's hand to expand and contract within a certain range Activities, thereby promoting blood circulation in the patient's hands.

The five fingers of the restraining layer are separated. When the patient wears gloves, the restraining layer restrains the five fingers of the patient to prevent the patient from breaking free from the glove after turning the glove up and down during the agitation process. The fingertips of the constraining layer are provided with openings, and the fingertips of patients can pass through the openings when wearing gloves, which is convenient for nurses to collect blood and monitor blood oxygen saturation.

After the cover layer is lifted, the patient's fingers are exposed to the outside, which is convenient for medical staff to take blood from the fingertips, complete blood sugar monitoring, and monitor the patient's blood oxygen saturation. When monitoring the blood oxygen saturation of the patient, the The wired blood oxygen clip is directly routed between the opening of the liftable shielding layer and the lower end of the constraining layer, and the blood oxygen clip can be clamped from the opening of the side edge, which is convenient to adjust.

In summary, the restraint gloves provided by this application are convenient for clinical nurses to operate, alleviate the problem of hand edema when patients wear gloves, and facilitate the monitoring of blood sugar and blood oxygen saturation of nurse patients.

Description of drawings

In order to more clearly illustrate the implementation of the utility model or the technical solutions in the prior art, the following will briefly introduce the drawings that need to be used in the description of the implementation or the prior art. Apparently, the drawings in the following description are only exemplary, and those skilled in the art can also obtain other implementation drawings according to the provided drawings without creative work.

The structures, proportions, sizes, etc. shown in this manual are only used to cooperate with the content disclosed in the manual for the understanding and reading of those who are familiar with this technology, and are not used to limit the limited conditions that the utility model can be implemented, so there is no In technical substantive meaning, any modification of structure, change of proportional relationship or adjustment of size shall still fall within the scope of the invention disclosed in the utility model without affecting the effect and purpose of the utility model. within the scope of the technical content.

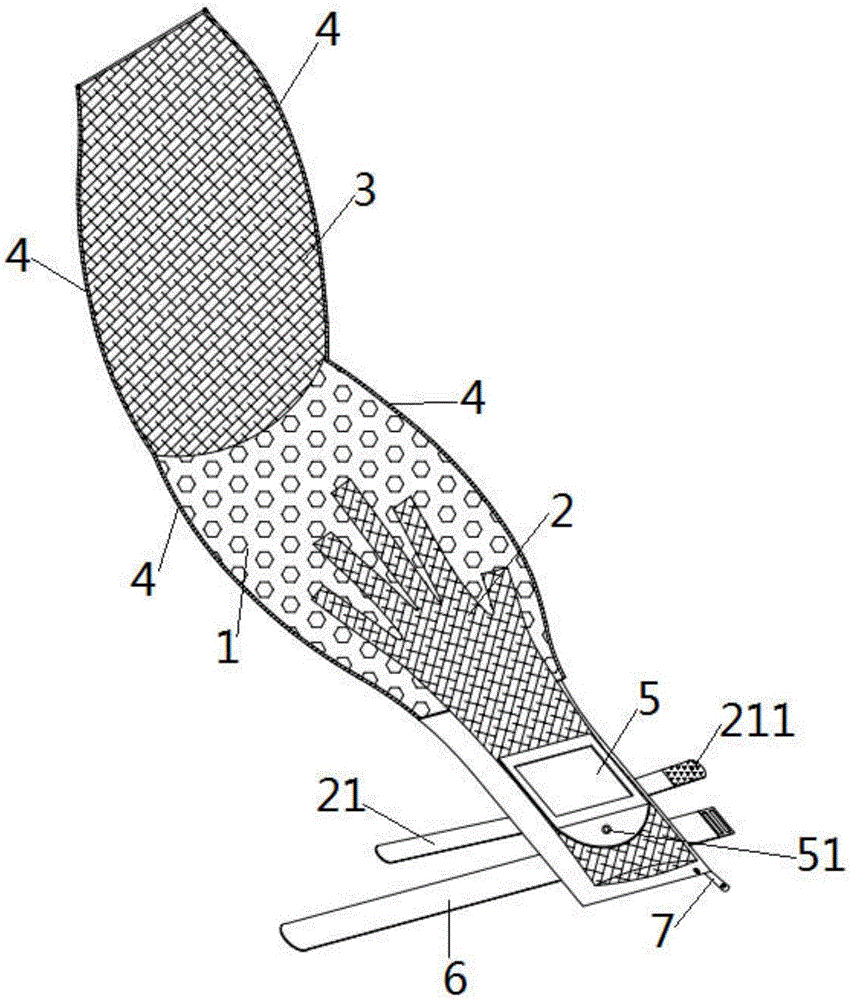

Fig. 1 is the schematic diagram of the structure of the multifunctional restraint glove provided by the embodiment of the utility model;

Figure 2 is a schematic diagram of the front structure of the multifunctional restraint glove provided by the embodiment of the present invention;

Figure 3 is a schematic diagram of the inner surface structure of the multifunctional restraint glove provided by the embodiment of the present invention;

In the figure: 1 functional layer; 2 constraining layer; 21 wrist fixing belt; 211 Velcro; 3 can lift up the shielding layer; 61 buckle; 62 limit band; 7 indwelling needle tube fixing band.

Detailed ways

The implementation of the present utility model is illustrated by specific specific examples below. Those who are familiar with this technology can easily understand other advantages and effects of the present utility model from the contents disclosed in this description. Obviously, the described embodiments are the embodiment of the present utility model. Some, but not all, embodiments. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

As shown in Figures 1-3, a multifunctional restraint glove provided by the embodiment of the present invention includes: a functional layer 1, a restraint layer 2 and a liftable shielding layer 3, the functional layer 1 and the liftable shielding layer 3 are two The side edges are connected by detachable parts 4, the constraining layer 2 is arranged in the middle of the functional layer 1 and the liftable shielding layer 3, and the inner layer of the constraining layer 2 is bonded to the outer layer of the functional layer 1 , suture connection or welding; there is an opening between the lower end of the liftable shielding layer 3 and the constraining layer 2, which is convenient for the blood oxygen saturation line or the indwelling needle tube to pass through the opening. When the detachable part 4 is connected, it covers the outer side of the constraining layer 2. After the detachable part 4 is disassembled, the two sides of the functional layer 1 and the liftable shielding layer 3 When the connection is disconnected, the flippable shielding layer 3 can be flipped up, so that the constraining layer 2 is exposed to the outside, which is convenient for clinical medical personnel to perform corresponding clinical operations. The detachable part 4 adopts a design method in the prior art, for example, it may be a Velcro, a snap component, a tether, a buckle mechanism or a zipper.

Wherein, the functional layer 1 is filled with a soft elastic material, the constraining layer 2 is in the shape of a glove with five fingers separated, and the fingertips of the constraining layer 2 are provided with openings. The functional layer 1 is filled with a soft elastic material. When the patient's hand is placed on the hospital bed and the hand is restrained, the functional layer 1 can raise the patient's hand, effectively preventing the hand from drooping. cause edema. At the same time, due to the elastic contraction performance of the functional layer 1 , the patient's hand can be stretched within a certain range, thereby promoting the blood circulation of the patient's hand. Moreover, the soft elastic material filled in the functional layer 1 makes the functional layer 1 have soft and elastic properties, and the patient will not scratch himself or damage the extension of the pipeline during the grasping process. The shape of the constraining layer 2 is five fingers apart. When the patient wears gloves, the constraining layer 2 constrains the five fingers of the patient to prevent the patient from breaking free from the glove after turning the glove upside down during the agitation process. The constraining layer 2 is provided with an opening at the fingertip, and the patient's fingertip can pass through the opening when the patient wears the glove, which is convenient for the nurse to take blood and monitor the blood oxygen saturation.

According to a specific embodiment of the present invention, the liftable shielding layer 3 is shorter than the constraining layer 2, and the wrist of the constraining layer 2 is exposed on the outer side. The liftable shielding layer 3 is shorter than the constraining layer 2, so that the opening between the lower end of the liftable shielding layer 3 and the constraining layer 2 is located on the constraining layer 2, which is convenient for clinical medical personnel to carry out corresponding clinical work. operate.

According to a specific embodiment provided by the utility model, it also includes a wrist fixing strap 21, the wrist fixing strap 21 is arranged on the wrist of the constraining layer 2, and the two ends of the wrist fixing strap 21 are connected by Velcro 211 connection. After the patient's fingers penetrate the constraining layer 2, the two side edges of the wrist fixing belt 21 are connected to further strengthen the restriction and fixation of the patient's hands. The Velcro 211 is used to connect, which is convenient for clinical nurses to operate, and the tightness of the wrist fixing belt 21 can be adjusted by adjusting the connection position of the Velcro 211 to meet the clinical needs of different patients.

According to a specific embodiment provided by the utility model, it also includes a transparent fixed window 5, the transparent fixed window 5 is arranged on the outer side of the wrist of the constraining layer 2, and the upper side edge of the transparent fixed window 5 is in contact with the constrained layer. 2, the transparent fixed window 5 can be lifted along the upper edge of the transparent fixed window 5, and the lower edge of the transparent fixed window 5 is connected to the constraining layer 2 through the second detachable component 51. The transparent fixed window 5 can be made of transparent plastic or transparent silicone material, and the transparent fixed belt 5 is lifted to make the wrist fixed belt 21 slide to where it is on the constraining layer 2 before the transparent fixed window 5 is lifted. After positioning, connect and fix the two side edges of the wrist fixing strap 21, then slide the wrist strap worn by the patient with its information recorded on the outer side of the constraining layer 2, and connect the second detachable component 51, The patient's wristband information is displayed to the medical staff through the transparent fixed window 5 .

According to a specific embodiment of the present invention, the second detachable part 51 is a snap-button assembly, which is convenient for clinical nurses to operate, and the price of the snap-button assembly is cheap, which is conducive to clinical popularization and use.

According to a specific embodiment of the utility model, it also includes a strap 6, the strap 6 is arranged on the wrist of the functional layer 1, and the strap 6 is arranged under the wrist fixing strap 21, Both ends of the strap 6 are connected by buckles 61; the patient's hand is constrained on the bed rail by the strap 6 to fix the position of the glove.

It also includes a limiting band 62 , the limiting band 62 is arranged at intervals along the wrist of the functional layer 1 , and the strap 6 passes through the limiting band 62 transversely. The limiting belt 62 is set to limit the binding belt 6 and prevent it from sliding up and down.

According to a specific embodiment of the present invention, the detachable component 4 is a zipper. The zipper structure is convenient for clinical nurses to perform clinical operations.

According to a specific embodiment of the present invention, it also includes an indwelling needle tube fixing belt 7, and the indwelling needle tube fixing belt 7 is arranged on the outer wrist of the functional layer 1. After the indwelling needle tube passes through the patient's wrist, the indwelling needle tube is fixed by the indwelling needle tube fixing belt 7 to prevent the indwelling needle tube from sliding back and forth in the glove part, causing discomfort to the patient.

According to a specific embodiment of the present invention, both the constraining layer 2 and the liftable shielding layer 3 are made of pure cotton breathable material. The pure cotton breathable material makes the patient comfortable during wearing.

According to a specific embodiment of the present invention, the functional layer 1 is made of fluffy cotton or sponge. The fluffy cotton and sponge are soft and elastic, and are commonly used materials in the prior art. They are cheap, easy to obtain, and convenient for clinical promotion and use.

The use process of the utility model embodiment is as follows:

Clinical application When the constraining glove provided by this application constrains the patient's hand, the detachable part 4 is first opened, and the liftable shielding layer 3 is lifted upwards, so that the patient's hand enters the constraining layer 2, and the patient's palm faces Functional layer 1, the back of the patient’s hand faces to lift up the shielding layer 3, the patient’s fingertips pass through the fingertip opening of the constraining layer 2, put down the shielding layer 3, close the detachable part 4, lift up the transparent fixed window 5, and slide Wrist fixing strap 21 to the position before the transparent fixing window 5 is set off in the constraining layer 2, connect the wrist fixing strap 21 to fix it, slide the wrist strap recorded with patient information so that it is positioned at the outside of the wrist fixing strap 21, cover Close the transparent fixed window 5 and connect the second detachable part 51, the nurse can check the relevant information of the patient through the transparent fixed window 5 at any time. Connect the strap 6 with the patient's bed rail, so that the position of the restraining gloves is fixed.

Although the utility model has been described in detail with general description and specific examples above, some modifications or improvements can be made on the basis of the utility model, which will be obvious to those skilled in the art. Therefore, the modifications or improvements made on the basis of not departing from the spirit of the utility model all belong to the protection scope of the utility model.

Claims (10)

1. A multi-functional restraining glove, comprising: the multifunctional key comprises a functional layer (1), a constraint layer (2) and a liftable shielding layer (3), wherein the functional layer (1) and the two side edges of the liftable shielding layer (3) are connected through a detachable component (4), the constraint layer (2) is arranged between the functional layer (1) and the liftable shielding layer (3), and the inner layer of the constraint layer (2) is connected with the outer layer of the functional layer (1) in a sticking, sewing or welding manner;

the functional layer (1) is filled with soft elastic materials, the constraint layer (2) is in a glove shape with five separated fingers, and finger ends of the constraint layer (2) are provided with openings.

2. The multifunctional mitt for constraints, as set forth in claim 1, characterized in that the liftable shielding layer (3) is shorter than the constraining layer (2), the constraining layer (2) being externally exposed on the lateral wrist.

3. The multifunctional restraining glove according to claim 2, further comprising a wrist fixing strap (21), wherein the wrist fixing strap (21) is disposed on a wrist of the restraining layer (2), and two side edges of the wrist fixing strap (21) are connected by a magic tape (211).

4. The multifunctional restraining glove according to claim 3, further comprising a transparent fixing window (5), wherein the transparent fixing window (5) is disposed on the outer side of the wrist portion of the restraining layer (2), the upper side edge of the transparent fixing window (5) is connected with the outer side of the restraining layer (2), the transparent fixing window (5) can be lifted along the upper side edge of the transparent fixing window (5), and the lower side edge of the transparent fixing window (5) is connected with the restraining layer (2) through a second detachable member (51).

5. Multifunction restraint glove according to claim 4, characterized in that the second detachable part (51) is a snap fastener assembly.

6. The multifunctional constraining glove according to claim 3, further comprising a strap (6), wherein the strap (6) is disposed on the wrist portion of the functional layer (1), and the strap (6) is disposed under the wrist portion fixing strap (21), and both side ends of the strap (6) are connected by a buckle (61);

the multifunctional functional layer is characterized by further comprising a limiting belt (62), wherein the limiting belt (62) is arranged along the wrist part of the functional layer (1) at intervals, and the binding belt (6) transversely penetrates through the limiting belt (62).

7. Multifunction restraint glove according to claim 1, characterized in that the detachable part (4) is a zipper.

8. The multifunctional restraining glove according to claim 1, further comprising an indwelling needle tube securing strap (7), wherein the indwelling needle tube securing strap (7) is disposed on an outer side wrist portion of the functional layer (1).

9. The multi-purpose restraining glove of claim 1 wherein both the restraining layer (2) and the liftable barrier layer (3) are made of a breathable material of pure cotton.

10. Multifunction restraining glove according to claim 1, characterized in that the functional layer (1) is made of fluffy cotton or sponge.
