CN217903959U - Bus duct connector with tapping function

Info

Publication number: CN217903959U
Application number: CN202221893120.5U
Authority: CN
Inventors: 饶筱明
Original assignee: Guangzhou Mingrui Electrical Equipment Manufacturing Co ltd
Current assignee: Guangzhou Mingrui Electrical Equipment Manufacturing Co ltd
Priority date: 2022-07-20
Filing date: 2022-07-20
Publication date: 2022-11-25
Anticipated expiration: 2032-07-20

Abstract

The utility model relates to a bus duct connector technical field especially relates to a take bus duct connector of shunting function, has solved among the prior art when only carrying out the connection of the bus duct of one end, and the other end then can not be fine fixes to there is the problem of great limitation in the use. The utility model provides a take bus duct connector of shunting function, includes bus duct body and the connector body of setting on the bus duct body, be equipped with the apron on the connector body, all be equipped with a plurality of wire rows on bus duct body and the connector body, the leading bar interlude setting on bus duct body and the connector body, the front and back end of connector body all is equipped with the insulation board, the fixed part and the rotary part of the fixed connector body right-hand member of all being convenient for on the insulation board. The utility model discloses the right-hand member that can be convenient for the connector body is fixed with other objects, and then the connector body can carry out the connection of arbitrary one end, has the shunting function.

Description

Bus duct connector with tapping function

Technical Field

The utility model relates to a bus duct connector technical field especially relates to a take bus duct connector of shunting function.

Background

The bus duct connector is an important tool for connecting the bus ducts, has a protection function, is covered with the connector cover, can effectively prevent water, dust and debris from falling, and pressure generated when the first bolt is locked is transmitted to the high-pressure balance pad of the copper bar and other cross sections through the specially designed gasket, so that the pressure on the connecting surface of the whole bus duct is balanced.

The bus duct connector structure is that the backplate is fastened on the insulating backplate with locking first bolt, be conductive row between insulating backplate and insulating backplate, conductive row is fixed on insulating backplate with the module of moulding plastics, modular fixing plate is between insulating backplate and insulating backplate, the bus conductor is between conductive row and conductive row, current bus duct connector when the installation, because conductive row both ends symmetry, thereby can only carry out the connection between two bus ducts when the installation connector, the connector presss from both sides tightly between the conductive row of two bus ducts, when only carrying out the connection of the bus duct of one end, the other end then can not be fine fixed, thereby there is great limitation in the use. Therefore, a bus duct connector with tapping function is needed to solve the above problems.

SUMMERY OF THE UTILITY MODEL

The utility model aims at providing a take bus duct connector of shunting function has solved among the prior art when only carrying out the connection of the bus duct of one end, and the other end then can not be fine fixes to there is the problem of great limitation in the use.

In order to realize the purpose, the utility model adopts the following technical scheme:

the utility model provides a take bus duct connector of shunting function, includes bus duct body and the connector body of setting on the bus duct body, be equipped with the apron on the connector body, all be equipped with a plurality of wire rows on bus duct body and the connector body, the leading bar interlude setting on bus duct body and the connector body, the front and back end of connector body all is equipped with the insulation board, the fixed part and the rotary part of the fixed connector body right-hand member of all being convenient for on the insulation board.

Preferably, rotary part is including rotating two pivots of connection on two insulation boards, two equal fixedly connected with L shaped plate in the pivot, and rotary part must set up, can carry out the upset of L shaped plate.

Preferably, the fixed part includes the riser of fixed connection on two L shaped plates, fixedly connected with diaphragm on the riser, all be equipped with the screw hole on riser and the diaphragm, be equipped with the guide part that is used for placing the riser and is dragged on the riser, the fixed part's setting can carry out the fixing of connector body.

Preferably, the guiding part sets up the direction mouth on the L shaped plate, be equipped with first bolt in the direction mouth, first bolt runs through the riser and is equipped with matched with nut with it, and the setting of guiding part can avoid when two insulation boards are close to or separate, blocks mutually between riser and the L shaped plate.

Preferably, the L-shaped plate is provided with a telescopic part and a dismounting part for facilitating dismounting of the connector body.

Preferably, flexible part is including setting up the open slot in the L shaped plate, sliding connection has the rotor plate of being connected with the pivot rotation in the open slot, threaded connection has the second bolt that runs through the L shaped plate on the rotor plate, and the shrink of L shaped plate can be carried out in the setting of flexible part to the L shaped plate supports tightly with the connector body, avoids after fixed riser, takes place to rotate between riser and the connector.

Preferably, the dismounting part comprises a bayonet arranged on the rotating shaft, a bolt is arranged in the bayonet in an interference fit mode, and the dismounting part can be used for facilitating dismounting the L-shaped plate so as to carry out dismounting and mounting.

The utility model discloses possess following beneficial effect at least:

1. through setting up fixed part and rotary part, the right-hand member that can be convenient for the connector body is fixed with other objects for the connector body can only cooperate with the bus duct of one end, and the setting of riser and diaphragm is convenient for carry out the fixing of connector body from horizontal and two vertical directions simultaneously, and application range is wider, and then the connector body can carry out the connection of arbitrary one end, has the shunting function.

2. Through setting up flexible part and dismantlement part, can adjust the length on the horizontal limit of L shaped plate to the riser offsets with the connector body, L shaped plate can not rotate this moment, makes stability better, and the dismantlement of L shaped plate is convenient for carry out in the setting of bolt simultaneously, so that the spacing of both ends bus duct, further increase application range.

Drawings

In order to more clearly illustrate the technical solution of the embodiments of the present invention, the drawings required to be used in the description of the embodiments are briefly introduced below, and it is obvious that the drawings in the description below are some embodiments of the present invention, and it is obvious for those skilled in the art to obtain other drawings without creative efforts.

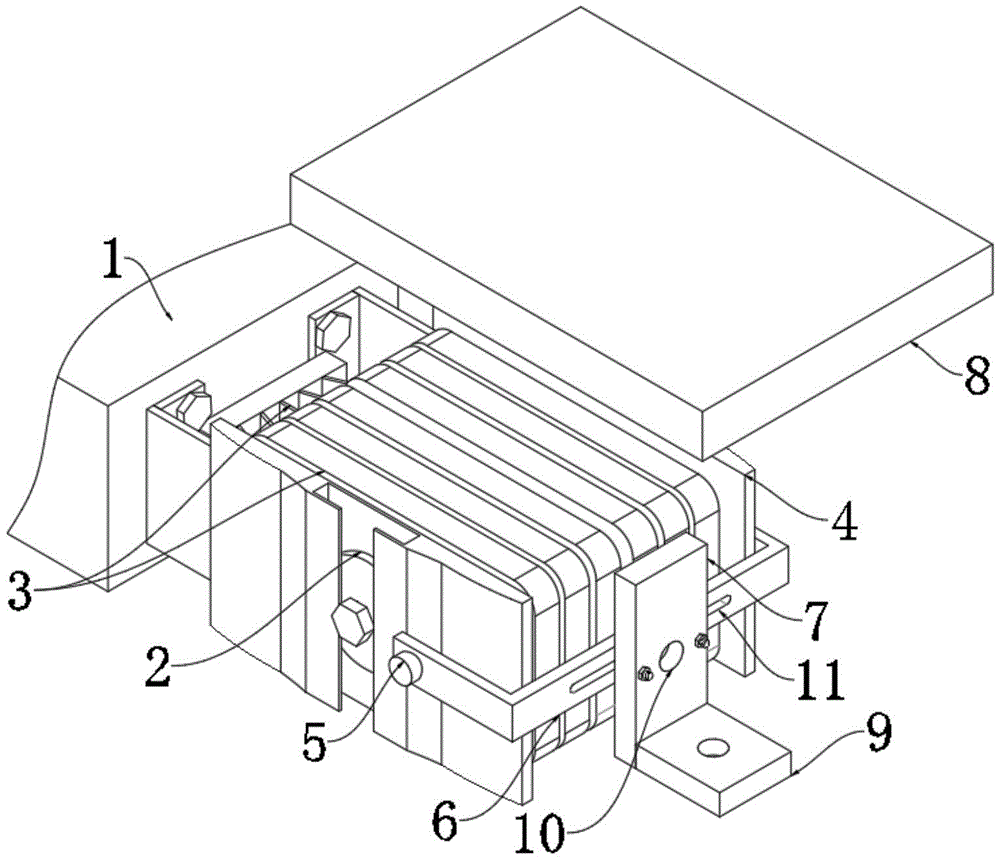

Fig. 1 is an external structural schematic diagram of a bus duct connector with a tapping function according to the present invention;

fig. 2 is a schematic external structural view of an L-shaped plate of the bus duct connector with a tapping function according to embodiment 1 of the present invention;

fig. 3 is a schematic view of an external structure of a vertical plate of the bus duct connector with a tapping function according to the present invention;

fig. 4 is an external structural schematic diagram of embodiment 2 of a bus duct connector with a tapping function according to the present invention;

fig. 5 is an external schematic view of an L-shaped plate according to embodiment 2 of the bus duct connector with a tapping function of the present invention.

In the figure: 1. a bus duct body; 2. a connector body; 3. a wire row; 4. an insulating plate; 5. a rotating shaft; 6. an L-shaped plate; 7. a vertical plate; 8. a cover plate; 9. a transverse plate; 10. a threaded hole; 11. a guide port; 12. a first bolt; 13. a nut; 14. an open slot; 15. a rotating plate; 16. a second bolt; 17. a bayonet; 18. and (4) a bolt.

Detailed Description

In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the present invention is further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.

Example 1

Referring to fig. 1-3, a bus duct connector with tapping function, including bus duct body 1 and connector body 2 of setting on bus duct body 1, be equipped with apron 8 on connector body 2, bus duct body 1 all is equipped with a plurality of wire rows 3 on connector body 2, the leading bar on bus duct body 1 and the connector body 2 alternates and sets up, connector body 2's front and back end all is equipped with insulation board 4, the last fixed part and the rotary part of 2 right-hand members of fixed connector body of all being convenient for of insulation board 4, when only carrying out connector body 2 left end and connecting, right-hand member at connector body 2 is equipped with the mount, so that carry out the fixed of connector body 2, this place is prior art, do not do the repeated description here.

The rotating part comprises two rotating shafts 5 which are rotatably connected to the two insulating plates 4, and L-shaped plates 6 are fixedly connected to the two rotating shafts 5.

The fixed part includes riser 7 of fixed connection on two L shaped plates 6, fixedly connected with diaphragm 9 on riser 7, all is equipped with screw hole 10 on riser 7 and the diaphragm 9, is equipped with the guide part that is used for placing riser 7 and is dragged on riser 7.

The guide part sets up guiding hole 11 on L shaped plate 6, be equipped with first bolt 12 in guiding hole 11, first bolt 12 runs through riser 7 and is equipped with matched with nut 13 with it, when only needing to carry out the connection of the bus duct body 1 of one end, at first insert the wire row on the bus duct body 1 between the adjacent wire row 3 of connector body 2, then rotate the locking bolt on the connector body 2, make two insulation boards 4 be close to each other, carry out the clamp between the wire row 3, in this process, first bolt 12 slides in guiding hole 11, thereby can not take place the dead phenomenon of L shaped plate 6 and riser 7 card, wire row 3 presss from both sides tightly the back, rotate nut 13, make and compress tightly between riser 7 and the L shaped plate 6, can not slide between riser 7 and the L shaped plate 6 this moment, then can fix riser 7 or diaphragm 9 on external mount through screw hole 10, during the use, can carry out the fixed of riser 7 or diaphragm 9 through the cooperation of fastening bolt and screw hole 10, and realize the connection of connector body 2 right-hand member, and then connector body 2 has the shunting function, can carry out the connection of arbitrary one end.

Example 2

Referring to fig. 4-5, a bus duct connector with tapping function includes a bus duct body 1 and a connector body 2 arranged on the bus duct body 1, a cover plate 8 is arranged on the connector body 2, a plurality of wire rows 3 are arranged on the bus duct body 1 and the connector body 2, guide rows on the bus duct body 1 and the connector body 2 are arranged alternately, insulation plates 4 are arranged at the front and rear ends of the connector body 2, and fixing parts and rotating parts at the right end of the connector body 2 are convenient to fix on the insulation plates 4.

The L-shaped plate 6 is provided with a telescopic component and a dismounting component which are used for facilitating the dismounting of the connector body 2.

The telescopic component comprises an opening groove 14 arranged in the L-shaped plate 6, a rotating plate 15 which is rotatably connected with the rotating shaft 5 is connected in the opening groove 14 in a sliding mode, and a second bolt 16 penetrating through the L-shaped plate 6 is connected to the rotating plate 15 in a threaded mode.

The dismounting part is including setting up bayonet 17 on pivot 5, interference fit has bolt 18 in bayonet 17, when carrying out the connection of one end, rotate second bolt 16, make second bolt 16 toward rotor plate 15 direction motion, drive L shaped plate 6 to rotor plate 15 direction motion, thereby can make the inner wall of L shaped plate 6 offset with the lateral wall of connector body 2, make the steadiness of L shaped plate 6 better, when needing to connect one end when sometimes, reverse second bolt 16, make L shaped plate 6 to keeping away from rotor plate 15 reverse motion, can rotate rotor plate 5 this moment and drive L shaped plate 6 and rotate, make L shaped plate 6 move the downside of connector body 2, put temporarily, can dismantle L shaped plate 6 this moment when only needing both ends to connect, bolt 18 is taken off this moment, then rotate nut 13, make first bolt 12 can slide in uide port 11, then stimulate two L shaped plates 6, make two rotor plates 15 break away from pivot 5, L shaped plate 6 can be taken off, make connector body 2 can carry out the connection of both ends body 1, thereby connector body can carry out the connection of bus duct body 1, the use wide range of bus duct body 1's connection of bus duct body 1, the use range is wider.

The foregoing shows and describes the general principles, essential features, and advantages of the invention. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the principles of the present invention may be applied to any other embodiment without departing from the spirit and scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.

Claims

1. The utility model provides a take bus duct connector of shunting function, includes bus duct body (1) and connector body (2) of setting on bus duct body (1), be equipped with apron (8) on connector body (2), all be equipped with a plurality of wire rows (3) on bus duct body (1) and connector body (2), the leading row interlude setting on bus duct body (1) and connector body (2), the front and back end of connector body (2) all is equipped with insulation board (4), its characterized in that, the fixed part and the rotary part of the fixed connector body (2) right-hand member of all being convenient for on insulation board (4).

2. The bus duct connector with the tapping function as claimed in claim 1, wherein the rotating part comprises two rotating shafts (5) rotatably connected to the two insulating plates (4), and the two rotating shafts (5) are fixedly connected with L-shaped plates (6).

3. The bus duct connector with the tapping function as claimed in claim 2, wherein the fixing part comprises a vertical plate (7) fixedly connected to the two L-shaped plates (6), a transverse plate (9) is fixedly connected to the vertical plate (7), threaded holes (10) are formed in the vertical plate (7) and the transverse plate (9), and a guide part for placing the vertical plate (7) to be pulled is arranged on the vertical plate (7).

4. A bus duct connector with tapping function as claimed in claim 3, wherein the guiding component is arranged on a guiding opening (11) of the L-shaped plate (6), a first bolt (12) is arranged in the guiding opening (11), and the first bolt (12) penetrates through the vertical plate (7) and is provided with a nut (13) matched with the vertical plate.

5. The bus duct connector with the tapping function as claimed in claim 2, wherein the L-shaped plate (6) is provided with a telescopic component and a disassembling component for facilitating the disassembly of the connector body (2).

6. The bus duct connector with the tapping function as claimed in claim 5, wherein the telescopic component comprises an open slot (14) arranged in the L-shaped plate (6), a rotating plate (15) rotatably connected with the rotating shaft (5) is slidably connected in the open slot (14), and a second bolt (16) penetrating through the L-shaped plate (6) is in threaded connection with the rotating plate (15).

7. A bus duct connector with tapping function according to claim 5, characterized in that the dismounting component comprises a bayonet (17) arranged on the rotating shaft (5), and a plug pin (18) is in interference fit in the bayonet (17).
