Abstract

The utility model discloses a cosmetic storage box, which comprises a box body, a drawer box is connected to the lower end of the box body, a drawer is connected to the inside of the drawer box, cotton cloth is arranged inside the drawer, a handle is connected to one end of the drawer, and a handle is connected to the inside of the box body A storage slot is provided, one side of the storage slot is provided with a small object storage slot, one end of the storage slot is provided with a jewelry storage slot, one side of the jewelry storage slot is provided with a large object storage slot, and the edge of the box body is provided with a closed hole. Both sides of the body are connected with a rotating rod, one end of the rotating rod is connected with a pull rod, the upper end of the box body is connected with a lid, the edge of the lid is provided with a closing block, the inside of the lid is provided with a vanity mirror, and one side of the vanity mirror is provided with a There is a cosmetic lamp; the utility model uses a cosmetic storage box, and through the setting of multiple storage slots and drawer boxes, the cosmetics can be placed in the storage box in an orderly manner according to different classifications, which is convenient for searching and using, thus effectively solving the problem. The problems and deficiencies of existing devices have been solved.

Description

cosmetic storage box

technical field

The utility model relates to the field of cosmetics, in particular to a cosmetic containing box.

Background technique

Cosmetic storage boxes are mainly used to store cosmetics and various private items. Except for one storage box, the inside is divided into grids of different sizes, which can be very convenient to pack cosmetics, skin care products, etc. bottles and cans properly. when.

The existing cosmetics storage box has a single function, and a large amount of cosmetics is stored in one cavity, causing the user to spend a lot of time searching for it when using it, which is inconvenient to use and has poor sealing performance.

In view of this, in view of the existing problems, a cosmetic storage box is provided, which has a reasonable structural design, and through the setting of multiple storage slots and drawer boxes, cosmetics can be placed in the storage box in an orderly manner according to different classifications, which is convenient Find and use, thus effectively solve the problem.

Utility model content

The purpose of the utility model is to solve the shortcomings in the prior art, and propose a cosmetic storage box.

In order to achieve the above purpose, the utility model adopts the following technical scheme: the lower end of the box body is fixedly connected with a drawer box, the inside of the drawer box is movably connected with a drawer, the inside of the drawer is provided with cotton cloth, the drawer One end is fixedly connected with a handle, the inside of the box body is provided with a storage slot, one side of the storage slot is provided with a small object storage slot, one end of the storage slot is provided with a jewelry storage slot, one of the jewelry storage slots The side is provided with a large object storage slot, the edge of the box body is provided with a closed hole, the two sides of the box body are movably connected with a rotating rod, one end of the rotating rod is fixedly connected with a pull rod, and the upper end of the box body is movable A box cover is connected, the edge of the box cover is provided with a closing block, the inside of the box cover is provided with a cosmetic mirror, one side of the cosmetic mirror is provided with a cosmetic lamp, and one side of the cosmetic lamp is provided with a switch, One end of the box cover is fixedly connected with a lock, and one end of the box body is fixedly connected with a hook.

As a further description of the above technical solution:

There is one storage slot, several small item storage slots, three jewelry storage slots, and one large item storage slot.

As a further description of the above technical solution:

The number of the rotating rods is two, the rotating rods are respectively located on both sides of the box body, and the positions of the two rotating rods are aligned.

As a further description of the above technical solution:

The size of the closure block is smaller than the size of the closure hole, and the closure block is fixedly connected to the edge of the box cover.

As a further description of the above technical solution:

There are two cosmetic lights, and the switch can control the opening and closing of the two cosmetic lights.

As a further description of the above technical solution:

A concave hole is provided inside the lock buckle, and a protrusion is provided on the upper end of the hook buckle, and the size of the protrusion is smaller than that of the concave hole.

The utility model has the following beneficial effects: through the arrangement of multiple storage tanks, the cosmetics can be placed in the storage box in an orderly manner according to different classifications, avoiding confusion during use, and making it easy to find and use during use; The setting of the block ensures that the inside of the cosmetic box is in a sealed state when the cosmetic box is closed, protecting the cosmetics inside the box body from external influences; through the setting of the rotating rod and the pull rod, the cosmetic box can be moved arbitrarily .

Description of drawings

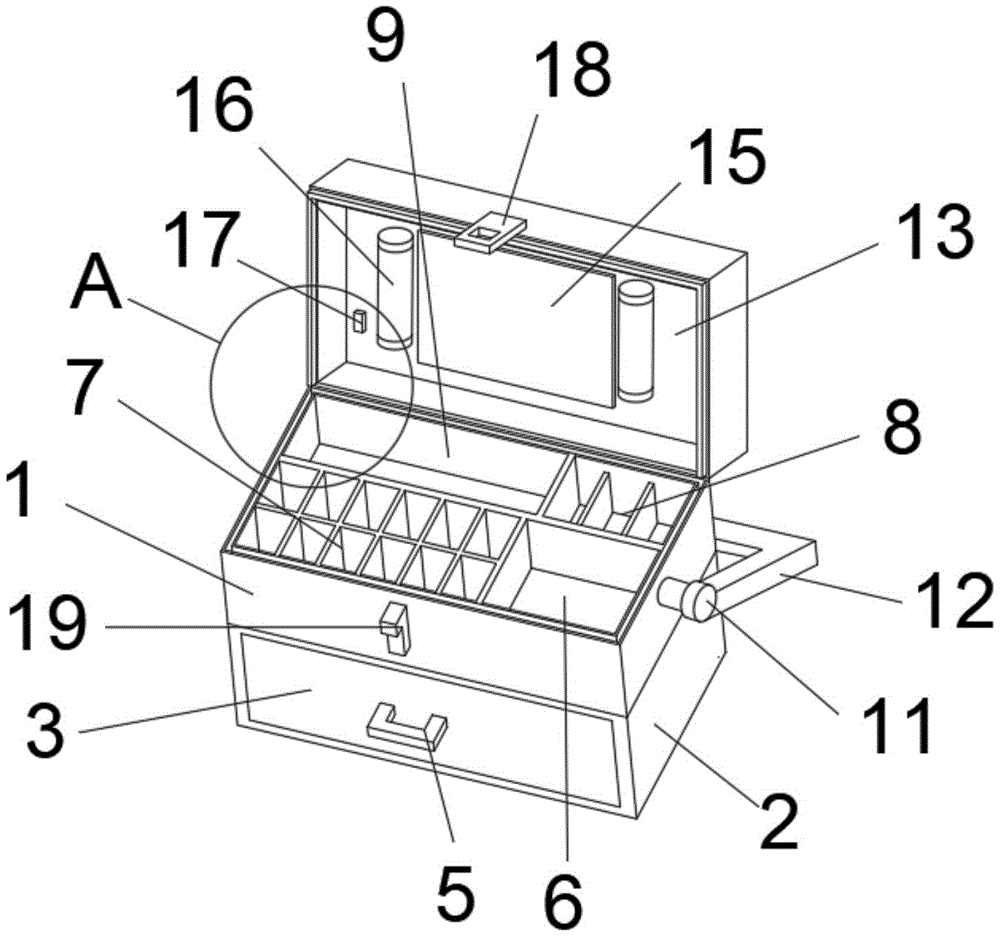

Fig. 1 is a three-dimensional view of a cosmetic storage box proposed by the utility model;

Fig. 2 is an enlarged view of position A of a cosmetic storage box proposed by the utility model;

Fig. 3 is an internal view of a drawer of a cosmetics storage box proposed by the utility model.

illustration:

1. Box body; 2. Drawer box; 3. Drawer; 4. Cotton cloth; 5. Handle; 6. Storage slot; 7. Small item storage slot; 8. Jewelry storage slot; 9. Large item storage slot; 10. Closed Hole; 11, rotating rod; 12, pull rod; 13, lid; 14, closing block; 15, makeup mirror; 16, makeup lamp; 17, switch; 18, lock; 19, hook.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

In the description of the present utility model, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer" The orientation or positional relationship indicated by etc. is based on the orientation or positional relationship shown in the drawings, which is only for the convenience of describing the utility model and simplifying the description, rather than indicating or implying that the device or element referred to must have a specific orientation, use a specific Therefore, it cannot be construed as a limitation on the present invention; the terms "first", "second", and "third" are only used for descriptive purposes, and cannot be interpreted as indicating or implying relative importance. In addition, Unless otherwise clearly specified and limited, the terms "installation", "connection" and "connection" should be interpreted in a broad sense, for example, it may be a fixed connection, a detachable connection, or an integral connection; it may be a mechanical connection, It can also be an electrical connection; it can be a direct connection, or an indirect connection through an intermediary, or an internal communication between two components. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present invention in specific situations.

Referring to Figures 1-3, an embodiment provided by the utility model: the lower end of the box body 1 is fixedly connected with a drawer box 2, and the inside of the drawer box 2 is movably connected with a drawer 3, and the inside of the drawer 3 is set There is a cotton cloth 4, and one end of the drawer 3 is fixedly connected with a handle 5, and the cotton cloth 4 inside the drawer 3 can protect items from being damaged due to collisions; the inside of the box body 1 is provided with a storage slot 6, and the storage slot 6 One side of the storage tank 6 is provided with a small object storage tank 7, one end of the storage tank 6 is provided with a jewelry storage tank 8, and one side of the jewelry storage tank 8 is provided with a large object storage tank 9, which can sort cosmetics in order Placed in the box body 1; the edge of the box body 1 is provided with a closed hole 10, the two sides of the box body 1 are movably connected with a rotating rod 11, and one end of the rotating rod 11 is fixedly connected with a pull rod 12, so The upper end of the box body 1 is movably connected with a lid 13, and the edge of the lid 13 is provided with a closing block 14, which can better seal the cosmetic box; the inside of the lid 13 is provided with a cosmetic mirror 15, and the makeup One side of the mirror 15 is provided with a make-up light 16, one side of the make-up light 16 is provided with a switch 17, one end of the box cover 13 is fixedly connected with a lock 18, and one end of the box body 1 is fixedly connected with a hook 19. It can make the cosmetic box more stable when it is closed.

Specifically, the number of the storage slot 6 is one, the number of the small item storage slot 7 is several, the number of the jewelry storage slot 8 is three, and the number of the large item storage slot 9 is one, Cosmetics can be placed in each storage groove orderly according to different classifications.

Specifically, the number of the rotating rods 11 is two, and the rotating rods 11 are respectively located on both sides of the box body 1, and the positions of the two rotating rods 11 are aligned, so that the cosmetic box can be moved arbitrarily.

Specifically, the size of the closure block 14 is smaller than the size of the closure hole 10, and the closure block 14 is fixedly connected to the edge of the box cover 13, which can make the cosmetic box more closed when closed.

Specifically, the number of the cosmetic lights 16 is two, and the switch 17 can control the opening and closing of the two cosmetic lights 16, which is convenient for use when the light is insufficient.

Specifically, the inside of the lock 18 is provided with a concave hole, and the upper end of the hook 19 is provided with a bump, and the size of the bump is smaller than the size of the concave hole, so that the lid 13 is more stable when it is closed.

Working principle: There are multiple storage grooves inside the box body 1, which can place cosmetics in different categories and orderly in the cosmetic box. The lower end of the box body 1 is connected to the drawer box 2, and the inside of the drawer box 2 is connected to the drawer 3. , some large bottled items can be placed, and the inside of the drawer 3 is provided with a cotton cloth 4, which can protect these items from rolling and collision when the cosmetic box is moved; The closure block 14 of the lid 13 is connected with the closing hole 10, so that the cosmetic case can be sealed when the cosmetic case is closed.

Finally, it should be noted that: the above is only a preferred embodiment of the utility model, and is not intended to limit the utility model, although the utility model has been described in detail with reference to the foregoing embodiments, for those skilled in the art , it can still modify the technical solutions recorded in the foregoing embodiments, or perform equivalent replacements on some of the technical features. Any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of the present utility model, All should be included within the protection scope of the present utility model.

Claims (6)

1. A cosmetics storage box, comprising a box body (1), characterized in that: the lower end of the box body (1) is fixedly connected with a drawer box (2), and the inside of the drawer box (2) is movably connected with a drawer (3), the inside of the drawer (3) is provided with a cotton cloth (4), one end of the drawer (3) is fixedly connected with a handle (5), and the inside of the box body (1) is provided with a storage tank (6 ), one side of the storage tank (6) is provided with a small object storage tank (7), one end of the storage tank (6) is provided with a jewelry storage tank (8), one of the jewelry storage tanks (8) The side is provided with a large object storage slot (9), the edge of the box body (1) is provided with a closed hole (10), the two sides of the box body (1) are movably connected with a rotating rod (11), and the rotating rod (11) is movably connected. One end of the bar (11) is fixedly connected with a pull bar (12), and the upper end of the box body (1) is movably connected with a lid (13), and the edge of the lid (13) is provided with a closing block (14). The inside of the box cover (13) is provided with a vanity mirror (15), one side of the vanity mirror (15) is provided with a vanity lamp (16), and one side of the vanity lamp (16) is provided with a switch (17) , one end of the box cover (13) is fixedly connected with a lock (18), and one end of the box body (1) is fixedly connected with a hook (19). 2. A cosmetic storage box according to claim 1, characterized in that: the number of the storage slot (6) is one, the number of the small item storage slots (7) is several, the jewelry storage The number of slots (8) is three, and the number of said large object storage slot (9) is one. 3. A cosmetic storage box according to claim 1, characterized in that: the number of the rotating rods (11) is two, and the rotating rods (11) are respectively located on both sides of the box body (1), The positions of the two rotating rods (11) are relatively aligned. 4. A cosmetic storage box according to claim 1, characterized in that: the size of the closure block (14) is smaller than the size of the closure hole (10), and the closure block (14) is fixedly connected to the box edge of the cover (13). 5. A cosmetics storage box according to claim 1, characterized in that: the number of said makeup lights (16) is two, and said switch (17) can control the opening and closing of two makeup lights (16). closure. 6. A cosmetics storage box according to claim 1, characterized in that: the lock (18) is provided with a concave hole inside, and the upper end of the hook (19) is provided with a bump, and the bump is The size of the hole is smaller than the size of the concave hole.
