Abstract

The utility model relates to a continuation of nursing service tool box, which comprises a box body and a partition plate. A supporting auxiliary structure is arranged on the outside of the box body. A cover plate is connected to the outside of the box body. A flip plate is hinged on the outside of the cover plate. , the inner side of the box is hinged with a connecting rod, the outer side of the connecting rod is connected with a rotating rod, and the outer side of the rotating rod is equipped with a second operating panel, a first operating panel and a mounting rod, and the second operating panel The limit block is connected with the outer side of the first operation panel. The continuous care service toolbox can adjust the height of the box body by unfolding the supporting auxiliary structure, and is convenient for practical use. Pulling the second operating panel and the first operating panel makes the connecting rod and the rotating rod unfold from the inside of the box body , flip the installation rod to contact with the box body, and then make the rotation rod limit, then rotate the second operation panel and the first operation panel to lock the limit block and the positioning hole, so as to facilitate the medical staff to complete the nursing needs.

Description

Continuity of Care Service Toolbox

technical field

The utility model relates to the technical field of service toolboxes, in particular to a continuous nursing service toolbox.

Background technique

The continuum of care is designed through a series of actions to ensure that patients receive different levels of collaboration and continuity of care in different health care settings, such as from the hospital to the home, and in the same health care setting, such as different departments of the hospital. Usually refers to the continuation from the hospital to the family, including the discharge plan formulated by the hospital, referral, continuous follow-up and guidance after the patient returns to the family or community.

Chinese patent CN 213851732 U, multi-functional diabetes continuous care toolbox, through the set toolbox main body, when the user opens the box cover set on the toolbox main body, insulin is put into the storage cavity, and the user can place the insulin The storage box set by the fixed sleeve is arranged in an orderly manner. In order to increase the storage effect of insulin, the drawer box can be pulled out through the drawer plate, and the drawer box can be pulled out through the set pull-out slide rail. The personnel can place the ice pack in the drawer box for low-temperature storage. In order to add ice packs in real time, the signal detection can be performed through the temperature sensor, and the temperature can be read through the temperature display, which can effectively improve the effect of insulin storage and facilitate the use of personnel. , which is better than the traditional method; but the device has the disadvantages of first, the box is short, and needs to bend over many times during operation; second, the partitions in the box are not clear, and the items cannot be classified when placed. For special items, such as: Disinfectants (easy to spill), sharps boxes, blood test tubes (requires low-temperature storage), etc. cannot be placed safely; 3. There is no operable table top, which is extremely inconvenient to take and use items; 4. Items used repeatedly during operation such as disinfection gel, There is no fixed storage area for sharps boxes, medical garbage bags, etc.; 5. There is no place to place medical garbage bags after operation; 6. The box is a fixed level, and there are many types of continuous care items that cannot be applied to various items.

Utility model content

(1) Solved technical problems

Aiming at the deficiencies of the prior art, the utility model provides a continuous nursing service toolbox, which has the advantages of a clear placement area, a large operating table, and the ability to adapt to the continuous nursing of a variety of different items. Bending over many times; some areas in the box are unclear, and items cannot be classified when placed. For special items, such as: disinfectant (easy to spill), sharps boxes, blood test tubes (requires low temperature storage), etc. cannot be placed safely; The operation table is extremely inconvenient to take and use items; there is no fixed storage area for repeatedly used items such as disinfection gel, sharps box, medical garbage bags, etc. during operation; there is nowhere to put medical garbage bags after operation; the box is a fixed level, The wide variety of continuum of care programs does not fit into the problem of multiple programs.

(2) Technical solution

In order to achieve the above purpose, the utility model provides the following technical solutions: the continuing care service tool box, including a box body, a partition plate and a storage plate, the outside of the box body is provided with a supporting auxiliary structure, and the outside of the box body is connected with a cover The outer side of the cover plate is hinged with a turning plate, the inner side of the box is hinged with a connecting rod, the outer side of the connecting rod is connected with a rotating rod, and the outer side of the rotating rod is installed with a second operating panel, a first The operation panel and the installation rod, the outside of the second operation panel and the first operation panel are connected with a limit block, the inside of the rotation lever is provided with a positioning hole, and the inside of the first operation panel is provided with a garbage bag placement hole .

Further, the support auxiliary structure includes a connecting truss installed outside the box, a rotating block is hinged on the outside of the connecting truss, a support rod is connected to the outside of the rotating block, and a manual pull rod is provided on the top of the box.

Further, a file bag is installed on the outside of the cover plate, a test tube placement rack and an operation placement box are installed on the outside of the storage board, and a cooling bag is arranged on the inside of the test tube placement rack.

Further, the left side of the partition board and the inner side of the box body are provided with sliding grooves, the outer side of the storage board is fixedly connected with a sliding block, and the sliding block is slidably connected with the sliding groove, and the outer side of the box body is fixedly connected There is a locking buckle, movable wheels are fixedly installed on the outside of the box body, and a sterile pipeline fixing belt is fixedly connected to the outside of the cover plate.

Further, a positioning hole is opened inside the limiting block, and the limiting block is hinged to the rotating rod through the positioning hole.

Further, a limiting groove is provided on the outside of the box body, and the installation rod is clamped with the box body through the limiting groove, and a support block is fixedly connected to the right side of the partition plate and the inner side of the box body, and when in use It is movably connected with the second operation board and the first operation board.

Further, the bottom of the test tube rack is provided with a drawing hole, and a movable plate is connected inside the drawing hole, and the cooling bag is located on the top of the movable plate.

(3) Beneficial effects

Compared with the prior art, the technical solution of the present application has the following beneficial effects:

1. The continuous care service toolbox, by adjusting the support frame outside the box, adjusts the required height according to the demand during operation, reduces frequent bending during operation, and facilitates the actual operation of medical staff. Open the cover to release the internal medicine It is unfolded to facilitate daily operations, and the storage board is used to store different items to avoid mutual interference of different drugs.

2. In the continuing care service toolbox, by pulling the second operation panel and the first operation panel, the connecting rod and the rotating rod are unfolded from the inside of the box, and the installation rod is turned to contact the box, so that the rotating rod is limited, and then Rotate the second operating panel and the first operating panel, and clamp the limit block with the positioning hole, thereby realizing the fixing effect on the operating panel, which is convenient for the medical staff to complete the corresponding inspection and nursing work.

Description of drawings

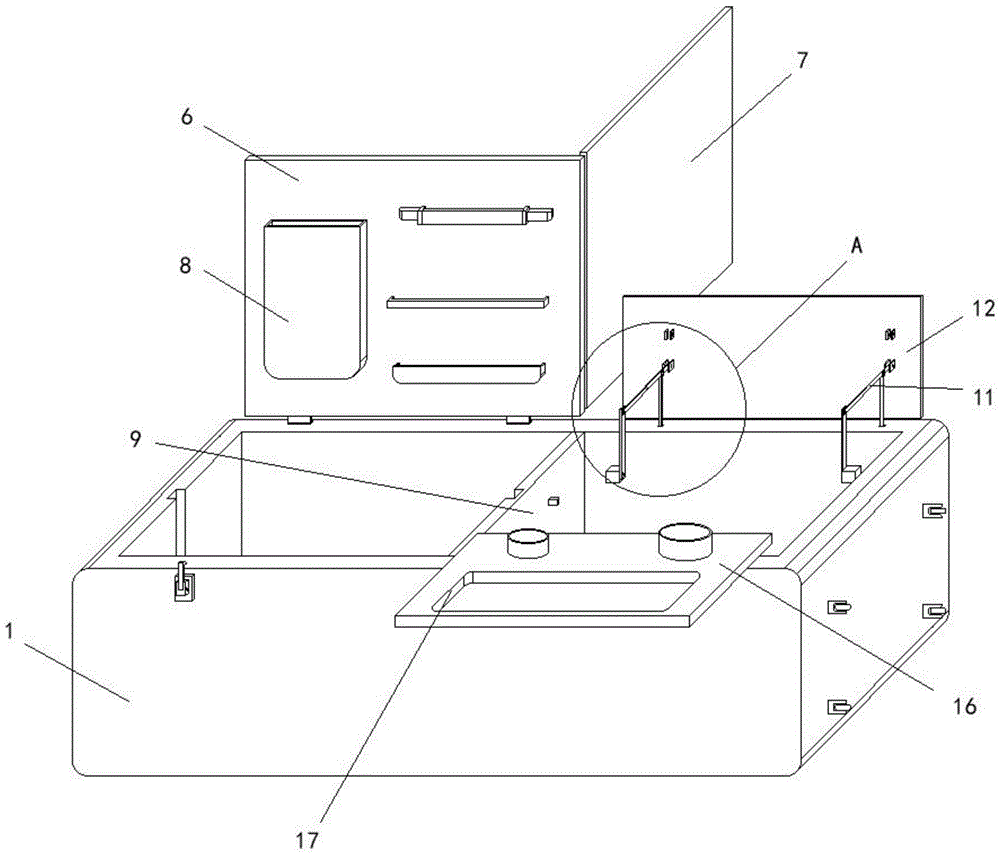

Fig. 1 is a schematic view of the structure of the utility model in use;

Fig. 2 is the structural appearance diagram of the present utility model;

Fig. 3 is the partially enlarged view of place A in structure Fig. 1 of the utility model;

Fig. 4 is a partial view of the utility model structure storage board.

In the figure: 1 box body, 2 connecting truss, 3 rotating block, 4 supporting rod, 5 manual pull rod, 6 cover plate, 7 turning plate, 8 file bag, 9 partition plate, 10 connecting rod, 11 rotating rod, 12 Two operation boards, 13 limit blocks, 14 positioning holes, 15 installation rods, 16 first operation boards, 17 garbage bag placement holes, 18 storage boards, 19 test tube placement racks, 20 cooling bags, 21 operation placement boxes.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Fig. 1-4, the continuing care service toolbox among the present embodiment comprises box body 1, dividing plate 9 and storage board 18, and the outside of box body 1 is movably connected with supporting auxiliary structure, and box body 1 outside is hinged with Cover plate 6, the outer side of the cover plate 6 is hinged with a turning plate 7, the inner side of the box body 1 is hinged with a connecting rod 10, the outer side of the connecting rod 10 is movably connected with a rotating rod 11, and the outer side of the rotating rod 11 is equipped with a second operating panel 12 Or the first operating plate 16 and the mounting rod 15, the outer sides of the second operating plate 12 and the first operating plate 16 are fixedly connected with the limit block 13, the inboard of the rotating rod 11 is provided with a positioning hole 14, and the inside of the first operating plate 16 Offer garbage bag placement hole 17.

Wherein, the left side of the partition plate 9 and the inside of the box body 1 are all provided with sliding grooves, the outside of the storage plate 18 is fixedly connected with a sliding block, and the sliding block is slidably connected with the sliding groove, and the outside of the casing 1 is fixedly connected with a lock. Tightly buckle, the outer side of box body 1 is fixedly equipped with movable wheels, the outer side of cover plate 6 is fixedly connected with aseptic pipeline fixing belt, and the inside of limiting block 13 is provided with positioning hole 14, and limiting block 13 passes through positioning hole 14 and rotates. The rod 11 is hinged, the outer side of the box body 1 is provided with a limiting groove, the mounting rod 15 is clamped with the box body 1 through the limiting groove, and the right side of the partition plate 9 is fixedly connected with the inner side of the box body 1. Support blocks, and use It is movably connected with the second operating panel 12 and the first operating panel 16, and the top of the first operating panel 16 is fixedly connected with an iodophor placement seat.

In addition, the box body 1 provides the necessary place for the box body, and uses the supporting auxiliary structure to adjust the overall height, which is convenient for actual operation, avoids frequent bending during operation, and uses the cover plate 6 to seal the box body 1 to ensure daily transportation. The turning plate 7 is used in conjunction with the cover plate 6 to realize overall opening and flipping, so as to expand the overall operating area. When the overall height is appropriate, the turning plate 7 can be turned to the back of the cover plate 6 to support the cover plate 6. The partition plate 9 divides the box body 1 into multiple storage areas to avoid mutual interference of the medicines. When the operation panel needs to be used, hold the second operation panel 12 and the first operation panel 16 to pull upwards and open to connect them. The rod 10 and the rotating rod 11 are hinged to open, and then the installation rod 15 is clamped with the box body 1 to support the rotating rod 11, so that the bottom has a better supporting frame body, and the second operating panel 12 and The first operating panel 16 makes the limit block 13 at the bottom engage with the positioning hole 14 on the inner side of the rotating rod 11, so that the operating panel is stable and reliable, so that it is convenient for medical staff to place conventional medicines and facilitate normal nursing needs. The garbage bag placement hole 17 inside the first operating panel 16 is used for placing garbage bags, so as to realize the collection of garbage, so as to facilitate the overall daily operation.

Please refer to Fig. 1-4, in this embodiment, the supporting auxiliary structure includes a connecting truss 2 fixedly installed on the outside of the box body 1, a rotating block 3 is hinged on the outside of the connecting truss 2, and a supporting rod 4 is fixedly connected to the outside of the rotating block 3, The top of the box body 1 is movably connected with a manual pull rod 5, the outer side of the cover plate 6 is fixedly equipped with a file bag 8, the outer side of the storage plate 18 is fixedly installed with a test tube placement rack 19 and an operation placement box 21, and the inner side of the test tube placement rack 19 is movably installed. There are 20 cooling bags.

Wherein, the bottom of the test tube placement rack 19 is provided with a drawing hole, and the inside of the drawing hole is connected with a movable plate. Velcro is provided at the bottom of 18, and the Velcro is adsorbed to the inner side of the box body 1 to avoid movement during transportation. The operating storage box 21 is a sharps box or other storage boxes.

In addition, the connecting truss 2 hinges the rotating block 3 and the box body 1, so that the support rod 4 can be turned over, so that it will not affect the normal drag during transportation, so as to meet the long-term use requirements, which is conveniently carried out by manually pulling the rod 5 Holding, suitable for people of different heights, the support rod 4 can be extended during use, so that the box body 1 can be adjusted arbitrarily according to the actual use height to meet actual needs, and the file bag 8 is used to place corresponding information and implement operations Manual, using the storage plate 18 and the box body 1 to be relatively clamped to achieve relative positioning, and facilitate the installation and fixing of the test tube placement rack 19 and the operation placement box 21, and then complete the corresponding sample collection and drug placement when going out daily, Its cooling bag 20 realizes relative heat preservation, guarantees the survival of sample.

The test tube placement rack 19 and the operation placement box 21 are existing equipment, which will not be further introduced in this patent. They can clamp the sealed test tubes and ensure stability and reliability during transportation. Relative movement occurs during placement, which affects normal use.

The working principle of the above-mentioned embodiment is:

(1) Adjust the support frame outside the box body 1, adjust the required height according to the demand during operation, reduce frequent bending during operation, and facilitate the actual operation of the medical staff, open the cover 6 to unfold the internal medicine, so as to facilitate In daily operation, the storage board 18 is used to facilitate the storage of different items, so as to avoid mutual interference of different medicines.

(2) Pull the second operating panel 12 and the first operating panel 16 so that the connecting rod 10 and the rotating rod 11 are deployed from the inside of the box body 1, and the installation rod 15 is turned over to contact the box body 1, and then the rotating rod 11 is limited, Then rotate the second operating panel 12 and the first operating panel 16 to clamp the limit block 13 with the positioning hole 14, thereby realizing the fixing effect on the operating panel, which is convenient for the medical staff to complete the corresponding inspection and nursing work.

(3) The height of the cabinet 1 is adjustable, and there is no need to bend over many times during operation; the internal partition of the cabinet 1 is clear, and the items are classified when placed. For special items, such as: disinfectant (easy to spill), sharps box, Blood test tubes (need to be stored at low temperature) can be placed safely; with a large operating surface, it is extremely convenient to take and use items; items that are repeatedly used during operation, such as disinfection gel, sharps boxes, medical garbage bags, etc., have a fixed storage area; operation The rear medical garbage bag has a relative placement position; the box body 1 is adjustable, and there are a wide variety of continuing care items, which can be applied to various items.

It should be noted that in this article, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply that there is a relationship between these entities or operations. There is no such actual relationship or order between them. Furthermore, the term "comprises", "comprises" or any other variation thereof is intended to cover a non-exclusive inclusion such that a process, method, article or apparatus comprising a set of elements includes not only those elements, but also includes elements not expressly listed. other elements of or also include elements inherent in such a process, method, article, or device. Without further limitations, an element defined by the phrase "comprising a ..." does not exclude the presence of additional identical elements in the process, method, article or apparatus comprising said element.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (7)

1. Continue nursing service tool case, including box (1), division board (9) and storage plate (18), its characterized in that: the outside of box (1) is provided with the support auxiliary structure, the box (1) outside is connected with apron (6), the outside of apron (6) articulates there is returning face plate (7), the inboard of box (1) articulates there is connecting rod (10), the outside of connecting rod (10) is connected with dwang (11), second operation panel (12), first operation panel (16) and installation pole (15) are installed in the outside of dwang (11), the outside of second operation panel (12) and first operation panel (16) all is connected with stopper (13), locating hole (14) have been seted up to the inboard of dwang (11), disposal bag placing hole (17) have been seted up to the inside of first operation panel (16).

2. The continuous care services kit of claim 1, wherein: the supporting auxiliary structure comprises a connecting truss (2) arranged outside the box body (1), wherein the outer side of the connecting truss (2) is hinged with a rotating block (3), the outer side of the rotating block (3) is connected with a supporting rod (4), and the top of the box body (1) is provided with a manual pull rod (5).

3. The continuous care services kit of claim 1, wherein: file pocket (8) are installed in the outside of apron (6), test tube rack (19) and operation are installed in the outside of putting thing board (18) and are placed box (21), the inboard of test tube rack (19) is provided with cooling bag (20).

4. The continuous care services kit of claim 1, wherein: the sliding groove has all been seted up with the inboard of box (1) in the left side of division board (9), put the outside fixedly connected with sliding block of thing board (18), and sliding block and sliding groove sliding connection, the outside fixedly connected with locking of box (1) is detained, the outside fixed mounting of box (1) has the movable wheel, the aseptic pipeline fixed band of outside fixedly connected with of apron (6).

5. The continuous care services kit of claim 1, wherein: locating hole (14) have been seted up to the inside of stopper (13), stopper (13) are articulated with dwang (11) through locating hole (14).

6. The continuous care services kit of claim 1, wherein: the limiting groove has been seted up in the outside of box (1), installation pole (15) are through limiting groove and box (1) joint, the right side of division board (9) and the equal fixedly connected with supporting shoe in inboard of box (1), and during the use with second operation panel (12) and first operation panel (16) swing joint.

7. The continuous care services kit of claim 3, wherein: drawing holes are formed in the bottom of the test tube placing rack (19), a movable plate is connected to the inside of each drawing hole, and the cooling bag (20) is located at the top of the movable plate.
