Abstract

The utility model discloses a support for vaginal ultrasound examination that can raise the buttocks, relates to the field of medical equipment, and includes a bottom plate, the upper surface of the bottom plate is provided with a first pneumatic mechanism and a second pneumatic mechanism, and the first pneumatic mechanism Located on one side of the second pneumatic mechanism, the outer surface of the upper end of the first pneumatic mechanism is provided with a buttock supporting plate, and the outer surface of the upper end of the second pneumatic mechanism is provided with a leg supporting plate, and the buttock supporting plate and the leg A first connecting shaft is arranged between the pallets. According to the vaginal ultrasonic examination support that can raise the buttocks described in the utility model, the air pump can respectively inflate the first pneumatic mechanism and the second pneumatic mechanism, and the first pneumatic mechanism and the second pneumatic mechanism can respectively control the buttock support by inflating The height of the board and the leg support board can support the patient's buttocks and legs during use, and can be adjusted according to the patient's body shape, which is convenient for doctors to perform vaginal ultrasound examination on patients, and the effect of use is better than traditional methods .

Description

A support for vaginal ultrasonography that can elevate the buttocks

technical field

The utility model relates to the field of medical equipment, in particular to a support for vaginal ultrasound examination that can raise the buttocks.

Background technique

During clinical vaginal ultrasonography, doctors will ask patients to bend their legs and lift them up. For some patients with high ovarian position or excessive uterine flexion, patients often need to put their hands under their buttocks. It is for the better display of the corresponding organs, but it is often not suitable for the elderly, infirm, and people with limited mobility; in addition, this posture will cause discomfort to the patient after a long time, and because each patient's fist size is different, The height that can be lifted is limited, and not all of them can reach the height required for examination, which brings inconvenience to vaginal ultrasound examination. Therefore, we propose a support for vaginal ultrasound examination that can raise the buttocks.

Utility model content

The main purpose of the utility model is to provide a support for vaginal ultrasound examination that can raise the buttocks, which can effectively solve the problems in the background technology.

In order to achieve the above object, the technical solution adopted by the utility model is: a vaginal ultrasound inspection support that can raise the buttocks, including a bottom plate, and the upper surface of the bottom plate is provided with a first pneumatic mechanism and a second pneumatic mechanism. The first pneumatic mechanism is located on one side of the second pneumatic mechanism, the outer surface of the upper end of the first pneumatic mechanism is provided with a buttock supporting plate, the upper outer surface of the second pneumatic mechanism is provided with a leg supporting plate, and the buttock supporting A first connecting shaft is provided between the board and the leg supporting board, a waist supporting board is provided on the outer surface of one end of the buttock supporting board, a second connecting shaft is arranged between the hip supporting board and the waist supporting board, the The middle part of the second connecting shaft is provided with a limit pin, and the outer surface of the upper end of the buttock supporting plate, the leg supporting plate and the waist supporting plate is provided with a sponge pad, and the outer surface of the front end of the base plate is provided with a controller and an air pump. The controller is located on one side of the air pump, the outer surfaces of both ends of the bottom plate are provided with fixing belts, the outer surface of the upper end of the air pump is provided with a three-way valve, and the outer surfaces of both sides of the three-way valve are provided with air guide tubes, The first pneumatic mechanism includes an inflatable base, an inflatable port and a telescopic air bag.

Preferably, the inflation port is located on the outer wall of the inflatable base, and the telescopic air bag is located on the outer surface of one end of the inflatable base.

Preferably, the outer wall of the inflatable base is detachably connected to the outer surface of one end of the inflation port, and the outer surface of one end of the inflatable base is detachably connected to the outer surface of one end of the telescopic airbag, and the telescopic airbag and the inflatable base are of a through structure .

Preferably, the first pneumatic mechanism and the second pneumatic mechanism have the same structure, and the number of the second pneumatic mechanism is two groups.

Preferably, the hip support is movably connected with the leg support through a first connection shaft, and the hip support is movably connected with the waist support through a second connection shaft.

Preferably, the outer surface of the front end of the base plate is detachably connected to the outer surface of the rear end of the air pump, the outer surface of the upper end of the air pump is detachably connected to the outer surface of one end of the three-way valve, and the outer surfaces of both sides of the three-way valve It is detachably connected with the outer surface of one end of the air duct.

Preferably, the outer surfaces of both ends of the bottom plate are detachably connected to the outer surface of one end of the fixing belt.

Compared with the prior art, the utility model has the following beneficial effects: the air pump can respectively inflate the first pneumatic mechanism and the second pneumatic mechanism in the vaginal ultrasound inspection bracket that can raise the buttocks, and the first pneumatic mechanism and the second pneumatic mechanism can be inflated respectively. The second pneumatic mechanism can control the height of the buttock support plate and the leg support plate respectively by inflating. When in use, it can support the patient’s buttocks and legs, and can be adjusted according to the patient’s body shape, which is convenient for doctors to perform vaginal ultrasound examination on patients. , the effect of using is better than the traditional method.

Description of drawings

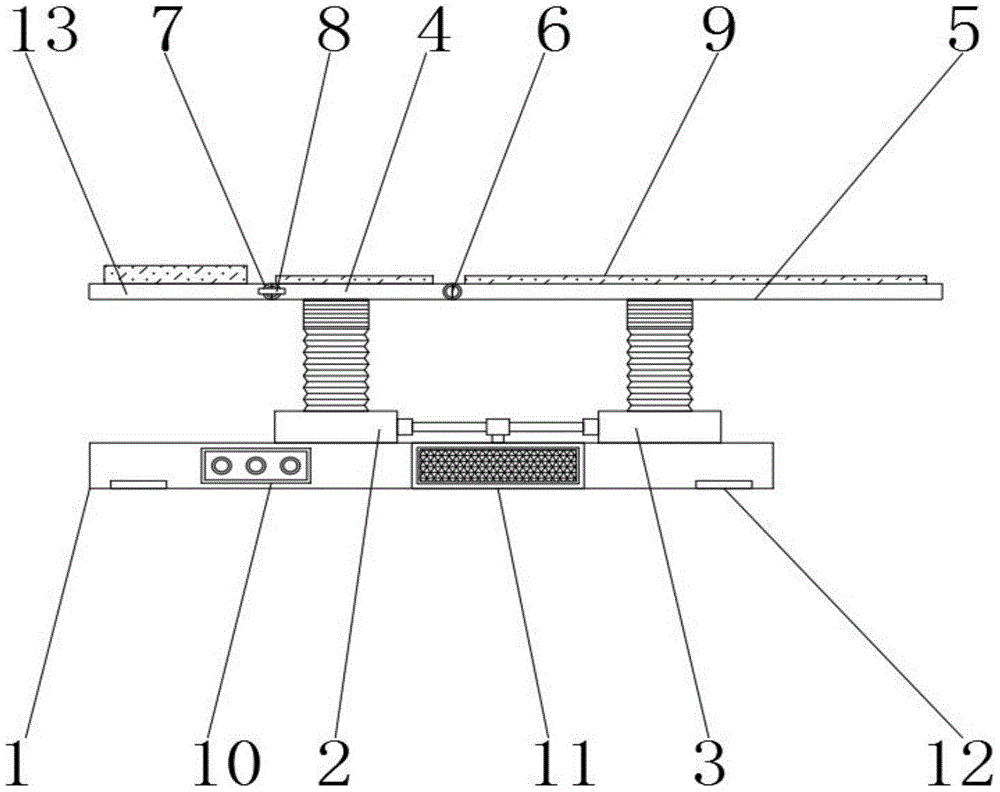

Fig. 1 is a schematic diagram of the overall structure of a vaginal ultrasound examination bracket that can raise the buttocks of the present invention;

Fig. 2 is a structural diagram of a support air pump 11 for vaginal ultrasound examination that can raise the buttocks of the present invention;

Fig. 3 is a structural diagram of the first pneumatic mechanism 2 of a vaginal ultrasound examination bracket capable of raising the buttocks of the present invention;

Fig. 4 is a top view structure diagram of a bottom plate 1 of a vaginal ultrasound inspection bracket capable of raising the buttocks of the present invention.

In the figure: 1, bottom plate; 2, first pneumatic mechanism; 201, inflatable base; 202, inflation port; 203, telescopic air bag; 3, second pneumatic mechanism; 4, buttock support plate; 5, leg support plate; , the first connecting shaft; 7, the second connecting shaft; 8, the limit pin; 9, the sponge pad; 10, the controller; 11, the air pump; 12, the fixing belt; 13, the waist support plate; 14, the three-way valve; 15. Airway.

Detailed ways

In order to make the technical means, creative features, goals and effects achieved by the utility model easy to understand, the utility model will be further elaborated below in conjunction with specific embodiments.

As shown in Figures 1-4, a vaginal ultrasound inspection support that can raise the buttocks includes a bottom plate 1, and the upper surface of the bottom plate 1 is provided with a first pneumatic mechanism 2 and a second pneumatic mechanism 3, and the first pneumatic mechanism 2 is located at One side of the second pneumatic mechanism 3, the upper end outer surface of the first pneumatic mechanism 2 is provided with buttock supporting plate 4, the upper end outer surface of the second pneumatic mechanism 3 is provided with leg supporting plate 5, buttock supporting plate 4 and leg supporting plate A first connecting shaft 6 is arranged between the plates 5, a waist supporting plate 13 is arranged on the outer surface of one end of the buttock supporting plate 4, a second connecting shaft 7 is arranged between the buttock supporting plate 4 and the waist supporting plate 13, and the second connecting shaft The middle part of 7 is provided with limit pin 8, buttock supporting plate 4, leg supporting plate 5 and the upper end outer surface of waist supporting plate 13 are provided with sponge pad 9, and the front end outer surface of bottom plate 1 is provided with controller 10 and air pump 11, controls The device 10 is located on one side of the air pump 11, the outer surfaces of both ends of the bottom plate 1 are provided with fixing belts 12, the outer surface of the upper end of the air pump 11 is provided with a three-way valve 14, and the outer surfaces of both sides of the three-way valve 14 are provided with air guide pipes 15 , the first pneumatic mechanism 2 includes an inflatable base 201 , an inflatable port 202 and a telescopic airbag 203 .

Further, the inflation port 202 is located on the outer wall of the inflatable base 201, and the telescopic airbag 203 is located on the outer surface of one end of the inflatable base 201. The first pneumatic mechanism 2 can control the height of the buttock support plate 4 by inflating it during use, which is convenient for the patient when in use. The buttocks are supported for easy examination of the patient.

Further, the outer wall of the inflatable base 201 is detachably connected to the outer surface of one end of the inflatable port 202, and the outer surface of one end of the inflatable base 201 is detachably connected to the outer surface of one end of the telescopic airbag 203, and the telescopic airbag 203 and the inflatable base 201 are a through-type structure , the inflation port 202 can inflate into the inflatable base 201, and deliver the gas to the telescopic airbag 203, so that the telescopic airbag 203 can rise and extend.

Further, the first pneumatic mechanism 2 and the second pneumatic mechanism 3 have the same structure, and the number of the second pneumatic mechanism 3 is two groups. The first pneumatic mechanism 2 and the second pneumatic mechanism 3 can be controlled separately during use, and the buttock support plate 4 and the height of the leg supporting plate 5 can support the patient's buttocks and legs during use, and can be adjusted according to the patient's body shape, so that the doctor can perform vaginal ultrasound examination on the patient.

Further, the buttock support 4 is movably connected with the leg support 5 through the first connecting shaft 6, and the buttock support 4 is movably connected with the waist support 13 through the second connection shaft 7, and the waist support 13 can support the patient when in use. The waist plays a supporting role.

Further, the outer surface of the front end of the base plate 1 is detachably connected to the outer surface of the rear end of the air pump 11, the outer surface of the upper end of the air pump 11 is detachably connected to the outer surface of one end of the three-way valve 14, and the outer surfaces of both sides of the three-way valve 14 are connected to the outer surface of the three-way valve 14. The outer surface of one end of the air guide tube 15 is detachably connected, and the air pump 11 can conveniently inflate the first pneumatic mechanism 2 and the second pneumatic mechanism 3 during use.

Further, the outer surfaces of both ends of the base plate 1 are detachably connected to the outer surface of one end of the fixing belt 12, and the fixing belt 12 can facilitate fixing the base plate 1 on the hospital bed during use.

It should be noted that the utility model is a vaginal ultrasound inspection bracket that can raise the buttocks. When in use, the bottom plate 1 can be placed on the hospital bed, and then the bottom plate 1 can be fixed on the armrest of the hospital bed through the fixing belt 12. When in use, the patient can lie down on the bottom plate 1, place the buttocks on the buttock support plate 4, and then place both legs on the leg support plate 5. According to the actual situation, the air pump 11 can be activated through the controller 10 to make the air pump 11 pass through. The three-way valve 14 and the air guide tube 15 inflate the first pneumatic mechanism 2 and the second pneumatic mechanism 3, and the gas enters the inflatable base 201 from the inflation port 202, and then the gas is delivered to the telescopic air bag 203, so that the telescopic air bag 203 can Rise and extend to raise the hip support 4, the first connecting shaft 6 can easily adjust the angle between the high hip supporting 4 and the leg supporting 5 during use, and the waist can be adjusted through the second connecting shaft 7 during use Supporting plate 13, so that the waist supporting plate 13 is supported under the patient's waist. After the adjustment is completed, the limit pin 8 can be inserted into the second connecting shaft 7 to limit the second connecting shaft 7, which can be used according to the patient's The body shape is adjusted, which is convenient for doctors to perform vaginal ultrasonography on patients, which is more practical.

The basic principles, main features and advantages of the present utility model have been shown and described above. Those skilled in the industry should understand that the utility model is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions are only preferred examples of the utility model, and are not used to limit the utility model. Without departing from the utility model Under the premise of the spirit and scope, the utility model also has various changes and improvements, and these changes and improvements all fall within the scope of the claimed utility model. The scope of protection required by the utility model is defined by the appended claims and their equivalents.

Claims (7)

1. A support for vaginal ultrasound examination that can raise the buttocks, comprising a base plate (1), characterized in that: the outer surface of the upper end of the base plate (1) is provided with a first pneumatic mechanism (2) and a second pneumatic mechanism (3) ), the first pneumatic mechanism (2) is located on one side of the second pneumatic mechanism (3), and the outer surface of the upper end of the first pneumatic mechanism (2) is provided with a buttock support plate (4), and the second pneumatic mechanism (2) The outer surface of the upper end of the mechanism (3) is provided with a leg support plate (5), and a first connecting shaft (6) is arranged between the buttock support plate (4) and the leg support plate (5). A waist supporting plate (13) is provided on the outer surface of one end of the plate (4), and a second connecting shaft (7) is arranged between the buttock supporting plate (4) and the waist supporting plate (13), and the second connecting shaft The middle part of (7) is provided with limit pin (8), and the upper end outer surface of described buttock supporting plate (4), leg supporting plate (5) and waist supporting plate (13) is provided with sponge pad (9), and described A controller (10) and an air pump (11) are provided on the outer surface of the front end of the base plate (1), the controller (10) is located on one side of the air pump (11), and the outer surfaces of both ends of the base plate (1) are provided with There is a fixing belt (12), the upper surface of the air pump (11) is provided with a three-way valve (14), and the two sides of the three-way valve (14) are provided with air guide tubes (15). A pneumatic mechanism (2) includes an inflatable base (201), an inflatable port (202) and a telescopic air bag (203). 2. A support for vaginal ultrasound examination that can raise the buttocks according to claim 1, characterized in that: the inflation port (202) is located on the outer wall of the inflatable base (201), and the telescopic air bag (203) is located One end outer surface of the base (201). 3. A buttock-raising vaginal ultrasound examination bracket according to claim 1, characterized in that: the outer wall of the inflatable base (201) is detachably connected to the outer surface of one end of the inflatable port (202), and the The outer surface of one end of the inflatable base (201) is detachably connected to the outer surface of one end of the telescopic airbag (203), and the telescopic airbag (203) and the inflatable base (201) are in a through structure. 4. A vaginal ultrasonography bracket capable of elevating the buttocks according to claim 1, characterized in that: the structure of the first pneumatic mechanism (2) is the same as that of the second pneumatic mechanism (3), and the second pneumatic mechanism (3) The quantity of pneumatic mechanism (3) is two groups. 5. A support for vaginal ultrasound examination that can elevate the buttocks according to claim 1, characterized in that: the buttock support plate (4) moves with the leg support plate (5) through the first connecting shaft (6) connected, the hip supporting board (4) is flexibly connected with the waist supporting board (13) through the second connecting shaft (7). 6. A vaginal ultrasound inspection support capable of raising the buttocks according to claim 1, characterized in that: the outer surface of the front end of the base plate (1) is detachably connected to the outer surface of the rear end of the air pump (11), the The outer surface of the upper end of the air pump (11) is detachably connected to the outer surface of one end of the three-way valve (14), and the outer surface of both sides of the three-way valve (14) is detachably connected to the outer surface of one end of the air guide tube (15). . 7. A vaginal ultrasound inspection support capable of raising the buttocks according to claim 1, characterized in that: the outer surfaces of both ends of the base plate (1) are detachably connected to the outer surface of one end of the fixing belt (12) .
