Abstract

The utility model discloses a hinge mechanism for a concealed inner casement window, which is characterized in that it comprises two left and right hinge assemblies and a rotating shaft connecting the two hinge assemblies, each hinge assembly includes a The fixed part connected to the frame or the window sash, the rotating connection part connected to the opposite hinge assembly, and the transfer part connecting the two parts, the left and right hinge assemblies are arranged in half, and the connecting end of the hinge assembly and the window sash is rotated through the rotating shaft A rotational degree of freedom of 0‑90 degrees is obtained; the hinge mechanism is located inside the sash. The utility model realizes the concealed installation method through the installation structure of the folding hinge assembly, avoids external leakage from affecting the overall appearance, and also makes the indoor light sensitivity better, reaching an opening angle of 90 degrees, which is convenient for indoor and outdoor air circulation.

Description

Hinge mechanism for hidden inner casement window

technical field

The utility model relates to a window sash connection structure, in particular to a hinge mechanism for a concealed inner casement window.

Background technique

Glass curtain wall is a commonly used enclosure or decorative structure outside modern buildings. It is a building wall decoration method that combines aesthetics and novelty. Because the glass curtain wall has good lighting performance, it is widely used in high-rise buildings and public places. However, in order to ensure the indoor ventilation effect of the building and improve the comfort of the indoor environment, opening windows should be installed on the glass curtain wall.

Most of the existing glass curtain walls use a hidden internal opening ventilation system, which is a way to combine the opening sash frame with the aluminum panel. 45° component frame gap, poor light perception of indoor details. As shown in Figure 1, the hinge 21 connecting the window frame 19 and the window sash 20 is located on the outside of the window sash 20, the rotating shaft is installed on the window frame 19 through a base 22, the hinge end is fixed on the window sash 20, and the rotation of the rotating shaft makes the The window sash 20 obtains a certain angle of opening. It can be clearly seen from the figure that there is a corner seam at the hinge connecting the window frame 19 and the sash 20, and the hinge is exposed outside the sash 20, which affects the overall aesthetics. This is caused by the structure of the hinge itself and the installation position. Therefore, it is necessary to improve the hinge structure to avoid the existing problems.

Contents of the invention

The purpose of the utility model is to provide a hinge mechanism for hidden inner casement windows. Through the improvement of the structure, the seam between the window frame and the sash is reduced, the hinge is hidden, and the indoor light effect and overall aesthetics are improved.

In order to achieve the above purpose, the technical solution adopted by the utility model is: a hinge mechanism for hidden inner casement windows, including left and right hinge components, and a rotating shaft connecting the two hinge components, each hinge The hinge assembly includes a fixed part connected with the window frame or sash, a rotating connection part connected with the opposite hinge assembly, and an adapter part connecting the two parts. A rotational degree of freedom of 0-90 degrees is obtained through the rotation of the rotating shaft; the hinge mechanism is located inside the window sash.

The inside of the window sash is provided with an installation chamber for the hinge mechanism, and the installation chamber is surrounded by the side frames of the window frame, the side frames of the sash and the top plate, and the side frames of the window frame and the side frames of the sash are arranged opposite to each other, and are opposite to each other. There are grooves on the surface, and the fixing parts of the left and right hinge components are respectively set in the corresponding grooves and fixed by screws. The transfer part is located on the inner side of the top plate. When the window sash is closed, The hinge components on both sides are folded in half to form a U shape, and when the sash is opened, the hinge components on both sides form an acute or right angle with the rotating shaft as the origin.

A further technical solution is that the top plate is formed by extending the outer side plate of the window sash, and extends close to the edge of the window frame, leaving only opening slits to form a shield for the installation chamber.

Another technical solution is that the opening of the installation chamber is provided with a water-repelling sealing strip, one side of which is set in the slot of the side frame of the window frame, and the other side is against the side frame of the window sash. .

In the above technical solution, the transition part is composed of several sections of hollow tubes cross-spliced, and two adjacent hollow tubes are respectively located on the window frame and sash, and the rotating shaft runs through the hollow tubes.

A further technical solution is that the rotating shaft is composed of a shaft in the middle and hexagon socket pins at both ends.

Due to the application of the above-mentioned technical solutions, the utility model has the following advantages compared with the prior art:

1. In the utility model, the hinge mechanism is located inside the window sash. The hinge assembly realizes the concealment of the hinge mechanism through the split and folding opening methods. On the one hand, it does not affect the aesthetics of the window sash on the other hand. The opening angle of the window sash can reach 90 degrees, and the indoor light effect is better;

2. The hinge components in the hinge mechanism are composed of a fixed part, a rotating connection part and an adapter part. They have the same profile section and are formed by a single mold to reduce costs;

3. The utility model has a simple structure and is easy to install.

Description of drawings

Fig. 1 is the structural representation in the utility model background technology;

Fig. 2 is a schematic structural view of Embodiment 1 of the utility model;

Fig. 3 is a schematic diagram of the exploded structure of Fig. 2;

Fig. 4 is a schematic structural view of the left and right hinge components in Embodiment 1 of the utility model;

Fig. 5 is a schematic diagram of a use state of Embodiment 1 of the present utility model;

Fig. 6 is a schematic diagram of the open state of the sash in Fig. 5 .

Among them: 1. Hinge assembly; 2. Rotating shaft; 3. Window frame; 4. Sash; 5. Fixed part; 6. Rotating connection part; 7. Transfer part; 8. Installation chamber; ;10, sash side frame, 11, top plate; 12, groove; 13, countersunk head screw; 14, water-retaining sealing strip; 15, card slot; 16, hollow tube; 17, shaft rod; 18, inner hexagon Pin shaft; 19, window frame; 20, window sash; 21, hinge; 22, base.

Detailed ways

Below in conjunction with accompanying drawing and embodiment the utility model is further described:

Embodiment 1: Referring to Figures 2 to 6, a hinge mechanism for a concealed inner casement window includes two left and right hinge assemblies 1, and a rotating shaft 2 connecting the two hinge assemblies 1, each The hinge assembly 1 includes a fixed part 5 connected to the window frame 3, a rotating connection part 6 connected to the window sash 4, and an adapter part 7 connecting the two parts. The connecting end of the window sash rotates through the rotating shaft 2 to obtain a rotational degree of freedom of 0-90 degrees; the hinge mechanism 1 is located inside the window sash.

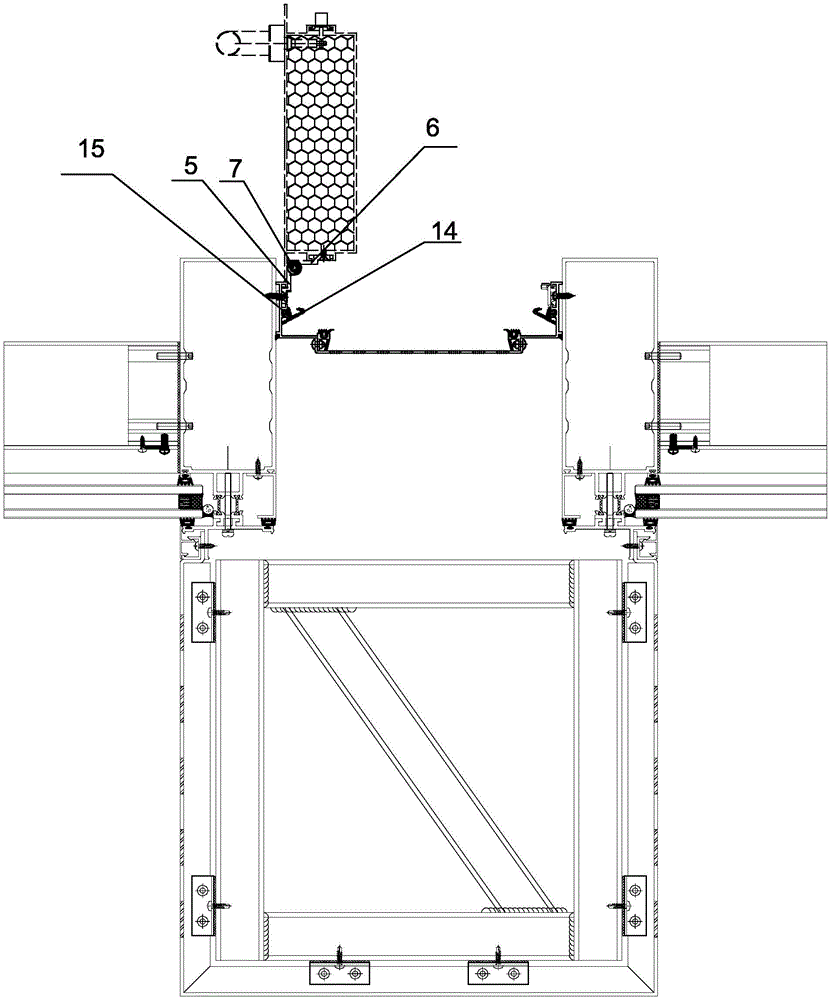

As shown in Figure 5, the inside of the window sash is provided with the installation chamber 8 of the hinge mechanism, and the installation chamber 8 is surrounded by the window frame side frame 9, the window sash side frame 10 and the top plate 11, and the window frame The side frame 9 and the sash side frame 10 are relatively arranged, and grooves 12 are provided on the opposite surfaces. The fixing parts 5 of the left and right hinge components are respectively arranged in the corresponding grooves 12, and are fixed by four countersunk screws 13 Fixed, the transfer part 7 is located inside the top plate 11, below the top plate 11, the top plate 11 is formed by the extension of the outer plate of the sash 4, and extends to the edge of the window frame 3, leaving only the opening seam, A shield is formed for the installation chamber 8 .

When the window sash is closed, see Figure 5, the hinge assemblies 1 on both sides are folded in half to form a U shape; when the window sash 4 is opened, see Figure 6, the hinge assemblies on both sides form an acute or right angle with the rotating shaft 2 as the origin (maximum opening), the top plate 11 falls into the installation chamber 8 at this moment.

The opening of the installation chamber 8 is provided with a water-retaining sealing strip 14, one side of which is set in the slot 15 of the side frame of the window frame, and the other side is against the side frame of the window sash to form a good seal. Waterproof, water-repellent, prevent outside rainwater from entering the room.

As shown in Figure 4, the transition part 7 is composed of three sections of hollow tubes 16 cross-spliced, and two adjacent hollow tubes 16 are respectively located on the window frame 3 and the window sash 4, that is, the head and the tail. It is located on the side frame 10 of the window sash, and the middle section is located on the side frame 9 of the window frame. The rotating shaft 2 runs through the hollow tube 16 . The rotating shaft 2 is composed of a central shaft 17 and hexagonal pins 18 at both ends. After the shaft 17 passes through the three-section hollow tube 16, the two ends are fixed by the hexagonal pins 18.

Claims (6)

1. The utility model provides a hinge mechanism is used to hidden internal flush window, its characterized in that: the hinge assembly comprises a left hinge assembly, a right hinge assembly and a rotating shaft for connecting the two hinge assemblies, wherein each hinge assembly comprises a fixing part connected with a window frame or a window sash, a rotating connecting part connected with the opposite hinge assembly and a switching part for connecting the two parts, the left hinge assembly and the right hinge assembly are arranged in a folded mode, and the connecting ends of the left hinge assembly and the right hinge assembly and the window sash are rotated through the rotating shaft to obtain a rotational degree of freedom of 0-90 degrees; the hinge mechanism is located on the inner side of the window sash.

2. The hinge mechanism for the hidden inward casement window according to claim 1, wherein: the casement inboard is equipped with the installation cavity of hinge mechanism, the installation cavity is enclosed by window frame side frame, casement side frame and roof, window frame side frame and casement side frame mutual disposition, and be equipped with the recess on the opposite face, the fixed part of left and right hinge subassembly sets up respectively in corresponding the recess to through the fix with screw, switching portion is located the inboard of roof, works as when the casement is closed, both sides hinge subassembly fifty percent discount is the U type, works as when the casement is opened, both sides hinge subassembly with the pivot is the original point and is acute angle or right angle.

3. The hinge mechanism for the hidden inwardly opened window of claim 2, wherein: the top plate is formed by extending the outer side plate of the window sash to be close to the edge of the window frame, and only an opening seam is reserved to form shielding of the installation chamber.

4. The hinge mechanism for the hidden inward casement window according to claim 2, wherein: and a water blocking and sealing adhesive tape is arranged at the opening of the mounting cavity, one side of the water blocking and sealing adhesive tape is arranged in the clamping groove of the side frame of the window frame, and the other side of the water blocking and sealing adhesive tape is abutted against the side frame of the window sash.

5. The hinge mechanism for the hidden inwardly opened window of claim 1, wherein: the switching part is formed by splicing a plurality of sections of hollow pipes in a crossed manner, every two adjacent hollow pipes are respectively positioned on the window frame and the window sash, and the rotating shaft penetrates through the hollow pipes.

6. The hidden hinge mechanism for the inwardly opened window of claim 1 or 5, wherein: the rotating shaft is formed by connecting a shaft lever in the middle and hexagon socket head cap pins at two ends.
