Abstract

The utility model relates to the technical field of hardware fittings, in particular to a glass curtain wall installation matching component. The technical solution adopted by the utility model is: comprising a main body installation matching plate made of metal materials, the right side of the main body installation matching plate is provided with a matching protection connecting plate facing downwards by bending, the main body installation The left side of the matching plate is provided with a second matching protective plate facing downwards by bending, and the lower end of the second matching protective plate is provided with an integrally formed installation and matching stop combination plate facing the lower left. The front-to-back width of the second matching protective plate is the same as the front-to-back width of the matching protective connecting plate. The utility model has the advantages of not only ensuring the matching accuracy and connection firmness during installation, but also effectively improving the efficiency of assembly, making disassembly and assembly more convenient during later maintenance, and effectively reducing later maintenance costs.

Description

A glass curtain wall installation matching component

technical field

The utility model relates to the technical field of hardware fittings, in particular to a glass curtain wall installation matching component.

Background technique

The glass curtain wall needs to use many hardware accessories when installing the glass. When installing the glass, it is combined by hardware accessories. The general accessories are combined and connected by matching bolts when installing. After installation, if the end face position of the glass is different from other When products such as wooden wall panels are matched, the combination accuracy between them is relatively poor, and it is difficult to ensure the firmness of the cooperation between installations, and the efficiency of installation and cooperation is relatively low.

Utility model content

The purpose of this utility model is to provide a glass curtain wall installation matching component, which adopts a brand-new structural design, and is processed by a metal bending production method as a whole. Combining them together with anti-slip combination pads can ensure the tightness of the combination during installation. When the glass is installed in the later stage, through the stop combination plate on this component, it can be accurately and stably combined with other surrounding materials, which not only guarantees The matching accuracy and connection firmness during installation can also effectively improve the efficiency of assembly, and the disassembly and assembly during later maintenance are also more convenient.

The technical scheme of the utility model is as follows:

A glass curtain wall installation matching assembly, characterized in that it includes a main body installation matching plate made of metal materials, and the right side of the main body installation matching plate is provided with a matching protective connecting plate facing downwards by bending. The left side of the installation matching plate of the main body is provided with a second matching protective plate facing downward by bending, and the lower end of the second matching protective plate is provided with an integrally formed installation matching stop combination plate facing the lower left, The front-to-back width of the second matching protective plate is the same as the front-to-back width of the matching protective connecting plate, and the upper end of the main body installation matching plate is provided with cylindrical matching precise positioning holes distributed front and rear, and the main body installation matching plate The position where the right side of the right side is connected with the matching protection connecting plate is provided with a combined stable safety groove, and a glass installation matching groove is formed between the lower end of the main body installation matching plate and the second matching protecting plate and the matching protecting connecting plate .

Further, the installation and stop combination plate is processed by metal bending.

Further, the front side of the combined stability safety groove is near the upper end, completely penetrating the front end face of the overall structure.

Further, the vertical width of the matching protection connecting plate is greater than half of the vertical width of the second matching protecting plate.

Further, the vertical width of the combined stability safety groove is greater than half of the vertical width of the matching protective connecting plate.

The beneficial effects of the utility model:

The utility model adopts a brand-new structural design, which is processed by the metal bending production method as a whole, and the production cost is lower. When in use, it can be combined with the outer thickness surface of the glass, and the anti-skid combination pad can ensure the installation. When the glass is installed in the later stage, through the stop combination plate on this component, it can be accurately and stably combined with other surrounding materials, which not only guarantees the matching accuracy and connection firmness during installation, but also can The efficiency of assembly is effectively improved, and the disassembly and assembly during later maintenance are also more convenient, which can effectively reduce the maintenance cost in the later period.

Description of drawings

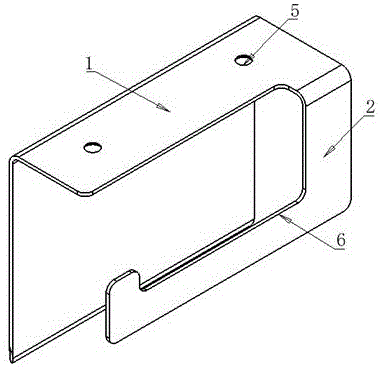

Fig. 1 is the three-dimensional structure schematic diagram of the present utility model;

Fig. 2 is the front schematic view of the utility model;

Fig. 3 is the left schematic diagram of the utility model;

Fig. 4 is the right schematic diagram of the utility model;

Fig. 5 is a top view schematic diagram of the utility model;

Fig. 6 is the bottom view diagram of the utility model;

Fig. 7 is a schematic diagram of the three-dimensional structure of the utility model in the second direction;

In the figure: 1. The main body is equipped with a matching plate, 2. A matching protective connecting plate, 3. The second matching protective plate, 4. Installing a matching stop combination plate, 5. Cooperating with a precise positioning hole, 6. Combining a stable safety slot.

Detailed ways

As shown in Figures 1 to 7, a glass curtain wall installation matching component adopts a new structural design and is processed by metal bending as a whole. The production cost is lower, and it can be used with the outer thickness of the glass. Combined with the surface position, with the anti-slip combination pad, it can ensure the tightness of the combination during installation. When the glass is installed in the later stage, through the stop combination plate on this component, it can be accurately and stably combined with other surrounding materials, not only It ensures the matching accuracy and connection firmness during installation, and can also effectively improve the efficiency of assembly, and it is more convenient to disassemble and assemble during later maintenance. It includes a main body installation matching plate 1 made of metal material, the right side of the main body installation matching plate 1 is provided with a matching protection connecting plate 2 facing downwards by bending, and the left side of the main body installation matching plate 1 The side is provided with a second matching protective plate 3 facing downwards by bending. They bond the outer surfaces of the glass together during installation, and can have a reliable protective effect when the glass is installed and matched in the later stage. The lower end of the second matching protection plate 3 is provided with an installation matching stop combination plate 4 with an integral molding direction facing the lower left, which is used as a precise structure for the overall installation and combination of glass installation in the later stage to ensure the matching accuracy during installation And the firmness of the combination, while ensuring higher efficiency during installation. The front-to-back width of the second matching protection plate 3 is the same as the front-to-back width of the matching protection connecting plate 2, which ensures better overall structural stability and higher strength. The upper end of the main body installation matching plate 1 is provided with cylindrical matching precise positioning holes 5 distributed front and rear, which can be precisely matched with the positioning structure on the glass to ensure the combination accuracy during installation and matching. The position where the right side of the main body installation matching plate 1 is connected to the matching protection connecting plate 2 is provided with a combination and stability safety groove 6, and the right side of the glass is combined with an anti-slip gasket during installation and coordination, so that the anti-slip gasket It has reliable connection tightness with the combined stable safety groove 6 . A glass installation fitting groove is formed between the lower end of the main body installation matching plate 1 and the second matching protection plate 3 and the matching protection connecting plate 2, and the glass is installed at this position.

Preferably, the installation and stop combination plate 4 is processed by metal bending, so that the overall production efficiency is higher and the overall processing cost can be further reduced.

As a preference, the front of the combined stability safety groove 6 is close to the upper end and completely penetrates the front end of the overall structure, so that the whole has a certain deformation space during assembly, ensuring more convenient cooperation during installation.

Preferably, the vertical width of the matching protective connecting plate 2 is greater than half of the vertical width of the second matching protective plate 3 , so that the installation and protection effect of the glass can be better when the whole is installed.

Preferably, the vertical width of the combined stabilizing safety groove 6 is greater than half of the vertical width of the matching protective connecting plate 2 , and the matching anti-slip effect is better.

The above description is a preferred embodiment of the present utility model. It should be pointed out that for those of ordinary skill in the art, without departing from the principle of the present utility model, some improvements or replacements can be made. These improvements or Replacement should also be regarded as the protection scope of the present utility model.

Claims (5)

1. A glass curtain wall installation matching assembly, characterized in that: it includes a main body installation matching plate (1) made of metal material, and the right side of the main body installation matching plate (1) is provided with a direction towards The lower matching protective connecting plate (2), the left side of the main body installation matching plate (1) is provided with a second matching protective plate (3) facing downwards by bending, and the second matching protective plate ( 3) The lower end is provided with an integrally formed direction towards the lower left installation matching stop combination plate (4), and the width of the second matching protective plate (3) in the front and rear direction is the same as the width of the front and rear direction of the matching protective connecting plate (2). The width is the same, the upper end of the main body installation matching plate (1) is provided with cylindrical matching precise positioning holes (5) distributed front and rear, the right side of the main body installation matching plate (1) is connected with the matching protection connecting plate (2 ) is connected with a combined stable safety groove (6), the lower end of the main body installation matching plate (1) and the second matching protective plate (3) and the described matching protective connecting plate (2) form a glass Install the mating groove. 2. A glass curtain wall installation fitting assembly according to claim 1, characterized in that: the installation fitting stop combination plate (4) is processed by metal bending production method. 3. A glass curtain wall installation fitting assembly according to claim 1, characterized in that: the front of the combined stability safety groove (6) is close to the upper end and completely penetrates the front end of the overall structure. 4. A glass curtain wall installation matching assembly according to claim 1, characterized in that: the vertical width of the matching protective connecting plate (2) is greater than half of the vertical width of the second matching protective plate (3) . 5. A glass curtain wall installation fitting assembly according to claim 1, characterized in that the vertical width of the combined stability safety groove (6) is greater than half of the vertical width of the matching protective connecting plate (2).
