A pipe network inspection device for building drainage

technical field

The utility model relates to the technical field of inspection devices, in particular to a pipe network inspection device for building drainage.

Background technique

Pipeline periscope detection is currently one of the fastest and most effective methods for pipeline condition detection in the world. However, the existing pipeline periscope equipment and monitors need to be hand-held during use, and the detection devices are packed in boxes and portable during transportation. In the case of detecting multiple drainage pipes, it is very labor-intensive, and the stabilization effect of the handheld is poor, which affects the inspection and observation effect, and the water depth cannot be determined during observation. When the periscope is lowered, the support rod at the bottom cannot accurately hold the periscope. The support is above the water surface and requires repeated adjustments.

Utility model content

The purpose of this utility model is to provide a pipe network inspection device for building drainage to solve the problems raised in the above-mentioned background technology.

In order to achieve the above purpose, the utility model provides the following technical solutions: including a mobile support mechanism, the top of the mobile support mechanism is connected with a retractable unit, and one side of the retractable unit is connected with a connecting unit, and the mobile support mechanism is a Side connections are provided with placement units.

Preferably, the mobile support mechanism includes a fixed frame, the bottom of the fixed frame is connected with rollers, the top of the fixed frame is fixed with a support side plate, and one side of the support side plate is connected with a push handle. The retractable unit is connected and arranged on the sides where the supporting side plates are close to each other.

Preferably, the retractable unit includes a rotating shaft, the middle end of the rotating shaft is connected with a winding frame, the middle end of the winding frame is wound with a sling, and the bottom end of the sling is connected with the connecting unit. One end of the rotating shaft runs through the supporting side plate and is connected with a geared motor, and one side of the sling is provided with a meter scale.

Preferably, the connection unit includes a connection seat, the bottom end of the connection seat is fixedly provided with a fixed pipe frame, one side of the fixed pipe frame is rotatably provided with fixing bolts, and both sides of the bottom end of the connection seat are connected with electric pushers. The ends of the electric push rods far away from each other are connected with a support.

Preferably, the placement unit includes a partition, the top of the partition is fixedly provided with a mirror box, the inside of the mirror box is connected with a periscope sponge seat, the top of the partition is fixedly provided with a wire box, and the top of the partition rotates Provided with guide wheels.

Preferably, a wire slot is provided on the top side of the partition, and the guide wheel is located on one side of the wire slot.

Compared with the prior art, the beneficial effects of the utility model are:

1. In this utility model, the periscope is placed in the mirror box at the top of the partition, the data line is placed in the line box, and the device is pushed to the top of the nozzle by pushing the handle, and the periscope connection end is clamped into the fixed pipe frame, and then rotated The fixing bolts connect the periscope with the fixing bolts, then start the deceleration motor, drive the winding frame to rotate through the rotating shaft to release the sling, drive the periscope down into the pipeline through the connecting unit, and the guide wheels play a guiding role to avoid hanging The friction between the cable and the partition ensures the stability of the connecting unit when it falls, and the lowering depth can be observed through the scale on one side of the sling, which saves trouble and effort, effectively reduces the consumption of manpower, and moves conveniently and quickly;

2. At the same time, after the connecting unit is lowered to the longitudinal pipeline with the periscope, the electric push rod extends to both sides until the extension length is greater than the diameter of the pipeline, the deceleration motor reverses, and the connecting seat is pulled upward by the sling, and the two sides The bracket will be against the top of the inner wall of the longitudinal pipe, so as to fix the position of the connecting seat, avoid the wading situation of the periscope, and at the same time ensure the stable effect of the position of the periscope and ensure the observation of the inspectors. The structure is simple, easy to use, and effectively guarantees Stabilize the effect, ensure the observation effect, and protect the equipment.

Description of drawings

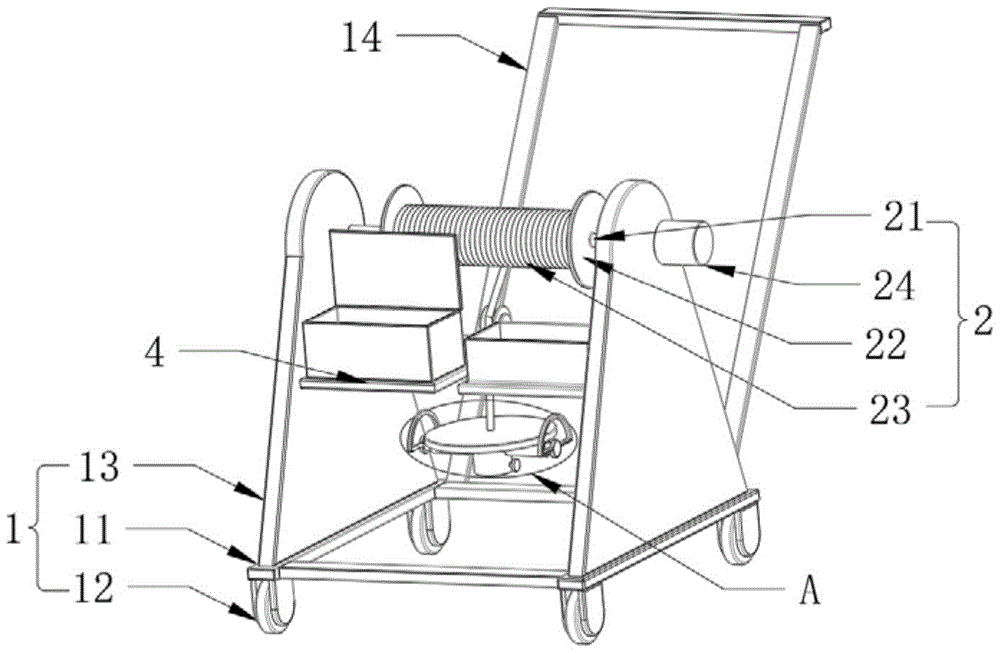

Figure 1 is a schematic diagram of the overall structure of a pipe network investigation device for building drainage in the present invention;

Fig. 2 is a schematic diagram of the enlarged structure of part A in Fig. 1;

Fig. 3 is a structural schematic diagram of a top view of a pipe network inspection device for building drainage according to the present invention.

In the figure: 1. Mobile support mechanism; 11. Fixed frame; 12. Roller; 13. Support side plate; 14. Push handle; 2. Retractable unit; 21. Rotation shaft; ;24. Geared motor; 3. Connecting unit; 31. Connecting seat; 32. Fixed pipe frame; 33. Fixing bolt; 34. Electric push rod; Mirror box; 43, periscope sponge seat; 44, wire box; 45, guide wheel.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Embodiment one

Please refer to Figure 1-3, the utility model provides a technical solution: including a mobile support mechanism 1, the top of the mobile support mechanism 1 is connected with a retractable unit 2, and one side of the retractable unit 2 is connected with a connecting unit 3, and the mobile support A placement unit 4 is connected to one side of the mechanism 1 .

The mobile support mechanism 1 includes a fixed frame 11, the bottom end of the fixed frame 11 is connected with a roller 12, the top of the fixed frame 11 is fixedly provided with a support side plate 13, and one side of the support side plate 13 is connected with a push handle 14, and the retractable unit 2 is connected It is arranged on the side where the supporting side plates 13 are close to each other; the retractable unit 2 includes a rotating shaft 21, and the middle end of the rotating shaft 21 is connected with a winding frame 22, and the middle end of the winding frame 22 is wound with a sling 23, and the sling 23 The bottom end is connected with the connecting unit 3, one end of the rotating shaft 21 runs through the supporting side plate 13 and is connected with a reduction motor 24, and one side of the sling 23 is provided with a meter scale; the connecting unit 3 includes a connecting seat 31, and the bottom of the connecting seat 31 The end is fixed with a fixed pipe frame 32, and one side of the fixed pipe frame 32 is rotated with a fixed bolt 33, and the two sides of the bottom end of the connecting seat 31 are connected with electric push rods 34, and the ends of the electric push rods 34 that are far away from each other are connected with a support frame. 35; the placement unit 4 includes a partition 41, the top of the partition 41 is fixedly provided with a mirror box 42, the mirror box 42 is connected with a periscope sponge seat 43, the top of the partition 41 is fixedly provided with a cable box 44, and the top of the partition 41 is rotated. Guide wheel 45.

Working principle: when the utility model is in use, the periscope is placed in the mirror box 42 on the top of the partition 41, the data line is placed in the wire box 44, the device is pushed to the top of the nozzle by pushing the handle 14, and the periscope is connected to the terminal. into the fixed pipe frame 32, then turn the fixing bolt 33 to fix the periscope with the fixing bolt 32, then start the reduction motor 24, drive the winding frame 22 to rotate through the rotating shaft 21 to release the sling 23, and drive the periscope through the connection unit 3 Lower it into the pipeline, where the guide wheel 45 plays a guiding role, avoiding the friction between the sling 23 and the partition 41, and at the same time ensuring the stability of the connecting unit 3 when it falls. Observe the lowering through the scale on the side of the sling 23 Deep, save trouble and effort, effectively reduce the consumption of manpower, and move conveniently and quickly.

Embodiment two

Please refer to Figure 1-3, the utility model provides a technical solution: including a mobile support mechanism 1, the top of the mobile support mechanism 1 is connected with a retractable unit 2, and one side of the retractable unit 2 is connected with a connecting unit 3, and the mobile support A placement unit 4 is connected to one side of the mechanism 1 .

The mobile support mechanism 1 includes a fixed frame 11, the bottom end of the fixed frame 11 is connected with a roller 12, the top of the fixed frame 11 is fixedly provided with a support side plate 13, and one side of the support side plate 13 is connected with a push handle 14, and the retractable unit 2 is connected It is arranged on the side where the supporting side plates 13 are close to each other; the retractable unit 2 includes a rotating shaft 21, and the middle end of the rotating shaft 21 is connected with a winding frame 22, and the middle end of the winding frame 22 is wound with a sling 23, and the sling 23 The bottom end is connected with the connecting unit 3, one end of the rotating shaft 21 runs through the supporting side plate 13 and is connected with a reduction motor 24, and one side of the sling 23 is provided with a meter scale; the connecting unit 3 includes a connecting seat 31, and the bottom of the connecting seat 31 The end is fixed with a fixed pipe frame 32, and one side of the fixed pipe frame 32 is rotated with a fixed bolt 33, and the two sides of the bottom end of the connecting seat 31 are connected with electric push rods 34, and the ends of the electric push rods 34 that are far away from each other are connected with a support frame. 35.

Working principle: when the utility model is in use, after the connecting unit 3 is lowered to the longitudinal pipeline with the periscope, the electric push rod 34 extends to both sides until the extension length is greater than the diameter of the pipeline, the reduction motor 24 reverses, and the sling 23 goes upward Affect the connecting seat 31, and the supporting frames 35 on both sides will be against the top of the inner wall of the longitudinal pipe, thereby fixing the position of the connecting seat 31, and at the same time ensuring the position stability of the periscope and ensuring the observation of the inspectors. The structure is simple, easy to use, and effective. Guarantee the stable effect and ensure the observation effect.

It should be noted that in this article, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply that there is a relationship between these entities or operations. There is no such actual relationship or order between them. Furthermore, the term "comprises", "comprises" or any other variation thereof is intended to cover a non-exclusive inclusion such that a process, method, article, or apparatus comprising a set of elements includes not only those elements, but also includes elements not expressly listed. other elements of or also include elements inherent in such a process, method, article, or device.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides a pipe network investigation device for building drainage, includes removal supporting mechanism (1), its characterized in that: the top end of the movable supporting mechanism (1) is connected with a winding and unwinding unit (2), one side of the winding and unwinding unit (2) is connected with a connecting unit (3), and one side of the movable supporting mechanism (1) is connected with a placing unit (4).

2. The pipe network inspection device for building drainage according to claim 1, wherein: the movable supporting mechanism (1) comprises a fixing frame (11), rollers (12) are connected and arranged at the bottom end of the fixing frame (11), a supporting side plate (13) is fixedly arranged at the top end of the fixing frame (11), a pushing handle (14) is connected and arranged on one side of the supporting side plate (13), and the folding and unfolding units (2) are connected and arranged on one side, close to the supporting side plate (13), of each other.

3. The pipe network inspection device for building drainage according to claim 2, wherein: receive and release unit (2) and include axis of rotation (21), axis of rotation (21) middle-end connection is provided with rolling frame (22), rolling frame (22) middle-end winding is provided with hoist cable (23), hoist cable (23) bottom is connected the setting with linkage unit (3), axis of rotation (21) one end is run through support curb plate (13) and is connected and be provided with gear motor (24), hoist cable (23) one side is equipped with mark meter chi mark.

4. The pipe network inspection device for building drainage according to claim 3, wherein: the connecting unit (3) comprises a connecting seat (31), a fixed pipe support (32) is arranged at the bottom end of the connecting seat (31), a fixing bolt (33) is arranged on one side of the fixed pipe support (32) in a rotating mode, electric push rods (34) are connected and arranged on two sides of the bottom end of the connecting seat (31), and one ends, far away from each other, of the electric push rods (34) are connected and arranged on a support frame (35).

5. The pipe network inspection device for building drainage according to claim 1, wherein: the placing unit (4) comprises a partition plate (41), a mirror box (42) is fixedly arranged at the top end of the partition plate (41), a periscope sponge seat (43) is arranged in the mirror box (42) in a connected mode, a line box (44) is fixedly arranged at the top end of the partition plate (41), and a guide wheel (45) is rotatably arranged at the top end of the partition plate (41).

6. The pipe network inspection device for building drainage according to claim 5, wherein: a wire casing is arranged on one side of the top end of the partition plate (41), and the guide wheel (45) is located on one side of the wire casing.
