Abstract

The utility model discloses a cool-feeling antibacterial polyester fabric, which comprises a cool-feeling fabric layer and a moisture-absorbing fabric layer compounded by a thermal fan melt adhesive mesh, and the cool-feeling fabric layer is formed by interweaving vertically and horizontally with cool-feeling antibacterial polyester filaments . The cool-feeling fabric layer woven by cool-feeling antibacterial polyester filaments is used, which makes the polyester fabric have a cool touch when worn and used, which improves the comfort of wearing in summer and has good antibacterial ability; moisture-absorbing fabric The setting of the layer can absorb the sweat absorbed by the cool fabric layer to the hygroscopic fabric layer, thereby keeping the cool fabric layer dry and further improving the wearing comfort.

Description

A cool antibacterial polyester fabric

technical field

The utility model relates to the technical field of polyester fabrics, in particular to a cool antibacterial polyester fabric.

Background technique

With the improvement of people's living standards, people's demand for fabrics is not only to cover up their shame and keep warm, but people need more functional fabrics to meet their needs for life; because people sweat more in summer, it is easy to breed bacteria, Therefore, increasing the antibacterial properties of fabrics while imparting cooling properties to contact fabrics is a basic requirement for cool products.

In the Chinese utility model patent whose publication number is CN210116222U and the name is a polyester cooling fabric, the polyester cooling fabric involved includes a base fabric layer, which is sequentially arranged on the inner surface of the base fabric layer with an antibacterial layer, the first cooling Sensitive layer, second cool-feeling layer, air-permeable layer, antistatic layer and anti-wrinkle layer arranged in sequence on the outer surface of the base fabric layer, the first cool-feeling layer is woven from the first yarn and the first core-spun fiber , the first yarn is a blend of cupro fiber and polyester cool-feeling fiber, the first core-spun fiber is made of polyester cool-feeling fiber wound on a hollow polyester filament, and the second cool-feeling layer is made of warp yarn and The weft yarns float and interweave with each other to form a plain weave. The warp yarns are blended with bamboo charcoal fibers and polyester cooling fibers. The weft yarns are blended with superfine fibers and polyester cool-feeling fibers. Two core-spun fibers are woven, the second yarn is a blend of memory fiber and bamboo charcoal fiber, and the second core-spun fiber is made of polyester cooling fiber wound on the memory fiber. In the above-mentioned utility model patent, multiple layers of fabrics are used to combine, so that the above-mentioned polyester cool-feeling fabric has a thick thickness, which is not suitable for summer fabrics.

How to prepare a kind of cool antibacterial polyester fabric suitable for wearing in summer has become a technical problem to be solved.

Utility model content

The purpose of the utility model is to provide a cool antibacterial polyester fabric, which uses a cool fabric layer and a hygroscopic fabric layer to combine, so that the fabric has a cool touch when in use, and improves the comfort when wearing in summer; and the used The most important thing is that the cool antibacterial polyester filament makes the fabric have good antibacterial properties.

For solving the problems of the technologies described above, the purpose of this utility model is achieved in that:

The utility model relates to a cool-feeling antibacterial polyester fabric, comprising a cool-feeling fabric layer and a moisture-absorbing fabric layer compounded by a hot-melt adhesive omentum, the cool-feeling fabric layer is composed of cold-feeling antibacterial polyester filaments interwoven to make.

On the basis of the above scheme and as a preferred scheme of the above scheme: the hygroscopic fabric layer is formed by interweaving warp and weft yarns with a warp surface, one side is a warp surface, and one side is a weft surface; Ultraviolet yarns, the weft yarns include anti-pilling polyester spun yarns; the warp points in the warp surface are more than the weft points; the weft points in the weft surface are more than the warp points; the warp surface of the hygroscopic fabric layer One side is laminated with a cooling fabric layer.

On the basis of the above scheme and as a preferred scheme of the above scheme: the weft yarn is formed by parallel twisting of anti-pilling polyester spun yarn and PE/PP skin-core composite filament, and the PE/PP skin-core composite filament PE is the skin layer and PP is the core layer.

On the basis of the above solution and as a preferred solution of the above solution: the weft yarn is formed by parallel twisting of anti-pilling polyester spun yarn and polypropylene filament.

On the basis of the above-mentioned solution and as a preferred solution of the above-mentioned solution: the section of the cool antibacterial polyester filament is Y-shaped or cross-shaped.

The beneficial effects of the utility model are: the utility model relates to a cool-feeling antibacterial polyester fabric, which adopts a cool-feeling fabric layer woven from cold-feeling antibacterial polyester filaments, so that the polyester fabric has a The cool touch improves the comfort of wearing in summer and has good antibacterial ability; the setting of the moisture-absorbing fabric layer can absorb the sweat absorbed by the cool-feeling fabric layer to the moisture-absorbing fabric layer, thereby keeping the cool-feeling fabric layer dry, Further improved wearing comfort.

Description of drawings

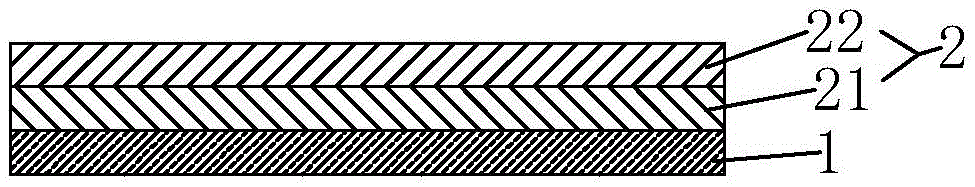

Fig. 1 is the structural representation of the cool feeling antibacterial polyester fabric involved in embodiment one;

Fig. 2 is a structural schematic diagram of the cool-feeling antibacterial polyester fabric involved in the second embodiment.

The markings in the figure are explained as follows: 1-cool fabric layer; 2-hygroscopic fabric layer; 21-warp surface; 22-weft surface; 3-waterproof and breathable membrane.

Detailed ways

Below in conjunction with accompanying drawing and specific embodiment the utility model is further described.

Embodiment one

In conjunction with FIG. 1 , this embodiment will be described in detail. A kind of cool antibacterial polyester fabric involved in this embodiment comprises a cool fabric layer 1 and a hygroscopic fabric layer 2 compounded by a thermal fan melt adhesive omentum, and the cool fabric layer 1 is made of cool antibacterial polyester filament Intertwined vertically and horizontally.

The cool antibacterial polyester filament used includes polyester filament and the cool antibacterial polyester layer attached to the surface of the polyester filament. The polyester filament includes 100 parts of raw polyester chips, 14 to 16 parts of color masterbatch, antioxidant 0.6 to 0.8 parts, 1 to 2 parts of smoothing agent, 8 to 10 parts of bamboo activated carbon powder, 2 to 6 parts of nano tourmaline powder, and 1 to 2 parts of dispersant. Antibacterial coating, cooling antibacterial coating additives include water-based PU emulsion, nano-cooling mica powder and antibacterial agent, the antibacterial agent adopts passivated nano-cuprous oxide antibacterial agent. The cold feeling antibacterial polyester filament used has good antibacterial ability and cool touch. It makes the woven fabric have a cool touch and comfortable wearing when it is in contact with human skin.

Further, the cross-section of the cool antibacterial polyester filament is Y-shaped or cross-shaped. In this embodiment, Y-shaped is selected, and the polyester filament with grooves on the surface has a good drainage effect on sweat.

Further, the moisture-absorbing fabric layer 2 is formed by interweaving warp and weft yarns with warp fabric, one side is the warp surface 21, and the other is the weft surface 22; Anti-pilling polyester spun yarn; warp weave points in the warp surface are more than weft weave points; weft weft points in the weft surface are more than warp weave points; one side of the warp surface of the moisture-absorbing fabric layer 2 and the cooling fabric layer 1 complex.

Further, the moisture-absorbing and quick-drying anti-ultraviolet yarn used is 18.45tex Pentasα and linen blended yarn, which are blended according to the ratio of 80:20. The fabric has good moisture absorption, quick drying and UV resistance.

The Pentasα raw material developed by Japan's Toray (Toray) has a flat and multi-lobed fiber cross-section, which can quickly absorb water and the water absorption speed is about 4 times higher than that of ordinary products, and the diffusivity is increased by about 30%. In addition, Pentasα fiber is a functional polyester fiber that comprehensively pursues various functions suitable for summer comfort on the basis of the original water absorption and diffusion functions. Seasons also keep the wearer cool and comfortable. Therefore, Pentasα fiber has moisture absorption and quick drying, anti-permeability, anti-ultraviolet, and continuous coolness.

Further, the weft surface 22 is located on the outer side of the fabric. In order to improve its anti-pilling performance, the weft yarn is formed by parallel twisting of anti-pilling polyester spun yarn and PE/PP sheath-core composite filament. The PE/PP sheath-core In the composite filament, PE is the skin layer, and PP is the core layer. PE has a low melting temperature. After heat treatment, PE/PP skin-core composite filaments will be bonded to adjacent fibers, improving the anti-pilling performance of the fabric.

Further, the weft yarn can also be formed by parallel twisting of anti-pilling polyester spun yarn and polypropylene filament. When selecting polypropylene filaments, the heat treatment temperature should be higher than that of PE/PP skin-core composite filaments.

In order to make the cool feeling antibacterial polyester fabric involved in the utility model applicable to summer fabrics, the weight of the cool feeling polyester fabric is between 150-180 grams per square meter, and the cool feeling fabric layer 1 and the hygroscopic fabric layer 2 are each layer The fabrics are between 75-100 grams.

Embodiment two

In conjunction with FIG. 2 , this embodiment will be described in detail. The cool-feeling antibacterial polyester fabric involved in this embodiment is different from the first embodiment in that: a waterproof and breathable membrane 3 is compounded on the outside of the moisture-absorbing fabric layer 2, so that the fabric has the effect of waterproof and breathable.

The preferred specific embodiments of the present utility model have been described in detail above. It should be understood that those skilled in the art can make many modifications and changes according to the concept of the present utility model without creative efforts. Therefore, all technical solutions that can be obtained by those skilled in the art based on the concept of the utility model through logical analysis, reasoning or limited experiments on the basis of the prior art should be within the scope of protection defined by the claims .

Claims (5)

1. a kind of cool feeling antibacterial polyester fabric, it is characterized in that, comprise the cool feeling fabric layer (1) and the hygroscopic fabric layer (2) that are compounded by the thermal fan melt glue omentum, described cool feeling fabric layer (1) is made of Cool feeling antibacterial polyester filaments are criss-crossed. 2. A kind of cool feeling antibacterial polyester fabric according to claim 1, is characterized in that, described hygroscopic fabric layer (2) adopts warp surface weaving to form by warp yarn weft yarn, one side is warp surface (21), one The side is the weft surface (22); the warp yarn is a moisture-absorbing and quick-drying anti-ultraviolet yarn, and the weft yarn includes anti-pilling polyester spun yarn; the warp weave points in the warp surface are more than the weft weave points; The weft weaving point is more than the warp weaving point; the warp side of the hygroscopic fabric layer (2) is compounded with the cooling fabric layer (1). 3. A kind of cool feeling antibacterial polyester fabric according to claim 2, it is characterized in that, described weft yarn is formed by anti-pilling polyester spun yarn and PE/PP skin-core composite filament and twisted, and described PE/PP In the PP skin-core composite filament, PE is the skin layer and PP is the core layer. 4. A cool antibacterial polyester fabric according to claim 2, wherein the weft yarn is formed by parallel twisting of anti-pilling polyester spun yarn and polypropylene filament. 5 . The cool antibacterial polyester fabric according to claim 1 , wherein the section of the cool antibacterial polyester filament is Y-shaped or cross-shaped.
