A positioning device for recycling pipes of PE film cutting leftovers

technical field

The utility model relates to the field of recovery pipe positioning devices, in particular to a positioning device for recovery pipes of PE film cutting scraps.

Background technique

PE protective film is the simplest polymer organic compound and the most widely used polymer material in the world today.

In the prior art, the PE protective film needs to be cut according to the size, and the cut PE protective film is rolled and packaged.

However, it is not convenient to separate the required film body and leftover materials through the recovery pipe when cutting the PE protective film.

Utility model content

The purpose of this utility model is to provide a PE film trimmed leftover material recovery pipe positioning device to solve the problems raised in the above background technology.

In order to achieve the above purpose, the utility model provides the following technical solution: a positioning device for the recovery pipe of PE film cutting leftover material, and the positioning device for the recovery pipe of PE film cutting leftover material includes:

A recovery tube, the rod body of the recovery tube is covered with a positioning ring and a push plate, and a metal shrapnel is arranged between the positioning ring and the push plate;

The push block is arranged on the surface of the push plate, the push block is inserted into the insertion groove, and the insertion groove is opened on the surface of the positioning ring; and

The installation opening is opened on the surface of the insertion slot, and a pressing handle is inserted into the installation opening, and a clamping rod is arranged on the surface of the pressing handle, and a spring is sheathed on the outer side of the clamping rod.

Preferably, the positioning ring has a "convex"-shaped ring plate structure, and there are two sets of positioning rings, and the push plate and the positioning ring correspond one to one.

Preferably, the metal shrapnel has an arc-shaped plate structure, and there are multiple metal shrapnels arranged and distributed along the edge of the push plate. side.

Preferably, the push block has a circular-arc plate structure with a right-angled trapezoidal section, the slope of the push block faces the recovery pipe, and there are multiple push blocks arranged in a "cross" shape.

Preferably, the push plate is in the shape of an annular plate, two groups of picking grooves are provided on the surface of the pushing plate, and a picking handle is arranged inside the picking grooves.

Preferably, the installation opening is in the shape of a "convex" shape, and the spring is connected between the pressure handle and the stepped surface of the installation opening.

Preferably, a damping pad is provided at one end of the clamping rod facing the recovery pipe.

Compared with the prior art, the beneficial effects of the utility model are:

The utility model proposes a positioning device for the recycling pipe of PE film cutting leftover material. Two sets of positioning rings are installed on the body of the recovery pipe to realize the partition transportation of the cut products and leftover materials. The position of the positioning ring is adjustable, and the adjusted positioning ring is clamped. When holding the rod to clamp the recovery pipe, the limit is realized.

Description of drawings

Fig. 1 is the structural representation of the utility model;

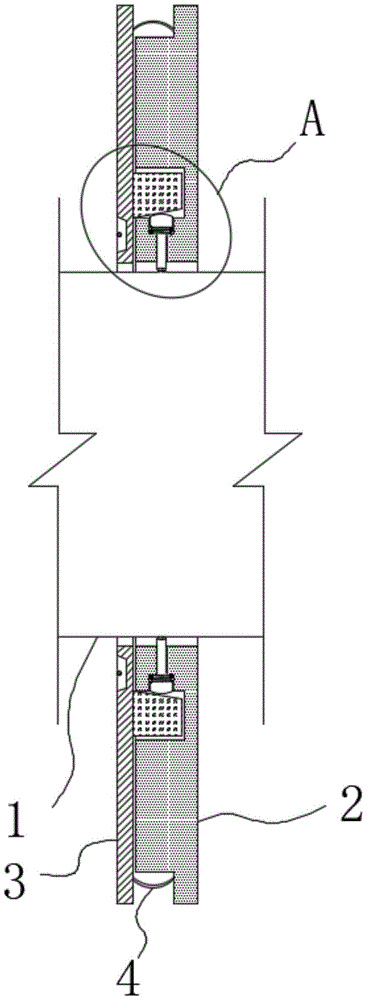

Fig. 2 is a schematic diagram of the connection structure of the recovery pipe and the positioning ring of the utility model;

FIG. 3 is an enlarged schematic diagram of the structure at A in FIG. 2 .

In the figure: recovery tube 1, positioning ring 2, push plate 3, metal shrapnel 4, push block 5, socket slot 6, installation port 7, pressure handle 8, clamping rod 9, spring 10, damping pad 11, pick Groove 12, extract handle 13.

Detailed ways

In order to clearly and completely describe the purpose, technical solution, and advantages of the present invention, the embodiments of the present invention will be further described in detail below in conjunction with the accompanying drawings. It should be understood that the specific embodiments described here are part of the embodiments of the present invention, rather than all embodiments, and are only used to explain the embodiments of the present invention, and are not intended to limit the embodiments of the present invention. All other embodiments obtained under the premise of creative work all belong to the protection scope of the present invention.

In the description of the present invention, it should be noted that the terms "center", "middle", "upper", "lower", "left", "right", "inner", "outer", "top", " The orientation or positional relationship indicated by "bottom", "side", "vertical", "horizontal", etc. is based on the orientation or positional relationship shown in the drawings, and is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying References to devices or elements must have a particular orientation, be constructed, and operate in a particular orientation and therefore should not be construed as limiting the invention. Furthermore, the terms "a", "first", "second", "third", "fourth", "fifth" and "sixth" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.

In the description of the present invention, it should be noted that unless otherwise specified and limited, the terms "installation", "connection" and "connection" should be understood in a broad sense, for example, it can be a fixed connection or a detachable connection. Connected, or integrally connected; it may be mechanically connected or electrically connected; it may be directly connected or indirectly connected through an intermediary, and it may be the internal communication of two components. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present invention in specific situations.

For purposes of simplicity and illustration, the principles of the embodiments are mainly described with reference to examples. In the following description, numerous specific details are set forth in order to provide a thorough understanding of the embodiments. It will be apparent, however, to one of ordinary skill in the art that in practice the embodiments may not be limited to these specific details. In some instances, well-known methods and structures have not been described in detail to avoid unnecessarily obscuring the embodiments. In addition, all the embodiments can be used in combination with each other.

Please refer to Fig. 1-Fig. 3, the utility model provides a kind of technical scheme: a kind of positioning device of PE film cutting leftover material recovery tube, said PE film cutting leftover material recovery tube positioning device includes recovery tube 1, and the rod body of recovery tube 1 is covered A positioning ring 2 and a push plate 3 are provided. The positioning ring 2 has a "convex" shaped ring plate structure. The positioning ring 2 is provided with two groups, and the push plate 3 and the positioning ring 2 correspond one by one. A metal dome 4 is arranged between them, the metal dome 4 is in an arc-shaped plate-like structure, and there are multiple metal domes 4 arranged and distributed along the edge of the push plate 3, and when the metal dome 4 is in the initial state, The push plate 3 leans against one side of the positioning ring 2, and the push plate 3 is in an annular plate-shaped structure. The surface of the push plate 3 is provided with two groups of pulling grooves 12, and the inside of the pulling groove 12 is provided with a pulling handle 13;

The push block 5 is arranged on the surface of the push plate 3, and the push block 5 is a circular arc plate structure with a right-angled trapezoidal cross section. The slope of the push block 5 faces the recovery pipe 1, and there are multiple push blocks 5. Arranged in a "ten" shape, the push block 5 is inserted into the insertion groove 6, and the insertion groove 6 is set on the surface of the positioning ring 2; and

The installation port 7 is opened on the surface of the insertion groove 6, and the inside of the installation port 7 is inserted with a pressure handle 8. The installation port 7 is a "convex"-shaped mouth, and the spring 10 is connected between the pressure handle 8 and the stepped surface of the installation port 7. A clamping rod 9 is provided on the surface of the pressing handle 8, a spring 10 is sheathed outside the clamping rod 9, and a damping pad 11 is provided on the end of the clamping rod 9 facing the recovery pipe 1.

Referring to the accompanying drawing 1, two sets of positioning rings 2 are divided into areas on the recovery pipe 1, that is, the area between the two positioning rings 2 conveys the finished film after cutting, and the positioning ring 2 conveys film scraps to the area at the end of the recovery pipe 1. And the positioning ring 2 can slide along the recovery pipe 1 to realize position change. The metal shrapnel 4 pulls the push plate 3 against one side of the positioning ring 2, that is, the push block 5 is inserted into the insertion groove 6 to squeeze the push handle 8, so that the clip The holding rod 9 clamps the recovery tube 1, so that the positioning ring 2 is braked. When it is necessary to slide the positioning ring 2, one hand holds the positioning ring 2, and the other hand pinches the pulling handle 13 to pull the push plate 3, the metal shrapnel 4 is stretched and deformed, and after the push block 5 moves to the outside of the insertion slot 6, the spring 10 rebounds and pushes the push handle 8 to move to the inside of the insertion slot 6, that is, the clamping rod 9 no longer clamps the recovery pipe 1 at this time.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.
