Abstract

The utility model discloses a garbage leachate processor which is easy to move, belongs to the technical field of garbage leachate processors, and comprises a box body, a water inlet pipe, a drain pipe and a filter plate, and the filter plate is fixedly arranged in the box body. It also includes: collecting net groove, cleaning brush, driving assembly, and moving assembly, and the moving assembly is connected to the driving assembly through a transmission assembly; the device is facilitated to move by being provided with a moving assembly, and is provided with a cleaning brush, a driving assembly, etc. Components and transmission components realize that while the device is moving, the cleaning brush can be driven to reciprocate left and right, and the garbage on the filter plate can be cleaned to avoid clogging of the filter plate; it solves the problem of existing Household landfill leachate processors have a relatively simple structure and are prone to clogging. Manual handling of clogged filter plates is required, which is cumbersome to use and inconvenient to move.

Description

A mobile landfill leachate processor

technical field

The utility model relates to the technical field of landfill leachate processors, in particular to a mobile landfill leachate processor.

Background technique

Garbage generally contains water. Before garbage is collected and transported, the water in the garbage is generally filtered out. The leachate filtered out of the garbage will be mixed with some untreated garbage. In order to further process the landfill leachate, it is necessary to use Landfill leachate processor for processing, the existing household landfill leachate processor structure is relatively simple, easy to block, need to manually process the blocked filter plate, use is more cumbersome, and not easy to move.

Utility model content

The purpose of this utility model is to provide a garbage leachate processor that is easy to move, so as to solve the problems raised in the above-mentioned background technology.

In order to achieve the above object, the utility model provides the following technical solutions:

A mobile landfill leachate processor includes a box body, a water inlet pipe, a drain pipe and a filter plate, the filter plate is fixed in the box body, and also includes:

Collecting net groove, described collecting net groove is arranged on both sides of filter plate in described box, is used for collecting the rubbish that filters out;

a cleaning brush, the cleaning brush is in sliding contact with the filter plate, and is used to clean the garbage on the filter plate;

a drive assembly, the drive assembly is connected to the cleaning brush;

A moving assembly, the moving assembly is arranged at the bottom of the box body, and the moving assembly is connected to the driving assembly through a transmission assembly.

As a further solution of the utility model: the moving assembly includes:

A fixed plate, the bottom end outside the box is fixed with a fixed plate;

a support shaft, the support shaft rotates through the fixed plate, and the support shaft is connected with the transmission assembly;

A moving wheel is fixedly connected to both ends of the supporting shaft.

As a further solution of the utility model: the drive assembly includes:

Support plates, the support plates are fixed on both sides of the box;

A reciprocating lead screw, both ends of the reciprocating lead screw are rotatably connected to the support plate, and the reciprocating lead screw is connected to the transmission assembly;

a guide rod, the two ends of the guide rod are fixedly connected with the support plate;

A threaded block, the threaded block is threaded on the reciprocating lead screw, and is movably sleeved on the guide rod;

A telescopic rod, the two ends of the telescopic rod are respectively fixedly connected to the threaded block and the cleaning brush;

A spring, the two ends of the spring are respectively connected with the threaded block and the cleaning brush.

As a further solution of the utility model: the transmission assembly includes:

A transmission shaft, one end of the transmission shaft is fixedly connected to one end of the reciprocating lead screw, and the other end extends out of the box;

The belt is sleeved on the pulleys of the drive shaft and the support shaft at the same time.

As a further solution of the utility model: the two ends of the filter plate are arranged inclined upwards, the two sides of the box body are fixedly provided with a placement plate, the collection mesh groove is placed on the placement plate, and the box body The two sides of the box are provided with revolving doors corresponding to the collecting net grooves, and the revolving doors are connected with the box in a rotating and sealed manner.

Compared with the prior art, the utility model has the beneficial effects that the device can be easily moved by being provided with a moving assembly, and by providing a cleaning brush, a driving assembly and a transmission assembly, it is possible to drive the device while the device is moving. The cleaning brush reciprocates left and right to clean up the rubbish on the filter plate, avoiding clogging of the filter plate, and is convenient to use.

Description of drawings

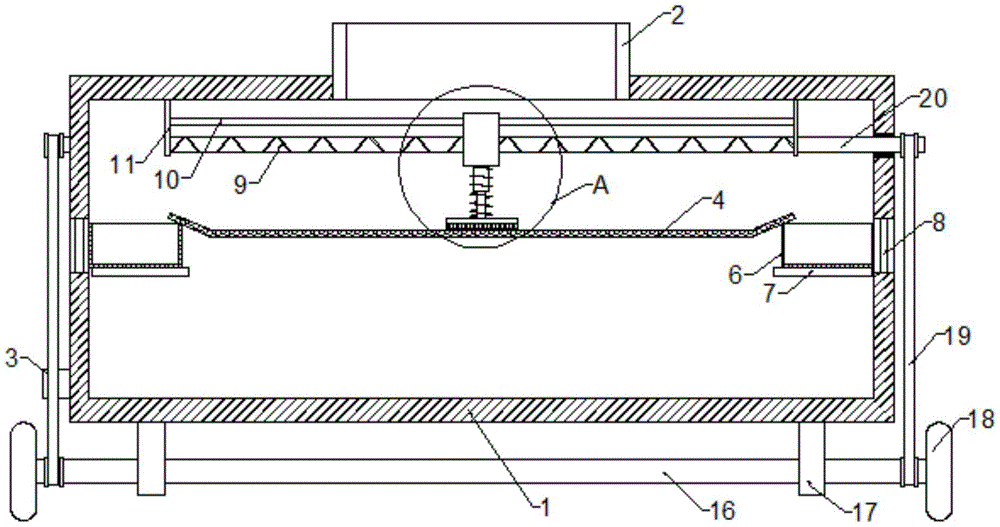

Figure 1 is a schematic structural view of a mobile landfill leachate processor.

Fig. 2 is a partially enlarged view of A in Fig. 1 .

Notes on reference signs: 1-cabinet, 2-inlet pipe, 3-drainage pipe, 4-filter plate, 6-collecting mesh tank, 7-placement plate, 8-revolving door, 9-reciprocating screw, 10-guiding Rod, 11-support plate, 12-thread block, 13-telescopic rod, 14-spring, 15-cleaning brush, 16-support shaft, 17-fixed plate, 18-moving wheel, 19-belt, 20-transmission shaft.

Detailed ways

The technical solution of this patent will be further described in detail below in conjunction with specific embodiments.

As an embodiment of the present utility model, please refer to Fig. 1 to Fig. 2, a kind of landfill leachate processor that is convenient to move, comprises box body 1, water inlet pipe 2, drain pipe 3 and filter plate 4, and described water inlet pipe 2 and the drain pipe 3 are respectively provided with detachable sealing covers, and the filter plate 4 is fixedly arranged in the box body 1, and also includes:

Collecting net groove 6, described collecting net groove 6 is arranged on the both sides of filter plate 4 in described casing 1, is used for collecting the rubbish that filters out;

A cleaning brush 15, the cleaning brush 15 is in sliding contact with the filter plate 4, and is used to clean the garbage on the filter plate 4;

a drive assembly, the drive assembly is connected to the cleaning brush 15;

A moving assembly, the moving assembly is arranged at the bottom outside the box body 1, and the moving assembly is connected to the driving assembly through a transmission assembly.

It is convenient to move this device by being provided with a moving assembly, and by being provided with a cleaning brush 15, a driving assembly and a transmission assembly, it is realized that while the device is moving, the moving assembly drives the driving assembly to run through the transmission assembly, and the driving assembly The assembly drives the cleaning brush 15 to reciprocate left and right to clean up the garbage on the filter plate 4 and prevent the filter plate 4 from being clogged.

As an embodiment of the present utility model, please refer to Fig. 1, the moving assembly includes:

A fixed plate 17, the bottom end outside the box body 1 is fixedly provided with a fixed plate 17;

A support shaft 16, the support shaft 16 rotates through the fixed plate 17, the support shaft 16 is connected with the transmission assembly;

A moving wheel 18 is fixedly connected to both ends of the supporting shaft 16 .

The device is facilitated to move by being provided with a moving assembly. When the device moves, the supporting shaft 16 and the moving wheel 18 rotate simultaneously, and the supporting shaft 16 further drives the transmission assembly to run.

As an embodiment of the present utility model, please refer to Fig. 1 to Fig. 2, the drive assembly includes:

A support plate 11, the support plate 11 is fixed on both sides of the box body 1;

A reciprocating lead screw 9, both ends of the reciprocating lead screw 9 are rotationally connected to the support plate 11, and the reciprocating lead screw 9 is connected to the transmission assembly;

Guide rod 10, the two ends of described guide rod 10 are fixedly connected with described support plate 11;

A threaded block 12, the threaded block 12 is threadedly set on the reciprocating screw 9, and is movably set on the guide rod 10;

A telescopic rod 13, the two ends of the telescopic rod 13 are respectively fixedly connected with the threaded block 12 and the cleaning brush 15;

A spring 14, the two ends of the spring 14 are respectively connected with the threaded block 12 and the cleaning brush 15.

The transmission assembly drives the reciprocating lead screw 9 to rotate, and the reciprocating lead screw 9 further drives the threaded block 12 to reciprocate left and right. The threaded block 12 can be guided by being provided with a guide rod 10, and the threaded block 12 can be guided by being provided with a telescopic rod 13 and a spring 14 The cleaning brush 15 can be elastically supported.

As an embodiment of the present utility model, please refer to Fig. 1, the transmission assembly includes:

A transmission shaft 20, one end of the transmission shaft 20 is fixedly connected to one end of the reciprocating lead screw 9, and the other end extends out of the box body 1;

The belt 19 is sheathed on the pulleys of the drive shaft 20 and the support shaft 16 at the same time.

The supporting shaft 16 drives the transmission shaft 20 to rotate through the belt 19, and the transmission shaft 20 drives the reciprocating lead screw 9 to rotate.

As a kind of embodiment of the present utility model, please refer to Fig. 1, the two ends of described filter plate 4 are inclined upwards, and the both sides in described box body 1 are fixedly provided with placement plate 7, and described collection mesh groove 6 places On the placement plate 7, and the two sides of the box body 1 are provided with a rotating door 8 corresponding to the collecting net groove 6, the rotating door 8 is connected with the box body 1 in a rotating and sealed manner, and the The two ends of the filter plate 4 are inclined upwards to prevent the unfiltered sewage from directly falling into the collection network tank 6, and the collection network tank 6 is conveniently taken out by being provided with a rotating door 8.

Working principle: the sewage is input into the box body 1 through the water inlet pipe 2 without being filtered through the filter plate 4, so that the garbage stays on the filter plate 4, and the box body 1 is pushed to move, and the support shaft 16 and the moving Wheel 18 rotates simultaneously, and described support shaft 16 drives transmission shaft 20 to rotate through belt 19, and described transmission shaft 20 drives reciprocating lead screw 9 to rotate, and described reciprocating lead screw 9 further drives threaded block 12 to carry out reciprocating movement left and right, described The threaded block 12 further drives the cleaning brush 15 to move back and forth from side to side, and the garbage on the filter plate 4 can be swept into the collection net groove 6, and it is convenient to take out the described collection net groove 6 by being provided with a rotating door 8.

Claims (5)

1. The utility model provides a landfill leachate treater convenient to remove, includes box, inlet tube, drain pipe and filter, its characterized in that, the filter is fixed to be located in the box, still include:

the collecting mesh grooves are arranged on two sides of the filter plate in the box body and used for collecting the filtered garbage;

the cleaning brush is in sliding contact with the filter plate and is used for cleaning garbage on the filter plate;

the driving assembly is connected with the cleaning brush;

the moving assembly is arranged at the bottom end outside the box body and is connected with the driving assembly through a transmission assembly.

2. The portable landfill leachate processor of claim 1, wherein the moving assembly comprises:

the bottom end outside the box body is fixedly provided with a fixed plate;

the supporting shaft penetrates through the fixing plate in a rotating mode and is connected with the transmission assembly;

and the moving wheel is fixedly connected with the two ends of the supporting shaft.

3. The portable landfill leachate processor of claim 2, wherein the driving assembly comprises:

the supporting plates are fixedly arranged on two sides in the box body;

the two ends of the reciprocating screw rod are rotatably connected with the supporting plate, and the reciprocating screw rod is connected with the transmission assembly;

the two ends of the guide rod are fixedly connected with the supporting plate;

the thread block is sleeved on the reciprocating screw rod in a threaded manner and movably sleeved on the guide rod;

the two ends of the telescopic rod are respectively and fixedly connected with the thread block and the cleaning brush;

and the two ends of the spring are respectively connected with the thread block and the cleaning brush.

4. The portable landfill leachate processor of claim 3, wherein the driving assembly comprises:

one end of the transmission shaft is fixedly connected with one end of the reciprocating screw rod, and the other end of the transmission shaft extends out of the box body;

the belt is sleeved on the belt wheels of the transmission shaft and the support shaft simultaneously.

5. The garbage leachate processor convenient to move according to claim 1, wherein two ends of the filter plate are disposed to be inclined upwards, two sides inside the box body are fixedly provided with a placing plate, the collecting mesh groove is placed on the placing plate, two sides of the box body are provided with a rotating door corresponding to the collecting mesh groove, and the rotating door is rotatably and hermetically connected with the box body.
