Abstract

The utility model discloses a health care bed with a movable massage board, which comprises a frame and a bed board. An opening matching the back of the human body is arranged in the center of the bed board. A mat covering the opening and carrying the back of the human body is arranged on the opening. Massage board, moving mechanism and controller, the massage board is equipped with a vibrator, and the moving mechanism drives the massage board to translate and lift along the opening of the bed board. Relevant areas or points on the back can be precisely and targeted for local massage, so that the massage area and massage intensity can be effectively controlled, which helps to improve the massage effect and quality of the human back.

Description

A health care bed with a mobile massage board

technical field

The utility model relates to the technical field of massage and health care, in particular to a health care bed with a movable massage board.

Background technique

With the acceleration of work rhythm and the increase of work intensity, overwork or incorrect working posture will cause the neck or back muscles of the human body to be in a state of tension for a long time, and the soft tissues such as ligaments, fascia, and joint capsules in the corresponding parts will be overloaded, causing back fatigue and spasms , pain, adverse effects on life and work, therefore, massage the damaged parts and human body points, can relieve or eliminate fatigue pain, promote metabolism, has become a very important means of physical therapy.

When the existing massage therapist manually operates, the therapist needs to lie on the bed for a long time for massage. The human body is under severe pressure and the operation is inconvenient. Targeted topical massage of damaged areas or acupoints limits the use of physical therapy or relaxation massage.

Utility model content

The utility model mainly solves the above existing technical problems; it provides a health care bed with a movable massage board.

In order to solve the above-mentioned technical problems, the utility model mainly adopts the following technical solutions:

The utility model relates to a health care bed with a movable massage board. The health care bed includes a frame and a bed board. The bed board is placed on the top of the frame. A cushion that is flush with the opening and covers the opening. The above-mentioned cushion fits and bears the back of the human body. A massage board, a moving mechanism and a controller are arranged in the frame, and a vibrator is arranged on the massage board. The moving mechanism includes longitudinal translation mechanism and lifting mechanism, the longitudinal translation mechanism drives the massage board to translate along the axis direction of the bed board opening, the lifting mechanism drives the massage board to lift and fit the above mat, the massage board drives the mat to vibrate and massages the corresponding parts of the human back through the mat, The above-mentioned longitudinal translation mechanism, lifting mechanism and vibrator are all electrically connected with the above-mentioned controller, through the translation and lifting of the massage board, the cushion located at the opening is partially stretched and vibrated, and the physiotherapy area or acupuncture points on the back of the human body are massaged through the cushion. Precise and targeted local massage, effectively controlling the treatment area and massage intensity, helps to improve the massage effect and quality.

As a preference, the longitudinal translation mechanism includes a longitudinal slide rail, a longitudinal screw rod, a longitudinal drive motor and a longitudinal slider. There are two longitudinal slide rails, respectively fixed on the frame and corresponding to the above-mentioned opening. Fixed on the frame and located in the middle of two longitudinal slide rails, the longitudinal drive motor is fixed on the frame, the output shaft of the longitudinal drive motor is fixed to the end of the longitudinal screw rod and drives the longitudinal screw rod, the longitudinal slider The two ends of the two ends are respectively sleeved on the above-mentioned longitudinal slide rails, the middle part of the longitudinal slide block is connected with the longitudinal screw rod and translates longitudinally with the rotation of the longitudinal screw rod, the above-mentioned longitudinal drive motor is electrically connected with the above-mentioned controller, and the massage board passes through the It can move along the axial direction of the opening of the bed board, and can be translated to the bottom of the mat in the physical therapy area as needed, and can massage the physical therapy area of the back of the human body through the mat in a targeted manner.

Preferably, the lifting mechanism includes an electric push rod, and the electric push rod is vertically fixed on the surface of the above-mentioned longitudinal slider. The push rod is electrically connected to the above-mentioned controller, and the electric push rod pushes the massage board up and down and lifts it to the corresponding area of the mat, so as to perform targeted vibration massage on the physiotherapy area on the back of the human body.

Preferably, the moving mechanism further includes a transverse translation mechanism, the transverse translation mechanism includes a transverse slide rail, a transverse screw rod, a transverse drive motor and a transverse slider, and the above-mentioned transverse slide rail and transverse screw rod are both arranged on the longitudinal slide The top surface of the block, the horizontal screw rod is located in the middle of the two horizontal slide rails, the horizontal drive motor is fixed on the top surface of the vertical slider, the output shaft of the horizontal drive motor is fixed to the end of the above-mentioned horizontal screw rod and drives the horizontal wire The two ends of the horizontal slider are sleeved on the corresponding horizontal slide rails respectively. The middle part of the horizontal slider is connected with the horizontal screw rod and moves laterally with the rotation of the horizontal screw rod. The above-mentioned horizontal drive motor and the above-mentioned controller electric Connected, using the horizontal translation mechanism, the massage board can add horizontal translation on the basis of vertical translation, so that the massage board can be moved to the corresponding human back physiotherapy area or acupoint according to the need, and the massage process is more accurate and efficient.

Preferably, the lifting mechanism includes an electric push rod, and the electric push rod is vertically fixed on the surface of the above-mentioned horizontal slider. The push rod is electrically connected with the above-mentioned controller, and the electric push rod can lift the massage board and attach it to the back of the mat, so that the mat is close to the massage area of the back of the human body. The vibrator on the massage board vibrates and massages the back of the human body through the mat.

Preferably, the cushion is composed of a plurality of spacers arranged in a rectangular array and elastically connected, the spacers located on both sides of the opening are elastically connected to the side walls of the opening, and the spacers are evenly distributed in a matrix, horizontally and vertically They are all elastically connected and fixed to the side wall of the opening, so that the overall cushion forms a soft and elastic mesh structure, which is suitable for the massage board to lift and vibrate single or multiple pads of the cushion, and then perform partial treatment on the physical therapy area on the back of the human body. precise massage.

Preferably, the mattress is composed of a plurality of rows of cushions arranged linearly along the axis of the bed board and elastically connected. The rows of cushions located on both sides of the opening are elastically connected to the side walls of the opening. Both the vertical and longitudinal sides are elastically connected and fixed to the side wall of the opening, so that the overall cushion forms a soft and elastic row-like structure, which is suitable for the massage board to lift and vibrate the single or multiple rows of cushions of the cushion and further treat the human back. area for precise massage.

Preferably, the controller further includes a remote control switch or a wire control switch, through which a user or a masseur can control the position of the massage board to perform precise massage.

Preferably, the bed board is also provided with a headrest opening and a leg opening, the headrest opening is embedded with a headrest board corresponding to and supporting the human head, the above-mentioned headrest board is a deflected structure and The inner edge of the pillow opening is inclined downward by the rotating shaft, and the leg opening is embedded with a leg rest plate corresponding to and supporting the human leg. The leg rest is a deflected structure and the inner edge of the leg opening is The rotating shaft is inclined downward, and the surface of the headrest board and the leg rest board in the horizontal position are flush with the surface of the bed board. The headrest board and the leg rest board of the deflection structure can be deflected during massage, and the head and legs of the human body will be moved accordingly. Tilting and drooping, the whole human body is in an arched state during massage, which improves the effect of back massage. The headrest board and leg rest board can also be designed as a lifting structure, so that the head and legs droop, and the headrest board and the rest Massage devices can also be arranged on the leg boards to massage the head or legs accordingly.

The beneficial effect of the utility model is: through the vertical and horizontal translation and lifting of the massage board arranged under the mat, the mat in the corresponding area is partially stretched and vibrated, and the relevant area or acupoint on the back of the human body is precisely and targeted through the mat. The local massage can effectively control the massage area and massage intensity, which helps to improve the massage effect and quality of the human back.

Description of drawings

Fig. 1 is a kind of structural representation of the utility model.

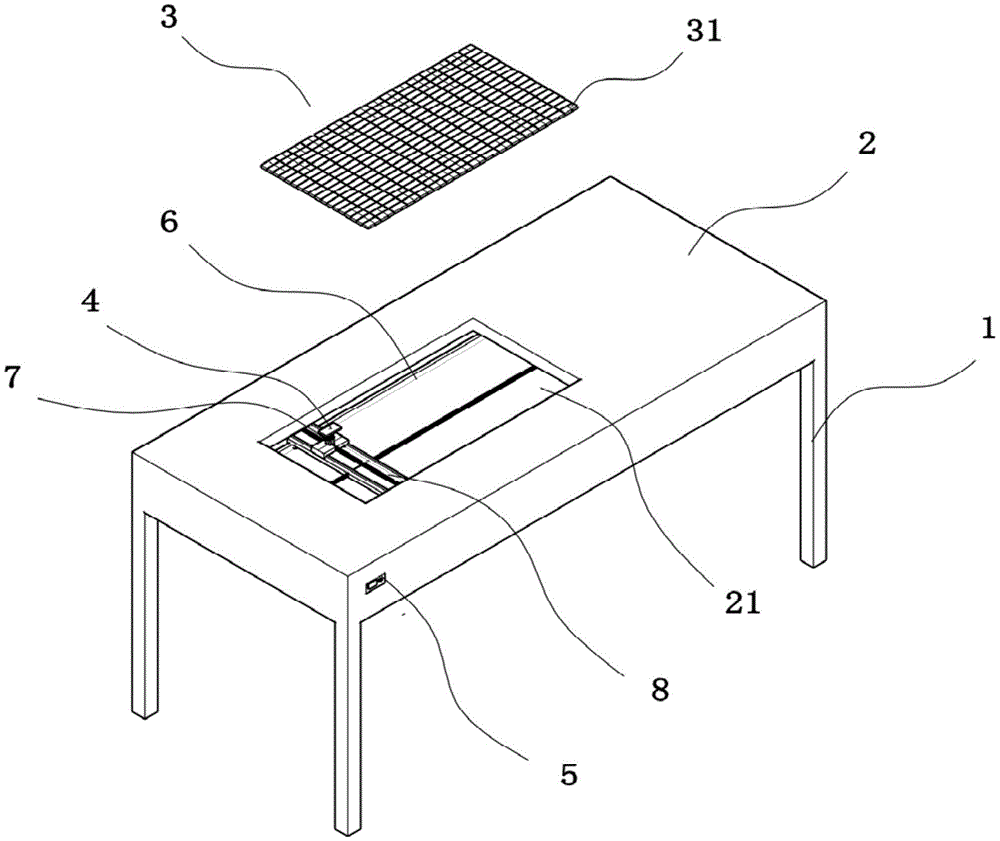

FIG. 2 is an exploded schematic diagram of the structure in FIG. 1 .

Fig. 3 is a schematic diagram of the moving mechanism in the structure of Fig. 1 .

Fig. 4 is a schematic diagram of the mat in the structure of Fig. 1 .

Figure 5 is a schematic diagram of another mat.

Fig. 6 is another structural schematic diagram of the utility model.

In the figure 1. Frame, 2. Bed board, 21. Opening, 22. Headrest board, 23. Leg rest board, 3. Cushion, 31. Block, 32. Row pad, 4. Massage board, 5. Controller, 6. Longitudinal translation mechanism, 61. Longitudinal slide rail, 62. Longitudinal screw rod, 63. Longitudinal drive motor, 64. Longitudinal slider, 7. Lifting mechanism, 71. Electric push rod, 8. Transverse translation mechanism, 81. Horizontal Slide rail, 82. transverse screw mandrel, 83. transverse drive motor, 84. transverse slide block.

Detailed ways

The technical solutions of the present utility model will be further specifically described below through the embodiments and in conjunction with the accompanying drawings.

Embodiment 1: A health-care bed with a mobile massage board in this embodiment 1, as shown in Figure 1 and Figure 2, includes a frame 1 and a bed board 2, the bed board is placed on the top of the frame, and the center of the bed board is designed to be connected to the back of the human body. The matching opening 21 is equipped with a cushion 3 that is flush with the opening and covers the opening. The above-mentioned cushion fits and bears the back of the human body. As shown in Figure 4, the cushion is composed of a plurality of rectangular arrays and elastically connected pads 31, the pads positioned on both sides of the opening are elastically connected to the side walls of the opening, and the pads can also be in the form of a row of pads, as shown in Figure 5; a massage board 4, a moving mechanism and a controller 5 are installed in the frame, Vibrator is designed on the massage board, as shown in Figure 3, above-mentioned moving mechanism comprises longitudinal translation mechanism 6, lateral translation mechanism 8 and lifting mechanism 7, and wherein longitudinal translation mechanism comprises longitudinal slide rail 61, longitudinal screw rod 62, longitudinal drive The motor 63 and the longitudinal slider 64 have two longitudinal slide rails, which are respectively installed on the frame and located below the opening. The longitudinal screw rod is also installed on the frame and is located in the middle of the two longitudinal slide rails. The longitudinal drive motor is installed on the frame. The output shaft of the longitudinal drive motor is fixedly connected to the end of the longitudinal screw rod and drives the longitudinal screw rod to rotate. The two ends of the above-mentioned longitudinal slider are respectively sleeved on the longitudinal slide rail and slide along the longitudinal slide rail. The longitudinal lead screw is threaded and moves longitudinally with the rotation of the longitudinal lead screw; wherein the transverse translation mechanism includes a transverse slide rail 81, a transverse lead screw 82, a transverse drive motor 83 and a transverse slide block 84, and the above-mentioned transverse slide rail and the transverse lead screw both Installed on the top surface of the longitudinal slider, the transverse screw rod is located in the middle of the two transverse slide rails, the transverse drive motor is also installed on the top surface of the longitudinal slider, the output shaft of the transverse drive motor is fixed to the end of the transverse screw rod and drives the transverse The screw rod rotates, and the two ends of the horizontal slider are respectively sleeved on the horizontal slide rail and slide along the horizontal slide rail. The middle part of the horizontal slider is threaded with the horizontal screw rod and moves laterally with the rotation of the horizontal screw rod; Push rod 71, the electric push rod is vertically fixed on the surface of the above-mentioned horizontal slider, the above-mentioned massage plate is installed on the push rod head of the electric push rod and rises and falls with the push rod, and the above-mentioned longitudinal drive motor, horizontal drive motor and electric push rod are all connected with each other. The above-mentioned controllers are electrically connected, and the controllers are controlled by the mobile phone massage vibration program APP.

When in use, the user lies flat on the health care bed, and his back is located on the cushion at the opening. The cushion supports the back of the human body. The user opens the massage vibration program of the mobile APP, and sets the start time, massage position, vibration frequency and duration, etc. Parameters, the controller starts to start the longitudinal drive motor, the longitudinal screw rod rotates forward, the longitudinal slider moves forward along the axial direction of the bed board, continues to start the horizontal drive motor, the horizontal screw rod rotates forward, and the horizontal slider moves along the horizontal direction of the bed board At this time, the massage board moves to the corresponding physiotherapy area or acupuncture point on the back of the human body according to the set parameters, and the electric push rod is activated, and the push rod rises upwards, driving the massage board to lift and lift the corresponding part of the mat. Due to the mesh elastic structure of the mat, the single or multiple pads in the corresponding area can be directly attached to the physiotherapy area or acupoint on the back of the human body after being stretched out. The vibrator on the massage board is turned on, and the massage board passes through the corresponding pads. Targeted local vibration massage can be performed on the physiotherapy area or acupoints on the back of the human body, which can precisely control the massage position and help to improve the massage effect and quality. When the massage area needs to be changed, the vibrator and electric push rod can be turned off. The push rod resets and drives the massage board to descend. At this time, the vertical and horizontal positions of the massage board can be adjusted and controlled to the desired area.

Embodiment 2: a kind of health-care bed with mobile massage board of present embodiment 2, as shown in Figure 6, is also designed with headrest opening and leg opening on the bed board, corresponding to human head and leg respectively, wherein Embedded in the headrest opening is a headrest board 22 that corresponds to and lifts the human head. The above-mentioned headrest board is a deflection structure and tilts downward with the inner edge of the headrest opening as a rotating shaft. There is a leg rest 23 corresponding to and supporting the legs of the human body. The above-mentioned leg rest is a deflected structure and the inner edge of the leg opening is used as a rotating shaft to tilt downward. When not working, both the headrest board and the leg rest It is in a horizontal position, and the surface of the headrest board and the leg rest board are flush with the surface of the bed board, but when working, the headrest board and/or the leg rest board are deflected and tilted, so that the supported human head and legs are tilted and sagged, The entire human body is correspondingly arched, which can improve the massage effect. The other parts of this embodiment 2 are similar to the corresponding parts of embodiment 1, and will not be repeated here.

In the description of the present utility model, the technical terms "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "inner", "outer" etc. Indicates that the direction or positional relationship is based on the direction or positional relationship shown in the accompanying drawings, and is only for the convenience of describing and understanding the technical solution of the present utility model. The above description does not limit the present utility model, and the present utility model is not limited to the above description For example, the changes, modifications, additions or substitutions made by those skilled in the art within the essential scope of the present utility model shall be regarded as the protection scope of the present utility model.

Claims (9)

1. A health bed with a movable massage plate is characterized in that: health bed includes frame (1) and bed board (2), the frame top is arranged in to the bed board, and bed board central authorities are equipped with opening (21) identical with human back, be equipped with on the opening with the opening parallel and level and cover open-ended mat (3), the laminating of above-mentioned mat bears human back, be equipped with massage board (4), moving mechanism and controller (5) in the frame, be equipped with the electromagnetic shaker on the massage board, moving mechanism includes vertical translation mechanism (6) and elevating system (7), vertical translation mechanism drive massage board is along bed board open-ended axis direction translation, elevating system drive massage board goes up and down and laminates above-mentioned mat, and the massage board drives the vibrations of mat and through the corresponding part at human back of mat massage, and above-mentioned vertical translation mechanism, elevating system and electromagnetic shaker all are connected with above-mentioned controller electricity.

2. The health care bed with the movable massaging plate as claimed in claim 1, wherein: the longitudinal translation mechanism (6) comprises longitudinal slide rails (61), longitudinal screw rods (62), longitudinal driving motors (63) and longitudinal slide blocks (64), the two longitudinal slide rails are fixedly arranged on the frame and correspond to the openings (21), the longitudinal screw rods are fixedly arranged on the frame and located between the two longitudinal slide rails, the longitudinal driving motors are fixedly arranged on the frame, output shafts of the longitudinal driving motors are fixedly connected with the end portions of the longitudinal screw rods and drive the longitudinal screw rods, the two ends of each longitudinal slide block are sleeved on the longitudinal slide rails respectively, the middle portions of the longitudinal slide blocks are connected with the longitudinal screw rods and translate longitudinally along with the rotation of the longitudinal screw rods, and the longitudinal driving motors are electrically connected with the controller.

3. The health care bed with the movable massaging plate as claimed in claim 2, wherein: the lifting mechanism (7) comprises an electric push rod (71), the electric push rod is vertically fixed on the surface of the longitudinal slide block (64), the massage plate (4) is fixedly arranged at the head of the electric push rod and is lifted along with the push rod, and the electric push rod is electrically connected with the controller.

4. The health bed with the movable massage plate as set forth in claim 2, wherein: the moving mechanism further comprises a transverse translation mechanism (8), the transverse translation mechanism comprises transverse sliding rails (81), transverse screw rods (82), transverse driving motors (83) and transverse sliding blocks (84), the transverse sliding rails and the transverse screw rods are arranged on the top surfaces of the longitudinal sliding blocks (64), the transverse screw rods are located in the middle of the two transverse sliding rails, the transverse driving motors are fixedly arranged on the top surfaces of the longitudinal sliding blocks, output shafts of the transverse driving motors are fixedly connected with the end portions of the transverse screw rods and drive the transverse screw rods, the two ends of each transverse sliding block are respectively sleeved on the corresponding transverse sliding rails, the middle portions of the transverse sliding blocks are connected with the transverse screw rods and transversely move along with the rotation of the transverse screw rods, and the transverse driving motors are electrically connected with the controller.

5. The health care bed with the movable massaging plate as claimed in claim 4, wherein: the lifting mechanism (7) comprises an electric push rod (71), the electric push rod is vertically fixed on the surface of the transverse sliding block (84), the massage plate (4) is fixedly arranged at the head of the electric push rod and is lifted along with the push rod, and the electric push rod is electrically connected with the controller.

6. The health care bed with the movable massaging plate as claimed in claim 1, wherein: the cushion (3) is composed of a plurality of cushion blocks (31) which are arranged in a rectangular array and are in elastic connection, and the cushion blocks positioned on the two side edges of the opening are in elastic connection with the side walls of the opening.

7. The health bed with the movable massage plate as set forth in claim 1, wherein: the mattress (3) is composed of a plurality of row cushions (32) which are linearly arranged along the axis direction of the bed board and are elastically connected, and the row cushions positioned on the two side edges of the opening (21) are elastically connected with the side walls of the opening.

8. The health care bed with the movable massaging plate as claimed in claim 1, wherein: the controller (5) also comprises a remote control switch or a line control switch.

9. The health care bed with the movable massaging plate as claimed in claim 1, wherein: still be equipped with headrest opening and shank opening on bed board (2), headrest opening embedded be equipped with correspond and lift headrest board (22) of human head, above-mentioned headrest board just uses headrest open-ended inboard border as the pivot downward sloping for the deflection formula structure, the embedded leg rest board (23) that are equipped with the correspondence and lift human shank of shank opening, above-mentioned leg rest board just uses shank open-ended inboard border as the pivot downward sloping for the deflection formula structure, is in horizontal position's headrest board surface and leg rest board surface and bed board surface parallel and level.
