Abstract

The utility model relates to the technical field of rehabilitation evaluation tool kits, and discloses a tool portable backpack, which includes a bag body, a zipper opening is arranged on the top of the bag body, a double-shoulder strap is arranged on the side wall of the bag body, the bag body The inside of the body is provided with a first partition and a second partition, and the first partition and the second partition divide the inside of the bag into three storage areas, and each storage area is equipped with a screen bring. The utility model can protect, arrange and store the cardiac rehabilitation evaluation equipment, and at the same time, it is convenient to carry the evaluation scale and ipad input equipment, and is equipped with emergency medicine, which is convenient for medical personnel to carry and clinically use, and improves the efficiency of cardiac rehabilitation evaluation.

Description

A tool carrying backpack

technical field

The utility model relates to the technical field of rehabilitation evaluation tool kits, in particular to a tool portable backpack.

Background technique

Clinically, there are many heart disease patients. Rehabilitation physicians often have to carry functional assessment equipment to the patient’s bedside to conduct cardiac rehabilitation assessments for patients. At the same time, they also carry stethoscopes, electronic sphygmomanometers, finger pulse oxygen clips, assessment scales, and cardiac rehabilitation education manuals. Due to the variety of rehabilitation assessment tools carried, it is not only inconvenient to carry, but also often missed, which affects the efficiency of cardiac rehabilitation assessment. For this reason, the utility model proposes a kind of tool portable knapsack.

Utility model content

The purpose of the utility model is to solve the problem that the cardiac rehabilitation assessment tool in the prior art is not easy to carry, and proposes a tool portable backpack.

In order to achieve the above object, the utility model adopts the following technical solutions:

A tool portable backpack, comprising a bag body, the top of the bag body is provided with a zipper opening, the side wall of the bag body is provided with double shoulder straps, and the inside of the bag body is provided with a first compartment and a second compartment , the first compartment and the second compartment divide the interior of the bag into three storage areas, and each storage area is provided with a screen belt.

Preferably, one end of the backpack is fixedly connected to the top of the side wall of the bag, and the other end of the backpack is fixedly provided with a hook, and the bottom of the side wall of the bag is symmetrically fixed with two first hanging rings. The hook is hung on the first hanging ring, and two second hanging rings are symmetrically fixed on one side of the top of the bag body.

Preferably, one side of the shade belt is fixedly connected to the inner side wall of the bag body, and the other side of the shade belt is provided with a hanging hole, the inner side wall of the bag body is fixedly provided with a hanging rod, and the shade net The belt is hung on the pole wall of the hanging pole through the hanging hole.

Preferably, the hanging rod is an L-shaped rod.

Preferably, the shading net of the shading belt is made of cotton weaving net.

Preferably, classification labels are provided on the side walls of the package and corresponding to the positions of the three storage areas.

Preferably, the side wall of the bag is provided with a storage pocket.

Compared with the prior art, the utility model provides a tool portable backpack, which has the following beneficial effects:

1. The portable backpack of the tool can carry the cardiac rehabilitation assessment tool in a full-bodied manner through the provided bag body and shoulder straps. The second compartment divides the interior of the enclosure into three storage areas, one of which is a side storage area for stethoscopes, electronic sphygmomanometers, finger pulse oxygen clips and cardiopulmonary function assessment equipment such as six-minute walk test testing equipment, and the middle storage area for patients The evaluation result scale and ipad input equipment, and another side storage area is used to store emergency medicines for heart patients, so that items can be classified and stored for easy search during follow-up rehabilitation assessment.

2. This tool is a portable backpack. Through the mesh belt and hanging rod installed inside each storage area, the mesh belt can cover the opening of the storage area, and then hang it through the hanging rod, so that the items inside each storage area Does not spill and increases storage stability of items.

3. This tool is a portable backpack. Through the hook set on the shoulder strap, when the hook is hung on the first hanging ring, the bag body can be carried on the back through the double shoulder strap at this time; when the hook is hung on the second hanging ring When it is on, the bag body can be carried by hand through the shoulder strap at this time.

The parts not involved in the device are the same as the existing technology or can be realized by using the existing technology. The utility model can protect, organize and store the cardiac rehabilitation evaluation equipment, and is convenient to carry the evaluation scale and ipad input equipment at the same time, and is equipped with Emergency medicines are convenient for medical staff to carry and use clinically, improving the efficiency of cardiac rehabilitation assessment.

Description of drawings

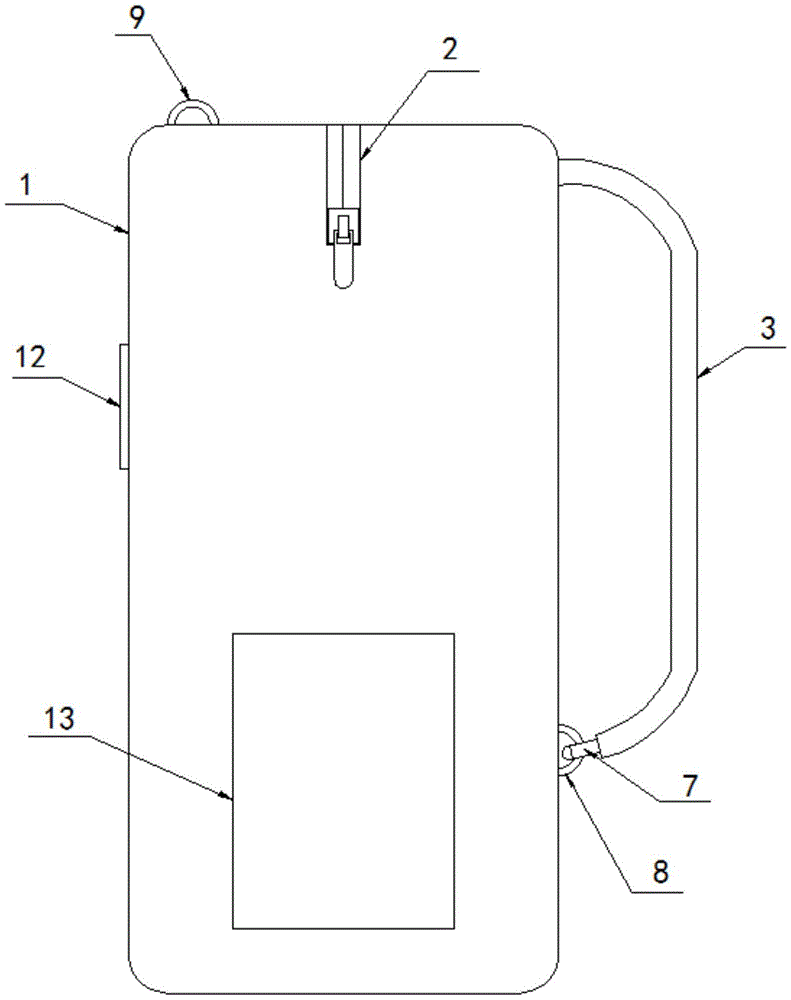

Fig. 1 is the structural representation of a kind of tool portable backpack that the utility model proposes;

Fig. 2 is a schematic diagram of the internal structure of the inclusion body in Fig. 1;

Fig. 3 is a structural enlarged view of part A in Fig. 2;

Fig. 4 is a schematic structural diagram of the hanging rod in Fig. 3 .

In the figure: 1. bag body; 2. zipper opening; 3. shoulder straps; 4. first compartment; 5. second compartment; 6. mesh belt; 7. hook; 8. first link; 9 , the second hanging ring; 10, the hanging hole; 11, the hanging rod; 12, the classification label; 13, the dress pocket.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example.

In describing the present utility model, it should be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", The orientation or positional relationship indicated by "outside" is based on the orientation or positional relationship shown in the drawings, which is only for the convenience of describing the utility model and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation , are constructed and operated in a specific orientation and therefore cannot be construed as limiting the invention.

Referring to Figures 1-4, a tool portable backpack includes a bag body 1, a zipper opening 2 is arranged on the top of the bag body 1, a double shoulder strap 3 is arranged on the side wall of the bag body 1, and a first partition is arranged inside the bag body 1. Layer 4 and the second compartment 5, the first compartment 4 and the second compartment 5 divide the interior of the bag body 1 into three storage areas, one of which is a side storage area where a stethoscope, an electronic sphygmomanometer, and a finger oxygen clip are placed As well as cardiopulmonary function evaluation equipment such as six-minute walk test testing equipment, the scale and ipad input equipment for patient evaluation results are placed in the middle storage area, and emergency medicines for heart disease patients are placed in the other side storage area, so that items can be classified and stored, including Classification labels 12 are provided on the side wall of the body 1 and corresponding to the positions of the three storage areas, so that the medical staff can distinguish the types of tools stored in each storage area of the bag body 1 through the bag body 1; The wall is provided with a containing pocket 13 for containing small items, such as wound dressing medicines. The inside of each storage area is provided with a screen belt 6, and the screen of the screen belt 6 adopts a cotton weaving net, and one side of the screen belt 6 is fixedly connected with the inner wall of the bag body 1, and the other side of the screen belt 6 One side is provided with a hanging hole 10, and the inner side wall of the bag body 1 is fixedly provided with a hanging rod 11, and the screen belt 6 is hung on the rod wall of the hanging rod 11 through the hanging hole 10, and the hanging rod 11 adopts an L-shaped rod to cover the net. When the hanging hole 10 on the belt 6 is inserted on the hanging rod 11, the screen belt 6 can be firmly covered at the opening of the storage area, so that the tools inside each storage area will not overflow, and the stability of tool storage can be improved .

One end of the double-shoulder strap 2 is fixedly connected to the top of the side wall of the bag body 1, and the other end of the double-shoulder strap 2 is fixedly provided with a hook 7, and the bottom of the side wall of the bag body 1 is symmetrically fixed with two first hanging rings 8 and hooks 7 Hanging on the first hanging ring 8, two second hanging rings 9 are symmetrically fixed on one side of the top of the bag body 1. When the hook 7 is hung on the first hanging ring 8, the shoulder strap 3 can The bag body 1 is carried on the back; when the hook 7 is hung on the second hanging ring 9, the bag body 1 can be carried by hand through the shoulder strap 3 at this time.

In the utility model, when in use, the medical staff opens the zipper opening 2, so that the opening of the bag body 1 is opened, and then a stethoscope, an electronic sphygmomanometer, a finger pulse oxygen clip and cardiopulmonary function evaluation instruments such as six are placed in one of the side storage areas. Minute walking test testing equipment, the middle storage area places the scale of patient evaluation results and ipad input equipment, and the other side storage area places first-aid medicines for heart disease patients, so that the items can be stored in categories. Belt 6 covers the opening of each storage area, and then the hanging holes 10 on the screen belt 6 are hung on the corresponding hanging rods 11. At this time, the screen belt 6 can cover the stored articles so that the articles will not overflow, and improve the stability of article storage, and finally the medical staff can carry the bag body 1 through the double shoulder strap 3, and if the bag body 1 needs to be carried by hand, the hook 7 on the double shoulder strap 3 can be removed from the first hanging ring 8, then hook 7 is hung on the second link 9, and now the double shoulder strap 3 can be used as a hand strap.

The above is only a preferred embodiment of the utility model, but the scope of protection of the utility model is not limited thereto. Any equivalent replacement or change of the new technical solution and the concept of the utility model shall be covered by the protection scope of the utility model.

Claims (7)

1. A tool portable backpack, comprising a bag body (1), characterized in that, the top of the bag body (1) is provided with a zipper opening (2), and the side wall of the bag body (1) is provided with a double shoulder strap (3), the inside of the bag body (1) is provided with a first interlayer (4) and a second interlayer (5), and the first interlayer (4) and the second interlayer (5) will pack The inside of the body (1) is divided into three storage areas, and each storage area is provided with a screen belt (6). 2. A kind of tool portable backpack according to claim 1, characterized in that, one end of the double-shoulder strap (3) is fixedly connected to the top of the side wall of the bag body (1), and the other end of the double-shoulder strap (3) A hook (7) is fixed, and two first hanging rings (8) are symmetrically fixed on the bottom of the side wall of the bag body (1), and the hook (7) is hung on the first hanging ring (8) , Two second hanging rings (9) are symmetrically fixed on one side of the top of the bag body (1). 3. A kind of tool portable backpack according to claim 1, characterized in that, one side of the mesh belt (6) is fixedly connected to the inner side wall of the bag body (1), and the mesh belt (6) The other side is provided with a hanging hole (10), and the inner side wall of the bag body (1) is fixedly provided with a hanging rod (11), and the mesh belt (6) is hung on the hanging rod (11) through the hanging hole (10). 11) on the rod wall. 4. A tool portable backpack according to claim 3, characterized in that, the hanging rod (11) is an L-shaped rod. 5. A kind of tool portable backpack according to claim 1, characterized in that, the shading net of the shading net belt (6) adopts cotton weaving net. 6 . The portable tool backpack according to claim 1 , characterized in that classification labels ( 12 ) are provided on the side walls of the bag body ( 1 ) and corresponding to the positions of the three storage areas. 6 . 7. The tool carrying backpack according to claim 1, characterized in that, a storage pocket (13) is provided on the side wall of the bag body (1).
