Abstract

The utility model discloses a household protective cap, which comprises a peaked cap and a face mask. The front end of the peaked cap is provided with retractable protective glasses. The retractable protective glasses include a spectacle bracket and a spectacle lens. The front end of the spectacle bracket has a spectacle lens. The end of the glasses bracket away from the spectacle lens is rotationally connected with the peaked cap, and the position of the spectacle lens is changed at the upper and lower ends of the cap by elongating the elastic part; the utility model adopts the design of a cap, protective glasses and a mask as one, easy to carry, and has protective and anti-epidemic performance. And it will not be easily lost or missed in daily life. The glasses part on the peaked cap can be rotated along the joint. When using it, you only need to turn the glasses to the hollowed out part of the eyes. When not in use, put the protective glasses on the brim of the peaked cap. The protective glasses fit the mask when in use , and the No. 1 sponge strip on the mask can prevent the lens from fogging and affecting vision during use.

Description

protective cap for household use

technical field

The utility model relates to the field of household medical supplies, in particular to a household protective cap.

Background technique

In densely populated outdoor places with high mobility, the spread of highly contagious epidemics is very likely to occur. The existing household protective hats have almost no function in epidemic prevention and control. Not conducive to the control of infectious diseases.

When the epidemic or other infectious diseases are severe, everyone stays at home, but there are also times when it is necessary to go out and wear a mask for a long time when going out. When wearing a mask for a long time, the string of the mask will hurt the ears and cause discomfort. Moreover, when entering some densely populated areas, hand contact with public facilities is likely to be contaminated with bacteria, and there is often a lack of disinfection equipment around these public facilities, which brings inconvenience to travellers.

The existing masks, protective caps, and protective glasses on the market are generally designed in separate pieces. It is easy to miss some of them during the carrying process of protective caps, masks, and protective glasses, or the glasses are prone to fogging during wearing. Vision, etc., causing inconvenience. Therefore, propose a kind of household protective cap.

Utility model content

The purpose of this utility model is to provide a household protective cap to solve the problems raised in the above-mentioned background technology.

In order to achieve the above object, the utility model provides the following technical solutions: a household protective cap, including a peaked cap and a face mask, the front end of the cap is provided with retractable protective glasses, and the retractable protective glasses include glasses brackets and spectacle lenses. There are spectacle lenses at the front end of the spectacle bracket, and an elastic part is arranged in the middle part of the spectacle bracket. The lower end of the mask is fixed with a mask, the mask is oval, the mask covers the face and neck, the eyes and nose and mouth are hollowed out in front of the mask, and the mouth and nose of the mask are hollowed out to cover the protective mask. Retractable protective glasses can be placed on the hollowed out parts of the eyes of the mask; mask hook assemblies are fixed on both sides of the mask, and the two ends of the protective mask are hung on the mask hook assemblies on both sides.

Preferably, a ring of No. 2 sponge strips is provided on the inner and outer end surfaces of the hollowed-out parts at the mouth and nose of the mask.

Preferably, there are two elastic buckles on the rear side of the mask.

Preferably, the elastic part adopts an elastic band or a spring.

Preferably, a No. 1 sponge strip is arranged between the eyes and the hollowed-out parts of the mouth and nose at the front end of the mask.

Preferably, the mask hook assembly includes a hook, a No. 1 splint, and a No. 2 splint. The ear straps of the protective mask are hung on the hook, and one end of the hook is fixedly installed on the No. 1 splint. The middle part of the No. 2 splint is set There is a fixed rod, the middle part of the No. 1 splint is provided with a fixed hole matching the fixed rod, and a rubber ring is arranged on the outside of the fixed rod, and the fixed rod is inserted into the fixed hole and then stretched and fixed by the rubber ring. Two corners of the No. 2 splint are respectively provided with a hexagonal positioning rod, and two corners of the No. 1 splint are respectively provided with a hexagonal positioning hole matched with the hexagonal positioning rod.

Compared with the prior art, the beneficial effect of the utility model is that the utility model adopts the design of the hat, the protective glasses and the mask as a whole, which is easy to carry, has protective and anti-epidemic performance, and will not be easily lost or missed in daily life. When using the protective glasses, you only need to turn the glasses to the hollowed out part of the eyes. When not in use, put the protective glasses on the brim of the peaked cap. The protective glasses fit the mask when in use, and the No. 1 sponge on the mask The strip can prevent the spectacle lens from fogging and affecting vision during use. The mask under the peaked cap can not only provide warmth when the weather is cold, but also cover the protective mask on the hollowed out parts of the mouth and nose, and the two ends of the protective mask are hung on the mask hook components on both sides, which avoids Ear discomfort after wearing a mask for a long time. The sponge strips are arranged inside and outside around the hollowed out part of the mouth and nose. The outer sponge strips ensure a better fit between the protective mask and the mask, while the sponge strips inside the mask stick to the face, and the lenses are not easy to lift when using protective glasses. The effect of fog. The elastic buckle on the back of the mask can adjust the tightness of the mask.

Description of drawings

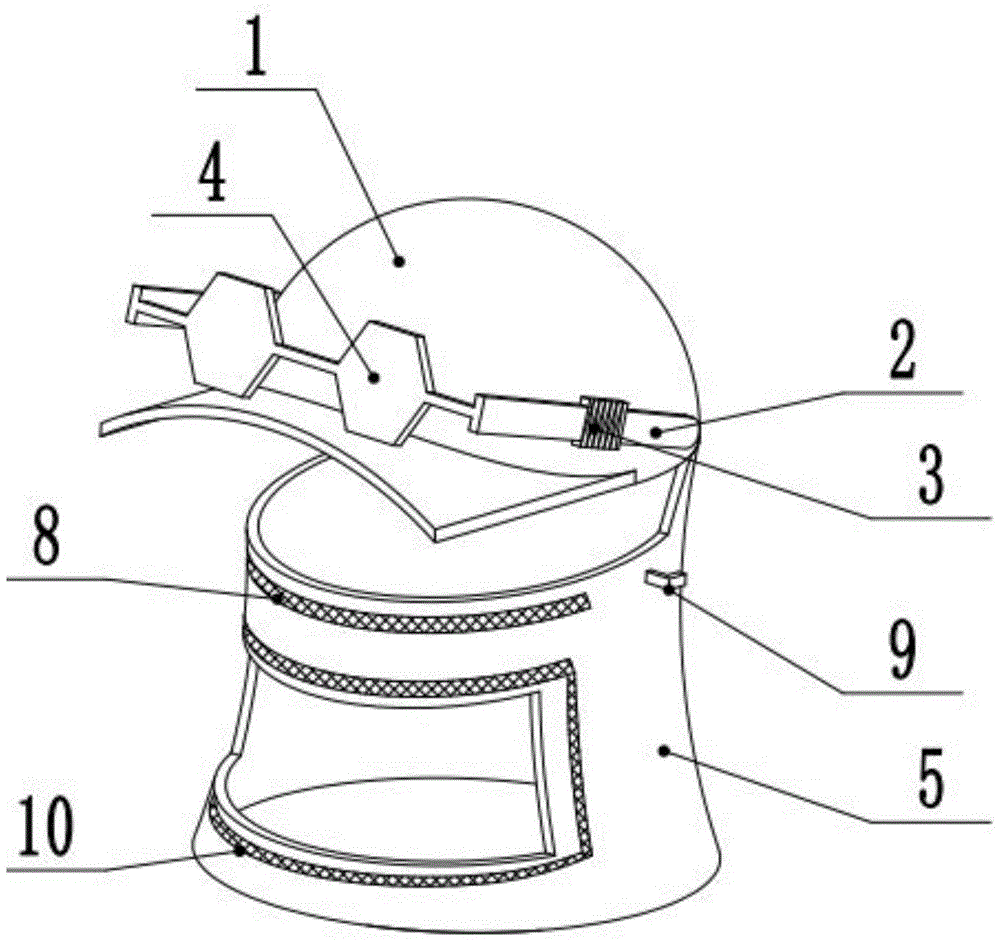

Fig. 1 is the overall structural representation of the utility model household protective cap;

Fig. 2 is the side view when wearing glasses of the utility model household protective cap;

Fig. 3 is the side view when not wearing glasses of the household protective cap of the present utility model;

Fig. 4 is a side sectional view of the utility model household protective cap;

Fig. 5 is an exploded structure diagram of the mask hook assembly of the household protective cap of the present invention.

In the figure: 1. peaked cap, 2. glasses bracket, 3. elastic part, 4. glasses lens, 5. mask, 6. elastic buckle, 7. protective mask, 8. No. 1 sponge strip, 9. mask hook assembly, 10. No. 2 sponge strip; 901, hook; 902, No. 1 splint; 903, hexagonal positioning hole; 904, hexagonal positioning rod; 905, fixing rod; 906, rubber ring; 907, No. 2 splint; 908, fixing hole.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Figures 1-5, the utility model provides a technical solution: a household protective cap, including a peaked cap 1 and a mask 5, the front end of the peaked cap 1 is provided with retractable protective glasses, and the retractable protective glasses include a spectacle bracket 2 and spectacle lenses 4. There is a spectacle lens 4 at the front end of the spectacle bracket 2, and an elastic part 3 is arranged in the middle of the spectacle bracket 2. The end of the spectacle bracket 2 away from the spectacle lens 4 is rotationally connected with the peaked cap 1, and the spectacle lens 4 is attached to the upper and lower ends of the cap 1 by elongating the elastic part 3 To change the position, you only need to turn the protective glasses to the hollowed out part of the eyes when in use, and put the protective glasses on the brim of the peaked cap 1 when not in use, and the protective glasses just fit with the mask 5 when in use; the lower end of the peaked cap 1 Face shield 5 is fixed, and face shield 5 is oval, and face shield 5 covers face and neck position, and the face shield 5 also can provide the effect of keeping warm when the weather is cold. Cover the protective mask 7 on the hollowed out part of the mouth and nose, and retractable protective glasses can be placed on the hollowed out part of the eyes of the mask 5; the mask hook assembly 9 is fixed on both sides of the mask 5, and the two ends of the protective mask 7 are hung on both sides On the mouth mask hook assembly 9, the sense of discomfort of ears after having avoided wearing mouth mask for a long time. The mouth and nose of the mask 5 have a hollowed-out part, and a circle of No. 2 sponge strips 10 is arranged on the inner and outer ends. The outer sponge strips ensure that the protective mask and the mask are better attached, while the sponge strips inside the mask are attached to the face, and there is also a use The lens is not easy to fog when the protective glasses are used. There are two elastic buckles 6 on the rear side of the mask 5, and the mask 5 can be adjusted by oneself according to demand. Elastic part 3 adopts elastic band or spring. A No. 1 sponge strip 8 is set between the eyes at the front end of the face shield 5 and the hollowed-out position at the nose and mouth, which can prevent the spectacle lens 4 from fogging and affecting the line of sight when in use.

Mask hook assembly 9 comprises hook 901, No. 1 splint 902, No. 2 splint 907, hangs protective mask 7 ear straps on hook 901, and one end of hook 901 is fixedly installed on No. 1 splint 902, and the middle part of No. 2 splint 907 is provided with fixed Rod 905, the middle part of No. 1 splint 902 is provided with a fixing hole 908 matched with the fixing rod 905, and the outer side of the fixing rod 905 is provided with a rubber ring 906. After the fixing rod 905 is inserted into the fixing hole 908, it is stretched and fixed by the rubber ring 906. Two corners of No. 1 splint 907 are respectively provided with a hexagonal positioning rod 904 , and two corners of No. 1 splint 902 are respectively provided with a hexagonal positioning hole 903 matched with the hexagonal positioning rod 904 . The No. 2 splint 907 is inside the mask 5, and the No. 1 splint 902 is outside the mask 5. The fixed rod 905 and the hexagonal positioning rod 904 pass through the mask 5, and the No. 1 splint 902 and the No. 2 splint 907 on both sides are fixed. The hexagonal positioning rod 904 and the hexagonal positioning hole 903 have the function of positioning and preventing the mask hook assembly 9 from rotating.

The working principle of the utility model is as follows: when in use, the mask 5 is set on the face, and the two hollowed-out designs are respectively aligned with the eyes and the mouth and nose, and then the peaked cap 1 is put on the top of the head. The protective mask 7 is pasted on the hollowed-out part of the mouth and nose of the mask 5, the two ends of the protective mask 7 are hung on the mask hook assembly 9, and the four sides of the protective mask 7 are fitted with the No. 1 sponge strip. When using glasses, it is only necessary to pull the eyeglass lens 4 and the eyeglass bracket 2 on the hollowed-out part of the eye and put it on the No. 1 sponge strip.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (6)

1. A domestic helmet, includes peak cap (1) and face guard (5), its characterized in that: the front end of the peaked cap (1) is provided with retractable protective glasses, the retractable protective glasses comprise a glasses support (2) and glasses lenses (4), the glasses lenses (4) are arranged at the front end of the glasses support (2), a tightening part (3) is arranged in the middle of the glasses support (2), one end, far away from the glasses lenses (4), of the glasses support (2) is rotatably connected with the peaked cap (1), and the glasses lenses (4) are changed in position at the upper end and the lower end of the peaked cap (1) through lengthening the tightening part (3); a face mask (5) is fixed at the lower end of the peaked cap (1), the face mask (5) is oval, the face mask (5) covers the face and the neck, the eyes and the nose in front of the face mask (5) are hollowed, the mouth and nose of the face mask (5) are hollowed to cover a protective mask (7), and retractable protective glasses can be placed on the eyes of the face mask (5); mask hook assemblies (9) are fixed on two sides of the face mask (5), and two ends of the protective mask (7) are hung on the mask hook assemblies (9) on the two sides.

2. A household protective cap according to claim 1, wherein: the mouth and nose of the mask (5) are provided with a hollow part, and the inner end surface and the outer end surface of the hollow part are respectively provided with a circle of second sponge strips (10).

3. A household protective cap according to claim 1, wherein: two elastic buckles (6) are arranged on the rear side of the face mask (5).

4. A household protective cap according to claim 1, wherein: the elastic part (3) adopts an elastic band or a spring.

5. A household protective helmet according to claim 1, wherein: a first sponge strip (8) is arranged between the eyes at the front end of the face mask (5) and the hollowed part at the mouth and nose.

6. A household protective cap according to claim 1, wherein: the mask hook assembly (9) comprises a hook (901), a first clamping plate (902) and a second clamping plate (907), wherein an ear belt of a protective mask (7) is hung on the hook (901), one end of the hook (901) is fixedly installed on the first clamping plate (902), a fixing rod (905) is arranged in the middle of the second clamping plate (907), a fixing hole (908) matched with the fixing rod (905) is formed in the middle of the first clamping plate (902), a rubber ring (906) is arranged on the outer side of the fixing rod (905), the fixing rod (905) is inserted into the fixing hole (908) and then is propped open and fixed through the rubber ring (906), two hexagonal positioning rods (904) are arranged at two corners of the second clamping plate (907), and a hexagonal positioning hole (903) matched with the hexagonal positioning rod (904) is arranged at two corners of the first clamping plate (902).
