A kind of insecticidal lamp with solar light following system

technical field

The utility model relates to the technical field of insecticidal lamps, in particular to an insecticidal lamp with a solar illumination following system.

Background technique

Insecticidal lamp is a special device based on the phototaxis of insects, using insect-sensitive light sources in specific spectral ranges to trap insects and effectively kill insects, reduce the index of diseases and insect pests, and prevent and control insect pests and insect-borne diseases. To kill pests and reduce the use of insecticides, insecticidal lamps are special lamps for the implementation of light trapping insect technology, necessary equipment, insecticidal lamps do not need to use less chemical pesticides, produce quality and safe agricultural products, and physically The preferred biological protection machinery for protection (usually called "plant protection machinery", in fact, insecticidal lamps can protect more than just plants). Insecticidal lamps are also used by the breeding industry to collect high-protein feed to feed insectivorous animals, reduce feed costs, and improve product quality. farming machinery.

Existing solar insecticidal lamps are generally directly installed with a solar panel to collect solar energy. The solar panel is generally fixed on the insecticidal lamp and cannot be rotated. It is very limited by the light, resulting in insufficient power collection and conversion, which affects insecticide. Therefore, we need to propose an insecticidal lamp with a solar light following system.

Utility model content

The purpose of this utility model is to provide an insecticidal lamp with a solar light following system. By setting a drive motor in the device box, the output shaft of the drive motor drives the lighting direction of the solar panel to adjust, thereby increasing the light energy of the solar panel. Acquisition efficiency, in order to solve the problems raised in the above-mentioned background technology.

In order to achieve the above object, the utility model provides the following technical solutions:

An insecticidal lamp with a solar illumination following system, comprising a fixed column, the bottom of the fixed column is fixedly connected with a base, the upper end of the fixed column is fixedly connected with an equipment box, and the upper and lower ends of the equipment box are symmetrical. Two sets of rotating bearings are embedded, and the inner rings of the two sets of rotating bearings are fixedly inserted with a rotating rod, and one end of the rotating rod penetrates the equipment box and is fixedly connected with a mounting seat, and the upper end of the mounting seat is fixedly connected with a solar panel. The outer wall of the rotating rod is fixed with a driven gear, and the driven gear is located inside the equipment box. The output end of the drive motor is electrically connected to the output end of the device box. The drive motor is fixedly installed on the other side of the rotating rod. The drive motor is electrically connected to the output end of the battery through a wire. One end of the output shaft of the drive motor is fixedly connected to A driving gear, the driving gear meshes with the driven gear, and the main body of the insecticidal lamp is fixedly connected to one side of the outer wall of the fixing column through a fixing frame.

Preferably, the main body of the insecticidal lamp includes a lamp holder, one side of the lamp holder is fixedly connected with the top end of the fixed frame, the lower end of the lamp holder is fixedly connected with a tube body, and the bottom of the lamp holder is provided with a pipe A communication hole through which the pipe body communicates, and one side of the pipe body is fixedly connected with the bottom end of the fixing frame.

Preferably, the upper end of the lamp holder is detachably connected with a lamp holder through bolts, a trapping lamp is fixedly installed at the center of the bottom of the lamp holder, and a high-voltage power grid is arranged outside the trapping lamp, and the upper end of the high-voltage power grid is connected to the The bottom of the lamp holder is fixedly connected, and the trapping lamp and the high-voltage power grid are electrically connected to the output end of the battery through wires.

Preferably, a fan is fixedly installed inside the pipe body through a bracket, the fan is electrically connected to the output end of the battery through a wire, and the pipe body is fixedly installed with a conical grille under the fan.

Preferably, an annular fixing plate is fixedly sleeved on the bottom outer wall of the pipe body, and an insect collecting box is detachably connected to the bottom of the annular fixing plate.

Preferably, four sets of reinforcing blocks are connected in a circular array on the bottom outer wall of the fixing column, the bottom of the reinforcing block is fixedly connected to the base, and the base is located on one side of the reinforcing block to open a fixing hole.

Compared with the prior art, the beneficial effects of the utility model are:

1. The utility model arranges a driving motor inside the equipment box, and drives the driving gear to mesh with the driven gear through the rotation of the output shaft of the driving motor, so that the rotating rod rotates under the cooperation of two sets of rotating bearings, and then the solar panel is illuminated. Adjust the direction to increase the light energy collection efficiency of the solar panel, and avoid the insufficient collection and conversion of solar panel electric energy, which affects the use of insecticidal lamps;

2. By installing a fan in the pipe body, the mosquitoes electrocuted by the high-voltage power grid can be absorbed by the rotation of the fan, so that the dead mosquitoes fall into the conical net cover through the communication hole, and then fall into the insect collecting box through the conical net cover. The arrangement of the conical mesh cover prevents undead mosquitoes from flying out of the insect collecting box, facilitates feeding insectivorous animals by collecting mosquitoes, and increases the practicality of the device.

Description of drawings

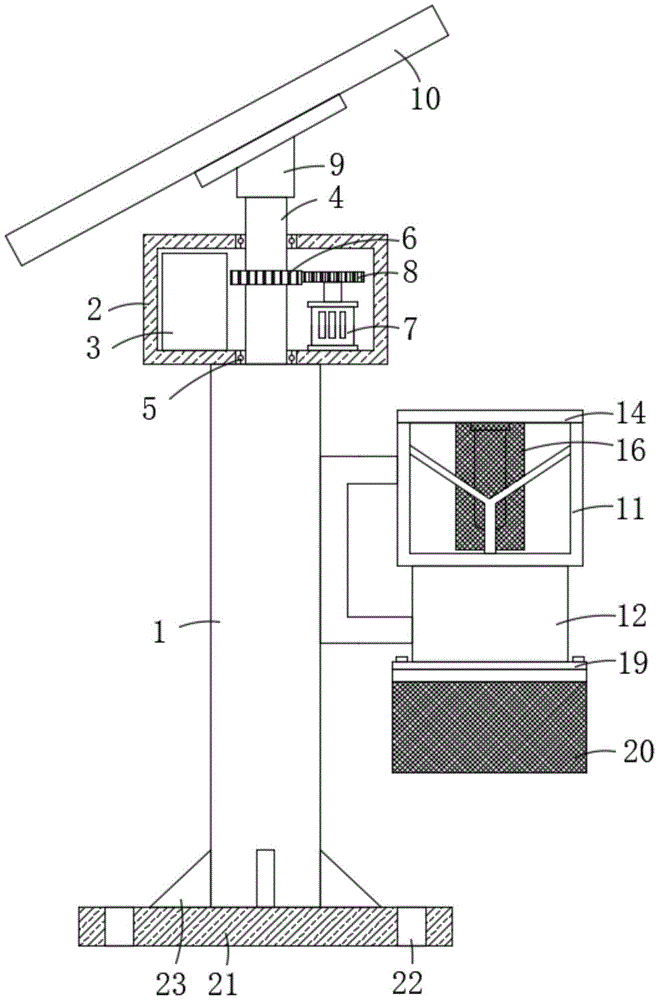

Fig. 1 is the structural representation of the utility model;

Fig. 2 is a schematic diagram of the axial side structure of the lamp holder and the lamp holder of the utility model;

Fig. 3 is a schematic diagram of the axial structure of the pipe body of the present invention.

In the figure: 1, fixed column; 2, equipment box; 3, storage battery; 4, rotating rod; 5, rotating bearing; 6, driven gear; 7, drive motor; 8, driving gear; 9, mounting base; Solar panel; 11. Lamp stand; 12. Tube body; 13. Connecting hole; 14. Lamp holder; 15. Trapping lamp; 16. High-voltage power grid; 17. Fan; 18. Conical mesh cover; 19. Annular fixing plate ; 20, an insect collecting box; 21, a base; 22, a fixing hole; 23, a reinforcing block.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Figure 1-3, the utility model provides a technical solution:

An insecticidal lamp with a sunlight following system, comprising a fixed column 1, the bottom of the fixed column 1 is fixedly connected with a base 21, the upper end of the fixed column 1 is fixedly connected with an equipment box 2, and the upper and lower ends of the equipment box 2 are symmetrical Two sets of rotating bearings 5 are embedded, and the inner rings of the two sets of rotating bearings 5 are fixedly plugged with a rotating rod 4, and one end of the rotating rod 4 penetrates the equipment box 2 and is fixedly connected with a mounting seat 9, and the upper end of the mounting seat 9 is fixedly connected with a solar energy The battery board 10, the outer wall of the rotating rod 4 is fixed with a driven gear 6, the driven gear 6 is located inside the equipment box 2, and the equipment box 2 is fixedly installed on one side of the rotating rod 4 with a battery 3, and the battery 3 passes through the wire It is electrically connected with the output end of the solar cell panel 10, so as to store the electric energy collected and converted by the solar cell panel 10 through the battery 3;

The device box 2 is located on the other side of the rotating rod 4 and is fixedly installed with a driving motor 7. The driving motor 7 is set as a positive and negative stepping motor. One end of the fixed column is fixedly connected with a driving gear 8, and the driving gear 8 meshes with the driven gear 6. One side of the outer wall of the fixed column 1 is fixedly connected with the main body of the insecticidal lamp through a fixing frame, so that the driving gear 8 and the driven gear 8 can be driven by the rotation of the output shaft of the drive motor 7. The driven gear 6 is meshed, so that the rotating rod 4 rotates under the cooperation of the two sets of rotating bearings 5, and then the lighting direction of the solar cell panel 10 is adjusted to increase the light energy collection efficiency of the solar cell panel 10;

The main body of the insecticidal lamp includes a light frame 11, one side of the light frame 11 is fixedly connected with the top end of the fixed frame, the lower end of the light frame 11 is fixedly connected with a tube body 12, and the bottom of the light frame 11 is provided with a hole communicating with the tube body 12. Connecting hole 13, one side of pipe body 12 is fixedly connected with the bottom end of the fixed frame, the upper end of lamp frame 11 is detachably connected with lamp holder 14 through bolts, and the center of the bottom of lamp holder 14 is fixedly installed with trapping lamp 15, trapping lamp 15 is provided with a high-voltage power grid 16 on the outside, the upper end of the high-voltage power grid 16 is fixedly connected to the bottom of the lamp holder 14, and the trapping lamp 15 and the high-voltage power grid 16 are electrically connected to the output end of the battery 3 through wires, so that it is convenient to attract light through the trapping lamp 15. Mosquitoes, the high-voltage power grid 16 carries out insecticidal operations on mosquitoes, and the insecticidal effect is increased by utilizing the trapping lamp 15 in combination with the high-voltage power grid 16;

The inside of the pipe body 12 is fixedly installed with a fan 17 through a bracket, and the fan 17 is electrically connected to the output end of the battery 3 through a wire, and the pipe body 12 is located below the fan 17, and a conical net cover 18 is fixedly installed, and the bottom of the pipe body 12 The fixed cover on the outer wall is provided with an annular fixed plate 19, and the bottom of the annular fixed plate 19 is detachably connected with an insect collecting box 20, which is convenient to suck the mosquitoes electrocuted to the high-voltage power grid 16 by the rotation of the blower fan 17, so that the dead mosquitoes fall through the communicating hole 13. Enter the conical net cover 18, and fall into the insect collection box 20 by the conical net cover 18 to collect, avoid the undead mosquitoes from flying out of the insect collection box 20 by the setting of the conical net cover 18, and facilitate feeding insectivorous animals by collecting mosquitoes , to increase the practicability of the device, four groups of reinforcing blocks 23 are connected in a circular array on the bottom outer wall of the fixing column 1, the bottom of the reinforcing blocks 23 is fixedly connected with the base 21, and the base 21 is located on one side of the reinforcing block 23 and has a fixing hole 22 , it is convenient to install and fix the device through the fixing hole 22.

When the utility model is used, the device is installed and fixed to a suitable position through the fixing hole 22, and the solar energy is collected and converted by the solar panel 10 during the day, and the driving motor 7 is set inside the equipment box 2, and the driving gear 8 is driven by the output shaft of the driving motor 7. Mesh with the driven gear 6, so that the rotating rod 4 rotates under the cooperation of the two sets of rotating bearings 5, and then adjust the lighting direction of the solar cell panel 10, increase the light energy collection efficiency of the solar cell panel 10, and avoid the electric energy of the solar cell panel 10. Insufficient collection and conversion will affect the use of insecticidal lamps. Mosquitoes are attracted by trapping lamps 15 at night, and high-voltage power grid 16 performs insecticidal operations on mosquitoes. The insect effect increases, and the mosquitoes that are electrocuted by the high-voltage power grid 16 are sucked by the rotation of the fan 17, so that the mosquito corpses fall into the conical net cover 18 through the communication hole 13, and fall into the insect collection box 20 by the conical net cover 18 to collect, The arrangement of the conical net cover 18 prevents undead mosquitoes from flying out of the insect collecting box 20, which facilitates feeding insectivorous animals by collecting mosquitoes and increasing the practicality of the device.

The same or similar components are marked with the same reference numerals in different drawings; , "inner", "outer", "end", "portion", "section", "width", "thickness", "area", etc. It is only used to help describe the utility model, but not to limit the utility model.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (6)

1. A kind of insecticidal lamp with solar illumination following system, comprising fixed column (1), it is characterized in that: the bottom of described fixed column (1) is fixedly connected with base (21), and the bottom of described fixed column (1) The upper end is fixedly connected with an equipment box (2), and two sets of rotating bearings (5) are embedded symmetrically at the upper and lower ends of the equipment box (2), and the inner rings of the two sets of rotating bearings (5) are fixedly plugged with The rotating rod (4), and one end of the rotating rod (4) penetrates the equipment box (2) and is fixedly connected with a mounting base (9), and the upper end of the mounting base (9) is fixedly connected with a solar cell panel (10). The outer wall of the rotating rod (4) is fixedly covered with a driven gear (6), and the driven gear (6) is located inside the equipment box (2), and the equipment box (2) is located at the inside of the rotating rod (4). A battery (3) is fixedly installed on one side, and the battery (3) is electrically connected to the output end of the solar panel (10) through a wire, and the equipment box (2) is fixed on the other side of the rotating rod (4) A drive motor (7) is installed, the drive motor (7) is electrically connected to the output end of the storage battery (3) through a wire, and one end of the output shaft of the drive motor (7) is fixedly connected with a driving gear (8), so The driving gear (8) meshes with the driven gear (6), and the main body of the insecticidal lamp is fixedly connected to one side of the outer wall of the fixing column (1) through a fixing frame. 2. The insecticidal lamp with solar illumination following system according to claim 1, characterized in that: the main body of the insecticidal lamp comprises a lamp holder (11), and one side of the lamp holder (11) is fixed to One end of the top of the frame is fixedly connected, and the lower end of the lamp frame (11) is fixedly connected with a tube body (12), and the bottom of the lamp frame (11) is provided with a communication hole (13) communicating with the tube body (12). One side of the pipe body (12) is fixedly connected with the bottom end of the fixing frame. 3. A kind of insecticidal lamp with solar illumination following system according to claim 2, characterized in that: the upper end of the lamp holder (11) is detachably connected with a lamp holder (14) by bolts, and the lamp holder The center of the bottom of (14) is fixedly equipped with trapping lamp (15), and the outside of described trapping lamp (15) is provided with high-voltage power grid (16), and the upper end of described high-voltage power grid (16) and the bottom of lamp holder (14) It is fixedly connected, and both the trapping lamp (15) and the high-voltage power grid (16) are electrically connected to the output end of the storage battery (3) through wires. 4. A kind of insecticidal lamp with solar illumination following system according to claim 3, characterized in that: the inside of the pipe body (12) is fixedly equipped with a fan (17) through a bracket, and the fan (17) The output end of the storage battery (3) is electrically connected through wires, and the pipe body (12) is located below the fan (17) and is fixedly equipped with a conical mesh cover (18). 5. A kind of insecticidal lamp with solar illumination following system according to claim 4, characterized in that: an annular fixing plate (19) is fixedly sleeved on the bottom outer wall of the tube body (12), and the annular fixing plate (19) The bottom of the fixed plate (19) is detachably connected with an insect collecting box (20). 6. A kind of insecticidal lamp with solar illumination following system according to claim 1, characterized in that: the bottom outer wall of the fixed column (1) is connected with four sets of reinforcing blocks (23) in an annular array, the The bottom of the reinforcement block (23) is fixedly connected to the base (21), and the base (21) is provided with a fixing hole (22) on one side of the reinforcement block (23).
