Abstract

The utility model discloses a decorative board for building decoration with moisture-proof function, which comprises a main body of the decorative board, a moisture-proof layer is arranged inside the main body of the decorative board, connecting blocks and connecting blocks are fixedly installed on both side walls of the main body of the decorative board. The fixing plate is provided with matching slots on the connecting block, connecting holes are opened on the inner walls of both sides of the matching slots, and a hollow connecting box is fixedly installed on the side wall of the fixing plate away from the connecting block. The hollow connection box is matched with the matching slot, auxiliary through holes are opened on both side walls of the hollow connection box, and a connection mechanism is arranged in the hollow connection box, and the connection mechanism includes a worm wheel located in the hollow connection box . The utility model ensures the moisture-proof effect of the decorative board, and at the same time, the connection and disassembly of the main bodies of the two decorative boards can be realized by turning the turning block, without the need for manual tools and the connection by screws, the operation is simple, the use is convenient, and the work efficiency is improved .

Description

A decorative board for building decoration with moisture-proof function

technical field

The utility model relates to the technical field of building decoration boards, in particular to a decorative board for building decoration with a moisture-proof function.

Background technique

With the rapid development of modern society, various types of buildings have sprung up, and the demand for decorative panels used on building surfaces has continued to increase. Architectural decorative board is a material that is laid or painted on the surface of a building to decorate and beautify the environment. It is a material that combines materials, craftsmanship, shape design and aesthetics. It is an important material basis for architectural decoration engineering. Decorative board is a kind of The wood-based board layer is a thermosetting laminated plastic made of high-temperature and high-pressure adhesives after chemical treatment of various special papers. The board surface has various wood grains or patterns, bright and smooth, bright and beautiful, and has a high Good physical properties such as wear resistance, heat resistance, cold resistance and fire prevention.

When the existing decorative panels are used, two decorative panels need to be connected and assembled. At present, most of them are connected manually with the help of tools and screws. The operation is troublesome and the work efficiency is low. At the same time, the existing decorative panels have poor moisture-proof effect and are inconvenient to use.

Utility model content

The purpose of the utility model is to solve the shortcomings in the prior art, and propose a decorative board for building decoration with moisture-proof function.

In order to achieve the above object, the utility model adopts the following technical solutions:

A decorative board for building decoration with a moisture-proof function, comprising a main body of the decorative board, a moisture-proof layer is arranged inside the main body of the decorative board, connecting blocks and fixing plates are fixedly installed on both side walls of the main body of the decorative board, the There are matching slots on the connecting block, connecting holes are opened on the inner walls of both sides of the matching slots, and a hollow connecting box is fixedly installed on the side wall of the fixing plate away from the connecting block, and the hollow connecting box is connected with the connecting block. Cooperating with the slot holes, auxiliary through holes are opened on both side walls of the hollow connection box, and a connection mechanism is arranged in the hollow connection box.

Preferably, the connection mechanism includes a worm wheel located in the hollow connection box, a hollow cylinder is fixedly installed on both side walls of the worm wheel, and the end of the hollow cylinder away from the worm wheel is rotatably connected to the inner wall of the hollow connection box , the inner wall of the hollow cylinder is fixedly installed with a limit slider, and a connecting rod is arranged inside the hollow cylinder.

Preferably, a limiting chute is provided on the outer wall of the connecting rod, the limiting slider is located in the limiting chute, the connecting rod is adapted to the connecting hole, and the inner wall at one end of the hollow connecting box is rotatably connected. There is a worm, and the worm is meshed with the worm wheel. One end of the worm passes through the fixed plate and is connected to it in rotation. The end of the worm outside the hollow connection box is fixedly installed with a rotary block.

Preferably, the axis of the auxiliary through hole, the axis of the connecting rod and the axis of the connecting hole coincide, and the inner diameter of the auxiliary through hole is the same as the inner diameter of the connecting hole.

Preferably, the outer wall of the rotary block is provided with anti-slip protrusions evenly distributed in the circumferential direction.

Preferably, the limiting sliding slot extends along its axial direction and is arc-shaped.

The beneficial effects of the utility model:

By setting the connection mechanism and the moisture-proof layer, the moisture-proof effect of the decorative panel is guaranteed. At the same time, the connection and disassembly of the main bodies of the two decorative panels can be realized by turning the turning block. It is easy to operate and easy to use without manual tools and screws. ,Improved work efficiency.

Description of drawings

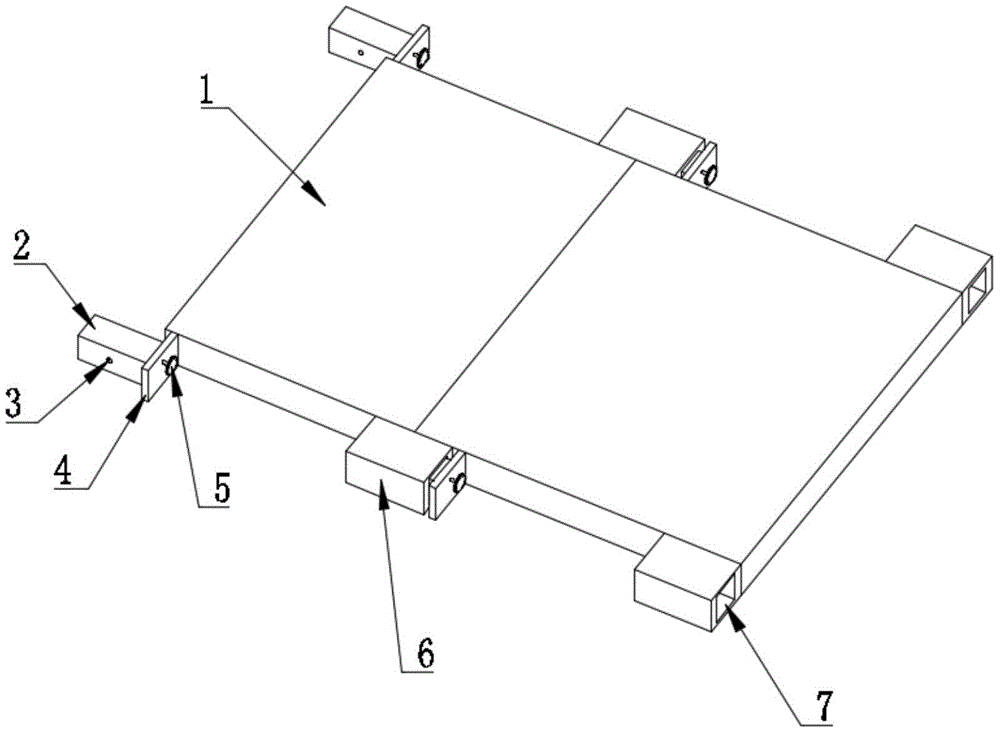

Fig. 1 is the three-dimensional structure schematic diagram of a kind of decorative plate with moisture-proof function that the utility model proposes;

Fig. 2 is a schematic diagram of the three-dimensional structure inside the hollow connection box of the present invention;

Fig. 3 is a schematic diagram of the planar structure inside the hollow cylinder of the utility model;

Fig. 4 is a schematic diagram of the planar structure of the hollow cylinder and the limit slider of the present invention;

Fig. 5 is a schematic plan view of the interior of the main body of the decorative panel of the present invention.

In the figure: 1 decorative board main body, 2 hollow connection box, 3 auxiliary through hole, 4 fixed plate, 5 rotating block, 6 connecting block, 7 matching slot hole, 8 worm, 9 hollow cylinder, 10 worm wheel, 11 connecting hole, 12 connecting rods, 13 limit chute, 14 limit slide block, 15 moisture-proof layer.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example.

Referring to Figures 1-5, a decorative panel for building decoration with a moisture-proof function includes a decorative panel main body 1, and a moisture-proof layer 15 is provided inside the decorative panel main body 1 to ensure the moisture-proof effect. The connecting block 6 and the fixing plate 4 are fixedly installed, the connecting block 6 is provided with a matching slot 7, the inner walls of both sides of the matching slot 7 are provided with connecting holes 11, and the fixing plate 4 is far away from the side wall of the connecting block 6 The hollow connection box 2 is fixedly installed, and the hollow connection box 2 is adapted to the matching slot hole 7. The two side walls of the hollow connection box 2 are provided with auxiliary through holes 3, and the hollow connection box 2 is provided with a connection mechanism;

The connection mechanism includes a worm wheel 10 located in the hollow connection box 2, a hollow cylinder 9 is fixedly installed on both side walls of the worm wheel 10, and the end of the hollow cylinder 9 away from the worm wheel 10 is rotatably connected to the inner wall of the hollow connection box 2. The limit slide 14 is fixedly installed on the inner wall of the cylinder 9, the hollow cylinder 9 is provided with a connecting rod 12, and the limit chute 13 is opened on the outer wall of the connect rod 12, and the limit slide 14 is located in the limit chute 13. Inside, the limit slider 14 can always slide in the limit chute 13, the limit chute 13 extends along its axial direction and is arc-shaped, so that when the hollow cylinder 9 rotates, the connecting rod 12 can move forward and backward, The connecting rod 12 is compatible with the connecting hole 11, the axis of the auxiliary through hole 3, the axis of the connecting rod 12 and the axis of the connecting hole 11 coincide, and the inner diameter of the auxiliary through hole 3 is the same as the inner diameter of the connecting hole 11, which is convenient for the connecting rod 12 Through the auxiliary through hole 3 into the connection hole 11, the inner wall of one end of the hollow connection box 2 is rotatably connected with a worm 8, the worm 8 is meshed with the worm wheel 10, and one end of the worm 8 runs through the fixed plate 4 and is connected with it for rotation, and the worm 8 is located at One end outside the hollow connection box 2 is fixedly equipped with a rotary block 5, and the outer wall of the rotary block 5 is provided with anti-slip protrusions uniformly distributed along the circumference, so as to avoid slipping of the hand when the rotary block 5 is manually rotated.

When the utility model is used, the moisture-proof effect of the decorative board is ensured by setting the moisture-proof layer 15. When two decorative board main bodies 1 need to be connected, the hollow connection box 2 on one decorative board main body 1 is located on the other decorative board main body 1. In the matching slot hole 7 on the connecting block 6 of the plate main body 1, the worm 8 is rotated by manually turning the turning block 5, and the rotation of the worm 8 drives the rotation of the worm wheel 10, so that the hollow cylinder 9 rotates, and the rotation of the hollow cylinder 9 makes the limit slide The block 14 rotates around the axis of the hollow cylinder 9. Since the limit slider 14 is located in the limit chute 13, the two connecting rods 12 are moved closer or farther away from each other. When the connecting rods 12 are far away from each other, one end of the connecting rod 12 passes through the The auxiliary through hole 3 enters the connection hole 11 to realize the connection of the two decorative panel bodies 1. When the two connecting rods 12 are far away from each other, one end of the connecting rod 12 is far away from the connecting hole 11 and enters the hollow cylinder again through the auxiliary through hole 3 9, easy to operate, easy to use, no need for additional tools.

The above is only a preferred embodiment of the utility model, but the scope of protection of the utility model is not limited thereto. The equivalent replacement or change of the new technical solution and the concept of the utility model shall be covered by the protection scope of the utility model.

Claims (6)

1. a decorative panel with moisture-proof function for building decoration, comprising a decorative panel main body (1), characterized in that, the interior of the decorative panel main body (1) is provided with a moisture-proof layer (15), and the decorative panel main body (1) ) are fixedly installed with connection blocks (6) and fixed plates (4) on both sides of the wall, the connection block (6) is provided with matching slots (7), the two sides of the matching slots (7) Connection holes (11) are opened on the inner walls, and a hollow connection box (2) is fixedly installed on the side wall of the fixed plate (4) away from the connection block (6), and the hollow connection box (2) and the matching groove The holes (7) are matched, auxiliary through holes (3) are opened on both side walls of the hollow connection box (2), and a connection mechanism is arranged in the hollow connection box (2). 2. A decorative panel for building decoration with moisture-proof function according to claim 1, characterized in that, the connection mechanism comprises a worm wheel (10) located in the hollow connection box (2), and the worm wheel (10) A hollow cylinder (9) is fixedly installed on both side walls of the hollow cylinder (9), and one end of the hollow cylinder (9) away from the worm wheel (10) is rotatably connected to the inner wall of the hollow connection box (2), and the hollow cylinder ( A limit slider (14) is fixedly installed on the inner wall of the hollow cylinder (9), and a connecting rod (12) is arranged inside the hollow cylinder (9). 3. A decorative panel for building decoration with moisture-proof function according to claim 2, characterized in that, a limit slide groove (13) is opened on the outer wall of the connecting rod (12), and the limit slide The block (14) is located in the limit chute (13), the connecting rod (12) is adapted to the connecting hole (11), and the inner wall of one end of the hollow connecting box (2) is rotatably connected with a worm (8) , the worm (8) is meshed with the worm wheel (10), one end of the worm (8) passes through the fixed plate (4) and is connected to it in rotation, and the worm (8) is located outside the hollow connection box (2) A rotating block (5) is fixedly installed at one end. 4. A decorative panel for building decoration with moisture-proof function according to claim 1, characterized in that, the axis of the auxiliary through hole (3), the axis of the connecting rod (12) and the axis of the connecting hole (11) The axes coincide, and the inner diameter of the auxiliary through hole (3) is the same as the inner diameter of the connecting hole (11). 5 . A decorative panel for building decoration with moisture-proof function according to claim 3 , characterized in that, the outer wall of the turning block ( 5 ) is provided with anti-skid protrusions evenly distributed along the circumferential direction. 6 . 6 . The decorative panel for building decoration with moisture-proof function according to claim 3 , characterized in that, the limiting chute ( 13 ) extends along its axial direction and is arc-shaped. 7 .
