Abstract

The utility model discloses an antibacterial textile fabric with deodorizing and sweat-absorbing properties in the field of textile fabrics. The side of the nano-fabric inner layer away from the pure cotton fabric layer is provided with a sweat-absorbing layer, the side of the sweat-absorbing layer far away from the nano-fabric inner layer is provided with a deodorant layer, and the side of the deodorant layer far away from the sweat-absorbing layer is provided with an antibacterial agent Layer, the antibacterial agent layer is away from the deodorant layer and therefore provided with an outer fabric layer. In the utility model, through the pure cotton fabric layer and the inner layer of the nano fabric, it is convenient to fit the skin and increase comfort. The sweat-absorbing layer can absorb the sweat produced, and the deodorizing layer can achieve the effect of deodorization and sterilization. The antibacterial effect is achieved through the antibacterial agent layer, and the fabric can be protected through the outer fabric layer, thereby solving the problem that the existing fabric has poor deodorization and sweat absorption performance and affects people's use.

Description

Antibacterial textile fabric with deodorizing and sweat-absorbing properties

technical field

The utility model relates to the field of textile fabrics, in particular to an antibacterial textile fabric with deodorizing and sweat-absorbing properties.

Background technique

Knitted fabrics are divided into weft-knitted fabrics and warp-knitted fabrics according to the weaving method. Weft-knitted fabrics are often made of low-elastic polyester yarns or special-shaped polyester yarns, nylon yarns, cotton yarns, wool yarns, etc., and are made of flat stitches. , Change flat stitch, ribbed flat stitch, double rib plain stitch, jacquard, terry, etc., woven on various weft knitting machines.

With the development of science and technology, there are more and more types of textile fabrics. In different environments, different types of fabrics can be selected, but the existing fabrics have poor deodorization and sweat absorption performance, which affects people's use. Therefore, those skilled in the art provide An antibacterial textile fabric with deodorizing and sweat-absorbing properties is developed to solve the problems raised in the above-mentioned background technology.

Utility model content

The purpose of this utility model is to provide an antibacterial textile fabric with deodorizing and sweat-absorbing properties, so as to solve the problems raised in the above-mentioned background technology.

In order to achieve the above object, the utility model provides the following technical solutions:

The antibacterial textile fabric with deodorizing and sweat-absorbing properties includes a fabric body, the fabric body includes a pure cotton fabric layer, the top of the pure cotton fabric layer is provided with a nano-fabric inner layer, and the nano-fabric inner layer is far away from the pure cotton fabric layer One side of the sweat-absorbing layer is provided with a sweat-absorbing layer, and the side of the sweat-absorbing layer away from the inner layer of the nano-fabric is provided with a deodorant layer, and the side of the deodorant layer away from the sweat-absorbing layer is provided with an antibacterial layer, and the antibacterial layer is far away from the deodorant layer. The odor layer is therefore provided with an outer fabric layer.

As a further solution of the present invention: a radiation-proof layer is arranged between the antibacterial agent layer and the outer fabric layer, and the radiation-proof layer is silver fiber.

As a further solution of the utility model: the deodorizing layer includes a bamboo charcoal layer and an activated carbon filter layer, and the bamboo charcoal layer is located on the top of the activated carbon filter layer.

As a further solution of the present invention: the sweat-absorbing layer includes a water-absorbing cloth layer, an untwisted cotton cloth and a natural fiber layer, the water-absorbing cloth layer is located on top of the untwisted cotton cloth, and the untwisted cotton cloth is located on the top of the natural fiber layer.

As a further solution of the utility model: the antibacterial agent layer is silver ion antibacterial fiber.

As a further solution of the present invention: the thickness of the sweat-absorbing layer is 80-90um, and the thickness of the antibacterial agent layer is 60-80um.

Compared with the prior art, the beneficial effects of the utility model are:

1. In this utility model, through the pure cotton fabric layer and the nano fabric inner layer, it is convenient to fit the skin and increase comfort. The sweat-absorbing layer can absorb the sweat produced, and the deodorizing layer can achieve deodorization and sterilization. As a result, the antibacterial effect is achieved through the antibacterial agent layer, and the fabric can be protected through the outer fabric layer, thereby solving the problem that the existing fabric has poor deodorization and sweat absorption performance and affects people's use.

2. In the utility model, radiation can be absorbed through the radiation protection layer, thereby reducing the damage of radiation to the body, and the deodorizing effect of the deodorizing layer can be increased through the bamboo charcoal layer and the activated carbon filter layer.

Description of drawings

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the schematic diagram of the structure fabric body of the present utility model;

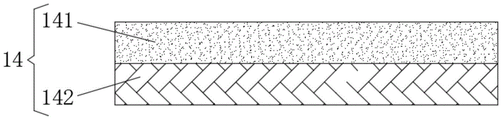

Fig. 3 is the schematic diagram of structure deodorizing layer of the present utility model;

Fig. 4 is a schematic diagram of the sweat-absorbing layer of the utility model structure.

In the figure: 1. Fabric body; 11. Cotton fabric layer; 12. Nano-fabric inner layer; 13. Sweat-absorbing layer; 131. Water-absorbing cloth layer; 132. Untwisted cotton cloth; 133. Natural fiber layer; 14. Deodorant layer 141, bamboo charcoal layer; 142, activated carbon filter screen layer; 15, antibacterial agent layer; 16, outer fabric layer; 17, radiation protection layer.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Figures 1 to 4. In the embodiment of the present utility model, the antibacterial textile fabric with deodorizing and sweat-absorbing properties includes a fabric body 1, and the fabric body 1 includes a pure cotton fabric layer 11, and the top of the pure cotton fabric layer 11 is provided with a nanometer fabric Inner layer 12, nanometer fabric inner layer 12 is provided with sweat-absorbing layer 13 away from the side of pure cotton fabric layer 11, and sweat-absorbing layer 13 is provided with deodorant layer 14 away from the side of nanometer fabric inner layer 12, and deodorant layer 14 is far away from sweat-absorbent layer One side of 13 is provided with an antibacterial agent layer 15, and the antibacterial agent layer 15 is a herbal essence healthy paint layer formed by uniformly coating the herbal essence healthy paint. The finished coating is non-toxic, odorless, waterproof, and has good air permeability. It can effectively remove harmful gases, inhibit the growth of various molds, release negative ions for a long time, improve human immunity, and promote human health. Antibacterial agent layer 15 away Therefore, the deodorant layer 14 is provided with an outer fabric layer 16, and the outer fabric layer 16 is mainly composed of high-elastic polyester, nano-memory filament and spandex.

Through the pure cotton fabric layer 11 and the nanometer fabric inner layer 12, it is convenient to fit the skin and increase comfort. The sweat-absorbing layer 13 can absorb the sweat produced, and the deodorizing layer 14 can achieve the effect of deodorization and sterilization. The antibacterial agent layer 15 achieves an antibacterial effect, and the outer fabric layer 16 can protect the fabric, thereby solving the problem that the existing fabric has poor deodorization and sweat absorption performance and affects people's use.

In the present embodiment, the anti-radiation layer 17 is arranged between the antibacterial agent layer 15 and the outer fabric layer 16, and the anti-radiation layer 17 is silver fiber, and the anti-radiation layer 17 can absorb radiation, thereby reducing radiation's impact on the body. harm.

In the present embodiment, the deodorizing layer 14 includes a bamboo charcoal layer 141 and an activated carbon filter layer 142, and the bamboo charcoal layer 141 is located on the top of the activated carbon filter layer 142, and the bamboo charcoal layer 141 has a loose and porous structure and has a strong adsorption capacity. It can purify the air, eliminate peculiar smell, absorb moisture and prevent mildew, inhibit bacteria and repel insects. It can dehumidify and absorb sweat when in contact with the human body, promote blood circulation and metabolism of the human body, and relieve fatigue. The activated carbon filter layer 142 has strong adsorption capacity and small air resistance. Low energy consumption, can deodorize, deodorize and purify the environment under a certain air volume, and has a good purification effect. The deodorization effect of the deodorization layer 14 can be increased through the bamboo charcoal layer 141 and the activated carbon filter layer 142.

In the present embodiment, the sweat-absorbing layer 13 comprises a water-absorbing cloth layer 131, an untwisted cotton cloth 132 and a natural fiber layer 133, the water-absorbing cloth layer 131 is positioned at the top of the untwisted cotton cloth 132, and the untwisted cotton cloth 132 is positioned at the top of the natural fiber layer 133, and the water-absorbing The cloth layer 131, the untwisted cotton cloth 132 and the natural fiber layer 133 can increase the water absorption performance of the fabric.

In this embodiment, the antibacterial agent layer 15 is silver ion antibacterial fiber, and the antibacterial agent layer 15 made of silver ion antibacterial fiber can form a metal mesh safety shield around the human body, which can effectively block and refract the antibacterial agent from the surrounding space. The silver fiber forms an electromagnetic vacuum, which puts the human body in this vacuum environment, so as to achieve the protection effect on the external electromagnetic wave.

In this embodiment, the thickness of the sweat-absorbing layer 13 is 80-90um, and the thickness of the antibacterial agent layer 15 is 60-80um.

The working principle of the utility model is: through the pure cotton fabric layer 11 and the nanometer fabric inner layer 12, it is convenient to fit the skin and increase comfort; through the sweat-absorbing layer 13, the sweat produced can be absorbed; The effect of deodorization and sterilization is achieved, the antibacterial effect is achieved through the antibacterial agent layer 15, and the fabric can be protected through the outer fabric layer 16, thereby solving the problem that the existing fabric has poor deodorization and sweat absorption performance and affects people's use.

The above is only a preferred embodiment of the utility model, but the scope of protection of the utility model is not limited thereto. The equivalent replacement or change of the new technical solution and the concept of the utility model shall be covered by the protection scope of the utility model.

Claims (6)

1. Antibiotic textile fabric with deodorization sweat-absorbing performance, including surface fabric body (1), its characterized in that: the fabric body (1) comprises a pure cotton fabric layer (11), a nano fabric inner layer (12) is arranged at the top of the pure cotton fabric layer (11), a sweat absorbing layer (13) is arranged on one side, far away from the pure cotton fabric layer (11), of the nano fabric inner layer (12), a deodorizing layer (14) is arranged on one side, far away from the nano fabric inner layer (12), of the sweat absorbing layer (13), an antibacterial agent layer (15) is arranged on one side, far away from the sweat absorbing layer (13), of the deodorizing layer (14), and the antibacterial agent layer (15) is far away from the deodorizing layer (14) and is provided with an outer side fabric layer (16).

2. An antibacterial textile fabric with deodorant and sweat-absorbing properties as claimed in claim 1, wherein: and a radiation-proof layer (17) is arranged between the antibacterial agent layer (15) and the outer side surface material layer (16), and the radiation-proof layer (17) is made of silver fibers.

3. An antibacterial textile fabric with deodorant and sweat-absorbing properties as claimed in claim 1, wherein: the deodorization layer (14) comprises a bamboo charcoal layer (141) and an activated carbon filter screen layer (142), and the bamboo charcoal layer (141) is positioned on the top of the activated carbon filter screen layer (142).

4. An antibacterial textile fabric with deodorant and sweat-absorbing properties as claimed in claim 1, wherein: sweat-absorbing layer (13) are including absorbing water cloth layer (131), untwisted cotton cloth (132) and natural fibre layer (133), it is located the top of untwisted cotton cloth (132) to absorb water cloth layer (131), untwisted cotton cloth (132) are located the top of natural fibre layer (133).

5. The antibacterial textile fabric with deodorant and sweat-absorbing properties as claimed in claim 1, wherein: the antibacterial agent layer (15) is silver ion antibacterial fiber.

6. An antibacterial textile fabric with deodorant and sweat-absorbing properties as claimed in claim 1, wherein: the thickness of sweat-absorbing layer (13) is 80-90um, and the thickness of antibacterial agent layer (15) is 60-80um.
