Abstract

The utility model relates to the technical field of material conveying, in particular to a material conveying device based on concrete production, comprising a first placement slot, one side of the first placement slot is fixedly connected with a first movable latch, and the first movable latch The outside of the middle part is fixedly socketed with one end of the transmission box, and the other end of the transmission box is fixedly connected with a second placement slot, and one side of the front side of the second placement slot is fixedly connected with a second movable pin. The upper part of the front of the box body is fixedly connected with a motor bracket, the top of the motor bracket is fixedly connected with a second driving motor, and the outer side of the back of the second driving motor is fixedly connected with baffle plates on both sides of the upper part of the conveyor belt. The material conveying device for the final concrete production avoids the phenomenon that the concrete will solidify when the concrete is stagnant for too long when it is conveyed, and it can prevent the material from falling when the conveyor belt is rotating and conveying, avoiding certain safety hazards.

Description

A material conveying device based on concrete production

technical field

The utility model relates to the technical field of material conveying, in particular to a material conveying device based on concrete production.

Background technique

Concrete refers to the general designation of engineering composite materials in which aggregates are cemented into a whole by cementitious materials. The term concrete usually refers to the cement concrete obtained by mixing cement as cementing material, sand and stone as aggregate, also known as ordinary concrete, which is widely used in civil engineering.

The existing patent (publication number: CN208647831U) discloses a material conveying device for concrete production, including a base, four corners of the bottom of the base are provided with wheels, and the base is sequentially provided with a second wheel from left to right. A support column, a second support column, a third support column and a fourth support column, the first support column is provided with a first roller, and the second support column is provided with a second roller and a pinch pulley , the control electric box and the monitoring box are arranged on the third supporting column, the fourth supporting column is arranged obliquely on the base, and the third roller is arranged on the fourth supporting column, the first roller, the second The second roller and the third roller are covered with a conveyor belt, and several evenly distributed plastic baffles are arranged on the conveyor belt. The top of the plastic baffle is provided with a metal block, and the inside of the monitoring box is provided with a The metal sensor used in conjunction with the metal block, the utility model can accurately measure the amount of the material, replaces the manual calculation, and greatly improves the efficiency. The inventor found the following problems in the prior art in the process of realizing the utility model: 1. The existing concrete conveying device needs to transport the concrete during the concrete production process, and when it is necessary to transport the concrete from a low place to a high place , usually transported by conveyor belt, but when the concrete is transported, the concrete will solidify when it is stagnant for too long; 2. In the existing conveying device for materials used in concrete production, when the conveyor belt moves from top to bottom and returns , it is inevitable that some aggregates will remain on the downstream section of the conveyor belt, and the falling of the remaining materials not only causes waste, but also poses certain safety hazards.

Utility model content

The purpose of this utility model is to provide a material conveying device based on concrete production, so as to solve the problems raised in the above-mentioned background technology. In order to achieve the above purpose, the utility model provides the following technical solutions: a material conveying device based on concrete production, including a first placement tank, one side of the first placement tank is fixedly connected with a first movable bolt, and the first The outside of the middle part of the movable bolt is fixedly socketed with one end of the transmission box, and the other end of the transmission box is fixedly connected with a second placement slot, and one side of the front side of the second placement slot is fixedly connected with a second movable bolt, so The upper part of the front of the transmission box is fixedly connected with a motor bracket, the top of the motor bracket is fixedly connected with a second drive motor, and the outer side of the back of the second drive motor is fixedly connected with a conveyor belt, and the two sides of the upper part of the conveyor belt A baffle is fixedly connected, the upper part of the conveyor belt is fixedly connected with a movable baffle, the inside of the lower part of the movable baffle is fixedly connected with a first drive motor, and the output end of the first drive motor is fixedly connected with a bearing. One side of the first driving motor is fixedly connected with a movable rod, and the outer part of the bearing is fixedly connected with a threaded rotating rod.

Further preferably, the second driving motor is connected to the conveyor belt through a transmission box.

Further preferably, the first movable pin is connected to the transmission box through the first placement slot.

Further preferably, the baffles are symmetrically distributed with respect to the center line of the conveyor belt.

Further preferably, the threaded rotating rod forms a rotating structure through the cooperation of the first drive motor and the bearing.

Further preferably, the threaded rotating rod has a helical structure.

Compared with the prior art, the utility model has the beneficial effects:

In the utility model, the connection between the second drive motor and the transmission box and the conveyor belt plays a role in providing power, making the use more convenient and increasing the practicability of the whole device. The baffles on both sides of the conveyor belt can Prevent the material from falling when the conveyor belt is rotating and conveying, avoiding certain safety hazards.

In the utility model, the movable rod and the threaded rotating rod have a certain toughness, so that they can be bent at the corner, so that the threaded rotating rod and the movable rod realize the phenomenon of recycling, and the threaded rotating rod cooperates with the first drive motor and the bearing to form a The rotating structure can prevent the concrete from solidifying due to the long stagnation time of the conveyor belt when conveying materials.

Description of drawings

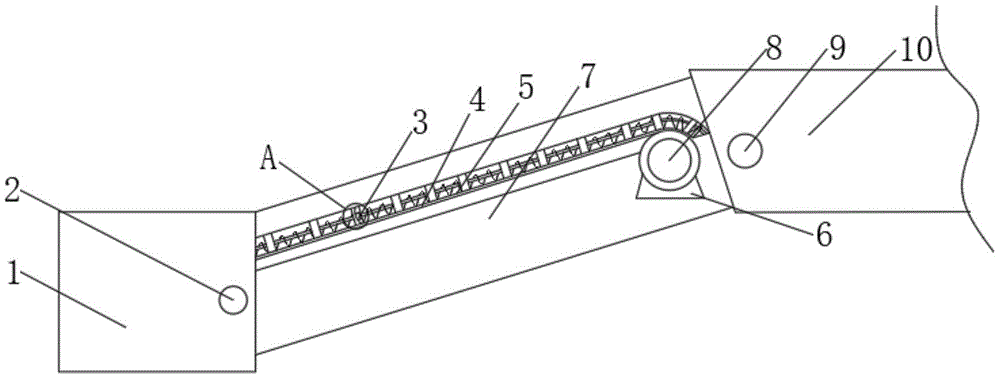

Fig. 1 is a schematic view of the front view of the utility model;

Fig. 2 is the schematic diagram of enlarged structure at A place in Fig. 1 of the utility model;

Fig. 3 is a schematic diagram of the top view structure of the utility model.

In the figure: 1. The first placement slot; 2. The first movable pin; 3. The first drive motor; 4. The conveyor belt; 5. The baffle; 6. The motor bracket; 7. The transmission box; 8. The second drive Motor; 9, the second movable bolt; 10, the second placement slot; 11, the movable baffle; 12, the bearing; 13, the movable rod; 14, the threaded rotating rod.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Figure 1 to Figure 3, the utility model provides a technical solution: a material conveying device based on concrete production, including a first placement tank 1, one side of the first placement tank 1 is fixedly connected with a first movable bolt 2 , the outside of the middle part of the first movable bolt 2 is fixedly socketed with one end of the transmission box 7, the other end of the transmission box 7 is fixedly connected with a second placement slot 10, and one side of the front side of the second placement slot 10 is fixedly connected with a second Movable latch 9, the upper part of transmission box body 7 front is fixedly connected with motor bracket 6, the top of motor bracket 6 is fixedly connected with second drive motor 8, the outside of second drive motor 8 back is fixedly connected with conveyor belt 4, conveyor belt 4 Both sides of the upper part are fixedly connected with a baffle plate 5, the upper part of the conveyor belt 4 is fixedly connected with a movable baffle 11, and the inside of the lower part of the movable baffle 11 is fixedly connected with a first drive motor 3, and the output end of the first drive motor 3 is fixedly connected with a The bearing 12 is fixedly connected with a movable rod 13 on one side of the first driving motor 3 , and the outer part of the bearing 12 is fixedly connected with a threaded rotating rod 14 .

In this embodiment, as shown in FIG. 1 , the second driving motor 8 is connected to the conveyor belt 4 through the transmission box 7 and plays the role of providing power, making the use more convenient and increasing the practicability of the device.

In this embodiment, as shown in FIG. 1 and FIG. 3 , the first movable pin 2 is connected to the transmission box 7 through the first placement slot 1 .

In this embodiment, as shown in FIG. 1 , the baffles 5 are distributed symmetrically with respect to the center line of the conveyor belt 4 , which can prevent the material from falling when the conveyor belt 4 rotates and transports, and avoid certain potential safety hazards.

In this embodiment, as shown in Figures 1 and 2, the threaded rotating rod 14 forms a rotating structure through the cooperation of the first drive motor 3 and the bearing 12, which can prevent the conveyor belt 4 from stagnant for too long when transporting materials and cause concrete Solidification will occur.

In this embodiment, as shown in FIG. 1 and FIG. 2 , the threaded rotating rod 14 has a helical structure, so that it can be bent at a corner, so that the threaded rotating rod 14 and the movable rod 13 realize the phenomenon of recycling.

The use method and advantages of the utility model: when the material conveying device based on concrete production is in use, the working process is as follows:

As shown in Figure 1, Figure 2, and Figure 3, first place the material inside the first placement tank 1, start the second drive motor 8, and drive the conveyor belt 4 to rotate, thereby bringing the material in the first placement tank 1 into the The second placement tank 10 starts the first driving motor 3 during use, so that the movable rod 13 promotes the threaded rotating rod 14 to stir the concrete on the movable baffle 11 to prevent the phenomenon of solidification due to too long stagnation time.

The basic principles, main features and advantages of the present utility model have been shown and described above. Technical staff in this industry should understand that the utility model is not limited by the above-mentioned embodiments, and the above-mentioned embodiments and descriptions are only preferred examples of the utility model, and are not used to limit the utility model, without departing from the utility model Under the premise of the new spirit and scope, the utility model also has various changes and improvements, and these changes and improvements all fall within the scope of the claimed utility model. The scope of protection required by the utility model is defined by the appended claims and their equivalents.

Claims (6)

1. A material conveying device based on concrete production, comprising a first placing trough (1), characterized in that: one side of the first placing trough (1) is fixedly connected with a first movable bolt (2), and the The outside of the middle part of the first movable bolt (2) is fixedly socketed with one end of the transmission box (7), and the other end of the transmission box (7) is fixedly connected with a second placement groove (10), and the second placement One side of the front of the slot (10) is fixedly connected with a second movable bolt (9), the upper part of the front of the transmission box (7) is fixedly connected with a motor bracket (6), and the top of the motor bracket (6) is fixedly connected to There is a second driving motor (8), the outer side of the back of the second driving motor (8) is fixedly connected with a conveyor belt (4), and both sides of the upper part of the conveyor belt (4) are fixedly connected with baffles (5), The upper part of the conveyor belt (4) is fixedly connected with a movable baffle (11), and the inside of the lower part of the movable baffle (11) is fixedly connected with a first drive motor (3), and the first drive motor (3) A bearing (12) is fixedly connected to the output end, a movable rod (13) is fixedly connected to one side of the first driving motor (3), and a threaded rotating rod (14) is fixedly connected to the outside of the bearing (12). 2. A material conveying device based on concrete production according to claim 1, characterized in that: the second drive motor (8) is connected to the conveyor belt (4) through a transmission box (7). 3. The material conveying device based on concrete production according to claim 1, characterized in that: the first movable bolt (2) is connected to the transmission box (7) through the first placement slot (1). 4. A material conveying device based on concrete production according to claim 1, characterized in that: said baffles (5) are symmetrically distributed with respect to the center line of the conveyor belt (4). 5. A material conveying device based on concrete production according to claim 1, characterized in that: the threaded rotating rod (14) forms a rotating structure through the cooperation of the first driving motor (3) and the bearing (12). 6. The material conveying device based on concrete production according to claim 1, characterized in that: the threaded rotating rod (14) has a spiral structure.
