Abstract

The utility model provides a wheat moistening bin for flour production, relates to the technical field of wheat moistening bins, and comprises a bracket component and a water filtering mechanism, a bin body assembly is arranged on the bracket member, and a There is a stirring assembly assembled by bolts, and a water filtering mechanism assembled by bolts is arranged on the inner side of the bin body assembly, and the water filtering mechanism includes a side seat, a second motor, a rotating shaft, a driving gear, a filtering tooth plate, and a gear sleeve; The utility model mainly connects the cutting tooth discs by using the tooth disc box with inclined plane structure. Since the hole shape distribution of the tooth discs is asymmetrical, it can be carried out sequentially under the action of the motor-driven gear transmission. The water body is separated from the wheat, and under the action of the tooth plate box with the inclined plane structure, it can prevent the accumulation of wheat, so as to facilitate the smooth discharge of wheat and avoid waste. Compared with the existing technology, it can effectively carry out The role of the separation of water and wheat.

Description

A wheat moistening bin for flour production

technical field

The utility model relates to the technical field of wheat moistening bins, in particular to a wheat moistening bin for flour production.

Background technique

The wheat moistening warehouse refers to the storage warehouse where the wheat is stored in water for about one day before wheat milling, so that the water can penetrate into all parts of the wheat grains. It generally adopts a reinforced concrete structure with a square or rectangular section. Funnel shaped.

During the use of the existing wheat moistening bin, it is difficult to effectively separate the wheat from the water when the equipment is filtering water. Therefore, the utility model proposes a wheat moistening bin for flour production to solve the problems of the prior art. problems in .

Utility model content

In view of the above problems, the utility model proposes a wheat tempering bin for flour production. The wheat tempering bin for flour production mainly uses a toothed plate box with a slope structure to connect the cutting tooth plate. Because the hole of the tooth plate The shape distribution is asymmetrical, so it can be separated from the wheat successively under the action of the motor-driven gear transmission, and it can prevent the accumulation of wheat under the action of the toothed disc box with the inclined plane structure, so that Because of the smooth discharge of wheat, waste is avoided, and compared with the prior art, it can effectively separate the water body from the wheat.

In order to achieve the purpose of the utility model, the utility model is achieved through the following technical solutions: a wheat moistening bin for flour production, including a bracket component and a water filter mechanism, the bracket component is provided with a bin body assembly, and the bin A stirring assembly assembled with bolts is arranged above the body assembly, and a water filtering mechanism assembled with bolts is arranged inside the bin assembly;

The water filtering mechanism includes a side seat, a second motor, a rotating shaft, a driving gear, a filtering tooth disc, a gear sleeve, a clamping ring and a propeller, the side seat is arranged on the side of the bin body assembly, and the One end of the side seat is provided with a second motor, and the output end of the second motor is connected to a rotating shaft, and one end of the rotating shaft is provided with a drive gear, and one side of the drive gear is meshed with a filter chainring , a gear sleeve is provided on the outer side of the filter disc, and a clamping ring is provided on the outer side of the gear sleeve, a propeller is provided below the gear sleeve, and a blanking assembly is provided at the bottom of the bin body assembly .

The drive gear is engaged with the filter tooth disc, and the aperture of the filter tooth disc is an asymmetric structure, the gear sleeve is a hollow groove structure with a slope, and the central axis of the clamping ring and the propeller on the same straight line.

As a further improvement, the support member includes a bottom frame, a protective bar and a side ladder bar, a protective bar is arranged above the bottom frame, and a side ladder bar is arranged outside the protective bar.

It is further improved that the bin body assembly includes a waterproof bin, an upper round table bin, a material inlet, a piston, a coarse screen and a fine screen, and the waterproof bin is arranged inside the protective rod, above the waterproof bin An upper round table bin is provided, and a material inlet is arranged on the outside of the upper round table bin, and a piston is sleeved at one end of the inlet, and a coarse screen and a fine screen parallel to each other are arranged on the inner side of the waterproof bin. .

It is further improved that the stirring assembly includes a flange plate, a first motor, a rotating rod, a stirring plate and a rotating net, the flange plate is arranged above the upper circular platform bin, and the top side of the flange plate is arranged There is a first motor, and the output end of the first motor is connected with a rotating rod, a stirring blade is arranged on the outside of the rotating rod, and a rotating net is arranged at one end of the rotating rod.

It is further improved that the blanking assembly includes a lower round table bin, a discharge pipe, a cylinder, a push rod and a valve plate, the lower round table bin is arranged under the waterproof bin, and an outlet is provided under the lower round bench bin. material pipe, and one side of the discharge pipe is provided with a cylinder, the output end of the cylinder is connected with a push rod, and one end of the push rod is hinged with a valve plate, and the hinge of the valve plate and the discharge pipe connect.

The beneficial effects of the utility model are:

The utility model mainly uses the toothed plate box with inclined plane structure to connect the cutting toothed plates. Since the hole distribution of the toothed plates is asymmetrical, it can be sequentially operated under the action of the motor-driven gear transmission. The water body is separated from the wheat, and under the action of the toothed disc box with a slope structure, it can prevent the accumulation of wheat, so that the wheat can be discharged smoothly and waste is avoided. Compared with the existing technology, it can effectively carry out The role of the separation of water and wheat.

Description of drawings

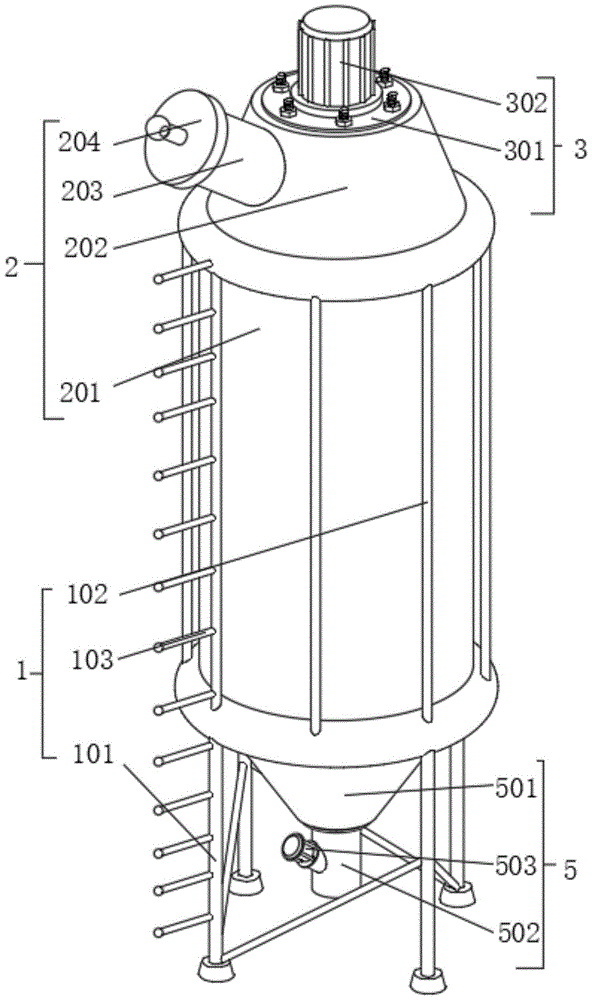

Fig. 1 is the three-dimensional structure schematic diagram of the present utility model;

Fig. 2 is the three-dimensional structure schematic diagram of looking up of the utility model;

Fig. 3 is a schematic diagram of the three-dimensional structure of the waterproof warehouse and the upper round table warehouse of the present invention;

Fig. 4 is a schematic diagram of the three-dimensional structure of the filter tooth disc of the present invention;

Fig. 5 is a three-dimensional structural schematic diagram of a gear sleeve and a clamping ring of the present invention;

Fig. 6 is a schematic diagram of the three-dimensional structure of the push rod and the valve plate of the present invention.

Among them: 1. Bracket component; 101. Underframe; 102. Protection rod; 103. Side ladder rod; 2. Warehouse body assembly; 201. Waterproof warehouse; 202. Upper round table warehouse; 203. Material inlet; 205, coarse screen; 206, fine screen; 3, mixing assembly; 301, flange; 302, first motor; 303, rotating rod; 304, stirring plate; 305, rotating net; 4, water filter mechanism; 401, side seat; 402, second motor; 403, rotating shaft; 404, driving gear; 405, filtering tooth plate; 406, gear sleeve; 407, clamping ring; 408, propeller; 5, blanking assembly; 501 , the lower round table warehouse; 502, the discharge pipe; 503, the cylinder; 504, the push rod; 505, the valve plate.

Detailed ways

In order to deepen the understanding of the utility model, the utility model will be further described below in conjunction with the examples. The examples are only used to explain the utility model, and do not constitute a limitation to the protection scope of the utility model.

As shown in Figures 1-6, this embodiment proposes a wheat tempering bin for flour production, including a bracket component 1 and a water filter mechanism 4, the bracket component 1 is provided with a bin body assembly 2, and the bin body assembly 2 A stirring assembly 3 assembled with bolts is arranged on the top, and a water filter mechanism 4 assembled with bolts is arranged on the inner side of the bin body assembly 2;

The water filter mechanism 4 includes a side seat 401, a second motor 402, a rotating shaft 403, a drive gear 404, a filter toothed disc 405, a gear sleeve 406, a clamping ring 407 and a propeller 408, and the side seat 401 is arranged on the side of the bin body assembly 2. On one side, one end of the side seat 401 is provided with a second motor 402, and the output end of the second motor 402 is connected with a rotating shaft 403, and one end of the rotating shaft 403 is provided with a driving gear 404, and one side of the driving gear 404 is engaged with a Filter out the toothed disc 405, the outer side of the filtered toothed disc 405 is provided with a gear sleeve 406, and the outer side of the gear sleeve 406 is provided with a clamping ring 407, the bottom of the gear sleeve 406 is provided with a propeller 408, and the bottom of the bin body assembly 2 is provided with There is blanking assembly 5.

The driving gear 404 is engaged with the filter tooth disc 405, and the aperture of the filter tooth disc 405 is an asymmetric structure, the gear sleeve 406 is a hollow groove structure with a slope, and the central axis of the clamping ring 407 and the propeller 408 are in the same position. in a straight line.

In this embodiment, after the release of the water body is completed, start the second motor 402 to drive the rotating shaft 403 to rotate, so that the rotating shaft 403 drives the driving gear 404 to rotate. The rotation of the gear 404 makes the filtering toothed disc 405 also rotate, so that the wheat falls to the bottom of the filtering toothed disc 405 under the action of gravity and the gear sleeve 406 with inclined plane structure. Below, the falling speed of wheat can be controlled to a certain extent to achieve the effect of uniform speed discharge.

The bracket component 1 includes a bottom frame 101 , a protective bar 102 and a side ladder bar 103 , the protective bar 102 is arranged above the bottom frame 101 , and the side ladder bar 103 is arranged outside the protective bar 102 .

In this embodiment, the bottom frame 101 can cooperate with the upper protective rod 102 to support the equipment, and the side ladder rod 103 is convenient for the user to perform up and down operations.

The bin body assembly 2 includes a waterproof bin 201, an upper round platform bin 202, a material inlet 203, a piston 204, a coarse screen 205 and a fine screen 206, and the waterproof bin 201 is arranged on the inside of the protection bar 102, and the top of the waterproof bin 201 is provided with The upper round platform warehouse 202, and the outer side of the upper round platform warehouse 202 is provided with a material inlet 203, one end of the material inlet 203 is sleeved with a piston 204, and the inner side of the waterproof warehouse 201 is provided with a coarse screen 205 and a fine screen 206 parallel to each other .

In this embodiment, at first the user can board the equipment from the side ladder bar 103 on one side of the protection bar 102, open the piston 204, and put the wheat into the waterproof bin 201 below the upper round table bin 202 through the feed port 203, when the wheat When it is full, put into the water body through the feed port 203 to soak the wheat, after stirring, the wheat can fall in batches under the action of the coarse screen 205 and the fine screen 206.

The stirring assembly 3 comprises a flange 301, a first motor 302, a rotating rod 303, a stirring plate 304 and a rotating net 305, the flange 301 is arranged above the upper round platform warehouse 202, and the top side of the flange 301 is provided with a first A motor 302, and the output end of the first motor 302 is connected with a rotating rod 303, the outer side of the rotating rod 303 is provided with a stirring piece 304, and one end of the rotating rod 303 is provided with a rotating net 305.

In this embodiment, start the first motor 302 to output power at this time to drive the rotating rod 303 connected to the output end to rotate, so that the rotating rod 303 can drive the rotation of the stirring plate 304, and carry out preliminary stirring and cleaning for the soaked wheat. When reaching the bottom of the fine screen cloth 206, the wheat can be stirred and cleaned again by the rotating net 305, and the dust above the wheat can be fully removed.

The blanking assembly 5 includes a lower circular platform warehouse 501, a discharge pipe 502, a cylinder 503, a push rod 504 and a valve plate 505. The lower circular platform warehouse 501 is arranged below the waterproof warehouse 201, and the lower circular platform warehouse 501 is provided with a discharge pipe 502. , and one side of the discharge pipe 502 is provided with a cylinder 503, the output end of the cylinder 503 is connected with a push rod 504, and one end of the push rod 504 is hinged with a valve plate 505, and the valve plate 505 is connected with the hinge of the discharge pipe 502.

In this embodiment, since the pores of the filtering tooth disc 405 are of asymmetric structure, after the wheat is processed, the output power of the cylinder 503 is used to drive the push rod 504 to move the valve plate 505, so that the discharge pipe 502 releases the water first. Come out, the final wheat is output equipment by the discharge pipe 502 below the round table bin 501 below.

The working principle of the wheat moistening bin for flour production is: firstly, the user can board the equipment from the side ladder bar 103 on one side of the protection bar 102, open the piston 204, and put the wheat into the bottom of the upper round table bin 202 through the feeding port 203. In the waterproof bin 201, when the wheat is full, put the water into the water body through the feed port 203 to soak the wheat, then start the first motor 302 to output power to drive the rotating rod 303 connected to the output end to rotate, so that the rotating rod 303 can drive The rotation of stirring piece 304 is carried out preliminary stirring and cleaning for the soaked wheat, when the wheat falls to the below of fine sieve 206, can utilize rotating net 305 to carry out stirring and cleaning again to wheat, can fully remove the above wheat. Dust, after being stirred, the wheat can fall in batches under the action of the coarse screen 205 and the fine screen 206. Since the pores of the filter tooth disc 405 are asymmetrical, when the wheat is processed, the air cylinder 503 is used to output the dust. Power drives the push rod 504 to move the valve plate 505, so that the discharge pipe 502 releases the water body first, and when the water body is released, start the second motor 402 to drive the rotation shaft 403 to rotate, so that the rotation shaft 403 drives the drive gear 404 to rotate Since the driving gear 404 is meshed with the filtering toothed disc 405, the filtering toothed disc 405 also rotates when the driving gear 404 rotates, so that the wheat falls to the ground under the action of gravity and the gear sleeve 406 with a slope structure. Filter out the bottom of the tooth plate 405, because the propeller 408 is rotatably connected to the bottom of the gear sleeve 406, so that the falling speed of the wheat can be controlled to a certain extent, and the effect of uniform speed discharge is achieved. Finally, the wheat passes through the bottom of the lower round table bin 501. Outlet pipe 502 outputs the device.

The basic principles, main features and advantages of the present utility model have been shown and described above. Those skilled in the industry should understand that the utility model is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions only illustrate the principle of the utility model. Without departing from the spirit and scope of the utility model, the utility model The new model also has various changes and improvements, and these changes and improvements all fall within the scope of the claimed utility model. The scope of protection required by the utility model is defined by the appended claims and their equivalents.

Claims (6)

1. A wheat moistening bin for flour production, comprising a support member (1) and a water filter mechanism (4), characterized in that: the support member (1) is provided with a bin body assembly (2), and the A bolt-assembled stirring assembly (3) is arranged above the bin body assembly (2), and a bolt-assembled water filter mechanism (4) is arranged inside the bin body assembly (2); The water filtering mechanism (4) includes a side seat (401), a second motor (402), a rotating shaft (403), a driving gear (404), a filter tooth disc (405), a gear sleeve (406), a clamping ring (407) and propeller (408), the side seat (401) is arranged on the side of the bin body assembly (2), and a second motor (402) is arranged at one end of the side seat (401), and The output end of the second motor (402) is connected with a rotating shaft (403), one end of the rotating shaft (403) is provided with a driving gear (404), and one side of the driving gear (404) is meshed with a Filter out the toothed disc (405), the outer side of the filtered toothed disc (405) is provided with a gear sleeve (406), and the outer side of the gear sleeve (406) is provided with a clamping ring (407), the gear sleeve A propeller (408) is provided below the (406), and a blanking assembly (5) is provided at the bottom of the bin body assembly (2). 2. A wheat tempering bin for flour production according to claim 1, characterized in that: the drive gear (404) is meshed with the filtering toothed disc (405), and the filtering toothed disc (405) 405) has an asymmetric structure, the gear sleeve (406) is a hollow groove structure with a slope, and the central axis of the clamping ring (407) and the propeller (408) are on the same straight line. 3. A wheat tempering bin for flour production according to claim 1, characterized in that: the support member (1) comprises a bottom frame (101), a protection bar (102) and a side ladder bar (103), A protective bar (102) is arranged above the bottom frame (101), and a side ladder bar (103) is arranged outside the protective bar (102). 4. A wheat moistening bin for flour production according to claim 3, characterized in that: the bin body assembly (2) includes a waterproof bin (201), an upper round table bin (202), a material inlet (203 ), piston (204), coarse screen (205) and fine screen (206), the waterproof chamber (201) is arranged on the inner side of the protection bar (102), and the top of the waterproof chamber (201) is arranged There is an upper round platform bin (202), and a material inlet (203) is arranged on the outside of the upper round platform bin (202), and a piston (204) is sleeved on one end of the inlet (203), and the waterproof bin A coarse screen (205) and a fine screen (206) parallel to each other are arranged on the inner side of (201). 5. A wheat tempering bin for flour production according to claim 4, characterized in that: the stirring assembly (3) includes a flange (301), a first motor (302), a rotating rod (303) , stirring plate (304) and rotating net (305), described flange plate (301) is arranged on the top of described upper circular platform warehouse (202), and the top side of described flange plate (301) is provided with first motor (302), and the output end of the first motor (302) is connected with a rotating rod (303), the outside of the rotating rod (303) is provided with a stirring blade (304), and one end of the rotating rod (303) A rotating net (305) is provided. 6. A wheat moistening bin for flour production according to claim 4, characterized in that: the feeding assembly (5) includes a lower circular bin (501), a discharge pipe (502), an air cylinder (503) , a push rod (504) and a valve plate (505), the lower round platform warehouse (501) is arranged below the waterproof warehouse (201), and a discharge pipe (502) is arranged below the lower round platform warehouse (501). ), and one side of the discharge pipe (502) is provided with a cylinder (503), the output end of the cylinder (503) is connected with a push rod (504), and one end of the push rod (504) is hinged There is a valve plate (505), and the valve plate (505) is connected with the hinge of the discharge pipe (502).
