Abstract

The utility model relates to the technical field of disposable paper cups, in particular to a heat-insulating and environment-friendly paper cup with a tea filter assembly. It includes a frustum-shaped cup body with a wide top and a narrow bottom and an annular cup sleeve arranged on the outer side of the cup body. A tea filter ring is sleeved on the inner wall of the cup body. The cup sleeve is adapted to the outer wall of the cup body. The tea filter ring is a hollow circular ring with a number of filter holes evenly distributed on the tea filter ring, and the filter holes are in the shape of a sieve. The utility model solves the trouble of making tea in a paper cup by adopting a cup sleeve and a tea filter structure that can be filled with publicity or ordinary identification cards. The detachable structure is convenient for packaging, transportation and storage of parts, and it can be simply assembled during use.

Description

A thermally insulated and environmentally friendly paper cup with a tea strainer

technical field

The utility model relates to the technical field of disposable paper cups, in particular to a heat-insulating and environment-friendly paper cup with a tea filter assembly.

Background technique

Paper cups are common water-holding utensils. They are mostly made of waterproof paper. They are light in weight, resistant to damage, easy to stack and stack, and take up little space. They are generally chosen as hygienic and safe water-holding utensils. Due to its versatility and requirements for cost and performance, the existing paper cups have a simple structure and are not convenient for making tea and drinking, especially for the first few cups just poured with water, the tea leaves are not fully soaked or the water temperature is not enough, and the tea leaves float on the water surface. When drinking tea, the water enters the mouth, causing troubles. Although you can blow the tea leaves aside, it still solves the symptoms but not the root cause.

The brewing of tea is generally more than four to five cups. Repeated brewing will lead to a decline in the use of paper cups. At the same time, pouring water often overflows or pours water by mistake, resulting in wet bottoms of paper cups. Therefore, it is often necessary to use cup holders when using paper cups. Or use two paper cups together. Some of the current paper cups with the function of filtering tea have a relatively complex structure and high production cost, and some of the paper cups have a fixed filter structure and cannot be stacked, and the packaging volume is relatively large.

Ordinary disposable paper cups lack markings and sometimes misremembering leads to messy use, especially after leaving the seat and coming back, it is difficult to tell which one is yours, so you can only take a new paper cup, or bear the risk of hygiene and infection.

Utility model content

Aiming at the above-mentioned deficiencies of the prior art, the utility model provides a thermally insulated and environmentally friendly paper cup with a tea filter assembly, which solves the trouble of making tea in the paper cup by adopting a cup cover and a tea filter structure that can be filled with promotional or ordinary identification cards , The detachable structure is convenient for packaging, transportation and storage in parts, and it can be simply assembled during use, which is convenient to use and low in cost.

The technical scheme of the utility model is as follows:

A disposable paper cup for making tea, comprising a frustum-shaped cup body with a wide top and a narrow bottom, and an annular cup sleeve arranged on the outer side of the cup. The sleeve is adapted to the outer wall of the cup body. The tea filter ring is arranged horizontally in the cup body. The tea filter ring is a hollow ring in the middle. Several filter holes are evenly distributed on the tea filter ring. The filter holes Sieve-shaped.

Preferably, the opening of the cup body is provided with an outer crimp, and the tea filter ring is provided with a skirt along the inner wall of the cup, and the skirt fits with the inner wall of the cup body, and the skirt after installation is extended to the opening of the cup body The height of the outer crimps is the same, and the outer buckle of the opening of the cup body is provided with a spout. The structural setting of the press nozzle effectively utilizes the outer curling structure of the cup to lock the outer curling and skirt.

As a preference, the press nozzle is a cylindrical hollow structure with a U-shaped cross section, and a number of limit cards are arranged on the same horizontal plane inside the press nozzle, and the limit cards cooperate with the outer crimp, and the press nozzle passes through the limit Fasten and fasten the outer curling edge of the cup with the tea filter ring.

Preferably, the skirt is a ring-shaped structure with a wide top and a narrow bottom, and the skirt is adapted to the inner wall of the cup. The setting of the skirt enhances the strength of the upper part of the cup body on the one hand, and ensures the fixation of the tea filter ring on the other hand.

As a preference, the cup sleeve is longitudinally provided with a cross-section gap, the cup sleeve is provided with a hollow structure with a rectangular cross-section, the cross-section gap on one side of the cup sleeve is provided with a through opening, and the cross-section gap on the other side of the cup sleeve is a closed structure , the outer surface of the cup sleeve is provided with an annular through groove extending from the outer side of the cup sleeve, and the through groove extends from the opening to the cross-sectional notch at the other end. The setting of the section notch makes the cup sleeve form a C-shape on the horizontal section, which is convenient for locking the cup body, and at the same time improves the fault tolerance rate, and can be adjusted at high and low points. The setting of the through groove is convenient for taking out or moving signs such as promotional cards placed in the cup sleeve.

Preferably, the cup sleeve is made of transparent plastic material, and a promotional card is arranged inside the cup sleeve. In the cup sleeve and inserted into the company promotional card or other cards with identification effects, etc., to prevent the risk of hygiene and infection caused by misremembering or mishandling, or the waste caused by retaking the cup.

As a preference, there is a gap between the upper part of the cup sleeve and the installed press nozzle, and the tea filter ring is arranged between the mouth of the cup body and the position where the mouth of the cup body is downwards and accounts for one-fifth of the height of the cup body . According to the etiquette of pouring water, you need to pour 70% of the water. The installation position of the tea filter ring is from the mouth of the cup body to the mouth of the cup body, which accounts for one-fifth of the height of the cup body, so as to ensure the liquid level of the tea after brewing. Below the height of the tea filter ring.

Preferably, a reinforcement layer is provided on the lower part and the bottom of the cup body, and a waterproof layer is provided on the outside of the reinforcement layer. When making tea, it is inevitable that the table top where the teacup is placed will overflow or pour water by mistake, resulting in the bottom of the paper cup being soaked wet. The setting of the waterproof layer and the reinforcement layer is conducive to improving the water resistance of the bottom of the cup and resisting the strength of placing the cup after drinking water for many times. The ability to improve the use time of paper cups and drinking experience.

Preferably, the press nozzle is integrally formed of food-grade silicone. The spout can be reused after recovering the angle, which is convenient to use and easy to install, and the silicone material helps to prevent the paper cup from being broken and wet when the mouth repeatedly touches the outer curling edge when drinking water, which improves the tea drinking experience.

Installation process:

The utility model is divided into four parts when storing or transporting: a cup body, a tea filter ring, a press nozzle and a cup sleeve. Cup body can adopt the utility model bottom and the bottom to be provided with the paper cup of reinforcing layer and waterproof layer, also can use common paper cup. When installing, first put the tea filter ring into the cup body, press it tightly, then wrap the pressure nozzle around the outer curl and skirt, press and fix the outer curl and skirt, choose a suitable card and put it into the cup sleeve, and put the cup The sleeve can be put into the cup body from bottom to top and can be used.

Beneficial effects of the utility model

The design of the utility model is creative and easy to operate. Pass, efficient and practical. In the actual process of making tea and drinking tea, tea drinkers tend to tilt the cup to drink tea, and will refill the cup before the tea in the cup is finished. Therefore, in order to adapt to the habit of making tea, observe the shape of the tea leaves and the color of the tea when brewing , The tea filter ring is a hollow circular ring in the middle, which is convenient for viewing tea while ensuring the effect of tea filtering. The setting of the ring-shaped cup sleeve is beneficial to heat insulation, and it is convenient to hold the paper cup. The setting of the press nozzle, the reinforcement layer and the filter layer improves the strength of the paper cup. It is not necessary to put two paper cups together to enhance the strength of the paper cup, which reduces the number of refills of the paper cup, thereby reducing the consumption of the paper cup. The sleeve is reusable, making the whole solution more environmentally friendly.

Description of drawings

In order to more clearly illustrate the technical solutions in the embodiments of the present invention or the prior art, the following will briefly introduce the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, for those of ordinary skill in the art In other words, other drawings can also be obtained from these drawings under the premise of not paying creative work.

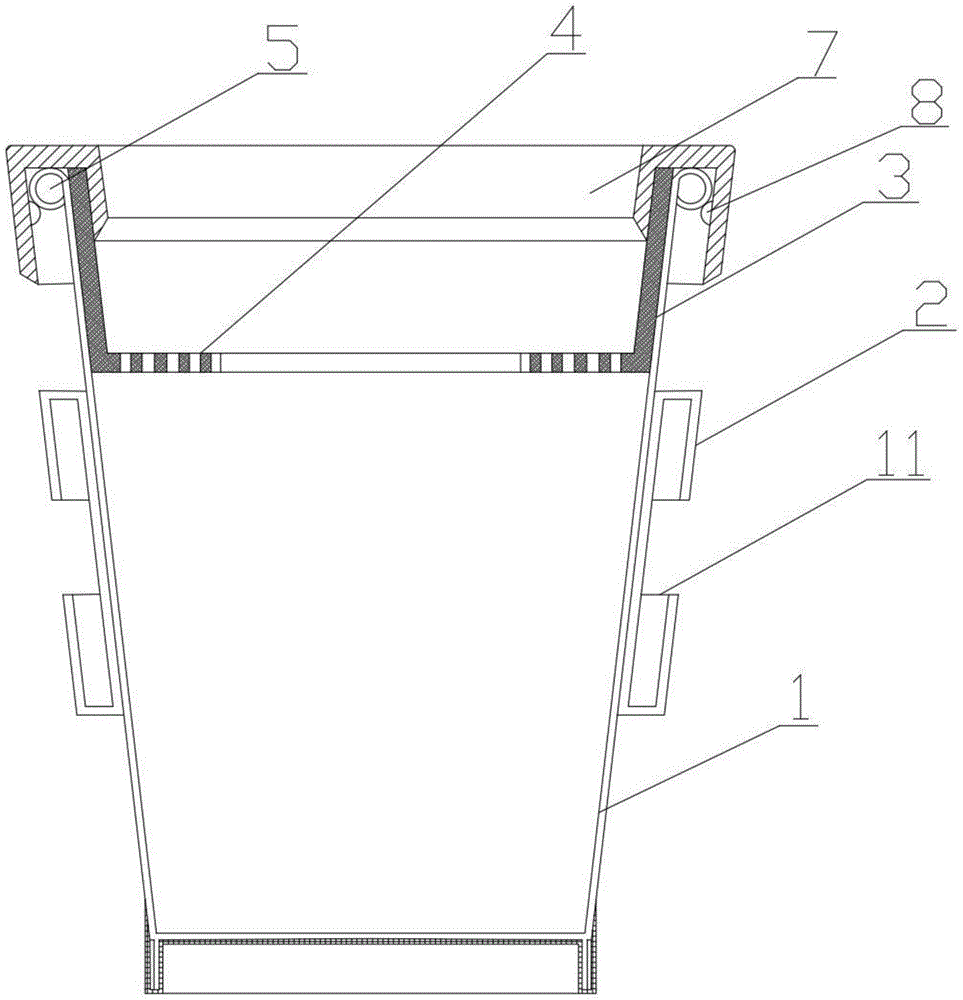

Fig. 1 is a schematic cross-sectional structure diagram of the utility model.

Fig. 2 is a structural schematic diagram of the cup sleeve of the present invention.

Fig. 3 is a structural schematic diagram of the press nozzle of the present invention.

Fig. 4 is a schematic top view of the tea filter ring of the present invention.

Fig. 5 is a schematic sectional view of the structure of the lower part of the cup body in Embodiment 2 of the present utility model

Among them, 1-cup body, 2-cup sleeve, 3-tea filter ring, 4-filter hole, 5-outer crimp, 6-skirt, 7-press nozzle, 8-limit card, 9-section gap, 10-port, 11-through groove, 12-reinforcing layer, 13-waterproof layer.

Detailed ways

In order to enable those skilled in the art to better understand the technical solution in the utility model, the technical solution in the utility model embodiment will be clearly and completely described below in conjunction with the accompanying drawings in the utility model embodiment. Obviously, The described embodiments are only some of the embodiments of the present utility model, but not all of them. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts shall fall within the protection scope of the present utility model.

Example 1

A thermally insulated and environmentally friendly paper cup with a tea filter assembly, comprising a frustum-shaped cup body 1 with a wide top and a narrow bottom, and an annular cup sleeve 2 arranged on the outer side of the cup body. A tea filter ring 3 is sleeved on the inner wall of the cup. The cup sleeve 2 and The outer wall of the cup body 1 is adapted, and the tea filter ring 3 is arranged horizontally in the cup body. The tea filter ring 3 is a hollow circular ring in the middle, and several filter holes 4 are evenly distributed on the tea filter ring 3, and the filter holes 4 are sieve-shaped. The opening of the cup body 1 is provided with an outer crimp 5, and the tea filter ring 3 is provided with a skirt 6 extending along the inner wall of the cup body. The heights of the sides 5 are the same, and the opening of the cup body 1 is buckled with a mouthpiece 7 . The pressure nozzle 7 is a cylindrical hollow structure with a U-shaped cross section. Several limit cards 8 are arranged on the same horizontal plane inside the pressure nozzle. The limit cards 8 cooperate with the outer curling edge 5. The pressure nozzle rolls the cup outside through the limit cards The sides are buckled and fixed with the tea strainer ring. The skirt is an annular structure with a wide top and a narrow bottom, and the skirt is adapted to the inner wall of the cup body 1 . The cup sleeve 2 is longitudinally provided with a cross-section gap 9, the cup sleeve 2 is provided with a hollow structure with a rectangular cross-section, the cross-section gap on one side of the cup sleeve 2 is provided with a through opening 10, and the cross-section gap on the other side of the cup sleeve 2 is a closed structure, The outer surface of the cup sleeve 2 is provided with an annular through groove 11 extending from the outer side of the cup sleeve 2, and the through groove 11 extends from the opening to the cross-sectional notch at the other end. The cup sleeve 2 is made of transparent plastic, and a promotional card is arranged inside the cup sleeve 2 . There is a gap between the top of the cup cover 2 and the installed press nozzle 7, and the tea filter ring 3 is arranged at a position between the mouth of the cup and accounts for one-fifth of the height of the cup downward. The pressure nozzle 7 is integrally formed with food-grade silica gel.

Example 2

A thermally insulated and environmentally friendly paper cup with a tea filter assembly, comprising a frustum-shaped cup body 1 with a wide top and a narrow bottom, and an annular cup sleeve 2 arranged on the outer side of the cup body. A tea filter ring 3 is sleeved on the inner wall of the cup. The outer wall of the cup body 1 is adapted, and the tea filter ring 3 is arranged horizontally in the cup body. The tea filter ring 3 is a hollow circular ring in the middle, and several filter holes 4 are evenly distributed on the tea filter ring 3, and the filter holes 4 are sieve-shaped. The opening of the cup body 1 is provided with an outer crimp 5, and the tea filter ring 3 is provided with a skirt 6 extending along the inner wall of the cup body. The heights of the sides 5 are the same, and the opening of the cup body 1 is buckled with a mouthpiece 7 . The pressure nozzle 7 is a cylindrical hollow structure with a U-shaped cross section. Several limit cards 8 are arranged on the same horizontal plane inside the pressure nozzle. The limit cards 8 cooperate with the outer curling edge 5. The pressure nozzle rolls the cup outside through the limit cards The sides are buckled and fixed with the tea strainer ring. The skirt is an annular structure with a wide top and a narrow bottom, and the skirt is adapted to the inner wall of the cup body 1 . The cup sleeve 2 is longitudinally provided with a cross-section gap 9, the cup sleeve 2 is provided with a hollow structure with a rectangular cross-section, the cross-section gap on one side of the cup sleeve 2 is provided with a through opening 10, and the cross-section gap on the other side of the cup sleeve 2 is a closed structure, The outer surface of the cup sleeve 2 is provided with an annular through groove 11 extending from the outer side of the cup sleeve 2, and the through groove 11 extends from the opening to the cross-sectional notch at the other end. The cup sleeve 2 is made of transparent plastic, and a promotional card is arranged inside the cup sleeve 2 . There is a gap between the top of the cup cover 2 and the installed press nozzle 7, and the tea filter ring 3 is arranged at a position between the mouth of the cup and accounts for one-fifth of the height of the cup downward. The pressure nozzle 7 is integrally formed with food-grade silica gel. A reinforcement layer 12 is provided on the lower and bottom of the cup body 1 , and a waterproof layer 13 is provided on the outside of the reinforcement layer 12 .

Although the present utility model has been described in detail with reference to the accompanying drawings and in combination with preferred embodiments, the present utility model is not limited thereto. Without departing from the spirit and essence of the present utility model, those skilled in the art can make various equivalent modifications or replacements to the embodiments of the present utility model, and these modifications or replacements should all be within the scope of the present utility model Within the scope of the technology disclosed in the utility model, any person familiar with the technical field can easily think of changes or replacements, which should be covered within the protection scope of the utility model. Therefore, the protection scope of the present utility model should be based on the protection scope of the claims.

Claims (9)

1. A heat-insulating and environmentally friendly paper cup with a tea filter assembly, comprising a frustum-shaped cup body with a wide top and a narrow bottom, and an annular cup sleeve arranged on the outer side of the cup body, characterized in that: the inner wall of the cup is sleeved with a tea filter ring , the cup sleeve is compatible with the outer wall of the cup body, the tea filter ring is horizontally arranged in the cup body, the tea filter ring is a hollow ring in the middle, and several filter holes are evenly distributed on the tea filter ring, The filter holes are sieve-shaped. 2. A thermally insulated and environmentally friendly paper cup with a tea filter assembly according to claim 1, characterized in that: the opening of the cup body is provided with an outer crimp, and the tea filter ring is provided with a skirt along the inner wall of the cup , the skirt fits with the inner wall of the cup, and the extension of the skirt after installation is at the same height as the outer crimp of the opening of the cup, and a spout is provided on the outer buckle of the opening of the cup. 3. A thermally insulated and environmentally friendly paper cup with a tea filter assembly according to claim 2, characterized in that: the press nozzle is a cylindrical hollow structure with a U-shaped cross-section, and there are several limit cups on the same horizontal plane inside the press nozzle. Position card, the limit card is matched with the outer crimp, and the pressure nozzle fastens and fixes the outer crimp of the cup with the tea filter ring through the limit card. 4. A thermally insulated and environmentally friendly paper cup with a tea filter assembly according to claim 2, characterized in that: the skirt is a circular structure with a wide top and a narrow bottom, and the skirt is compatible with the inner wall of the cup . 5. A heat-insulating and environmentally friendly paper cup with a tea filter assembly according to claim 1, characterized in that: the cup sleeve is longitudinally provided with a section gap, the cup sleeve is provided with a hollow structure with a rectangular cross section, and the cup sleeve There is a through opening at the section notch on one side, and the section notch on the other side of the cup sleeve is a closed structure. The outer surface of the cup sleeve is provided with an annular through groove extending from the opening to the outside of the cup sleeve. The cross-sectional notch at the other end. 6 . The heat-insulating and environmentally friendly paper cup with a tea filter assembly according to claim 5 , wherein the cup sleeve is made of transparent plastic, and a promotional card is arranged inside the cup sleeve. 6 . 7. A heat-insulating and environmentally friendly paper cup with a tea filter assembly according to claim 5, characterized in that: there is a gap between the upper part of the cup sleeve and the installed press nozzle, and the tea filter ring is set on the top of the cup The position between the mouth of the body and the mouth of the cup downwards accounts for one-fifth of the height of the cup body. 8 . The thermally insulated and environmentally friendly paper cup with a tea filter assembly according to claim 1 , wherein a reinforcement layer is provided on the lower part and bottom of the cup body, and a waterproof layer is provided on the outside of the reinforcement layer. 9. The heat-insulating and environmentally-friendly paper cup with a tea filter assembly according to claim 2, wherein the pressure nozzle is integrally formed with food-grade silica gel.
