Abstract

The utility model discloses a cutting device for the production of architectural decorative curtain walls, which comprises a supporting part and an operating table with a planar top, and a stop rod is arranged on one side of the upper edge of the operating table; The first gantry carriage on the side above the operating table, the inner top of the first gantry carriage is slidably connected with a sliding seat, the lower end of the sliding seat is provided with a liftable mounting frame, and the liftable mounting frame A cutting machine is installed at the bottom of the bottom; the stabilizing part includes a second gantry carriage that slides on the other side above the operating platform, and the inner upper end of the second gantry carriage is provided with a pressing plate that can move up and down. The operation enables the cutting machine to move up and down, and to cut and disengage the decorative board. The cooperation of the surrounding retractable guide column makes the installation frame and the cutting machine more stable when moving up and down, thereby improving the cutting accuracy of the cutting machine.

Description

A cutting device for building decorative curtain wall production

technical field

The utility model relates to the technical field of decorative curtain wall processing equipment, in particular to a cutting device for the production of architectural decorative curtain walls.

Background technique

The decorative curtain wall is the outer wall enclosure of the building body, which does not have a load-bearing function and is hung up like a curtain, so it is also called "curtain wall". The curtain wall is a light-weight wall with decorative effects commonly used in modern large and high-rise buildings; The decorative curtain wall needs to be cut in sections during production, and the devices used for cutting are collectively called cutting devices. At present, the existing cutting devices are not convenient for stably clamping and quickly positioning the decorative panels, requiring staff to spend time Participate in and promote the cutting of the curtain wall, which is not only time-consuming and labor-intensive, but also prone to danger, and at the same time reduces the cutting accuracy; in addition, most of the existing cutting devices can only cut the curtain wall panels in one direction. When switching angles, workers need to manually turn the decorative panels around, and the operation is very cumbersome. In view of the above problems, we propose a cutting device for the production of architectural decorative curtain walls.

Utility model content

The purpose of this utility model is to provide a cutting device for the production of architectural decorative curtain walls to solve the problems of low automation and time-consuming and laborious problems of the existing cutting device proposed in the background technology. Therefore, the purpose of this utility model is to provide a A cutting device for the production of architectural decorative curtain walls, which can quickly position the decorative curtain panels, and at the same time press them firmly with a pressure plate, so that no side-slip offset will occur during cutting. In addition, it can The flexible positioning and angle switching of the cutter head greatly improves the cutting efficiency of the device.

In order to achieve the above purpose, the utility model provides the following technical solutions: a cutting device for building decorative curtain wall production, which includes:

The support part includes an operating platform with a planar structure at the top, and a stop bar is provided on one side of the upper edge of the operating platform;

The cutting part includes a first gantry carriage sliding on the upper side of the operating table, a slide seat is slidably connected to the inner top of the first gantry carriage, and a liftable mounting frame is provided at the lower end of the slide seat, A cutting machine is installed at the bottom of the liftable mounting frame;

The stabilizing part includes a second gantry carriage that slides on the other side above the operating platform, and a pressure plate that can move up and down is provided on the inner upper end of the second gantry carriage.

Preferably, guide rails compatible with the first gantry carriage and the second gantry carriage are provided on both sides of the machine platform of the operation platform, and the first gantry carriage and the second gantry carriage operate along the guide rails. The length direction of the table slides, and the inner side of the retaining rod is also provided with a scale line extending along its length direction, wherein the first gantry carriage and the second gantry carriage are pushed by the driving device to slide linearly.

Preferably, the inner side of the first gantry carriage is provided with a chute compatible with the sliding seat, wherein the sliding direction of the sliding seat and the sliding direction of the first gantry carriage form a horizontal right angle state, and the sliding seat is also composed of The driving device pushes it to slide linearly.

Preferably, the mounting frame includes a hydraulic cylinder, a mounting plate a, a mounting plate b, and a retractable guide post, wherein the mounting plate a forms a slidable lifting structure through the hydraulic cylinder, the telescopic guide post and the sliding seat, And the mounting plate b is fixedly installed on the bottom of the outer guide sleeve of the retractable guide post. At the same time, there are at least three telescopic guide posts, which are evenly distributed along the surroundings of the mounting plate a and the mounting plate b.

Preferably, the cutting machine is flexibly connected to the mounting plate b, and the center part of the mounting plate b is provided with a shaft disk forming a horizontal rotation structure with the cutting machine, and a worm is provided at the center of the upper end of the shaft disk, One side of the worm is meshed with a main gear, and the upper end of the main gear is connected with a servo motor, wherein the bottom of the worm passes through the shaft plate through the shaft and is connected with the cutting machine.

Preferably, the top of the pressing plate is also provided with an electric telescopic rod connected to the second gantry carriage, and the pressing plate can be connected up and down with the second gantry carriage through the electric telescopic rod, and between the pressing plate and the operating platform are parallel to each other, wherein, the bottom of the pressing plate is also provided with a buffer pad.

Compared with the prior art, the beneficial effects of the utility model are:

(1) The cutting machine can move up and down through the telescopic operation of the hydraulic cylinder, and quickly cut and disengage the decorative board. The cooperation of the telescopic guide column makes the installation frame and the cutting machine more stable when moving up and down, thereby improving The cutting accuracy of the cutting machine is improved.

(2) Through the mutual cooperation of the chute, the guide rail and the driving device, the moving direction of the cutting machine forms a full-system displacement of the xy axis, so that the cutting machine can quickly reach the designated cutting point, effectively reducing the labor intensity of the staff.

(3) During operation, the electric telescopic rod can push the pressure plate down, and the buffer pad at the bottom of the pressure plate will form a tight contact with the decorative plate, so as to prevent the decorative plate from sliding and displacement during cutting, without manual pressing by the staff. At the same time, The second gantry carriage can move forward and backward according to the movement progress of the first gantry carriage and under the control of the control computer, thereby preventing potential safety hazards caused by manual control pressing.

Description of drawings

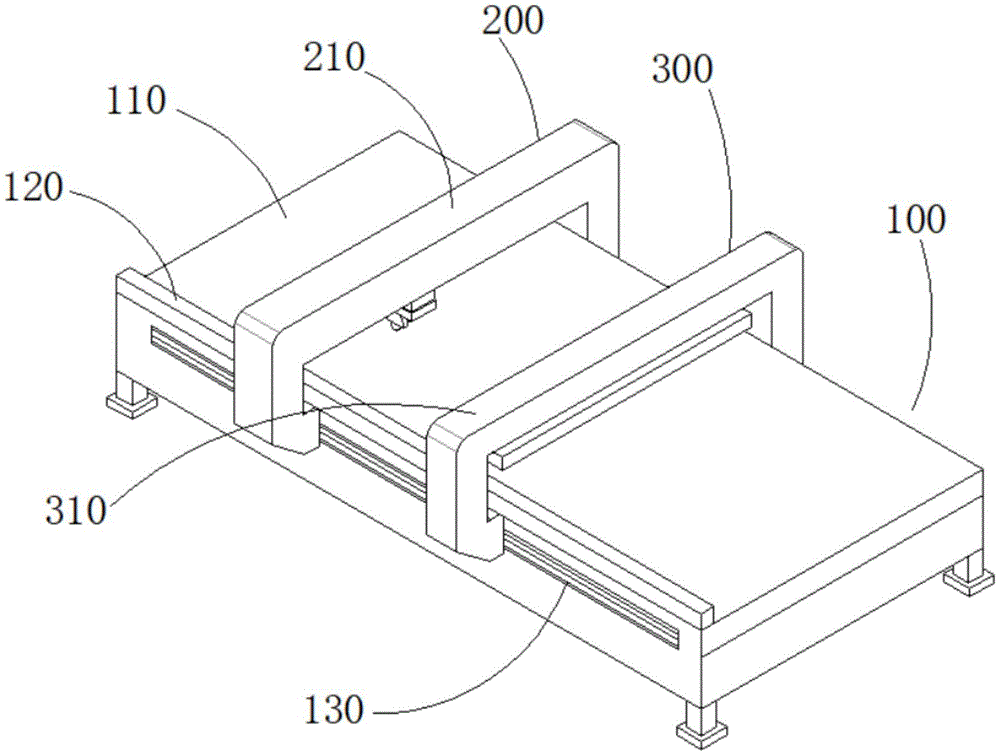

Fig. 1 is a schematic diagram of the overall external three-dimensional structure of the utility model;

Fig. 2 is a structural schematic diagram of the cutting part of the utility model;

Fig. 3 is a structural schematic diagram of the pressing plate of the utility model.

In the figure: 100, support part; 110, operating table; 120, retaining rod; 130, guide rail; 200, cutting part; 210, first gantry carriage; 2101, chute; 220, sliding seat; 230, liftable Mounting frame; 2301, hydraulic cylinder; 2302, mounting plate a; 2303, mounting plate b; 2304, retractable guide column; 240, cutting machine; 250, shaft disc; 260, worm; 270, main gear; 280, servo Motor; 300, stabilizing part; 310, second gantry carriage; 320, pressing plate; 330, electric telescopic rod.

Detailed ways

In order to make the above purpose, features and advantages of the present utility model more obvious and understandable, the specific implementation of the present utility model will be described in detail below in conjunction with the accompanying drawings.

Secondly, the utility model is described in detail in conjunction with schematic diagrams. When describing the implementation of the utility model in detail, for the convenience of explanation, the cross-sectional view showing the structure of the device will not be partially enlarged according to the general scale, and the schematic diagram is only an example, which is not described here. The protection scope of the utility model should be limited. In addition, the three-dimensional space dimensions of length, width and depth should be included in actual production.

In order to make the purpose, technical solutions and advantages of the utility model clearer, the implementation of the utility model will be further described in detail below in conjunction with the accompanying drawings.

What Fig. 1-Fig. 3 shows is the whole structural diagram of a kind of cutting device for building decoration curtain wall production of the present utility model, please refer to Fig. 1-Fig. 3, a kind of cutting device for building decoration curtain wall production of this embodiment, Its main body includes a supporting part 100 , a cutting part 200 and a stabilizing part 300 .

The support part 100 comprises an operating table 110 with a planar structure at the top, a stop bar 120 is arranged on one side of the upper edge of the operating table 110, and a stop bar 120 is provided on both sides of the operating table 110 to be connected with the first gantry carriage 210 and the second gantry sliding frame. The guide rail 130 that is compatible with the frame 310, and the first gantry carriage 210 and the second gantry carriage 310 slide along the length direction of the console 110 through the guide rail 130, and the inner side of the stop bar 120 is also provided with a scale along its length direction, Among them, the first gantry carriage 210 and the second gantry carriage 310 are pushed by the driving device to slide linearly, and the decorative plate placed on the operating table 110 can be abutted and limited by the stop rod 120 and the scale line on the rod body. , and quickly locate them, at the same time, with the cooperation of the driving device and the guide rail 130, the first gantry carriage 210 and the second gantry carriage 310 can be moved quickly, without the need for the staff to manually push the gantry carriage forward and backward , effectively improving the cutting efficiency of the device.

The cutting part 200 includes a first gantry carriage 210 that slides on the upper side of the operating platform 110. The inner top of the first gantry carriage 210 is slidably connected with a sliding seat 220, and the lower end of the sliding seat 220 is provided with a liftable installation frame 230. A cutting machine 240 is installed on the bottom of the liftable installation frame 230, and a chute 2101 matching with the sliding seat 220 is provided on the inner side of the first gantry carriage 210, wherein the sliding direction of the sliding seat 220 is the same as that of the first gantry sliding The sliding direction of the frame 210 forms a horizontal right angle state, and the sliding seat 220 is also pushed by the driving device to slide in a straight line. Through the mutual cooperation of the chute 2101 and the guide rail 130, the moving direction of the cutting machine 240 forms a full-system displacement of the xy axis, so that The cutting machine 240 can quickly reach the designated cutting point. The mounting frame 230 includes a hydraulic cylinder 2301, a mounting plate a2302, a mounting plate b2303 and a retractable guide column 2304, wherein the mounting plate a2302 passes through the hydraulic cylinder 2301 and the retractable guide column. A slidable lifting structure is formed between the column 2304 and the sliding seat 220, and the mounting plate b2303 is fixedly installed on the bottom of the outer guide sleeve of the telescopic guide column 2304, and at least three telescopic guide columns 2304 are arranged along the installation The board a2302 and the installation board b2303 are evenly distributed around, and the cutting machine 240 can move up and down through the operation of the hydraulic cylinder 2301, and the decorative board can be cut and separated, and the installation frame 230 And the cutting machine 240 is more stable when moving up and down, thereby improving the cutting accuracy of the cutting machine 240. It is a movable connection between the cutting machine 240 and the mounting plate b2303. The shaft plate 250 is provided with a worm 260 in the middle of the upper end of the shaft plate 250, and a main gear 270 is meshed on one side of the worm screw 260, and a servo motor 280 is connected to the upper end of the main gear 270, wherein the bottom of the worm screw 260 passes through the shaft On the shaft plate 250 and connected with the cutting machine 240, the servo motor 280 can drive the worm 260 and the cutting machine 240 to rotate horizontally through the main gear 270, so as to adjust its cutting direction, and cooperate with the movement of the first gantry carriage 210 This enables the cutting machine 240 to switch the cutting orientation of the cutter head in time while moving along the xy axis, and the practicability and flexibility are further improved.

The stabilizing part 300 includes a second gantry carriage 310 that slides on the other side above the operating table 110. The inner upper end of the second gantry carriage 310 is provided with a pressing plate 320 that can move up and down. The top of the pressing plate 320 is also provided with a second The electric telescopic rod 330 connected with the gantry carriage 310, and the pressing plate 320 can be lifted and connected between the electric telescopic rod 330 and the second gantry carriage 310, and the pressing plate 320 is parallel to the operation table 110, wherein the bottom of the pressing plate 320 There is also a buffer pad. During the cutting operation, the electric telescopic rod 330 can push the pressing plate 320 down, and the buffer pad at the bottom of the pressing plate 320 will form a tight contact with the decorative plate, thereby preventing the decorative plate from slipping and shifting during cutting. There is no need for staff to manually press, and at the same time, the second gantry carriage 310 can move forward and backward according to the movement progress of the first gantry carriage 210 and under the control of the control computer, thereby preventing safety hazards caused by manual control and pressing.

To sum up, a cutting device for building decorative curtain wall production according to this embodiment, firstly, the decorative plate on the operating table 110 is abutted and limited by the stop rod 120 and the scale line on the rod body, and quickly positioned. At the same time, the electric telescopic rod 330 can push the pressing plate 320 down, and the buffer pad at the bottom of the pressing plate 320 will form a tight contact with the decorative plate, thereby preventing the decorative plate from slipping and shifting during cutting. Then, with the cooperation of the driving device and the guide rail 130, Quickly move the first gantry carriage 210 so that the cutting machine 240 reaches the designated point for cutting. At the same time, the operation of the hydraulic cylinder 2301 enables the cutting machine 240 to move up and down to cut and separate the decorative board , and the servo motor 280 can drive the worm 260 and the cutting machine 240 through the main gear 270 to rotate horizontally, thereby switching the cutting orientation of the cutter head.

While the invention has been described above with reference to the embodiments, various modifications may be made and equivalents may be substituted for parts thereof without departing from the scope of the invention. In particular, as long as there is no structural conflict, all the features in the embodiments disclosed in the present invention can be used in combination with each other in any way, and these combinations are not exhaustively described in this specification. For the sake of omitting space and saving resources. Therefore, the utility model is not limited to the specific embodiments disclosed herein, but includes all technical solutions falling within the scope of the claims.

Claims (6)

1. The utility model provides a cutting device is used in production of architectural decoration curtain which characterized in that includes:

the supporting part (100) comprises an operating table (110) with a plane structure at the top, and a stop lever (120) is arranged on one side of the edge of the upper end of the operating table (110);

the cutting part (200) comprises a first gantry sliding frame (210) sliding on one side above the operating platform (110), the top of the inner side of the first gantry sliding frame (210) is connected with a sliding seat (220) in a sliding mode, a liftable mounting frame (230) is arranged at the lower end of the sliding seat (220), and a cutting machine (240) is installed at the bottom of the liftable mounting frame (230);

and the stabilizing part (300) comprises a second gantry sliding frame (310) sliding on the other side above the operating platform (110), and a pressing plate (320) capable of moving up and down is arranged at the upper end of the inner side of the second gantry sliding frame (310).

2. The cutting device for producing the building decoration curtain wall as claimed in claim 1, wherein: guide rails (130) matched with the first gantry sliding frame (210) and the second gantry sliding frame (310) are arranged on two sides of a machine table of the operating table (110), the first gantry sliding frame (210) and the second gantry sliding frame (310) slide along the length direction of the operating table (110) through the guide rails (130), the inner side of the stop lever (120) is further provided with scale marks along the length direction, and the first gantry sliding frame (210) and the second gantry sliding frame (310) are pushed by a driving device to slide linearly.

3. The cutting device for producing the building decoration curtain wall as claimed in claim 2, wherein: the inner side of the first gantry sliding frame (210) is provided with a sliding groove (2101) matched with the sliding base (220), wherein the sliding direction of the sliding base (220) and the sliding direction of the first gantry sliding frame (210) form a horizontal right-angle state, and the sliding base (220) is pushed by a driving device to slide linearly.

4. The cutting device for producing building decoration curtain wall as claimed in claim 3, wherein: the mounting frame (230) comprises a hydraulic cylinder (2301), a mounting plate a (2302), a mounting plate b (2303) and telescopic guide posts (2304), wherein the mounting plate a (2302) forms a slidable lifting structure with the sliding seat (220) through the hydraulic cylinder (2301) and the telescopic guide posts (2304), the mounting plate b (2303) is fixedly mounted at the bottom of an outer guide sleeve of the telescopic guide posts (2304), and meanwhile, the number of the telescopic guide posts (2304) is at least three and the telescopic guide posts are uniformly distributed along the peripheries of the mounting plate a (2302) and the mounting plate b (2303).

5. The cutting device for producing building decoration curtain wall as claimed in claim 4, wherein: the cutting machine is characterized in that the cutting machine (240) is movably connected with a mounting plate b (2303), a shaft disc (250) which forms a horizontal rotating structure with the cutting machine (240) is arranged in the middle of the mounting plate b (2303), a worm (260) is arranged in the middle of the upper end of the shaft disc (250), a main gear (270) is meshed on one side of the worm (260), a servo motor (280) is connected and mounted at the upper end of the main gear (270), and the bottom of the worm (260) penetrates through the shaft disc (250) through a shaft rod and is connected with the cutting machine (240).

6. The cutting device for producing the building decoration curtain wall as claimed in claim 5, wherein: the top of the pressing plate (320) is also provided with an electric telescopic rod (330) connected with the second gantry sliding frame (310), the pressing plate (320) is connected with the second gantry sliding frame (310) in a lifting mode through the electric telescopic rod (330), the pressing plate (320) is parallel to the operating platform (110), and a cushion pad is further arranged at the bottom of the pressing plate (320).
