Abstract

The utility model discloses a hidden glue-type aluminum alloy minimalist door, which relates to the technical field of doors and includes a door frame. The inner wall of the door frame is provided with a card slot around the circumference, and a composite glass clip bar is embedded in the card slot. Glass is provided on the composite glass clip, and the composite glass clip includes a base plate in contact with the inner wall of the door frame and a soft side plate for engaging the glass. Adhesive glue is provided between the base plate and the door frame. Cancel the original design of double-sided external glue coating to ensure the sealing and improve the overall structure aesthetics.

Description

A hidden glue type aluminum alloy minimalist door

technical field

The utility model relates to the technical field of doors, in particular to a minimalist door with hidden glue type aluminum alloy.

Background technique

The aluminum alloy door is a door with a frame and fan structure made of aluminum alloy building profiles. It is divided into ordinary aluminum alloy doors and broken bridge aluminum alloy doors. Let the indoor light be sufficient and bright, enhance the contrast between the virtual and real facades between indoor and outdoor, and make the living room more layered. The aluminum alloy itself is easy to extrude, the cross-sectional size of the profile is accurate, and the processing accuracy is high, so many owners choose to use aluminum alloy doors in decoration. Existing aluminum alloy doors are usually glued on both sides of the glass when fixing the glass. This form of fixing structure design, on the one hand, the glued position on the shape is easy to fall off due to insufficient strength, and in addition, it is easy to stick to other substances after coating. .

Utility model content

The embodiment of this application solves the problems existing in the prior art by providing a minimalist door with hidden glue type aluminum alloy. This solution cancels the original double-sided outer glue design, which can improve the overall structural aesthetics while ensuring sealing .

In order to achieve the above object, the utility model adopts the following technical solutions:

A hidden glue type aluminum alloy minimalist door, comprising a door frame, the inner wall of the door frame is provided with a card slot around the circumference, the card slot is embedded with a composite glass clip, and the composite glass clip is provided with a glass , the composite glass strip includes a base plate in contact with the inner wall of the door frame and a soft side plate for engaging the glass, and adhesive glue is arranged between the base plate and the door frame.

In order to further optimize the utility model, the following technical solutions can be preferably selected:

Preferably, glue coating holes are opened on the bottom plate of the composite glass strip, and the bonding glue is coated in the glue coating holes.

Preferably, the glue-coating holes are waist-shaped holes, and there are multiple glue-coating holes arranged along the length direction of the composite glass strip.

Preferably, the bottom plate is a nylon plate.

Preferably, the side plate is a silica gel plate.

Preferably, the section of the slot is T-shaped, and the cross-section of the composite glass strip is U-shaped.

Preferably, vertical anti-slip lines are provided on the side walls of the card slot.

Preferably, a lightening hole is also provided on the door frame at a position corresponding to the outer side of the card slot.

One or more technical solutions provided in the embodiments of this application have at least the following technical effects or advantages:

This product utilizes a card slot on the inner wall of the door frame around the circumference, in which a composite glass clip is embedded in the card slot, and the composite glass clip is used to install the glass to replace the original double-sided outer gluing process. It is suitable for indoor sliding doors, hanging rail doors, linkage doors, electric magnetic suspension sliding doors, revolving doors, swing doors, barn doors, screens, partitions, etc., which can improve the overall structure aesthetics while ensuring sealing; in addition, the glass uses surrounding soft It is covered with high-quality composite glass strips and glass bonding glue to prevent the glass from directly contacting the aluminum alloy door frame rigidly, which can ensure the safety of glass installation.

Description of drawings

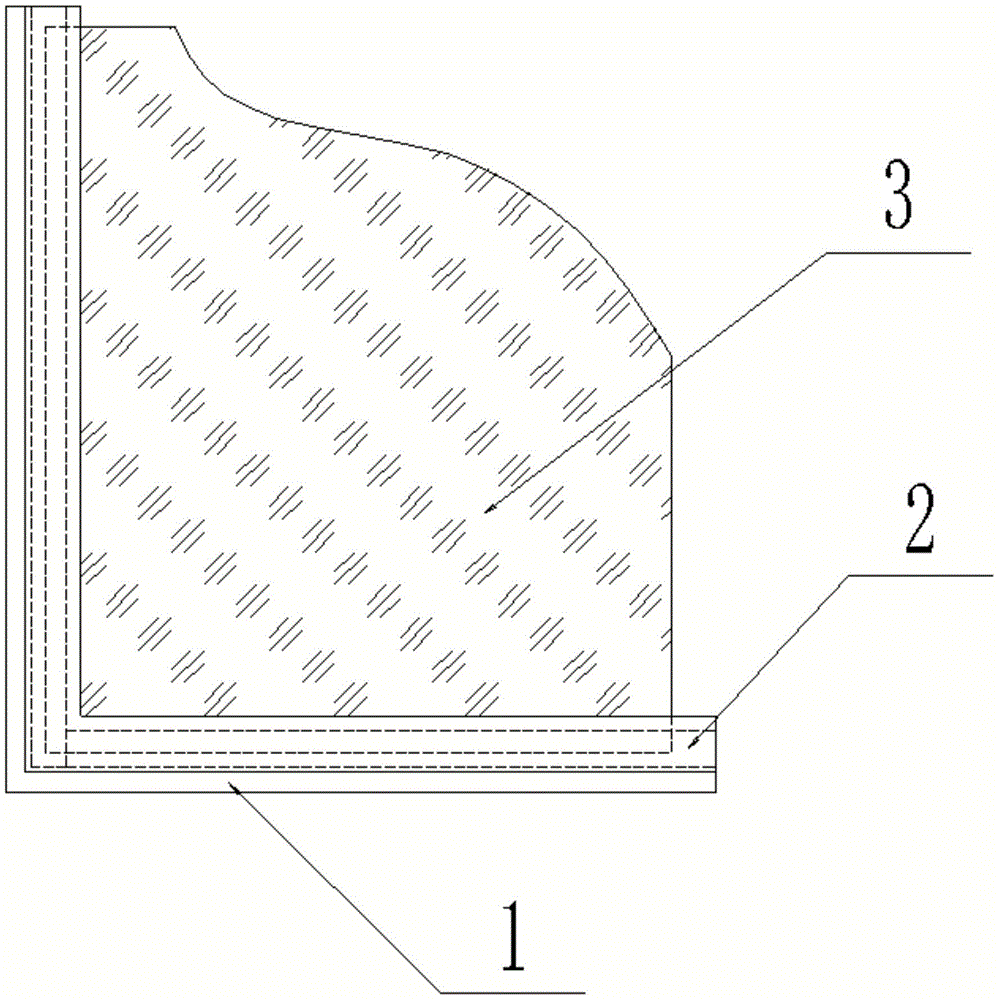

Figure 1 is a schematic diagram of the overall structure of an aluminum alloy door;

Fig. 2 is the top view of aluminum alloy door;

Fig. 3 is a structural schematic diagram of a composite glass strip;

Fig. 4 is a structural schematic diagram of a door frame.

Among them, 1-door frame, 2-composite glass clip, 3-glass, 4-card slot, 5-blocking part, 6-bottom plate, 7-weight reducing hole, 8-side plate, 9-glue hole, 10- Vertical anti-slip pattern.

Detailed ways

In order to better understand the above-mentioned technical solution, the above-mentioned technical solution will be described in detail below in conjunction with the accompanying drawings and specific implementation methods.

Example 1:

As shown in Figure 1-4, a minimalist door with hidden glue type aluminum alloy includes a door frame 1, a card slot 4 is opened on the inner wall of the door frame 1 around the circumference, and a composite glass clip 2 is embedded in the card slot 4. The cross-section of the slot is T-shaped, and the outside opening of the slot is designed with a blocking part 5. The cross-section of the composite glass clip is U-shaped, and the glass 3 is installed on the composite glass clip. The composite glass clip includes a bottom plate 6 in contact with the inner wall of the door frame and The soft side plate 8 used for clamping the glass is provided with adhesive glue between the bottom plate and the door frame, wherein the bottom plate is made of a hard nylon plate, and the side plate is made of a soft silica gel plate. To fix the glass, it can improve the connection stability of the overall structure. The bottom plate 6 of the composite glass strip is provided with glue-coating holes, and the adhesive glue is coated in the glue-coating holes 9, wherein the glue-coating holes 9 are waist-shaped holes, and the glue-coating holes 9 are arranged along the length direction of the composite glass strips. One, using glue holes for glue application and fixing, after glue application, the composite glass strip, aluminum alloy door frame, and glass can be directly bonded to each other, thereby replacing the original external glue application on both sides, which can improve the overall quality while ensuring sealing. Structural aesthetics. In order to ensure the positional stability of the composite glass clip in the slot, vertical anti-slip lines 10 are provided on the side wall of the slot, and in addition, weight-reducing holes 7 are provided on the door frame corresponding to the outside of the slot to reduce the overall weight.

While preferred embodiments of the present invention have been described, additional changes and modifications to these embodiments can be made by those skilled in the art once the basic inventive concept is appreciated. Therefore, the appended claims are intended to be interpreted to cover the preferred embodiment and all changes and modifications which fall within the scope of the present invention.

Obviously, those skilled in the art can make various changes and modifications to the utility model without departing from the spirit and scope of the utility model. In this way, if these modifications and variations of the utility model fall within the scope of the claims of the utility model and equivalent technologies thereof, the utility model is also intended to include these modifications and variations.

Claims (8)

1. A hidden glue type aluminum alloy minimalist door, including a door frame, characterized in that: the inner wall of the door frame is provided with a card slot around the circumference, and a composite glass clip is embedded in the card slot, and the composite glass Glass is arranged on the clamping strip, and the composite glass clamping strip includes a base plate in contact with the inner wall of the door frame and a soft side plate for engaging the glass, and adhesive glue is arranged between the base plate and the door frame. 2. A minimalist door with hidden glue type aluminum alloy according to claim 1, characterized in that: glue-coating holes are opened on the bottom plate of the composite glass strip, and the adhesive glue is coated on the glue-coating holes Inside. 3. A hidden glue type aluminum alloy minimalist door according to claim 2, characterized in that: the glue application hole is a waist hole, and the glue application hole is arranged along the length direction of the composite glass strip. . 4. The hidden glue type aluminum alloy minimalist door according to claim 1, characterized in that: the bottom plate is made of nylon plate. 5. A hidden glue type aluminum alloy minimalist door according to claim 1, characterized in that: the side panels are made of silica gel panels. 6. A minimalist door with hidden glue type aluminum alloy according to claim 1, characterized in that: the section of the slot is T-shaped, and the cross-section of the composite glass strip is U-shaped. 7. A minimalist door with hidden glue type aluminum alloy according to claim 1, characterized in that: the side wall of the card slot is provided with vertical anti-slip lines. 8. A minimalist door with hidden glue type aluminum alloy according to claim 1, characterized in that: the door frame is also provided with a weight-reducing hole at the position outside the corresponding card slot.
