Abstract

The utility model discloses an aluminum wood floor, which comprises multiple sets of aluminum alloy wood board main bodies and multiple sets of installation mechanisms, each corner of the aluminum alloy wood board main body is provided with an arc-shaped gap, and the aluminum alloy wood board body is close to the arc-shaped gap A mounting hole is opened through it, and an auxiliary groove is provided in the top of the main body of the aluminum alloy wood board. The mounting mechanism includes a base, an overhead support rod, a support plate, a mounting rod and a central column. The aluminum-wood floor can realize the stable splicing between the main bodies of multiple groups of aluminum-wood boards by setting the installation mechanism. The rod can press the limit screw cap tightly on the top of the lock block, so as to realize the quick disassembly and assembly of multiple sets of aluminum alloy wood panels through the installation mechanism. The aluminum wood floor is easy to operate, reasonable in structure, high in connection stability, and suspended in the air. It meets a variety of construction needs, effectively improves applicability, and is convenient for maintenance and use.

Description

An aluminum wood floor

technical field

The utility model relates to the technical field of aluminum-wood floors, in particular to an aluminum-wood floor.

Background technique

Aluminum wood floor is aluminum alloy wood composite floor. At present, the floor of the clean room of large electronic factory buildings adopts the raised floor system, and the working machine (manufacturing equipment or computer) is placed on the raised floor. The floor in the raised floor system and the real ground There is a certain amount of suspended space between them. In addition to the arrangement of pipelines and the construction of the staff, the suspended space can also be equipped with air extraction equipment to continuously take away the generated dust, so as to maintain the required environmental cleanliness. It can also be used on the floor Install radiators inside to realize heating and realize the prospect of intelligent development.

Due to the good comprehensive performance of the raised floor, its market demand is increasing. However, the structure of the traditional alloy steel floor raised floor will place steel beams on the tripod and install between multiple floors through bolt fastening. The existing aluminum wood floor is cumbersome to disassemble and assemble, which is different from the traditional floor. , due to frequent failures of pipelines, heating equipment, etc., there is a problem of inconvenient maintenance. In view of this, an aluminum wood floor is now designed.

Utility model content

The purpose of this utility model is to provide an aluminum-wood floor to solve the problem of cumbersome disassembly and assembly of the existing aluminum-wood floor proposed in the above-mentioned background technology.

In order to achieve the above purpose, the utility model provides the following technical solution, an aluminum wood floor, including multiple sets of aluminum alloy wood board main bodies and multiple sets of installation mechanisms;

Each corner of the main body of the aluminum alloy wood board is provided with an arc-shaped notch, the main body of the aluminum alloy wood board is provided with a mounting hole close to the arc-shaped notch, and an auxiliary groove is opened in the top of the main body of the aluminum alloy wood board;

The installation mechanism includes a base, an overhead support rod, a support plate, a mounting rod and a center column, the overhead support rod is fixed on the top of the base, the support plate is fixed on the top of the overhead support rod, and the center column is fixed on the At the top center of the support plate, the installation rod is fixed at the top edge of the support plate;

There is a movable groove in the top of the installation rod, the inner wall of the movable groove is fixedly connected with a rotating shaft, and a lock block is movable on the rotating shaft, and the inner edge of the top of the center column is in a regular circular array with a total of four sets of locking grooves, and An internal thread hole is provided at the inner center of the top of the central column.

Preferably, the arc-shaped notch is a 1/4 cylindrical structure, and the arc center angle corresponding to the arc-shaped notch is 90°.

Preferably, four sets of mounting holes are arranged in a regular circular array in each group of aluminum alloy wood board main bodies, four sets of mounting rods are arranged in a regular circular array in each group of mounting mechanisms, and the shape of the mounting rods and the mounting holes is match.

Preferably, one end of the auxiliary groove is connected to the installation hole, and the other end of the auxiliary groove is connected to the arc-shaped notch, and four sets of auxiliary grooves are arranged in a regular circular array in each group of aluminum alloy wood board main body.

Preferably, a screw rod is connected to the internally threaded hole through a thread structure, and the top of the screw rod is fixedly connected to a limiting screw cap.

Preferably, the lock block is connected to the auxiliary groove and the card slot by flipping, and the width of the lock block matches the width of the card slot.

Compared with the prior art, the beneficial effect of the utility model is: the aluminum wood floor can realize the stable splicing between multiple sets of aluminum alloy wood board bodies by setting the installation mechanism, and the installation rod is connected in the installation hole, and the flip lock block can be Connect it in the auxiliary groove and the card groove, and press the limit screw cap tightly on the top of the lock block by turning the rotary rod, so as to realize the quick disassembly and assembly of multiple groups of aluminum alloy wood board bodies through the installation mechanism. The wooden floor is easy to operate, reasonable in structure, high in connection stability, and the suspension design meets various construction needs, effectively improves applicability, and is convenient for maintenance and use.

Description of drawings

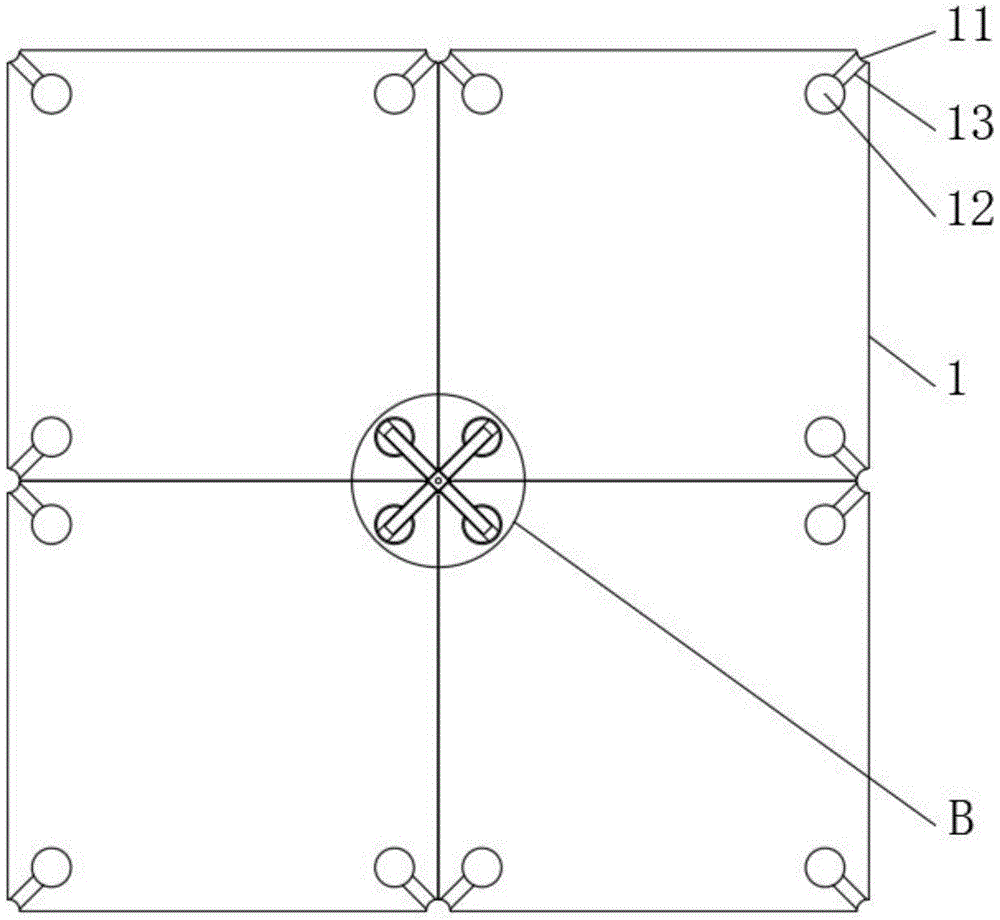

Fig. 1 is a structural schematic diagram of a top view of an aluminum-wood floor without a limit screw cap installed in the utility model;

Fig. 2 is an enlarged view of B in Fig. 1 of a kind of aluminum-wood floor of the present invention;

Fig. 3 is a top view structural diagram when a limit screw cap is installed on an aluminum-wood floor of the present invention;

Fig. 4 is a sectional view of a partial frontal structure at A-A in Fig. 3 of an aluminum-wood floor of the present invention;

Fig. 5 is a cross-sectional view of a partial exploded structure of an aluminum-wood floor of the present invention;

Fig. 6 is a structural schematic diagram of a top view of an aluminum-wood floor installation mechanism of the present invention;

Fig. 7 is a structural schematic diagram of a top view of the main body of an aluminum-wood floor of the present invention.

In the figure: 1. The main body of the aluminum alloy wood board; 11. The arc-shaped gap; 12. The installation hole; 13. The auxiliary groove; 2. The installation mechanism; 21. The base; 22. The overhead support rod; 23. The support plate; 24. The installation Rod; 241, movable slot; 242, rotating shaft; 25, central column; 251, card slot; 252, internal threaded hole; 3, lock block;

4. Rotary rod;

5. Limit screw cap.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Embodiment 1: The utility model provides a technical solution: an aluminum wood floor, including multiple sets of aluminum alloy wood board main bodies 1 and multiple sets of installation mechanisms 2 .

Each corner of the main body 1 of the aluminum alloy wood board is provided with an arc-shaped notch 11 , the main body of the aluminum alloy wood board 1 is provided with a mounting hole 12 near the arc-shaped notch 11 , and an auxiliary groove 13 is opened in the top of the main body of the aluminum alloy wood board 1 .

The installation mechanism 2 comprises a base 21, an overhead support rod 22, a support disc 23, a mounting rod 24 and a central column 25, the overhead support rod 22 is fixed on the top of the base 21, the support disc 23 is fixed on the top of the overhead support rod 22, and the central column 25 is fixed at the top center of the support plate 23, and the mounting rod 24 is fixed at the top edge of the support plate 23.

The top of the installation rod 24 is provided with a movable groove 241, and the inner wall of the movable groove 241 is fixedly connected with a rotating shaft 242. The movable sleeve on the rotating shaft 242 is provided with a lock block 3, and the inner edge of the center column 25 is in a regular circular array with a total of four sets of card grooves 251. , and an internally threaded hole 252 is provided at the center of the top of the central column 25 .

The aluminum-wood floor can realize the stable splicing between multiple sets of aluminum alloy wood board main bodies 1 by setting the installation mechanism 2, and connect it in the installation hole 12 through the installation rod 24, and turn over the lock block 3 to connect it between the auxiliary groove 13 and the card groove 251, and by turning the rotary rod 4, the limit screw cap 5 can be tightly pressed on the top of the lock block 3, so that the quick disassembly and assembly of multiple groups of aluminum alloy wood board main bodies 1 can be realized through the installation mechanism 2, and the aluminum wood floor operation Simple, reasonable structure, high connection stability, suspended design meets a variety of construction needs, effectively improves applicability, and is convenient for maintenance and use.

Embodiment 2: The utility model provides a technical solution: an aluminum wood floor, including multiple sets of aluminum alloy wood board main bodies 1 and multiple sets of installation mechanisms 2 .

Each corner of the main body 1 of the aluminum alloy wood board is provided with an arc-shaped notch 11 , the main body of the aluminum alloy wood board 1 is provided with a mounting hole 12 near the arc-shaped notch 11 , and an auxiliary groove 13 is opened in the top of the main body of the aluminum alloy wood board 1 .

One end of the auxiliary groove 13 is connected with the installation hole 12, and the other end of the auxiliary groove 13 is connected with the arc-shaped notch 11, and the auxiliary groove 13 is in a regular circular array, and a total of four groups are arranged in the main body 1 of each group of aluminum alloy wood boards. Yes, the auxiliary groove 13 has a cuboid structure, and the width of the auxiliary groove 13 matches the width of the locking block 3 .

The installation mechanism 2 comprises a base 21, an overhead support rod 22, a support disc 23, a mounting rod 24 and a central column 25, the overhead support rod 22 is fixed on the top of the base 21, the support disc 23 is fixed on the top of the overhead support rod 22, and the central column 25 is fixed at the top center of the support plate 23, and the mounting rod 24 is fixed at the top edge of the support plate 23.

The arc-shaped notch 11 is a 1/4 cylindrical structure, and the arc center angle corresponding to the arc-shaped notch 11 is 90°. Specifically, four sets of arc-shaped notches 11 can be combined to form a cylindrical groove, and the diameter and length of the cylindrical groove are the same as the center The diameter and length of the pillars 25 are matched, and the central pillar 25 is connected in the four sets of arc-shaped notches 11 .

The mounting holes 12 are in a regular circular array and are provided with four groups in each group of aluminum alloy wood panel main body 1, and the mounting rods 24 are in a regular circular array and are provided with four groups in each group of mounting mechanisms 2, and the mounting rods 24 are connected to the mounting holes 12. The shapes are matched, and each set of installation mechanisms 2 can connect four sets of aluminum alloy wood panel main bodies 1. Specifically, when four sets of aluminum alloy wood panel main bodies 1 are spliced together, the four sets of installation rods 24 and the installation holes 12 that are respectively adjacent to the four sets corresponding to the upper and lower positions.

Specifically, the mounting hole 12 matches the shape of the mounting rod 24 .

The top of the installation rod 24 is provided with a movable groove 241, and the inner wall of the movable groove 241 is fixedly connected with a rotating shaft 242. The movable sleeve on the rotating shaft 242 is provided with a lock block 3, and the inner edge of the center column 25 is in a regular circular array with a total of four sets of card grooves 251. , and an internally threaded hole 252 is provided at the center of the top of the central column 25 .

The locking block 3 is connected to the auxiliary groove 13 and the card slot 251 by flipping over, and the width of the locking block 3 matches the width of the card slot 251 .

Specifically, both sides of the movable groove 241 are opening structures, and when the lock block 3 is connected in the draw-in groove 251 by overturning, the lock block 3 joins with the inner bottom of the movable groove 241 and the inner bottom of the auxiliary groove 13.

The inner threaded hole 252 is connected with the screw rod 4 through the thread structure, and the top of the screw rod 4 is fixedly connected with the limiting screw cap 5, which can be connected to the inner threaded hole 252 by rotating the screw rod 4, so that the screw rod 4 can be tightened by the limiting screw cap 5. Press on the top of the lock block 3, limit and fix each set of lock blocks 3, and then realize the fixed connection between four groups of aluminum alloy wood board main bodies 1, and then realize the fixed connection between multiple groups of aluminum alloy wood board main bodies 1.

Working principle: when using the aluminum-wood floor, the base 21 is first fixed on the construction site by bolts, and then the four sets of aluminum alloy wood board main bodies 1 are spliced together so that the four sets of installation rods 24 on the support plate 23 are respectively connected to the four sets. In the installation hole 12 in the main body 1 of the group aluminum alloy wood board, then turn the lock block 3 to make it connected to the auxiliary groove 13 and the card groove 251, and then connect the rotary rod 4 to the internal threaded hole 252, thereby passing through the limit screw cap 5 is tightly pressed on the top of the lock block 3, and then each group of lock blocks 3 is limited and fixed, so as to realize the fixed connection between the main bodies 1 of multiple groups of aluminum alloy wood boards. The above is the working process of this aluminum wood floor.

Although the utility model has been described in detail with reference to the aforementioned embodiments, those skilled in the art can modify the technical solutions described in the aforementioned embodiments, or perform equivalent replacements for some of the technical features. Within the spirit and principles of the utility model, any modification, equivalent replacement, improvement, etc., should be included in the protection scope of the utility model.

Claims (6)

1. An aluminum-wood floor is characterized in that: comprises a plurality of groups of aluminum alloy wood plate main bodies (1) and a plurality of groups of mounting mechanisms (2);

arc-shaped notches (11) are formed in the corners of the aluminum alloy wood board main body (1), mounting holes (12) are formed in the aluminum alloy wood board main body (1) close to the arc-shaped notches (11) in a penetrating mode, and auxiliary grooves (13) are formed in the top of the aluminum alloy wood board main body (1);

the mounting mechanism (2) comprises a base (21), an overhead supporting rod (22), a supporting disk (23), a mounting rod (24) and a central column (25), the overhead supporting rod (22) is fixed to the top of the base (21), the supporting disk (23) is fixed to the top of the overhead supporting rod (22), the central column (25) is fixed to the center of the top of the supporting disk (23), and the mounting rod (24) is fixed to the edge of the top of the supporting disk (23);

the mounting structure is characterized in that a movable groove (241) is formed in the top of the mounting rod (24), a rotating shaft (242) is fixedly connected to the inner wall surface of the movable groove (241), a locking block (3) is movably sleeved on the rotating shaft (242), the inner edge of the top of the central column (25) is provided with four groups of clamping grooves (251) in a regular annular array mode, and an internal threaded hole (252) is formed in the center of the top of the central column (25).

2. The aluminum-wood floor according to claim 1, wherein: the arc-shaped notch (11) is of a 1/4 cylindrical structure, and the arc center angle corresponding to the arc-shaped notch (11) is 90 degrees.

3. The aluminum-wood floor according to claim 1, wherein: the mounting holes (12) are regularly arranged in an annular array and are provided with four groups in each group of aluminum alloy wood board main bodies (1), the mounting rods (24) are regularly arranged in an annular array and are provided with four groups in each group of mounting mechanisms (2), and the mounting rods (24) are matched with the mounting holes (12) in shape.

4. The aluminum-wood floor as claimed in claim 1, wherein: one end of the auxiliary groove (13) is communicated with the mounting hole (12), the other end of the auxiliary groove (13) is communicated with the arc-shaped notch (11), and the auxiliary grooves (13) are regularly arranged in an annular array and are arranged in four groups in each group of aluminum alloy wood board main bodies (1).

5. The aluminum-wood floor as claimed in claim 1, wherein: the internal thread hole (252) is internally connected with a rotary rod (4) through a thread structure, and the top of the rotary rod (4) is fixedly connected with a limiting rotary cover (5).

6. The aluminum-wood floor as claimed in claim 1, wherein: the locking piece (3) is connected in the auxiliary groove (13) and the clamping groove (251) in an overturning manner, and the width of the locking piece (3) is matched with that of the clamping groove (251).
