Abstract

A green construction wall of the utility model belongs to the technical field of wall construction and includes an exterior wall and an interior wall. The interior of the exterior wall is provided with a sound insulation structure, and the interior of the exterior wall and interior wall is equipped with a reinforced structure, the reinforced fixing structure includes a first fixed steel frame, a second fixed steel frame and a fixed frame, and the fixed frame is set on the top and bottom of the inner wall and the outer wall, and one side of the inner wall is connected with the outer wall contact on one side. The beneficial effect of the utility model is that by providing a reinforced fixing structure, the support strength of the outer wall and the inner wall is improved by using the first fixed steel frame and the second fixed steel frame; The connection between the fixed steel frame and the second fixed steel frame is more stable, and it is also conducive to the connection between the outer wall and the inner wall, and the upper and lower sides of the outer wall and the inner wall are fixed by the fixing frame, so that the outer wall and the inner wall There are no gaps or breaks between the walls.

Description

A green building wall

technical field

The utility model relates to the technical field of wall construction, in particular to a green construction wall.

Background technique

The body mainly includes load-bearing walls and non-load-bearing walls, which mainly play the role of enclosure and space separation. The wall of the wall-bearing structure building combines load-bearing and enclosure, and the function of the skeleton structure system building wall is to enclose and separate space. The wall should have sufficient strength and stability, and have the ability of heat preservation, heat insulation, sound insulation, fire prevention and waterproof. There are many types of walls, including walls made of a single material and walls made of composite materials. Considering factors such as enclosure, load-bearing, energy saving, and aesthetics, designing a reasonable wall scheme is an important task in building construction. However, the existing walls are only composed of bricks with cement stacking and some steel frames. The anti-seismic effect is poor.

According to the retrieval, the patent No. CN201922503249.5 discloses a green building energy-saving wall, which includes a hollow rectangular box-shaped insulation box. The bottom of the heat insulation box is provided with a wall root, the top of the heat insulation box is provided with a wall top, the outer wall of the outer wall is provided with a layer of insulation layer, and the outer wall of the insulation layer is provided with a layer of outer coating. The temperature insulation effect of the wall is increased, but the noise reduction and anti-seismic ability of the wall is poor, the support strength of the wall is low, it cannot be used for a long time, and its service life is short.

Utility model content

In order to solve the problems raised in the above-mentioned background technology. The utility model provides a green building wall, which has a sound insulation structure and a reinforced fixed structure, and is used to solve the poor noise reduction and earthquake resistance of the wall, and the support strength of the wall is low, so it cannot be used for a long time. The problem of short service life.

The technical scheme of the utility model is: comprising an exterior wall and an interior wall, the interior of the exterior wall is provided with a sound insulation structure, the interior of the exterior wall and the interior wall are both equipped with a strengthening and fixing structure, and the strengthening and fixing structure includes a first A fixed steel frame, a second fixed steel frame and a fixed frame, the fixed frame is set on the top and bottom of the inner wall and the outer wall, one side of the inner wall is in contact with one side of the outer wall, and the first The fixed steel frame is fixedly installed inside the outer wall, the second fixed steel frame is fixedly installed inside the inner wall, one side of the first fixed steel frame is fixedly installed with a threaded sleeve, and the inside of the second fixed steel frame Connecting bolts are movably installed, and the connecting bolts are threadedly connected with threaded sleeves. One side of the first fixed steel frame and the second fixed steel frame is provided with a buffer layer.

Further, the lower surface of the fixed frame at the bottom is fixedly equipped with feet, and the upper surface of the fixed frame at the top is provided with a convex film.

Further, the first fixed steel frame and the second fixed steel frame are on the same horizontal line, and there is a threaded hole in the middle of the second fixed steel frame for threaded connection with the connecting bolts, and the first fixed steel frame Both the frame and the second fixed steel frame are composed of two crossed steel rods, and both the first fixed steel frame and the second fixed steel frame are in the shape of "X".

Further, the sound insulation structure includes a damper and a sound insulation layer, the damper is installed inside the exterior wall through mounting bolts, the other side of the damper is connected to the sound insulation layer, and the sound insulation layer is installed inside the exterior wall.

Further, an anti-crack layer is provided on the side of the sound insulation layer away from the damper, and a reflective film is fixedly installed on the other side of the anti-crack layer.

Further, an insulation layer is provided inside the inner wall and on one side of the second fixed steel frame, and an opening is provided on the inside of the inner wall and on one side of the insulation layer for installation of connecting bolts.

The utility model provides a green building wall through improvement, which has the following improvements and advantages compared with the prior art:

First, by providing a reinforced fixing structure, the support strength of the outer wall and the inner wall is improved by using the first fixed steel frame and the second fixed steel frame, and at the same time, the connecting bolts and threaded sleeves are threaded to install the first fixed steel frame and the second fixed steel frame. The connection between the second fixed steel frame is more stable, and it is also conducive to the connection between the outer wall and the inner wall, and the upper and lower sides of the outer wall and the inner wall are fixed by the fixing frame, so that the outer wall and the inner wall are not easily connected The occurrence of gaps or breaks is beneficial to prolong the service life of the wall. At the same time, the buffer layer is used to contact the first fixed steel frame and the second fixed steel frame, so that the first fixed steel frame and the second fixed steel frame are thermally expanded and cooled. A certain amount of buffering can be performed when shortening the time.

Second, through the sound insulation structure, the sound insulation layer can be used to reduce the noise outside the wall, so that the environment of the wall is quieter and less susceptible to external noise. When vibrating, the vibration can be buffered to a certain extent to reduce the impact on the environment of the wall.

Description of drawings

Below in conjunction with accompanying drawing and embodiment the utility model is further explained:

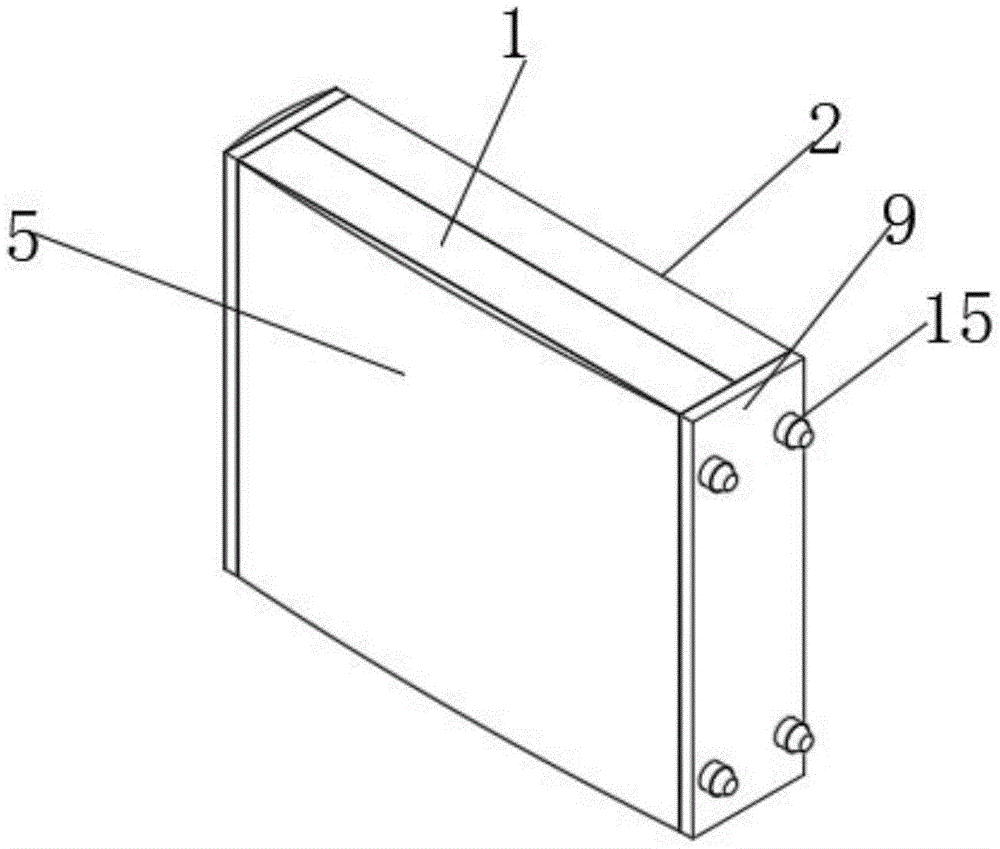

Fig. 1 is the three-dimensional schematic view of the utility model;

Fig. 2 is the schematic sectional view of the utility model;

Fig. 3 is the schematic diagram of the front view of the utility model;

Fig. 4 is the enlarged schematic diagram of place A in Fig. 1 of the present utility model;

Fig. 5 is a schematic side view of the second fixed steel frame of the present invention;

Fig. 6 is a schematic side view of the damper of the present invention;

Description of Reference Signs: 1. Outer wall; 2. Inner wall; 3. First fixed steel frame; 4. Damper; 5. Reflective film; 6. Anti-crack layer; 7. Sound insulation layer; 8. Convex film; 9 10. Insulation layer; 11. Connecting bolts; 12. Thread sleeve; 13. Second fixed steel frame; 14. Buffer layer; 15. Legs.

Detailed ways

The utility model will be described in detail below in conjunction with accompanying drawings 1 to 6, and the technical solutions in the embodiments of the utility model are clearly and completely described. Obviously, the described embodiments are only a part of the embodiments of the utility model, rather than Full examples. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

The utility model provides a green building wall body through improvement, as shown in Figure 1-6, including an outer wall 1 and an inner wall 2, the interior of the outer wall 1 is provided with a sound insulation structure, the outer wall 1 and the inner wall 2 The interior of each is equipped with a reinforced fixing structure, which includes a first fixed steel frame 3, a second fixed steel frame 13 and a fixed frame 9, and the fixed frame 9 is set on the top and bottom of the inner wall 2 and the outer wall 1. One side of the wall 2 is in contact with one side of the outer wall 1, the first fixed steel frame 3 is fixedly installed inside the outer wall 1, the second fixed steel frame 13 is fixedly installed inside the inner wall 2, and the first fixed steel frame 3 A threaded sleeve 12 is fixedly installed on one side of the second fixed steel frame 13, and a connecting bolt 11 is installed on the inside of the second fixed steel frame 13, and the connecting bolt 11 is threadedly connected with the threaded sleeve 12. The side is provided with a buffer layer 14, the first fixed steel frame 3 and the second fixed steel frame 13 are on the same horizontal line, and the middle of the second fixed steel frame 13 has a threaded hole for threaded connection with the connecting bolt 11. Both the fixed steel frame 3 and the second fixed steel frame 13 are composed of two cross steel rods, the first fixed steel frame 3 and the second fixed steel frame 13 are both in the shape of "X", which improves the stability of the outer wall 1 and the inner wall 2 The strength of the outer wall 1 and the inner wall 2 is higher, the inner wall 2 is provided with an insulating layer 10 on the side of the second fixed steel frame 13, and the inner wall 2 is located on the side of the insulating layer 10 Openings are provided for the installation of connecting bolts 11, and the support strength of the outer wall 1 and inner wall 2 is improved by using the first fixed steel frame 3 and the second fixed steel frame 13, and at the same time, the connecting bolts 11 and threaded sleeves 12 are used for threaded installation , make the connection between the first fixed steel frame 3 and the second fixed steel frame 13 more stable, and also facilitate the connection between the outer wall 1 and the inner wall 2, and use the fixing frame 9 to make the outer wall 1 and the inner wall 2 Fix the upper and lower sides of the outer wall 1 and the inner wall 2 so that there are no gaps or breaks between the outer wall 1 and the inner wall 2, which is beneficial to prolong the service life of the wall. At the same time, the buffer layer 14 and the first fixed steel frame 3 and the second fixed steel frame 13 The contact enables the first fixed steel frame 3 and the second fixed steel frame 13 to perform certain buffering when thermal expansion and contraction occur.

The lower surface of the bottom fixing frame 9 is fixedly provided with legs 15. The legs 15 are convenient for the wall to be installed more quickly and conveniently. Corresponding pits can be set on the ground to install the wall to the ground, and other fixing devices can be added. It is beneficial to improve the work efficiency of wall installation. The upper surface of the top fixing bracket 9 is provided with a convex film 8. When rainy weather occurs, the rainwater can be quickly slipped from the surface of the convex film 8, preventing rainwater from penetrating into the wall. body has a certain impact.

The sound insulation structure includes a damper 4 and a sound insulation layer 7. The damper 4 is installed inside the exterior wall 1 through mounting bolts. The other side of the damper 4 is connected to the sound insulation layer 7. The sound insulation layer 7 is installed inside the exterior wall 1. The damper 4 It is a shear type mild steel damper 4, and the side of the sound insulation layer 7 far away from the damper 4 is provided with an anti-crack layer 6, which can prevent cracks from appearing on the surface of the outer wall 1, so that the surface of the outer wall 1 has better anti-crack effect and better crack resistance. The other side of the layer 6 is fixed with a reflective film 5, which can reflect the light to a certain extent, reduce the heat entering the wall, and use the sound insulation layer 7 to reduce the noise outside the wall, making the environment of the wall quieter , it is not easy to be affected by external noise, and at the same time, the damper 4 is used to buffer the vibration to a certain extent when the ground vibration is caused by trains or construction outside, so as to reduce the impact on the environment of the wall.

The standard parts used in the utility model can be purchased from the market, and the special-shaped parts can be customized according to the instructions and the records of the drawings. The specific connection methods of each part adopt mature bolts, rivets, welding Conventional means, machinery, parts and equipment all adopt the conventional models in the prior art, and the circuit connection adopts the conventional connection methods in the prior art, which will not be described in detail here, and the content that is not described in detail in this manual Belong to the prior art known to those skilled in the art.

The above description of the disclosed embodiments enables those skilled in the art to realize or use the utility model. Various modifications to these embodiments will be readily apparent to those skilled in the art, and the general principles defined herein may be implemented in other embodiments without departing from the spirit or scope of the invention. Therefore, the present invention will not be limited to these embodiments shown herein, but will conform to the widest scope consistent with the principles and novel features disclosed herein.

Claims (6)

1. A green construction wall body comprises an outer wall (1) and an inner wall (2), and is characterized in that: the utility model discloses a concrete wall, including outer wall (1), fixed steel frame (13), mount (9), fixed steel frame (13) and buffer layer (14), the inside of outer wall (1) is equipped with sound insulation construction, the inside of outer wall (1) and inner wall (2) all is equipped with strengthens fixed knot structure, it includes first fixed steelframe (3), the fixed steelframe of second (13) and mount (9) to strengthen fixed knot structure, mount (9) suit sets up the top and the bottom at inner wall (2) and outer wall (1), one side and one side contact of outer wall (1) of inner wall (2), first fixed steelframe (3) fixed mounting is in the inside of outer wall (1), the fixed steelframe of second (13) fixed mounting is in the inside of inner wall (2), one side fixed mounting of first fixed steelframe (3) has thread bush (12), the inside movable mounting of the fixed steelframe of second (13) has connecting bolt (11), connecting bolt (11) and thread bush (12) threaded connection, one side of the fixed steelframe of first fixed steelframe of fixed steelframe (3) and second (13) is equipped with buffer layer (14).

2. The green-constructed wall of claim 1, wherein: the bottom is the lower surface fixed mounting of mount (9) has stabilizer blade (15), and the top the upper surface of mount (9) is equipped with protruding membrane (8).

3. The green-constructed wall of claim 1, wherein: the first fixed steel frame (3) and the second fixed steel frame (13) are located on the same horizontal line, a threaded hole is formed in the middle of the second fixed steel frame (13) and used for being in threaded connection with a connecting bolt (11), the first fixed steel frame (3) and the second fixed steel frame (13) are formed by two steel rods in a crossed mode, and the first fixed steel frame (3) and the second fixed steel frame (13) are in an X shape.

4. The green-constructed wall of claim 1, wherein: sound-proof construction includes attenuator (4) and puigging (7), attenuator (4) pass through construction bolt and set up the inside at outer wall (1), the opposite side and the puigging (7) of attenuator (4) are connected, the inside at outer wall (1) is installed in puigging (7).

5. The green-constructed wall of claim 4, wherein: and one side of the sound insulation layer (7) far away from the damper (4) is provided with an anti-cracking layer (6), and the other side of the anti-cracking layer (6) is fixedly provided with a reflective film (5).

6. The green-constructed wall of claim 1, wherein: and a heat insulation layer (10) is arranged inside the inner wall (2) and on one side of the second fixed steel frame (13), and an opening is formed inside the inner wall (2) and on one side of the heat insulation layer (10) and used for installing a connecting bolt (11).
