Abstract

The utility model relates to the technical field of dust removal equipment, in particular to a spray tool for expressway construction, comprising a frame, wheels are arranged at the bottom of the frame, and a water storage tank is arranged at the top of the frame. A water pump is fixedly installed on the top of the frame, a spray mechanism is fixedly installed on the top of the frame, a storage battery is installed on the top of the frame, a cleaning mechanism is fixedly installed on the bottom of the frame, one side of the frame The rotation connection is provided with a supporting mechanism. The utility model has the advantages that: by setting the cleaning mechanism, the ground of the construction site can be cleaned during use, without the need for staff to clean it again, which reduces the labor of the staff. The second nozzle and the second cleaning brush put it away, which reduces the volume, saves the space that needs to be occupied, is convenient for storage, and is very convenient to use. By setting the supporting mechanism, it can be fixed with the position of the equipment.

Description

A sprinkler tool for expressway construction

technical field

The utility model relates to the technical field of dust removal equipment, in particular to a spray tool for expressway construction.

Background technique

Expressway, referred to as expressway, refers to a highway specially designed for cars to travel at high speed. When repairing the expressway pavement, it is necessary to first cut the original road surface and then lay new road construction materials. When the road surface is cut, a lot of dust will be generated, and the dust will diffuse in the working environment and cause inconvenience to the staff. , It will cause harm to the body of the staff after a long time, so it is necessary to use spray tools for highway construction to remove dust from the construction site.

But existing highway construction spraying tool has following shortcoming:

1. The existing sprinkler tools for expressway construction can only remove dust from the construction site when in use. After the dust removal is completed, the sprayed water mist and dust fall on the ground, which will make the construction site The ground is very muddy and needs to be cleaned by the staff, which is inconvenient;

2. The bottom of the existing sprinkler tool for expressway construction is generally equipped with wheels to facilitate movement. After it is moved to the position where it needs to be sprayed, it is not easy to fix it.

Utility model content

The purpose of the utility model is to overcome the shortcomings of the prior art and provide a spray tool for expressway construction.

The purpose of the utility model is achieved through the following technical solutions: a spray tool for expressway construction, including a frame, the bottom of the frame is provided with wheels, and the top of the frame is provided with a water storage tank. A water pump is fixedly installed on the top of the frame, a spray mechanism is fixedly installed on the top of the frame, a storage battery is installed on the top of the frame, a cleaning mechanism is fixedly installed on the bottom of the frame, and a cleaning mechanism is fixedly installed on the bottom of the frame. The side rotation is connected with a supporting mechanism;

The cleaning mechanism includes a first cleaning brush, a connecting column and a second cleaning brush, the top of the first cleaning brush is fixedly connected with a connecting column, and one side of the first cleaning brush is rotatably connected with a second cleaning brush;

The support mechanism includes a support block, a rotating shaft, a first iron sheet and a second iron sheet, one side of the support block is provided with a rotating shaft, one side of the support block is fixedly connected with the first iron sheet, and the support block One side is fixedly connected with a second iron sheet.

Preferably, the frame includes a support plate, a push handle, a connecting frame, a first magnetic block, a connecting groove and a second magnetic block, the top of the support plate is provided with a push handle, and the top of the support plate is fixedly installed with The connecting frame, the bottom of the connecting frame is fixedly connected with the first magnetic block, the top of the supporting plate is provided with a connecting groove, and the bottom of the supporting plate is fixedly connected with the second magnetic block.

By adopting the above technical solution, the arrangement of the first magnetic block and the second magnetic block facilitates fixing the position of the supporting mechanism.

Preferably, the spray mechanism includes a support column, a top plate, a first spray pipe, a first spray head, a bellows, a second spray pipe, a second spray head and a connecting pipe, and the top of the support column is fixedly connected to the top plate, so The top of the top plate is provided with a first nozzle, one side of the first nozzle is provided with a first nozzle, one end of the first nozzle is fixedly connected with a bellows, and one end of the first nozzle is rotatably connected There is a second nozzle, the end of the bellows away from the first nozzle is fixedly connected to the second nozzle, a second nozzle is arranged on one side of the second nozzle, and one side of the first nozzle is fixed Connected with connecting pipe.

By adopting the above technical solution, when in use, the water pump is started, and the water pump pumps out the water in the water storage tank, then transports it to the first spray pipe through the connecting pipe, and then transports it to the second spray pipe by the bellows for spraying.

Preferably, the wheels are located at the bottom of the support plate, the water storage tank is located at the top of the support plate, and the water pump is fixedly installed on the top of the support plate.

Preferably, the support column is fixedly installed on the top of the support plate by bolts.

Preferably, the connecting column is fixedly installed on the bottom of the supporting plate by bolts.

By adopting the above-mentioned technical scheme, the way of bolt connection is convenient for installation and disassembly.

Preferably, the support block is located inside the connecting groove, and the support block is rotatably connected to the support plate through a rotating shaft.

Preferably, the position of the first iron piece corresponds to the position of the first magnetic block, and the position of the second iron piece corresponds to the position of the second magnetic block.

By adopting the above technical solution, after moving the device to the position where it needs to be sprayed, step down on the support block, and lift up the push handle to lift the device slightly, so that the support block rotates, and the second iron piece is attracted to the second magnetic block On the top, the support block is fixed, and the support block supports the position of the equipment, so as to fix its position.

The utility model has the following advantages:

1. The spray tool for expressway construction, by setting the cleaning mechanism, when in use, first rotate the second nozzle to position it on the same axis as the first nozzle, then open the valve on the second nozzle to start The water pump starts to spray water, and at the same time, turn the second cleaning brush to unfold it, and then hold the push handle to push the equipment. The first cleaning brush and the second cleaning brush can clean the ground of the construction site without the need for staff It is specially used for cleaning, which reduces the workload of the staff. After using it, turn the second nozzle and the second cleaning brush to put it away, which reduces the volume and saves the space that needs to be occupied. It is easy to store and use. very convenient;

2. The spray tool for expressway construction, by setting the support mechanism, when the equipment needs to be pushed, the support block is rotated, so that the first iron piece is attracted to the first magnetic block, and the support block is fixed without causing any damage to the equipment. Move the device to the position where it needs to be sprayed, step down on the support block, and lift up the handle to lift the device slightly, so that the support block rotates, and the second iron piece is attracted to the second magnetic block. The support block is fixed, and the support block supports the position of the equipment, so as to fix its position.

Description of drawings

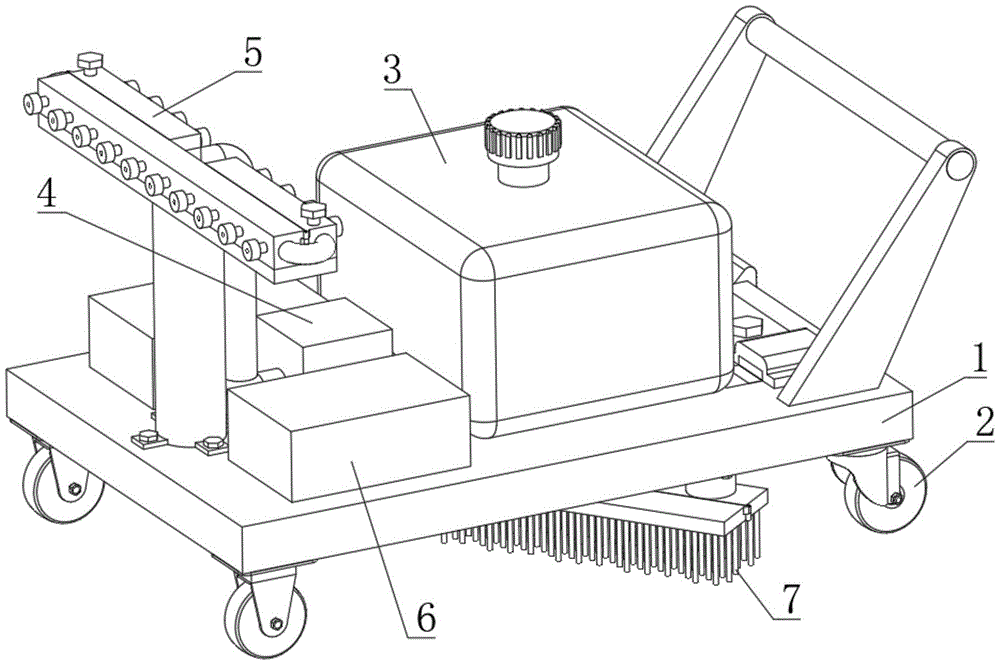

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the structural representation of the first working state of the utility model;

Fig. 3 is the structural representation of the second working state of the utility model;

Fig. 4 is the structural schematic diagram of the first viewing angle of the rack of the present invention;

Fig. 5 is a structural schematic diagram of a second viewing angle of the rack of the present invention;

Fig. 6 is a schematic structural view of the spraying mechanism of the present invention;

Fig. 7 is the structural representation of the utility model cleaning mechanism;

Fig. 8 is a structural schematic diagram of the supporting mechanism of the present invention.

In the figure: 1-frame, 101-support plate, 102-push handle, 103-connecting frame, 104-first magnetic block, 105-connecting groove, 106-second magnetic block, 2-wheel, 3-water storage Box, 4-water pump, 5-spray mechanism, 501-support column, 502-top plate, 503-first nozzle, 504-first nozzle, 505-bellows, 506-second nozzle, 507-second Nozzle, 508-connecting pipe, 6-battery, 7-cleaning mechanism, 701-first cleaning brush, 702-connecting column, 703-second cleaning brush, 8-supporting mechanism, 801-supporting block, 802-rotating shaft, 803 -First iron piece, 804-Second iron piece.

Detailed ways

The utility model will be further described below in conjunction with the accompanying drawings, but the protection scope of the utility model is not limited to the following description.

As shown in Figure 1-8, a kind of sprinkler tool for expressway construction, it comprises frame 1, and the bottom of frame 1 is provided with wheel 2, and the top of frame 1 is provided with water storage tank 3, and frame 1 A water pump 4 is fixedly installed on the top, and the water storage tank 3 is fixedly connected to the input end of the water pump 4 through a water suction pipe. The top of the frame 1 is fixedly installed with a spray mechanism 5. The bottom is fixedly equipped with a cleaning mechanism 7, and one side of the frame 1 is rotatably connected with a support mechanism 8;

As shown in Figure 7, the cleaning mechanism 7 includes a first cleaning brush 701, a connecting column 702 and a second cleaning brush 703, the top of the first cleaning brush 701 is fixedly connected with the connecting column 702, and one side of the first cleaning brush 701 is connected in rotation. There are second cleaning brushes 703, the number of the second cleaning brushes 703 is two, symmetrically distributed on both sides of the second cleaning brushes 703;

As shown in Figure 8, the support mechanism 8 includes a support block 801, a rotating shaft 802, a first iron sheet 803 and a second iron sheet 804, a rotating shaft 802 is provided on one side of the support block 801, and a second iron sheet is fixedly connected to one side of the support block 801. One iron piece 803, one side of the support block 801 is fixedly connected with a second iron piece 804.

As a preferred technical solution of the present invention, as shown in Figure 4 and Figure 5, the frame 1 includes a support plate 101, a push handle 102, a connecting frame 103, a first magnetic block 104, a connecting groove 105 and a second magnetic block 106 , the support column 501 is fixedly installed on the top of the support plate 101 by bolts, the connecting column 702 is fixedly installed on the bottom of the support plate 101 by bolts, the wheels 2 are located at the bottom of the support plate 101, the water storage tank 3 is located on the top of the support plate 101, and the water pump 4. Fixedly installed on the top of the support plate 101, the top of the support plate 101 is provided with a push handle 102, the top of the support plate 101 is fixedly installed with a connecting frame 103, and the bottom of the connecting frame 103 is fixedly connected with a first magnetic block 104, the first iron The position of the piece 803 corresponds to the position of the first magnetic block 104. The top of the support plate 101 is provided with a connection groove 105, and the support block 801 is located inside the connection groove 105. The support block 801 is rotationally connected with the support plate 101 through a rotating shaft 802, and supports The bottom of the board 101 is fixedly connected with the second magnetic block 106 , and the position of the second iron piece 804 corresponds to the position of the second magnetic block 106 .

As a preferred technical solution of the present invention, as shown in Figure 6, the spray mechanism 5 includes a support column 501, a top plate 502, a first nozzle 503, a first nozzle 504, a bellows 505, a second nozzle 506, a Two nozzles 507 and connecting pipes 508, the top of the support column 501 is fixedly connected with a top plate 502, the top of the top plate 502 is provided with a first nozzle 503, and one side of the first nozzle 503 is provided with a first nozzle 504, the first nozzle One end of 503 is fixedly connected with bellows 505, the number of bellows 505 is two, symmetrically distributed at the two ends of the first nozzle 503, one end of the first nozzle 503 is connected with the second nozzle 506 in rotation, the bellows 505 One end away from the first nozzle 503 is fixedly connected with the second nozzle 506, the end of the second nozzle 506 close to the bellows 505 is provided with a valve, one side of the second nozzle 506 is provided with a second nozzle 507, the first nozzle One side of the pipe 503 is fixedly connected with a connecting pipe 508 , and the end of the connecting pipe 508 away from the first spray pipe 503 is fixedly connected with the output end of the water pump 4 .

The working process of the present utility model is as follows:

S1, first rotate the second nozzle 506 to be positioned on the same axis as the first nozzle 503, then open the valve on the second nozzle 506, start the water pump 4 and start spraying water;

S2. At the same time, rotate the second cleaning brush 703 to unfold it, then push the handle 102 by hand to push the equipment, and the first cleaning brush 701 and the second cleaning brush 703 can clean the ground of the construction site;

S3. When the device needs to be pushed, rotate the support block 801 so that the first iron piece 803 is attracted to the first magnetic block 104, and the support block 801 is fixed without affecting the movement of the device;

S4. After moving the device to the position where it needs to be sprayed, step down on the support block 801, and lift up the handle 102 to lift the device slightly, so that the support block 801 rotates, and the second iron piece 804 is attracted to the second magnetic block 106, the support block 801 is fixed, and the support block 801 supports the position of the equipment, so as to fix its position.

To sum up, when the user is using, by setting the cleaning mechanism 7, when using, the second nozzle 506 is first rotated to be on the same axis as the first nozzle 503, and then the second nozzle 506 is opened. valve, start the water pump 4 to start spraying water, and at the same time, rotate the second cleaning brush 703 to unfold it, then push the handle 102 by hand to push the equipment, and the first cleaning brush 701 and the second cleaning brush 703 can clean the construction site Cleaning the ground does not require staff to clean it again, which reduces the workload of the staff. After use, turn the second nozzle 506 and the second cleaning brush 703 to put them away, reducing the volume and saving energy. The space that needs to be occupied is reduced, it is convenient to store, and it is very convenient to use; by setting the support mechanism 8, when the device needs to be pushed, the support block 801 is rotated so that the first iron piece 803 is sucked on the first magnetic block 104, and the supporting The block 801 is fixed without affecting the movement of the equipment. After moving the equipment to the position where it needs to be sprayed, step on the support block 801 downward, and lift the push handle 102 upward to lift the equipment slightly, so that the support block 801 rotates , the second iron piece 804 is sucked on the second magnetic block 106 to fix the support block 801, and the support block 801 supports the position of the device, and then fixes its position.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (8)

1. a highway construction spraying tool is characterized in that: comprise frame (1), the bottom of described frame (1) is provided with wheel (2), and the top of described frame (1) is provided with A water storage tank (3), a water pump (4) is fixedly installed on the top of the frame (1), a spray mechanism (5) is fixedly installed on the top of the frame (1), and the frame (1) The top of the frame (1) is provided with a storage battery (6), the bottom of the frame (1) is fixedly equipped with a cleaning mechanism (7), and one side of the frame (1) is rotatably connected with a support mechanism (8); The cleaning mechanism (7) includes a first cleaning brush (701), a connecting post (702) and a second cleaning brush (703), the top of the first cleaning brush (701) is fixedly connected with a connecting post (702), One side of the first cleaning brush (701) is rotatably connected with a second cleaning brush (703); The support mechanism (8) includes a support block (801), a rotating shaft (802), a first iron sheet (803) and a second iron sheet (804), and one side of the support block (801) is provided with a rotating shaft (802 ), one side of the support block (801) is fixedly connected with a first iron sheet (803), and one side of the support block (801) is fixedly connected with a second iron sheet (804). 2. The sprinkler tool for expressway construction according to claim 1, characterized in that: the frame (1) comprises a support plate (101), a push handle (102), a connecting frame (103), a second A magnetic block (104), a connecting groove (105) and a second magnetic block (106), the top of the support plate (101) is provided with a push handle (102), and the top of the support plate (101) is fixedly installed with A connecting frame (103), the bottom of the connecting frame (103) is fixedly connected with a first magnetic block (104), the top of the supporting plate (101) is provided with a connecting groove (105), and the supporting plate (101) A second magnetic block (106) is fixedly connected to the bottom of the bottom. 3. A sprinkler tool for expressway construction according to claim 2, characterized in that: the sprinkler mechanism (5) includes a support column (501), a top plate (502), a first spray pipe (503) , the first nozzle (504), bellows (505), the second nozzle (506), the second nozzle (507) and the connecting pipe (508), the top of the support column (501) is fixedly connected with a top plate (502 ), the top of the top plate (502) is provided with a first nozzle (503), and one side of the first nozzle (503) is provided with a first nozzle (504), and the first nozzle (503) One end of the first nozzle (503) is fixedly connected with a bellows (505), one end of the first nozzle (503) is rotatably connected with a second nozzle (506), and the bellows (505) is far away from the end of the first nozzle (503) Fixedly connected with the second nozzle (506), one side of the second nozzle (506) is provided with a second nozzle (507), and one side of the first nozzle (503) is fixedly connected with a connecting pipe ( 508). 4. A kind of sprinkler tool for expressway construction according to claim 2, characterized in that: said wheel (2) is located at the bottom of support plate (101), and said water storage tank (3) is located at support plate ( 101), the water pump (4) is fixedly installed on the top of the support plate (101). 5. A sprinkler tool for expressway construction according to claim 3, characterized in that: the support column (501) is fixedly installed on the top of the support plate (101) by bolts. 6. A sprinkler tool for expressway construction according to claim 2, characterized in that: the connecting column (702) is fixedly installed on the bottom of the support plate (101) by bolts. 7. A sprinkler tool for expressway construction according to claim 2, characterized in that: the support block (801) is located inside the connection groove (105), and the support block (801) passes through the rotating shaft (802 ) is rotationally connected with the support plate (101). 8. A sprinkler tool for expressway construction according to claim 1, characterized in that: the position of the first iron sheet (803) corresponds to the position of the first magnetic block (104), and the position of the first magnetic block (104) The position of the second iron piece (804) corresponds to the position of the second magnetic block (106).
