Abstract

The utility model relates to the technical field of forging conveying devices, in particular to an air-cooled conveying frame for forgings, which can effectively improve the cooling efficiency and improve the quality of forgings. , the middle part of the installation frame is provided with a water tank, the middle part of the front end of the water tank is provided with a drain valve, the right part of the front end of the water tank is provided with a water inlet pipe, the inside of the water tank is provided with a cooling pipe, the left part of the front end of the water tank is provided with a connecting pipe, and the bottom of the connecting pipe A compressor is installed at the end of the mounting frame, and guide shafts are installed on the top and bottom of the left and right sides of the mounting frame. Conveyor belts are installed outside several guide shafts, a protective cover is installed on the top of the support column, and several fans are installed on the top of the protective cover. There are several installation slots on the bottom of the protective cover, and filter plates are installed inside each installation slot. The conveyor belt is a stainless steel mesh conveyor belt. Each guide shaft is rotatably connected to the installation frame. connect.

Description

An air-cooled conveying frame for forgings

technical field

The utility model relates to the technical field of forging conveying devices, in particular to an air-cooled conveying frame for forgings.

Background technique

As we all know, the conveyor frame plays the role of carrying and transporting objects. The conveyor frame is widely used in the manufacturing industry. The conveyor frame can be transported continuously, efficiently, and at a large inclination angle. The conveyor frame is safe to operate, easy to use, easy to maintain, and low in freight. And can shorten the transportation distance, reduce the project cost, save manpower and material resources.

However, in the existing air-cooled conveying frame, the cooling of forgings is usually completed by fans or natural cooling. This cooling method takes a long time and has low efficiency. If the water vapor content in the air in the working environment is too high, it will As a result, the local temperature difference on the forging is large, causing cracks, etc., and reducing the quality of the forging.

Utility model content

(1) Solved technical problems

Aiming at the deficiencies of the prior art, the utility model provides an air-cooled conveying frame for forgings that can effectively improve the cooling efficiency and improve the quality of the forgings.

(2) Technical solutions

In order to achieve the above purpose, the utility model provides the following technical solutions: an air-cooled conveying frame for forgings, including a mounting frame, the left and right parts of the front end and the rear end of the mounting frame are provided with supporting columns, the middle part of the mounting frame is provided with a water tank, the water tank The middle part of the front end is provided with a drain valve, the right part of the front end of the water tank is provided with a water inlet pipe, the inside of the water tank is provided with a cooling pipe, the left part of the front end of the water tank is provided with a connecting pipe, and the bottom end of the connecting pipe is provided with a compressor. The top and bottom of the side are provided with guide shafts, conveyor belts are provided outside several guide shafts, protective covers are provided at the top of the support column, several fans are provided at the top of the protective cover, and several installation grooves are provided at the bottom of the protective cover. A filter plate is installed inside each installation groove.

Further, the conveyor belt is a stainless steel mesh conveyor belt.

Further, the filter plate and the installation groove are in sliding connection.

Further, each guide shaft is rotatably connected to the installation frame.

Further, one end of the water inlet pipe is connected to the upper water pump.

(3) Beneficial effects

Compared with the prior art, the utility model provides an air-cooled conveying frame for forgings, which has the following beneficial effects:

The air-cooled conveying frame for forgings can convey forgings through the setting of the conveyor belt. Through the setting of the fan, the fan speeds up the air flow around the conveyor belt and the cooling rate of the forgings. Through the compressor, the connecting pipe and the cooling pipe The compressor works to lower the temperature of the cooling pipe through the connecting pipe to cool the surrounding environment. When the fan works, the cold air moves upward, thus greatly improving the cooling rate of the forging. At the same time, the water vapor in the air meets the cooling pipe to form The liquid water droplets also play a role in drying the surrounding air, thereby preventing the large local temperature difference on the forging caused by too much water vapor in the air, causing cracks, etc., and effectively improving the quality of the forging. Through the setting of the filter plate, it can Filter the dust in the air to ensure the air quality in the working environment.

Description of drawings

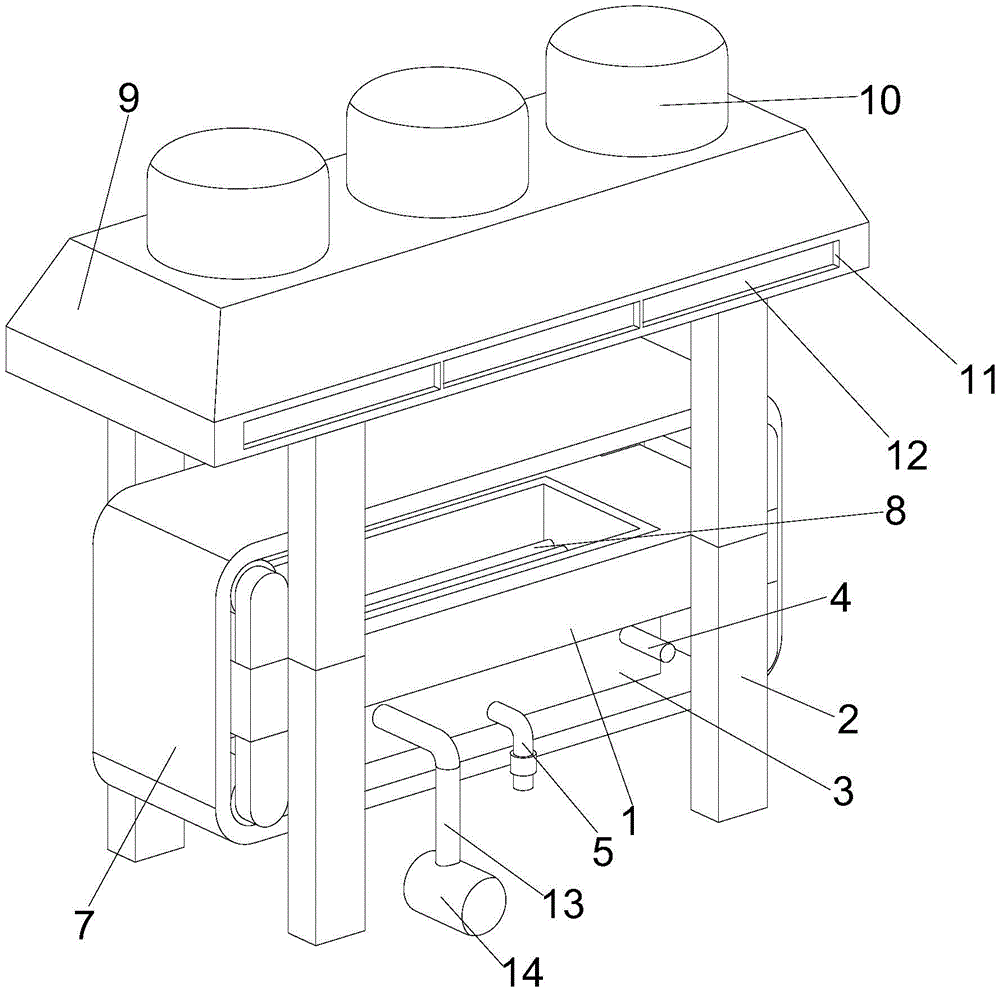

Fig. 1 is the isometric structure schematic diagram of the utility model;

Fig. 2 is the front structural schematic diagram of the utility model;

Fig. 3 is a front sectional structural schematic diagram of the utility model.

In the figure: 1. Mounting frame; 2. Support column; 3. Water tank; 4. Inlet pipe; 5. Drain valve; 6. Guide shaft; 7. Conveyor belt; 8. Cooling pipe; 9. Protective cover; 10. Fan ; 11, installation groove; 12, filter plate; 13, connecting pipe; 14, compressor.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Fig. 1-3, an air-cooled conveying frame for forgings of the present utility model includes a mounting frame 1, the left and right parts of the front end and the rear end of the mounting frame 1 are provided with supporting columns 2, and the middle part of the mounting frame 1 is provided with a water tank 3. Play the role of storing water. The middle part of the front end of the water tank 3 is provided with a drain valve 5 to discharge the water in the water tank 3. The right part of the front end of the water tank 3 is provided with a water inlet pipe 4, and one end of the water inlet pipe 4 is connected to the upper water pump, which is convenient Water is poured into the inside of the water tank 3 to flush the inside of the water tank.

The inside of the water tank 3 is provided with a cooling pipe 8, the left part of the front end of the water tank 3 is provided with a connecting pipe 13, and the bottom end of the connecting pipe 13 is provided with a compressor 14, and the compressor 14 works through the connecting pipe 13 to reduce the temperature of the cooling pipe 8. The surrounding environment is cooled. When the fan 10 is working, the cold air moves upwards, thereby greatly increasing the cooling rate of the forging. At the same time, the water vapor in the air meets the cooling pipe 8 to form liquid water droplets, which also plays a role in drying the surrounding air. Thereby preventing the large local temperature difference on the forging caused by too much water vapor in the air, causing cracks, etc., and effectively improving the quality of the forging.

The top and the bottom of the left and right sides of the installation frame 1 are provided with guide shafts 6, and each guide shaft 6 is rotatably connected with the installation frame 1, and the outside of several guide shafts 6 is provided with a conveyor belt 7, and the conveyor belt 7 is a stainless steel mesh Conveyor belt in the form of a conveyor belt for conveying the forgings. The top of the support column 2 is provided with a protective cover 9, and the top of the protective cover 9 is provided with several fans 10. The fans 10 accelerate the air flow around the conveyor belt 7 and make the hot air flow upward. The cooling rate of the forging is accelerated, the bottom of the protective cover 9 is provided with several installation grooves 11, the filter plate 12 and the installation groove 11 are in a sliding connection, which is convenient for the replacement of the filter plate 12, and each installation groove 11 is equipped with a filter plate 12 When the fan 10 makes the hot air flow upwards, the air flows through the filter plate 12, which can filter the dust generated during evaporation, so as to ensure the air quality in the working environment.

To sum up, when this air-cooled conveyor rack for forgings is in use, start the conveyor belt 7 to transport the forgings, and at the same time start the fan 10 and the compressor 14 to work, and the compressor 14 works to reduce the temperature of the cooling pipe 8 through the connecting pipe 13 , to cool the surrounding environment, when the fan 10 is working, the cold air moves upwards, thereby greatly increasing the cooling rate of the forging, and at the same time, the water vapor in the air meets the cooling pipe 8 to form liquid water droplets, which also plays a role in drying the surrounding air Function, the fan 10 accelerates the air velocity around the conveyor belt 7, and at the same time discharges the air upwards, and the filter plate 12 filters the passing air and water vapor.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (5)

1. A kind of forging air-cooled delivery frame, comprises mounting frame (1), it is characterized in that: the left and right part of described mounting frame (1) front end and rear end are all provided with support column (2), described mounting frame ( 1) is provided with a water tank (3) in the middle, the middle part of the front end of the water tank (3) is provided with a drain valve (5), the right part of the front end of the water tank (3) is provided with a water inlet pipe (4), and the water tank ( 3) is provided with a cooling pipe (8), the left part of the front end of the water tank (3) is provided with a connecting pipe (13), and the bottom end of the connecting pipe (13) is provided with a compressor (14). The top and bottom of the left and right sides of the installation frame (1) are all provided with guide shafts (6), the outside of several of the guide shafts (6) is provided with conveyor belts (7), and the top of the support column (2) is provided with There is a protective cover (9), the top of the protective cover (9) is provided with several fans (10), the bottom of the protective cover (9) is provided with several installation grooves (11), each of the installation grooves (11 ) are equipped with filter plate (12) inside. 2. An air-cooled conveyor frame for forgings according to claim 1, characterized in that: the conveyor belt (7) is a stainless steel mesh conveyor belt. 3. The air-cooled conveyor frame for forgings according to claim 1, characterized in that: the filter plate (12) is in sliding connection with the installation groove (11). 4. An air-cooled delivery frame for forgings according to claim 1, characterized in that: each of the guide shafts (6) is rotatably connected to the mounting frame (1). 5. An air-cooled delivery rack for forgings according to claim 1, characterized in that: one end of the water inlet pipe (4) is connected to the upper water pump.
