Abstract

The utility model provides a powder container for powder metallurgy, which relates to the technical field of powder metallurgy, and comprises a container body, a container cover is installed on the top of the container body, and a groove is opened on the surface of the container body near the top, so that The inner wall of the groove is provided with a side groove, the inner wall of the side groove is slidably connected with a slide bar, one end of the slide bar is fixedly equipped with a handle, and a tension spring A is fixedly installed between the handle and the inner wall of the groove. The utility model can conveniently carry the container body through the provided handle. At the same time, when the handle is not in use, only need to release the handle, and then the handle can be put into the groove due to the tension of the tension spring A, which can reduce the occupation of the handle. space, and prevent the handle from being bumped, and the set buffer ring can buffer the container body. During the process of placing the container body, it can avoid damage to the bottom surface of the container body due to excessive force when placing it, which improves the practicality. sex.

Description

A powder container for powder metallurgy

technical field

The utility model relates to the technical field of powder metallurgy, in particular to a powder container for powder metallurgy.

Background technique

Powder metallurgy is the process of producing metal powder or using metal powder as raw material, forming and sintering to manufacture metal materials, composite materials and various types of products. Metal powder needs to be stored in powder containers, but currently there are When the powder containing container is actually used, the container body needs to be transported by the handle. When the handle is not in use, it takes up space.

Utility model content

The purpose of the utility model is to solve the shortcomings in the prior art, and propose a powder container for powder metallurgy.

In order to achieve the above purpose, the utility model adopts the following technical scheme: a powder container for powder metallurgy, including a container body, a container cover is installed on the top of the container body, and a A groove, the inner wall of the groove is provided with a side groove, the inner wall of the side groove is slidably connected with a slide bar, one end of the slide bar is fixedly installed with a handle, and a pull rod is fixed between the handle and the inner wall of the groove. Spring A.

In order to facilitate the movement of the container body, the utility model is improved in that the handles are symmetrically distributed on the surface of the container body, and the material of the handles is PP plastic or PE plastic.

In order to facilitate the screwing of the container cover, the utility model is improved as follows: the surface of the container cover is provided with anti-slip lines, and the anti-slip lines are arranged in a circumferential shape on the surface of the container cover.

In order to protect the bottom surface of the container body, the utility model is improved as follows: the bottom end of the container body is fixed with a chassis, and the radius of the chassis is larger than the radius of the container body.

In order to stably support the container body, the utility model is improved as follows: the bottom surface of the chassis is provided with a support mechanism, the support mechanism includes a short rod, the short rod is arranged through the bottom surface of the chassis, and the short rod slides between the bottom surface of the chassis One end of the short rod is fixed with a stopper, the other end of the short rod is fixed with a buffer ring, and the surface of the short rod is covered with a tension spring B.

In order to stably install the extension spring B, the utility model is improved as follows: one end of the extension spring B is fixedly connected to the block, and the other end of the extension spring B is fixedly connected to the chassis.

In order to improve the use effect of the buffer ring, the utility model is improved in that the material of the buffer ring is natural rubber or nitrile rubber, and the bottom surface of the chassis is provided with a hidden groove.

Compared with the prior art, the utility model has the advantages and positive effects that:

1. In this utility model, the container body is used to hold the powder, and the container cover is used to seal the container body. At the same time, when the container body needs to be carried, the staff only needs to pull the handle upward, and the handle then drives the slide bar to slide in the side slot , until the handle is pulled out of the groove, then the handle can be taken out, and then the movement of the container body can be controlled by the handle, and when the handle is not used, only the handle needs to be released, and then due to the tension of the tension spring A, the tension spring A Pull the handle to move until the handle is put into the groove, and then the handle can be put away. The utility model can carry the container body conveniently through the handle provided. With the pulling force of A, the handle can be put into the groove, which can reduce the occupied space of the handle and prevent the handle from being bumped, which has high practicability.

2. In this utility model, when the container body is placed on the ground, the buffer ring first touches the ground, and then the buffer ring drives the short rod to move, and the short rod then drives the stopper to pull the tension spring B. At this time, the tension spring B can be adjusted The container body is buffered until the buffer ring is pressed into the hidden groove. At this time, the buffer ring is retracted. The utility model can buffer the container body through the buffer ring provided, and can avoid The bottom surface of the container body is damaged due to excessive force when placed, which improves the practicability and is beneficial to actual use.

Description of drawings

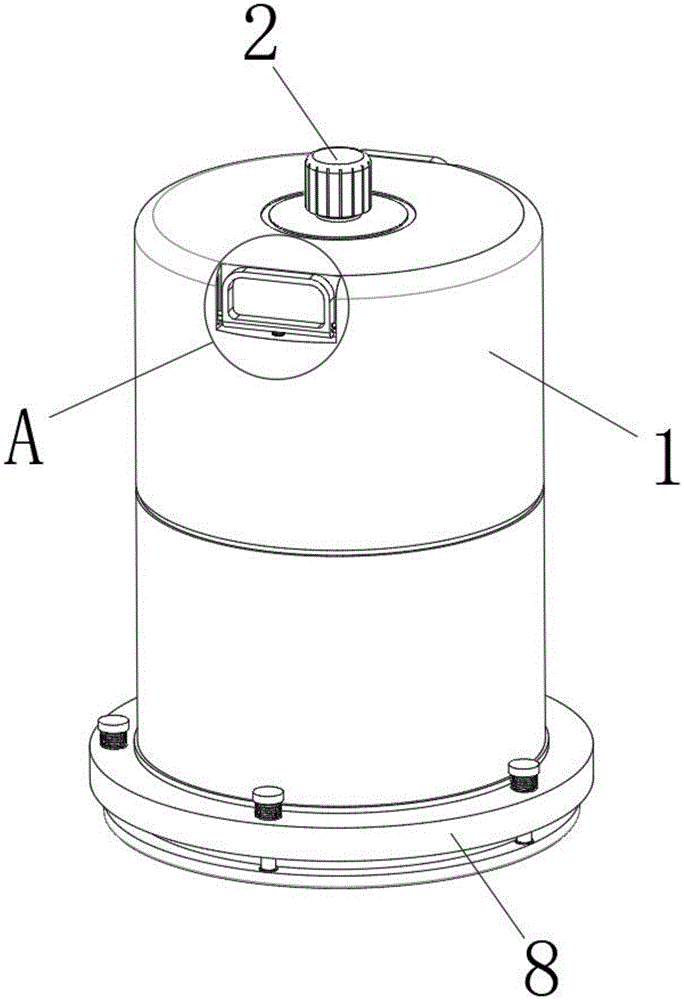

Fig. 1 is a schematic diagram of a powder container for powder metallurgy proposed by the present invention;

Fig. 2 is an enlarged view of place A in Fig. 1 of a powder containing container for powder metallurgy proposed by the utility model;

Fig. 3 is a bottom view of a powder container for powder metallurgy proposed by the utility model;

Fig. 4 is an enlarged view of B in Fig. 3, which is a powder containing container for powder metallurgy proposed by the utility model.

illustration:

1. Container body; 2. Container cover; 3. Groove; 4. Side groove; 5. Slider; 6. Handle; 7. Extension spring A; 8. Chassis; 9. Short rod; 10. Block; 11 , Buffer ring; 12, extension spring B; 13, hidden groove.

Detailed ways

In order to understand more clearly the above purpose, features and advantages of the utility model, the utility model will be further described below in conjunction with the accompanying drawings and embodiments. It should be noted that, in the case of no conflict, the embodiments of the present application and the features in the embodiments can be combined with each other.

In the following description, a lot of specific details have been set forth in order to fully understand the utility model, but the utility model can also be implemented in other ways that are different from those described here. Therefore, the utility model is not limited to the specific details of the following disclosure EXAMPLE LIMITATIONS.

Embodiment one

Please refer to Figure 1-2, the utility model provides a technical solution: a powder container for powder metallurgy, including a container body 1, the bottom of the container body 1 is fixed with a chassis 8, and the radius of the chassis 8 is larger than that of the container body 1 The top of the container body 1 is equipped with a container cover 2, the container body 1 is used to hold the powder, and the container cover 2 is used to seal the container body 1, and the surface of the container cover 2 is provided with anti-slip lines, which can be easily screwed The container cover 2 is moved, and the anti-slip lines are arranged in a circumferential shape on the surface of the container cover 2. The surface of the container body 1 is provided with a groove 3 near the top position, and the inner wall of the groove 3 is provided with a side groove 4. The inner wall of the side groove 4 Sliding connection has slide bar 5.

Please refer to Figure 1-2, a handle 6 is fixedly installed on one end of the sliding rod 5, when the container body 1 needs to be carried, the staff only needs to pull the handle 6 upwards, and the handle 6 then drives the sliding rod 5 to slide in the side slot 4 until The handle 6 is pulled out of the groove 3, and the handle 6 can be taken out at this moment, and then the container body 1 can be controlled to move through the handle 6, and when the handle 6 is not used, only the handle 6 needs to be released, and then due to the extension spring A7 Pulling force, tension spring A7 pulls the handle 6 to move until the handle 6 is received in the groove 3, then the handle 6 can be put away, and the handle 6 is symmetrically distributed on the surface of the container body 1, and the material of the handle 6 is PP plastic or PE Plastic, the handle 6 of PP plastic or PE plastic material is comparatively light, and cost is low, and extension spring A7 is fixedly installed between handle 6 and groove 3 inner walls.

Embodiment two

Please refer to Figure 3-4, the bottom surface of the chassis 8 is provided with a support mechanism, the support mechanism includes a short rod 9, the short rod 9 is arranged on the bottom surface of the chassis 8, and the short rod 9 is slidingly connected with the chassis 8, and the bottom surface of the chassis 8 is opened. There is a hidden groove 13, one end of the short rod 9 is fixedly equipped with a stopper 10, and the other end of the short rod 9 is fixedly equipped with a buffer ring 11, and the buffer ring 11 can buffer the container body 1. When the container body 1 is placed In the process, it can avoid damage to the bottom surface of the container body 1 due to excessive force when placing it. The material of the buffer ring 11 is natural rubber or nitrile rubber, and the surface of the short rod 9 is covered with a tension spring B12. The block 10 is fixedly connected, and the other end of the tension spring B12 is fixedly connected with the chassis 8 .

Working principle: the container body 1 is used to hold the powder, and the container cover 2 is used to seal the container body 1. At the same time, when the container body 1 needs to be carried, the staff only needs to pull the handle 6 upwards, and the handle 6 then drives the slider 5 to the side Slide in the groove 4 until the handle 6 is pulled out of the groove 3. At this time, the handle 6 can be taken out, and then the container body 1 can be controlled to move through the handle 6. When the handle 6 is not in use, only the handle 6 needs to be released. Subsequently, due to the pulling force of the extension spring A7, the extension spring A7 pulls the handle 6 to move until the handle 6 is received in the groove 3, at this moment the handle 6 can be put away, and the utility model can easily carry the container body 1 by the handle 6 provided. At the same time, when the handle 6 is not in use, you only need to loosen the handle 6, and then the handle 6 can be put into the groove 3 due to the tension of the tension spring A7, which can reduce the occupied space of the handle 6 and prevent the handle 6 from being bumped. , when the container body 1 is placed on the ground, the buffer ring 11 first touches the ground, then the buffer ring 11 drives the short rod 9 to move, and the short rod 9 then drives the stopper 10 to pull the extension spring B12. The container body 1 is buffered until the buffer ring 11 is pressed into the hidden groove 13. At this time, the buffer ring 11 is closed. The buffer ring 11 provided by the utility model can buffer the container body 1. When the container body is placed 1, it can avoid damage to the bottom surface of the container body 1 caused by excessive force when placing it, which improves the practicability.

The above is only a preferred embodiment of the utility model, and is not intended to limit the utility model in other forms. Any skilled person who is familiar with this profession may use the technical content disclosed above to change or remodel it into an equivalent change. The equivalent embodiments are applied to other fields, but any simple modifications, equivalent changes and modifications made to the above embodiments according to the technical essence of the present invention without departing from the content of the technical solution of the present utility model still belong to the technical solution of the present utility model scope of protection.

Claims (7)

1. A powder container for powder metallurgy, comprising a container body (1), characterized in that: a container cover (2) is installed on the top of the container body (1), and the surface of the container body (1) is close to the top The position is provided with a groove (3), the inner wall of the groove (3) is provided with a side groove (4), and the inner wall of the side groove (4) is slidably connected with a slide bar (5), and the slide bar ( One end of 5) is fixedly equipped with a handle (6), and a tension spring A (7) is fixedly installed between the handle (6) and the inner wall of the groove (3). 2. The powder container for powder metallurgy according to claim 1, characterized in that: the handle (6) is symmetrically distributed on the surface of the container body (1), and the material of the handle (6) is PP plastic or PE plastic. 3. The powder container for powder metallurgy according to claim 1, characterized in that: the surface of the container cover (2) is provided with anti-slip lines, and the anti-slip lines are arranged in a circumferential shape on the surface of the container cover (2). 4. The powder container for powder metallurgy according to claim 1, characterized in that: the bottom end of the container body (1) is fixed with a chassis (8), and the radius of the chassis (8) is greater than that of the container body ( 1) Radius. 5. The powder container for powder metallurgy according to claim 4, characterized in that: the bottom surface of the chassis (8) is provided with a support mechanism, the support mechanism includes a short rod (9), and the short rod (9 ) runs through the bottom surface of the chassis (8), the short rod (9) is slidingly connected to the chassis (8), and one end of the short rod (9) is fixedly equipped with a stopper (10), the short rod The other end of (9) is fixedly equipped with a buffer ring (11), and the surface of the short rod (9) is sleeved with a tension spring B (12). 6. The powder container for powder metallurgy according to claim 5, characterized in that: one end of the tension spring B (12) is fixedly connected to the stopper (10), and the other end of the tension spring B (12) Be fixedly connected with chassis (8). 7. The powder container for powder metallurgy according to claim 5, characterized in that: the buffer ring (11) is made of natural rubber or nitrile rubber, and the bottom surface of the chassis (8) is provided with a hidden groove ( 13).
