An Easy-to-Clean Epoxy Resin Agitator

technical field

The utility model relates to the technical field of epoxy resin stirring equipment, in particular to an epoxy resin stirring device which is easy to clean.

Background technique

At present, when producing and processing epoxy resin materials, it is necessary to perform mixing and stirring operations on various raw materials, and when performing mixing and stirring operations, corresponding stirring devices are required;

The utility model patent with the authorized announcement number CN201721244707.2 discloses an epoxy resin adhesive mixing equipment, including the main body of the mixing equipment, the stirring shaft, the feeding pipe, the second stirring blade, the discharging pipe, the motor and the silicone paint layer. The outside of the main body of the stirring equipment is provided with an outer wall, the stirring shaft is connected to the reducer through a bearing, the feed pipe and the discharge pipe are both sealed and connected to the valve, and the feed pipe is sealed and connected to the top of the main body of the stirring equipment , the second stirring blade is connected to the stirring shaft, and the outer end of the second stirring blade is fixedly connected to the first stirring blade, the discharge pipe is sealed and connected to the lower end of the main body of the stirring equipment, and the motor is connected to the reducer connection, the silicone resin paint layer is sprayed on the inner side of the outer wall;

Although this technical solution has the advantage of making the epoxy resin adhesive stir more fully, thereby improving the quality of the product, and reducing the adhesion between the epoxy resin adhesive and the inner wall of the main body of the stirring equipment, when the technical solution is used in practice, the cover part on it It is not easy to open, and there is a defect that it is not easy to clean up, which brings inconvenience to users. For this reason, we propose an easy-to-clean epoxy mixing device.

Utility model content

The purpose of this utility model is to provide an epoxy resin stirring device that is easy to clean, so as to solve the above-mentioned defects in the background technology.

In order to achieve the above object, the utility model provides the following technical solutions:

An epoxy resin stirring device that is easy to clean, including a mixing drum, the upper half of the mixing drum is provided with an exposure hole that communicates with the outside world, and a cross-section is fixedly installed between the two sides of the mixing drum. An inverted U-shaped support frame, the support frame is provided with a blocking device, the block device includes a hydraulic cylinder fixedly installed on the top plate of the support frame, and the end of the telescopic shaft of the hydraulic cylinder is fixedly installed with An arc-shaped plate, a sealing cover is fixedly installed on the bottom surface of the arc-shaped plate, the sealing cover is located directly above the exposure hole, and the lower projection of the exposure hole is located at the lower projection of the sealing cover internal.

Preferably, the mixing drum is set horizontally and downwardly inclined at 15° to 45°, which is conducive to the convergence of raw materials toward one side of the mixing drum and the discharge of raw materials later.

Preferably, two left and right symmetrical support legs are fixedly installed on the bottom surface of the mixing drum, so that the stirring drum can be stably supported by the supporting legs.

Preferably, a discharge pipe is fixedly installed on the left side of the mixing drum, and a discharge valve is fixedly mounted on the discharge pipe, so that after opening the discharge valve, the raw materials are discharged along the discharge pipe for unloading. material operation.

Preferably, the discharge pipe is located near the bottom of the mixing drum, so that the raw materials in the mixing drum can be discharged outward along the discharge pipe more smoothly.

Preferably, the stirring drum is provided with a stirring device, the stirring device includes a stirring motor fixedly mounted on the right side of the stirring drum, the end of the output shaft of the stirring motor is fixedly installed with a The stirring shaft in the barrel is fixed with two mutually symmetrical stirring blades to ensure that the stirring motor can be used to drive the stirring shaft and the stirring blades to rotate to perform the stirring operation of the raw materials.

Preferably, the stirring blade has a spiral sheet structure, and the spiral stirring blade can increase the contact area with the stock solution, so that the stirring blade can more fully stir the raw material.

Compared with the prior art, the beneficial effects of the utility model are:

1. The utility model ensures that the hydraulic cylinder can be used to drive the sealing cover to move upward through the exposure hole and the plugging device provided. At this time, the exposure hole is exposed to the outside, which is convenient for the inside of the mixing drum at the exposure hole. The cleaning operation makes it more convenient to clean the inside of the mixing drum, and solves the problem that the cover part of the conventional epoxy resin mixing device is not easy to open when it is actually used, and there are defects that are not easy to clean, which brings inconvenience to the user. .

2. The utility model guarantees that the stirring motor can be used to drive the stirring shaft and the stirring blades to rotate and carry out the stirring operation of the raw materials when in use, which is convenient to use.

Description of drawings

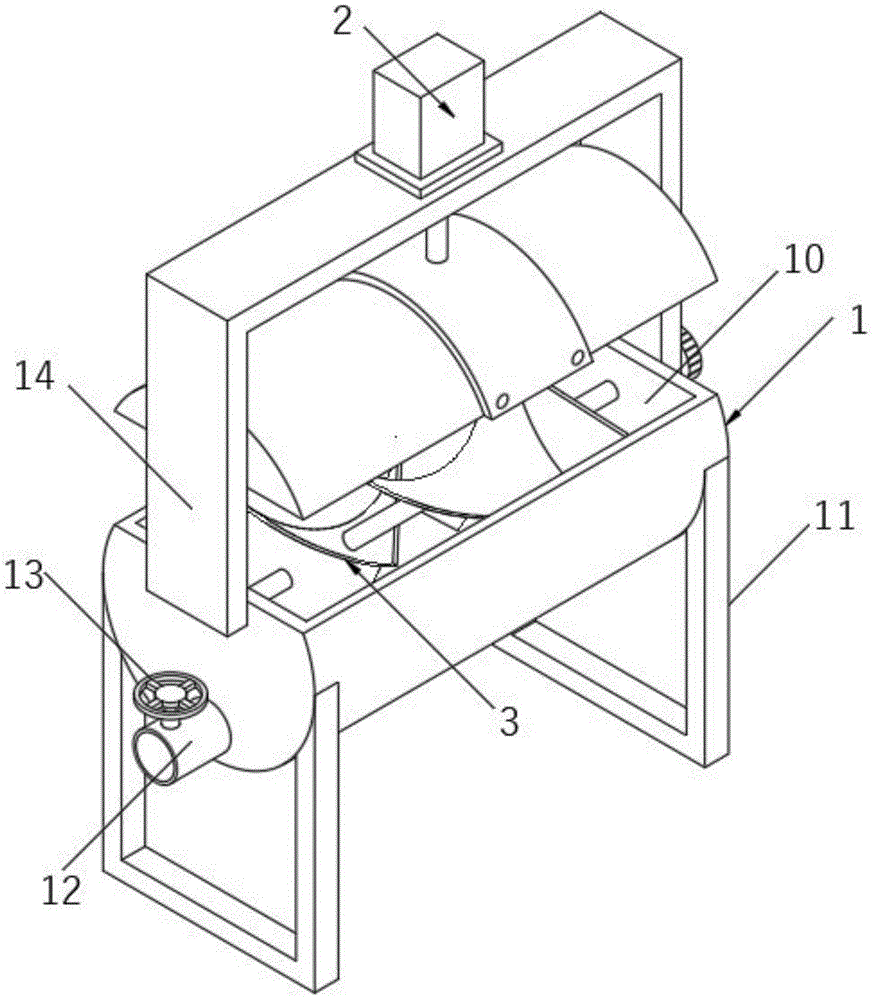

Fig. 1 is the structural representation of the utility model embodiment 1;

Fig. 2 is a schematic structural view of the plugging device in Embodiment 1 of the utility model;

Fig. 3 is the structural representation of stirring device in the utility model embodiment 1;

Fig. 4 is a schematic structural diagram of Embodiment 2 of the present utility model.

The meaning of each label in the figure is:

1. Mixing drum; 10. Exposure hole; 11. Support leg; 12. Discharge pipe; 13. Discharge valve; 14. Support frame;

2. Blocking device; 20. Hydraulic cylinder; 21. Arc plate; 22. Blocking cover;

3. Stirring device; 30. Stirring motor; 31. Stirring shaft; 32. Stirring blade;

4. Gasket;

5. Nozzle holder.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

In describing the present invention, it should be understood that the terms "center", "longitudinal", "transverse", "length", "width", "thickness", "upper", "lower", "front", Orientation indicated by "back", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", etc. Or the positional relationship is based on the orientation or positional relationship shown in the drawings, which is only for the convenience of describing the utility model and simplifying the description, and does not indicate or imply that the referred device or element must have a specific orientation, be configured in a specific orientation, and operation, and therefore cannot be construed as a limitation of the utility model.

Example 1

Please refer to Fig. 1-Fig. 3, present embodiment provides a kind of technical scheme: a kind of epoxy resin mixing device that is easy to clean, comprises mixing drum 1, and the upper half cylinder body of mixing drum 1 is provided with and communicates with the outside world. In the exposure hole 10, a support frame 14 with an inverted U-shaped cross section is fixedly installed between the two sides of the mixing drum 1, and a blocking device 2 is arranged on the support frame 14, and the blocking device 2 includes a plate body fixedly installed on the top of the support frame 14. The hydraulic cylinder 20 on the top, the end of the telescopic shaft of the hydraulic cylinder 20 is fixedly equipped with an arc-shaped plate 21, and the bottom surface of the arc-shaped plate 21 is fixedly installed with a sealing cover 22 through a plurality of fastening bolts, and the sealing cover 22 is located in the exposure hole 10 Directly above, the lower projection of the exposure hole 10 is located inside the lower projection of the sealing cover 22, so as to ensure that the sealing cover 22 can be used to push against the mixing drum 1 to block the exposure hole 10, and then Carry out the stirring operation. After the stirring is completed, use the hydraulic cylinder 20 to work to drive the sealing cover 22 to move upwards. At this time, the sealing cover 22 no longer blocks the exposure hole 10, and the exposure hole 10 is exposed to the outside, which is convenient for opening the exposure hole 10. The parts are cleaned and operated, which is convenient to use.

In this embodiment, the mixing drum 1 is set horizontally and downwardly inclined from 15° to 45°, which is conducive to the convergence of the raw materials in the mixing drum 1 towards one end of the mixing drum 1, and is beneficial to the discharge of the raw materials in the later stage; the left side of the mixing drum 1 A discharge pipe 12 is fixedly installed on the top, and a discharge valve 13 is fixedly installed on the discharge pipe 12, so that after opening the discharge valve 13, the raw material is discharged along the discharge pipe 12 for discharge operation.

Specifically, two left and right symmetrical support legs 11 are fixedly installed on the bottom surface of the mixing drum 1 , so that the supporting legs 11 can be used to realize stable support for the mixing drum 1 .

Further, the discharge pipe 12 is located near the bottom of the mixing drum 1 , so that the raw materials in the mixing drum 1 can be discharged outward along the discharge pipe 12 more smoothly.

In addition, the mixing drum 1 is provided with a stirring device 3, the stirring device 3 includes a stirring motor 30 fixedly installed on the right side of the mixing drum 1, and the end of the output shaft of the stirring motor 30 is fixedly installed with a stirring motor extending into the mixing drum 1. Shaft 31 and two mutually symmetrical stirring blades 32 are fixedly installed on the stirring shaft 31 to ensure that when in use, the stirring motor 30 can be used to drive the stirring shaft 31 and the stirring blades 32 to rotate for stirring operation of raw materials.

It is worth noting that the stirring blade 32 has a spiral sheet structure, and the spiral stirring blade 32 can increase the contact area with the stock solution, so that the stirring blade 32 can stir the raw material more fully.

It should be noted that the hydraulic cylinder 20 and the stirring motor 30 in this embodiment are all existing conventional technologies, and will not be repeated here.

It is worth noting that a mechanical seal can be used between the stirring shaft 31 and the stirring drum 1, and the mechanical seal refers to at least one pair of end faces perpendicular to the rotation axis under the action of fluid pressure and the elastic force or magnetic force of the compensation mechanism and the cooperation of the auxiliary seal. The device for preventing fluid leakage constituted by keeping fit and sliding relative to each other, the mechanical seal is an existing conventional technology for those skilled in the art, so it will not be repeated here.

In the specific use process of this embodiment, the raw materials are put into the mixing drum 1 along the exposure hole 10, and then the hydraulic cylinder 20 is started and made to work. When the hydraulic cylinder 20 works, the telescopic shaft on it is extended to drive the sealing cover. 22 moves downward and touches the top surface of the mixing drum 1 to block the exposure hole 10, then connect the stirring motor 30 to an external power source and make it work, the stirring motor 30 works, and the output shaft on it rotates Drive the stirring shaft 31 to rotate, the stirring shaft 31 rotates to drive the stirring blade 32 to rotate, and the stirring blade 32 rotates to realize the stirring operation of the raw materials in the mixing drum 1;

When cleaning, start the hydraulic cylinder 20 and make it work, the hydraulic cylinder 20 works, the telescopic shaft on it shortens and drives the sealing cover 22 to move upwards, after the sealing cover 22 moves upwards, the sealing cover 22 is no longer on the exposure hole 10 At this time, the exposure hole 10 is exposed to facilitate the cleaning operation in the mixing drum 1 at the exposure hole 10. At the same time, the sealing cover 22 is suspended in the air, which is also convenient for the inner arc of the sealing cover 22 Surface cleaning operation, easy to use.

Example 2

Please refer to Fig. 4, the difference between the present embodiment and embodiment 1 is: the top surface of the mixing drum 1 is fixedly equipped with a sealing gasket 4, and the sealing gasket 4 is positioned between the sealing cover 22 and the mixing drum 1, and the sealing gasket 4 is positioned between the sealing gasket 22 and the mixing drum 1. 4. The sealing effect between the sealing cover 22 and the mixing drum 1 can be improved, so that no liquid leakage occurs between the sealing cover 22 and the mixing drum 1 .

In this embodiment, one of the supporting legs 11 is fixed with a nozzle holder 5 on the surface, and the section of the nozzle holder 5 is U-shaped, which is convenient for clamping the nozzle used for external cleaning on the nozzle holder 5 .

In the specific use of this embodiment, as the sealing cover 22 moves downward, the sealing cover 22 will be pressed against the gasket 4, so that the sealing effect between the sealing cover 22 and the mixing drum 1 is better. .

The basic principles, main features and advantages of the present utility model have been shown and described above. Those skilled in the industry should understand that the utility model is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions are only preferred examples of the utility model, and are not used to limit the utility model. Without departing from the utility model Under the premise of the spirit and scope, the utility model also has various changes and improvements, and these changes and improvements all fall within the scope of the claimed utility model. The scope of protection required by the utility model is defined by the appended claims and their equivalents.

Claims (7)

1. An epoxy resin mixing device that is easy to clean, comprising a mixing drum (1), characterized in that: the upper half of the mixing drum (1) is provided with an exposure hole (10) that communicates with the outside world , between the two side surfaces of the mixing drum (1), a support frame (14) with an inverted U-shaped section is fixedly installed, and the support frame (14) is provided with a blocking device (2), and the blocking device (2) comprising a hydraulic cylinder (20) fixedly installed on the top plate of the support frame (14), the end of the telescopic shaft of the hydraulic cylinder (20) is fixedly equipped with an arc-shaped plate (21), and the arc-shaped A sealing cover (22) is fixedly installed on the bottom surface of the plate (21), the sealing cover (22) is located directly above the exposure hole (10), and the lower projection of the exposure hole (10) is located at the The inside of the lower projection of the sealing cover (22). 2 . The easy-to-clean epoxy resin stirring device according to claim 1 , characterized in that: the mixing drum ( 1 ) is set horizontally and downwardly inclined at 15° to 45°. 3 . The easy-to-clean epoxy resin stirring device according to claim 1 , characterized in that: two left and right symmetrical support legs ( 11 ) are fixedly installed on the bottom surface of the mixing drum ( 1 ). 4 . 4. A kind of easy-to-clean epoxy resin stirring device according to claim 1, characterized in that: a discharge pipe (12) is fixedly installed on the left side of the mixing drum (1), and the discharge pipe (12) A discharge valve (13) is fixedly installed on the pipe (12). 5. The easy-to-clean epoxy resin stirring device according to claim 4, characterized in that: the discharge pipe (12) is located near the bottom of the mixing drum (1). 6. The easy-to-clean epoxy resin stirring device according to claim 1, characterized in that: the stirring drum (1) is provided with a stirring device (3), and the stirring device (3) includes a fixed installation Stirring motor (30) on the right side of the mixing drum (1), the output shaft end of the stirring motor (30) is fixedly installed with a stirring shaft (31) extending into the mixing drum (1) , two mutually symmetrical stirring blades (32) are fixedly installed on the stirring shaft (31). 7. The easy-to-clean epoxy resin stirring device according to claim 6, characterized in that: the stirring blade (32) is in the shape of a spiral sheet.
