CN217744471U - Operation sewing needle box - Google Patents

Abstract

The utility model relates to an operation seam needle box includes box body, lid, and the box body makes box body and lid openable and closed through articulated with the lid to it is fixed with the lid closure through the buckle messenger box body, be equipped with the magnetism heelpiece through adhesive fixation in box body and the lid box respectively, magnetism heelpiece top is equipped with flexible silica gel needle pad through adhesive fixation, a plurality of unit check are divided by the lines to flexible silica gel needle pad, be equipped with the first arc recess with operation seam needle shape looks adaptation on every unit check of flexible silica gel needle pad in the box body, be equipped with the second arc recess with operation seam needle shape looks adaptation on every unit check of flexible silica gel needle pad in the lid, the operation seam needle is placed in the recess, be equipped with the circular port on first arc recess and the second arc recess, the utility model has the advantages of simple structure, the cost of manufacture is low, accomodates neatly, stabilizes, is convenient for clearing point, is convenient for taking, easily clean, disinfection and sterilization, is an economic, practical operation seam needle box concurrently.

Description

Operation sewing needle box

Technical Field

The utility model relates to the technical field of medical supplies, concretely relates to operation seam needle box.

Background

The going on of surgery often needs to use a large amount of operation stitches, before the operation begins and after the operation, all need to check medical stitches to leave over in the operation patient internally, bring unnecessary injury for the operation patient, cause the medical accident. The surgical suture needle has the characteristics of sharp front end, small volume and large use amount, and the conventional medical commonly used method for placing the surgical suture needle comprises the following steps: place in the bending disk or do not on the gauze, stab the operating personnel easily, be not convenient for check quantity, current operation needle box accomodates the effect relatively poor, and the needle is difficult for neatly arranging, is unfavorable for checking of needle figure, because the operation needle is very tiny, takes inconveniently, is unfavorable for the clamp of needle holder to operation needle to get.

SUMMERY OF THE UTILITY MODEL

To the deficiency that prior art exists, the utility model aims to provide an operation seam needle box has simple structure, and the cost of manufacture is low, accomodates neatly, stabilizes, checks easily, is convenient for take, avoids taking place the seam needle and loses, easy to clean, disinfection's advantage.

The above technical purpose of the present invention can be achieved by the following technical solutions: the utility model provides an operation seam needle box includes box body, lid, and the box body makes box body and lid openable and closed through articulated with the lid to make box body and lid closed fixed through the buckle, be equipped with the magnetism heelpiece through adhesive fixation in box body and the lid box respectively, magnetism heelpiece top is equipped with flexible silica gel needle pad through adhesive fixation, flexible silica gel needle pad is by a plurality of unit check of lines division, be equipped with the first arc recess with operation seam needle shape looks adaptation on every unit check of flexible silica gel needle pad in the box body, be equipped with the second arc recess with operation seam needle shape looks adaptation on every unit check of flexible silica gel needle pad in the lid, the operation seam needle is placed in the recess, be equipped with the circular port on first arc recess and the second arc recess.

In one embodiment: the depths of the first arc-shaped groove and the second arc-shaped groove are both 1.5mm.

In one embodiment: the diameter of the circular hole is 3.5mm, and the depth is 3mm.

In one embodiment: the flexible silica gel needle pad is provided with a mark serial number.

In one embodiment: the first arc-shaped groove is suitable for placing a small-size hand-written sewing needle.

In one embodiment: the second arc-shaped groove is suitable for placing a large-size hand-written sewing needle.

To sum up, the utility model discloses following beneficial effect has:

the one of which, simple structure, the cost of manufacture is low, adsorbs the seam needle on the recess of flexible silica gel pad through the magnetism heelpiece, accomodates neatly, stabilizes, avoids taking place the seam needle to lose, through the number of digit sign, the count is convenient, and is clear, is convenient for check the figure, ensures the operation safety, does not keep the hidden danger, is one kind and has economic, practical operation seam needle box concurrently.

Secondly, be convenient for take, the design of circular port is favorable to medical staff to use needle-holding forceps to get and put back to operation seam needle clamp, has protected apparatus nurse's safety, avoids being stabbed by the seam needle.

Thirdly, the cleaning and the disinfection and sterilization are easy to be carried out repeatedly, and the use cost of the hospital is greatly reduced.

Drawings

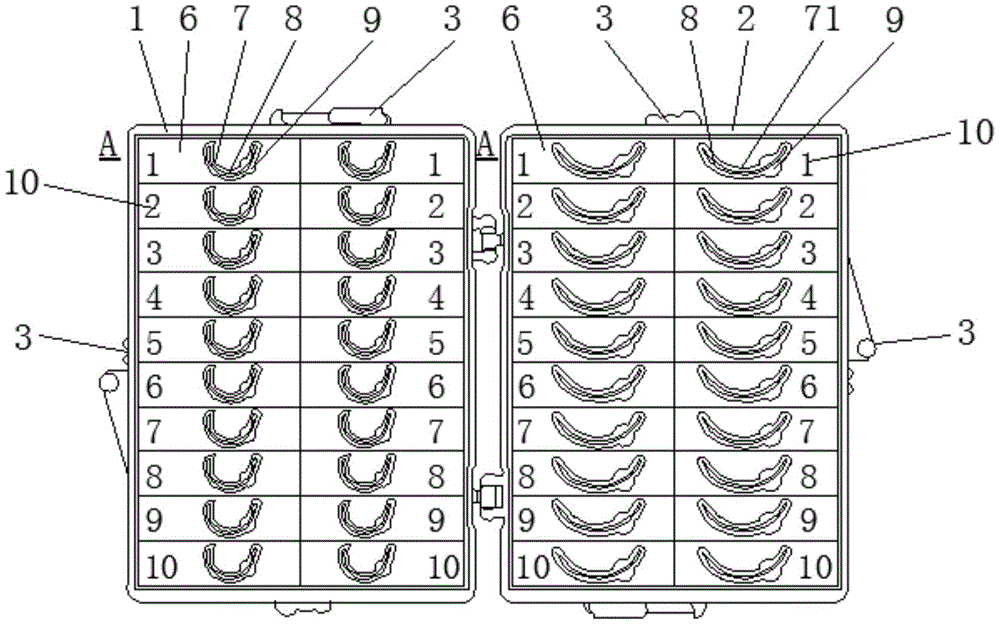

FIG. 1: the utility model discloses a top view;

FIG. 2: the utility model is a three-dimensional view;

FIG. 3: the utility model disclosesbase:Sub>A-A section view;

FIG. 4: the utility model discloses a first arc-shaped groove enlarged view;

FIG. 5: the utility model discloses second arc recess enlarger.

In the figure: 1-box body, 2-box cover, 3-buckle, 4-viscose, 5-magnetic bottom pad, 6-flexible silica gel needle pad, 7-first arc groove, 71-second arc groove, 8-operation sewing needle, 9-circular hole, 10-identification serial number.

Detailed Description

The present invention will be described in detail with reference to the accompanying drawings and examples.

It should be noted that all the directional terms such as "upper" and "lower" referred to herein are used with respect to the view of the drawings, and are only for convenience of description, and should not be construed as limiting the technical solution.

Referring to fig. 1-5, an operation seam needle box includes box body 1, lid 2, and box body 1 and lid 2 make box body 1 and lid 2 openable and closed through articulated to it is fixed with lid 2 closure through buckle 3 messenger box body 1, be equipped with magnetism heelpiece 5 through sticky 4 is fixed respectively in box body 1 and the lid 2, magnetism heelpiece 5 top is equipped with flexible silica gel needle pad 6 through sticky 4 is fixed, flexible silica gel needle pad 6 is divided a plurality of cell by lines, be equipped with the first arc recess 7 with 8 shape looks adaptations of operation seam needle on 6 every cell of flexible silica gel needle pad in the box body 1, be equipped with the second arc recess 71 with 8 shape looks adaptations of operation seam needle on 6 every cell of flexible silica gel needle pad in the lid 2, operation seam needle 8 is placed in the recess, be equipped with circular port 9 on first arc recess 7 and the second arc recess 71.

The depths of the first arc-shaped groove 7 and the second arc-shaped groove 71 are both 1.5mm.

Through adopting above-mentioned technical scheme, magnetism heelpiece 5 can adsorb operation seam needle 8 on the recess of flexible silica gel heelpiece 6, makes operation seam needle 8 accomodate neatly, firm, orderly, makes operation seam needle 8 place can not take place the aversion phenomenon in the arc recess.

The diameter of circular port 9 is 3.5mm, and the degree of depth is 3mm, because operation seam needle 8 is very tiny, is difficult to take, and the degree of depth of circular port 9 is greater than the degree of depth of arc recess, and operation seam needle 8 locates partially unsettled in circular port 9 top, and circular port 9 can hold needle pincers end, gets into the clamp of operation seam needle and gets into, conveniently presss from both sides and takes.

The flexible silica gel needle pad 6 is provided with a mark serial number 10, and the mark is marked through a digital mark, so that the number of the surgical suture needles is convenient to count, and the surgical suture needles 8 are prevented from being lost.

The first arc-shaped groove 7 is suitable for placing a small-size hand-written sewing needle.

The second arc-shaped groove 71 is suitable for placing a large-size hand-written sewing needle.

The utility model discloses a use method: in the operation with first arc recess 7 or second arc recess 71 in the first arc recess 7 of the direct putting into of waste operation seam needle 8, the small size operation seam needle is placed in first arc recess 7, the large size operation seam needle is placed in second arc recess 71, one piece of operation seam needle 8 corresponds an arc recess, count operation seam needle 8 according to the preface before the operation is accomplished and is sewed up, count operation seam needle quantity 8 according to the digital identification serial number 10 on arc recess next door, high durability and convenient use, it is accurate, the trouble of operation room nurse checking operation seam needle before the art and after the operation has been solved, medical personnel's needle finding and the risk of injure carelessly have been reduced.

It is above only the utility model discloses a preferred embodiment, the utility model discloses a scope of protection does not only confine above-mentioned embodiment, the all belongs to the utility model discloses a technical scheme under the thinking all belongs to the utility model discloses a scope of protection. It should be noted that, for those skilled in the art, without disassembling the principles of the present invention, several modifications and decorations shall be considered as the protection scope of the present invention.

Claims (6)

1. A surgical needle box is characterized in that: including box body (1), lid (2), box body (1) and lid (2) make box body (1) and lid (2) openable and closed through articulated to it is fixed with lid (2) closure to make box body (1) and lid (2) through buckle (3), be equipped with magnetism heelpiece (5) through gluing (4) is fixed in box body (1) and lid (2) respectively, magnetism heelpiece (5) top is equipped with flexible silica gel needle pad (6) through gluing (4) is fixed, a plurality of unit check are divided by the lines in flexible silica gel needle pad (6), be equipped with on every unit check of flexible silica gel needle pad (6) in box body (1) first arc recess (7) with operation seam needle (8) shape looks adaptation, be equipped with on every unit check of flexible silica gel needle pad (6) in lid (2) second arc recess (71) with operation seam needle (8) shape looks adaptation, operation seam needle (8) are placed in the recess, be equipped with circular port (9) on first arc recess (7) and the second arc recess (71).

2. A surgical needle magazine as defined in claim 1, wherein: the depths of the first arc-shaped groove (7) and the second arc-shaped groove (71) are both 1.5mm.

3. A surgical needle magazine as defined in claim 1, wherein: the diameter of the circular hole (9) is 3.5mm, and the depth of the circular hole is 3mm.

4. A surgical needle magazine as defined in claim 1, wherein: the flexible silica gel needle pad (6) is provided with an identification serial number (10).

5. A surgical needle magazine as defined in claim 1, wherein: the first arc-shaped groove (7) is suitable for placing a small-size hand-written sewing needle.

6. A surgical needle magazine as defined in claim 1, wherein: the second arc-shaped groove (71) is suitable for placing a large-size hand-written sewing needle.
