Abstract

The utility model discloses a product display device for art design, which relates to the technical field of art display, and comprises a base and a transparent cover. The bottom end is fixed with a rotating rod, the outer end of the rotating rod is sleeved with a driving mechanism, the top of the base is fixed with a bracket, the bracket is arranged on the rear side of the display seat and the transparent cover, and the front side of the bracket is connected by a Velcro A cleaning cotton is fixedly installed, the front side of the cleaning cotton is in contact with the outer end of the transparent cover, and a controller is fixed on the rear side of the bracket, and the display seat, the artwork and the transparent cover can be driven to rotate together by the driving mechanism, and the artwork rotates It can be displayed and visited in multiple directions, and the display effect is better, and the handprint attached to the transparent cover will be wiped off by the cleaning cotton, which not only improves the display clarity, but also avoids the influence of the handprint on the aesthetics. At the same time, the automatic cleaning handprint also reduces workload of the staff.

Description

A product display device for art design

technical field

The utility model relates to the technical field of art display, in particular to a product display device for art design.

Background technique

The so-called art design is to apply the aesthetic feeling of art to the design that is closely related to daily life, so that it not only has aesthetic functions, but also has practical functions. In order to display art design products more intuitively, display devices are usually used to display them , in order to protect the display of art design products, the art design products are usually covered in a transparent cover for viewing, which can prevent dust from falling and damage from being touched by people;

However, visitors sometimes inevitably touch the transparent cover. After a long time, a large number of fingerprints tend to adhere to the transparent cover, which not only reduces the clarity of the display, but also greatly affects the aesthetics. When workers clean it, it will also increase the workload of the staff. .

Utility model content

The utility model provides a product display device for artistic design to solve the above technical problems.

In order to solve the above technical problems, the utility model provides a product display device for artistic design, which includes a base and a transparent cover, the transparent cover is arranged on the top of the base, and the top of the base is provided with a display seat, and the transparent cover is sleeved On the top of the display seat, a rotating rod is fixed at the bottom of the display seat. The rotating rod runs through the top of the base and extends to the inside of the base. The outer end is covered with a driving mechanism, the driving mechanism is set inside the base, the top of the base is fixed with a bracket, the bracket is set at the rear side of the display seat and the transparent cover, and the front side of the bracket is fixed with a Cleaning cotton, the front side of the cleaning cotton is in contact with the outer end of the transparent cover, and the rear side of the bracket is fixed with a controller.

Preferably, the drive mechanism includes a geared motor, the geared motor is fixed inside the base, and the geared motor is electrically connected to the output end of the controller, the geared motor is arranged on the rear side of the rotating rod, and the geared motor Both the outer end of the output shaft and the outer end of the rotating rod are fixedly provided with gears, and the two gears mesh with each other.

Preferably, a battery is fixed at the inner bottom of the base, the battery is arranged on the front side of the rotating rod, and the battery is electrically connected to the input end of the controller.

Preferably, the controller is provided with a display screen and buttons, and the display screen is arranged on the top of the buttons.

Preferably, a light frame is fixed on the top of the bracket, the light frame is mounted on the top of the transparent cover, and an illuminating lamp is fixed on the bottom of the lamp frame, and the illuminating lamp is electrically connected to the output end of the controller.

Preferably, a plurality of support blocks are fixedly provided at the bottom of the base.

Compared with related technologies, a product display device for artistic design provided by the utility model has the following beneficial effects:

Through the driving mechanism, the display seat, artwork and transparent cover can be driven to rotate together. When the artwork is rotated, it can be displayed and visited in multiple directions, and the display effect is better. When the transparent cover rotates, the attached fingerprints will be wiped off by the cleaning cotton, which not only improves the display It also avoids the influence of fingerprints on the aesthetics, and at the same time, automatic cleaning of fingerprints also reduces the workload of staff.

Description of drawings

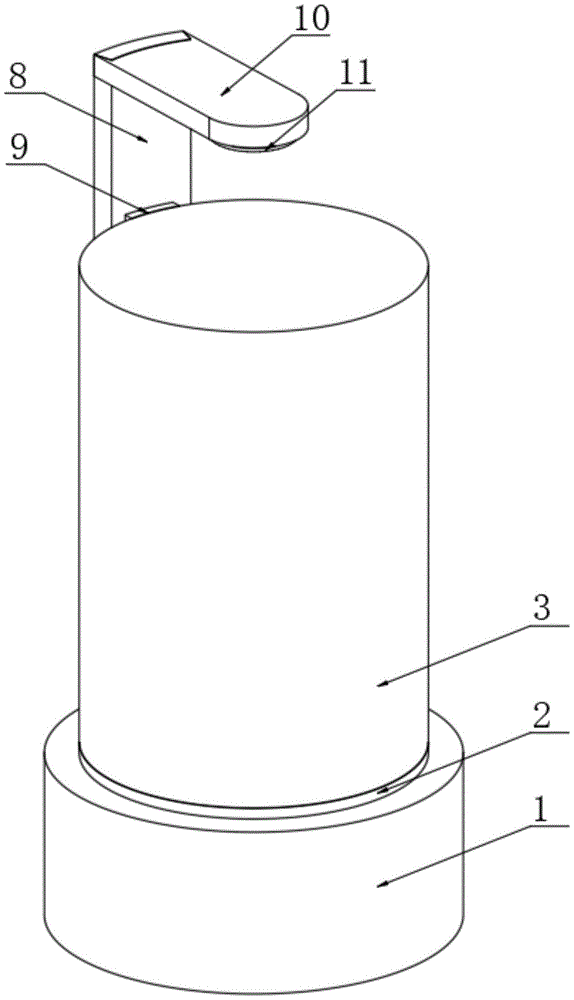

Figure 1 is a schematic diagram of the overall three-dimensional structure of a first viewing angle of a product display device for artistic design proposed by the present invention;

2 is a schematic diagram of the overall three-dimensional structure of a second viewing angle of a product display device for artistic design proposed by the present invention;

Fig. 3 is a schematic diagram of the overall three-dimensional structure of a third viewing angle of a product display device for artistic design proposed by the utility model;

Fig. 4 is a schematic diagram of an overall cross-sectional three-dimensional structure of a product display device for artistic design proposed by the utility model;

Fig. 5 is a schematic diagram of the three-dimensional structure of a display seat of a product display device for artistic design proposed by the utility model.

Labels in the figure: 1. Base, 2. Display seat, 3. Transparent cover, 4. Rotating rod, 5. Geared motor, 6. Gear, 7. Battery, 8. Bracket, 9. Cleaning cotton, 10. Light stand, 11. Lighting lamp, 12. Controller, 13. Display screen, 14. Button, 15. Support block.

Detailed ways

Embodiment, given by Fig. 1-5, the utility model comprises base 1 and transparent cover 3, and described transparent cover 3 is arranged on the top of base 1, and the top of described base 1 is provided with display seat 2, and described transparent cover 3 sets Located on the top of the display seat 2, the bottom end of the display seat 2 is fixed with a rotating rod 4, the rotating rod 4 runs through the top of the base 1 and extends to the inside of the base 1, the bottom end of the rotating rod 4 is connected to the inner bottom end of the base 1 Through the flexible connection of bearings, the outer end of the rotating rod 4 is provided with a driving mechanism, the driving mechanism is arranged inside the base 1, and the top of the base 1 is fixed with a bracket 8, and the bracket 8 is arranged on the display base 2 and the transparent On the rear side of the cover 3, the front side of the bracket 8 is fixed with a cleaning cotton 9 by Velcro, the front side of the cleaning cotton 9 is in contact with the outer end of the transparent cover 3, and the rear side of the bracket 8 is fixed with a controller 12, When the driving mechanism drives the display seat 2, the artwork and the transparent cover 3 to rotate, the fingerprints attached to the transparent cover 3 will be wiped off by the cleaning cotton 9, which can improve the clarity of the display and avoid the impact of the fingerprints on the aesthetics. The absence of manual cleaning of fingerprints also reduces the workload of staff.

The drive mechanism includes a reduction motor 5, which is fixed inside the base 1, and the output end of the reduction motor 5 is electrically connected to the controller 12, and the reduction motor 5 is arranged on the rear side of the rotating rod 4. The outer end of the output shaft of the reduction motor 5 and the outer end of the rotating rod 4 are fixedly equipped with a gear 6, and the two gears 6 are meshed with each other. The driving mechanism can drive the display seat 2, the artwork and the transparent cover 3 to rotate, and the artwork rotates. It can be visited in many directions during the time, and the display effect is better. When the transparent cover 3 rotates, the fingerprints can be cleaned by the cleaning cotton 9 automatically.

The inner bottom of the base 1 is fixed with a battery 7, the battery 7 is arranged on the front side of the rotating rod 4, and the battery 7 is electrically connected to the input end of the controller 12, the battery 7 can be a motor 5, a lighting lamp 11 And the controller 12 provides electric energy.

Described controller 12 is provided with display screen 13 and button 14, and described display screen 13 is located at the top of button 14, and the display screen 13 on the controller 12 can play the related information introduction of the artwork shown, and button 14 can be to The controller 12 performs manipulation settings.

The top of the bracket 8 is fixed with a light frame 10, the light frame 10 is located on the top of the transparent cover 3, and the bottom end of the light frame 10 is fixed with a light 11, and the light 11 and the output terminal of the controller 12 Electrically connected, the lamp holder 10 is convenient for installing the lighting lamp 11, and the lighting lamp 11 can be used as supplementary light for the artwork lighting inside the transparent cover 3 to improve the display effect.

The bottom end of the base 1 is fixed with a plurality of support blocks 15, and the support blocks 15 are supported on the ground to support the base 1.

working principle:

First place the art design product on the display seat 2, and then cover the transparent cover 3 on the display seat 2. At this time, the art design product is isolated and protected inside the transparent cover 3 for display and viewing. During this period, the controller 12 controls the deceleration The motor 5 and the lighting lamp 11 are turned on. After the lighting lamp 11 is turned on, the artwork inside the transparent cover 3 can be illuminated and supplemented. When the output shaft of the reduction motor 5 rotates, the rotating rod 4 will be driven by the meshing transmission of the two gears 6. Rotate, the rotating rod 4 plays a supporting role to the display seat 2, so when the rotating rod 4 rotates, it will drive the display seat 2 to rotate together, and when the display seat 2 rotates, it will drive the displayed artwork and the transparent cover 3 to rotate together, and the artwork is rotated It is convenient to display it from multiple angles, and when the transparent cover 3 rotates, the parts with fingerprints attached to the surface will come into contact with the cleaning cotton 9 as the transparent cover 3 rotates, and the cleaning cotton 9 can wipe off the fingerprints on the transparent cover 3 , to improve the clarity and aesthetics of artwork display.

Claims (6)

1. A product display device for artistic design, comprising a base (1) and a transparent cover (3), the transparent cover (3) being located on the top of the base (1), characterized in that: the top of the base (1) is provided with There is a display seat (2), the transparent cover (3) is sleeved on the top of the display seat (2), the bottom end of the display seat (2) is fixed with a rotating rod (4), and the rotating rod (4) runs through The top of the base (1) extends to the inside of the base (1), the bottom end of the rotating rod (4) is movably connected with the inner bottom end of the base (1) through a bearing, and the outer end of the rotating rod (4) is provided with a driving mechanism , the driving mechanism is arranged inside the base (1), the top of the base (1) is fixed with a bracket (8), and the bracket (8) is arranged on the rear side of the display seat (2) and the transparent cover (3), The front side of the bracket (8) is fixed with a cleaning cotton (9) by Velcro, the front side of the cleaning cotton (9) is in contact with the outer end of the transparent cover (3), and the rear side of the bracket (8) is fixed There is a controller (12). 2. A product display device for artistic design according to claim 1, characterized in that the drive mechanism comprises a geared motor (5), and the geared motor (5) is fixed inside the base (1), and The deceleration motor (5) is electrically connected with the output end of the controller (12), the deceleration motor (5) is arranged on the rear side of the rotating rod (4), and the outer end of the output shaft of the decelerating motor (5) is connected to the rotating rod (4) The outer ends are fixedly provided with gears (6), and the two gears (6) mesh with each other. 3. A product display device for artistic design according to claim 1, characterized in that, the inner bottom of the base (1) is fixed with a storage battery (7), and the storage battery (7) is arranged on the rotating rod ( 4) The front side, and the battery (7) is electrically connected to the input end of the controller (12). 4. The product display device for art design according to claim 1, characterized in that, the controller (12) is provided with a display screen (13) and buttons (14), and the display screen (13) Be located at the top of button (14). 5. A product display device for artistic design according to claim 1, characterized in that, a lamp holder (10) is fixedly arranged on the top of the support (8), and the lamp holder (10) is arranged on a transparent cover ( 3) The top, and the bottom end of the lamp holder (10) is fixed with a lighting lamp (11), and the lighting lamp (11) is electrically connected to the output end of the controller (12). 6 . The product display device for art design according to claim 1 , characterized in that, a plurality of support blocks ( 15 ) are fixedly provided at the bottom of the base ( 1 ). 7 .
