CN217734985U

CN217734985U - Clean energy environment-friendly multifunctional bus stop

Info

Publication number: CN217734985U
Application number: CN202220124469.6U
Authority: CN
Inventors: 于征; 丁林; 曹正好; 丁群
Original assignee: Jiangsu Meicheng Street Furniture Industry And Trade Co ltd
Current assignee: Jiangsu Meicheng Street Furniture Industry And Trade Co ltd
Priority date: 2022-01-18
Filing date: 2022-01-18
Publication date: 2022-11-04
Anticipated expiration: 2032-01-18

Abstract

The utility model discloses a clean energy and environmental protection multifunctional bus station, which comprises a base, a support column is fixedly connected to the top side of the base, a top plate is fixedly connected to the top of the support column, a plurality of lighting lamps are fixedly connected to the bottom of the top plate, and the bottom side of the top plate is fixed There is a signboard connected, a camera is fixedly connected on the other side of the bottom of the top plate, and a fixed connection on the top side of the base is due to several billboards. There are real-time circuit diagrams at the intervals of the billboards, and an inquiry station is set on the side of the real-time circuit diagram, which can realize the realization of solar panels. The angle adjustment is convenient for the solar panel to better absorb the light source, realizes the intelligent use of the bus station, realizes the rotation in two directions, and the two protective cover panels can be opened at the same time. At this time, the solar panel can be used to absorb the solar light source. When the two protective cover panels are closed, the solar panels can be protected against external rain, snow, and even hail. The degree of protection is high, and the subsequent maintenance costs are not high.

Description

Clean energy environment-friendly multifunctional bus stop

Technical Field

The utility model relates to a bus stop technical field specifically is a clean energy environmental protection multifunctional bus stop.

Background

In the process of city construction, municipal facilities are indispensable to be reformed and optimized, for example, the reformation of bus platforms spreading over the daily life of people can bring the change of turning over the ground for the life of people, the bus platforms are public facilities specially constructed for urban waiting citizens, the public facilities provide people waiting places and provide convenience for waiting shelters of the citizens, the bus platforms should fully embody the people-oriented design concept, the design of the bus platforms should include waiting platforms, ceilings, stop boards, area maps, waiting seats, commercial or public advertisement, lighting systems and special roads for buses in front of the platforms of passengers, the bus platforms mainly serve as waiting and can also provide temporary rest, the lamp boxes can also provide advertising and night lighting, but the bus platforms in the prior art only have the function of simply waiting for vehicles, and nowadays of network information science and technology, the network platform network with extremely wide coverage cannot be applied to provide network connection service, and the function of multimedia playing cannot be provided, and the public service is a great limitation;

to this end, chinese utility model patent with an authorization publication number of CN204024115U discloses a novel bus stop, including: the system comprises a bus stop main body, a WIFI device, a multimedia playing device, a monitoring device, a solar device, an alarm device and a charging device, wherein the bus stop main body is provided with a seat and a guide board; the WIFI device is arranged at the upper end part of the bus stop main body; the multimedia playing device is arranged in the middle of the trunk of the bus stop main body; the monitoring device is arranged on the lower surface of the upper end part of the bus stop main body; the solar device is arranged on the upper surface of the upper end part of the bus stop main body; the alarm device is arranged on the trunk of the bus stop main body and is positioned below the multimedia playing device; the charging device is arranged on the trunk of the bus stop main body and is positioned below the multimedia playing device. The utility model can provide the functions of network connection, multimedia playing, city monitoring and the like, and is low-carbon and environment-friendly;

the use power consumption of present bus stop is high, undoubtedly cause very big pressure for the municipal power supply, extravagant city electric power, furthermore, common bus stop intelligent degree is not high, can not be to the angle modulation of solar photovoltaic board, the more absorption sunlight source of being not convenient for, current bus stop function singleness also does not basically have to solar panel's protection, cause solar panel's damage speed to accelerate, the cost increases, we propose a clean energy environmental protection multifunctional bus stop for this reason and are used for solving above-mentioned problem.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a clean energy environmental protection multifunctional bus stop to solve the problem that proposes in the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a clean energy environmental protection multifunctional bus stop, includes embodiment 1:

referring to fig. 1-5, the present invention provides a technical solution: a clean energy environment-friendly multifunctional bus station comprises a base station, wherein a supporting column is fixedly connected to the top side of the base station, and a top plate is fixedly connected to the top of the supporting column;

the bottom of the top plate is fixedly connected with a plurality of illuminating lamps, the bottom side of the top plate is fixedly connected with a signboard, the other side of the bottom of the top plate is fixedly connected with a camera, the top side of the base station is fixedly connected with a plurality of advertising boards, a real-time circuit diagram is arranged at the interval of the advertising boards, and an inquiry station is arranged at the side of the real-time circuit diagram;

roof top is provided with protection component, contains fixing base, rotating electrical machines, positive and negative screw rod and protective cover board in the protection component, and the fixing base sets up for open-top structure, and the inside both sides of fixing base are provided with the cavity, and the cavity is provided with two sets ofly, and the relative one side of cavity is provided with the slide rail, and rotating electrical machines has been placed to the cavity inboard.

Preferably, the output end of the rotating motor is fixedly connected with a positive screw and a negative screw, the middle part of the positive screw and the negative screw is fixedly connected with a baffle, the two sides of the baffle are provided with sliders, and the side surfaces of the sliders are fixedly connected to the side wall of the protective cover plate.

Preferably, the protection cover plates are arranged in an inverted concave structure, two groups of protection cover plates are arranged, and the bottom sides of the protection cover plates are connected in the sliding rails in a sliding mode.

Preferably, the fixing base middle part is provided with adjusting part, contains adjusting motor, activity case and solar panel in the adjusting part, and adjusting motor bottom is on the diapire in the fixing base as the value, and adjusting motor output fixedly connected with rotating screw.

Preferably, the activity of rotatory screw rod tip runs through the activity case lateral wall and inwards extends, and activity bottom of the case portion fixed connection has a slide on the rotatory screw rod on the diapire in the fixing base, and slide both sides sliding connection has a movable rod on the activity incasement wall, and the slide top articulates there is the movable rod, and the activity of the movable rod other end articulates in the solar panel bottom side, and the solar panel lateral wall is placed in the activity incasement through pivot swing joint solar panel activity on the activity incasement wall.

Preferably, the top side of the base station is provided with an umbrella box, the umbrella box is arranged at the interval of the advertising board, a transparent box door is arranged on the umbrella box, and a plurality of umbrellas are placed in the umbrella box.

Preferably, the base station top is provided with anti-skidding line, and base station top one side fixedly connected with classification garbage bin, base station top opposite side fixedly connected with backup pad are inlayed in the backup pad and are provided with and sell the machine.

Compared with the prior art, the beneficial effects of the utility model are that:

the utility model discloses an adjusting part can carry out the angle modulation to solar panel, to starting adjustment motor, it is rotatory to adjust the rotatory screw rod of motor output drive, the slide of connecting makes a round trip to slide on rotatory screw rod on the rotatory screw rod, the slide passes through the round pin hub rotation with the movable rod and is connected, the movable rod passes through round pin hub swing joint with solar panel, and solar panel again with movable box swing joint, can realize solar panel's angle modulation, be convenient for the better absorption light source of solar panel, the intelligent use of bus stop has been realized, when using, can also need to open or close the guard shield board, when needs open the use to the guard shield board, start rotating electrical machines, the rotation of rotating electrical machines drive positive and negative screw rod, because be provided with two-way screw thread on positive and negative screw rod, the rotation of two directions has been realized, two guard shield boards can be opened simultaneously, can use solar panel absorption sunlight source this moment, when two guard shield boards close, can protect solar panel, can resist external sleet, the invasion and attack of hail even, the degree of protection is higher, and subsequent cost of maintenance is not high.

Drawings

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic view of the open structure of the middle protective cover plate according to the present invention;

FIG. 3 is a schematic view of the overall structure of the middle fixing base of the present invention;

fig. 4 is a schematic top view of the protection assembly of the present invention;

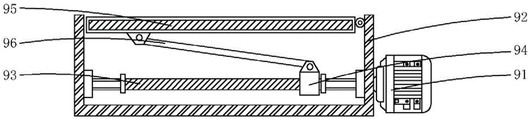

fig. 5 is the schematic diagram of the internal structure of the middle adjusting assembly of the present invention.

In the figure: 1. a base station; 2. a support column; 3. a top plate; 301. an illuminating lamp; 302. a signboard; 303. a camera; 4. a billboard; 5. a real-time wiring diagram; 6. an enquiry platform; 7. a support plate; 71. a vending machine; 8. a guard assembly; 81. a fixed seat; 82. a cavity; 83. a rotating electric machine; 84. a positive and negative screw; 85. a baffle plate; 86. a slider; 87. a slide rail; 88. a shield plate; 9. an adjustment assembly; 91. adjusting the motor; 92. a movable box; 93. rotating the screw; 94. a slide base; 95. a solar panel; 96. a movable rod; 10. an umbrella box; 101. a transparent box door; 102. an umbrella; 11. anti-skid lines; 12. the garbage can is classified.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Example 1:

referring to fig. 1-3, the present invention provides a technical solution: a clean energy environment-friendly multifunctional bus station comprises a base station 1, wherein a support column 2 is fixedly connected to the top side of the base station 1, and a top plate 3 is fixedly connected to the top of the support column 2;

it should be noted that the bottom of the top plate 3 is fixedly connected with a plurality of illuminating lamps 301, the bottom side of the top plate 3 is fixedly connected with a signboard 302, the other side of the bottom of the top plate 3 is fixedly connected with a camera 303, the top side of the base station 1 is fixedly connected with a plurality of advertising boards 4, a real-time circuit diagram 5 is arranged at the interval of the advertising boards 4, and an inquiry station 6 is arranged at the side of the real-time circuit diagram 5;

it should be noted that roof 3 top is provided with protecting component 8, contains fixing base 81, rotating electrical machines 83, positive and negative screw rod 84 and protective cover board 88 in the protecting component 8, and fixing base 81 is the open-top structure setting, and the inside both sides of fixing base 81 are provided with cavity 82, and cavity 82 is provided with two sets ofly, and the relative one side of cavity 82 is provided with slide rail 87, and rotating electrical machines 83 has been placed to cavity 82 inboard.

Example 2:

please refer to fig. 4 and 5, which are a second embodiment of the present invention, the embodiment is based on the previous embodiment;

specifically, the output end of the rotating motor 83 is fixedly connected with a forward screw 84 and a reverse screw 84, the middle part of the forward screw 84 and the reverse screw 84 is fixedly connected with a baffle 85, the two sides of the baffle 85 are provided with sliders 86, and the side surfaces of the sliders 86 are fixedly connected to the side wall of a protective cover plate 88.

It should be noted that the shielding plates 88 are arranged in an inverted concave structure, and two groups of the shielding plates 88 are arranged, and the bottom sides of the shielding plates 88 are slidably connected in the sliding rails 87.

It should be noted that, fixing base 81 middle part is provided with adjusting part 9, contains adjusting motor 91, activity case 92 and solar panel 95 in adjusting part 9, and adjusting motor 91 bottom is on the diapire in fixing base 81 as the value, and adjusting motor 91 output fixedly connected with rotating screw 93.

In addition, the activity of rotatory screw 93 tip runs through movable box 92 lateral wall and inwards extends, and activity box 92 bottom fixed connection is on the diapire in fixing base 81, and threaded connection has slide 94 on the rotatory screw 93, and slide 94 both sides sliding connection is on movable box 92 inner wall, and the slide 94 top articulates there is the movable rod 96, and the activity of the other end of movable rod 96 articulates at solar panel 95 bottom side, and solar panel 95 lateral wall is placed in movable box 92 through pivot swing joint solar panel 95 activity on the inner wall of movable box 92.

Specifically, an umbrella box 10 is arranged on the top side of the base station 1, the umbrella box 10 is arranged at the interval of the advertising board 4, a transparent box door 101 is arranged on the umbrella box 10, and a plurality of umbrellas 102 are placed in the umbrella box 10.

It should be noted that the top of base station 1 is provided with anti-skidding line 11, and base station 1 top one side fixedly connected with categorised garbage bin 12, and base station 1 top opposite side fixedly connected with backup pad 7, inlay on the backup pad 7 and be provided with vending machine 71.

Example 3:

referring to fig. 1 to 4, a third embodiment of the present invention is shown, which is based on the above two embodiments;

the utility model discloses when using, can carry out angle modulation to solar panel 95 through adjusting part 9, to starting adjustment motor 91, adjustment motor 91 output drive swivel screw 93 is rotatory, the slide 94 of connecting makes a round trip to slide on swivel screw 93, slide 94 is connected through the round pin hub rotation with movable rod 96, movable rod 96 and solar panel 95 are through round pin hub swing joint, and solar panel 95 again with movable box 92 swing joint, can realize solar panel 95's angle modulation, be convenient for the better absorption light source of solar panel 95, the intelligent use of bus stop has been realized, when using, can also need to open or close protection cover plate 88, when needs open the use to protection cover plate 88, start swivel motor 83, swivel motor 83 drives positive and negative screw 84 rotation, because be provided with two-way screw thread on positive and negative screw 84, the rotation of two directions has been realized, two protection cover plates 88 can be opened simultaneously, can use solar panel 95 to absorb the sunlight source this moment, when two protection cover plates 88 are closed, can protect solar panel 95, can resist external snow, even attack of hail, the protection degree is higher, and subsequent maintenance cost is not high.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a clean energy environmental protection multifunctional bus stop, includes base station (1), its characterized in that: a supporting column (2) is fixedly connected to the top side of the base platform (1), and a top plate (3) is fixedly connected to the top of the supporting column (2);

the bottom of the top plate (3) is fixedly connected with a plurality of illuminating lamps (301), the bottom side of the top plate (3) is fixedly connected with a signboard (302), the other side of the bottom of the top plate (3) is fixedly connected with a camera (303), the top side of the base station (1) is fixedly connected with a plurality of advertising boards (4), real-time circuit diagrams (5) are arranged at intervals of the advertising boards (4), and query platforms (6) are arranged on the sides of the real-time circuit diagrams (5);

roof (3) top is provided with protecting component (8), contain fixing base (81), rotating electrical machines (83), positive and negative screw rod (84) and protecting cover plate (88) in protecting component (8), fixing base (81) set up for open-top structure, the inside both sides of fixing base (81) are provided with cavity (82), cavity (82) are provided with two sets ofly, the relative one side of cavity (82) is provided with slide rail (87), rotating electrical machines (83) have been placed to cavity (82) inboard.

2. The clean energy environment-friendly multifunctional bus stop according to claim 1, characterized in that: rotating electrical machines (83) output fixedly connected with positive and negative screw rod (84), positive and negative screw rod (84) middle part fixedly connected with baffle (85), baffle (85) both sides are provided with slider (86), slider (86) side fixed connection is on protecting cover plate (88) lateral wall.

3. The clean energy environment-friendly multifunctional bus stop according to claim 2, characterized in that: the protection cover plates (88) are arranged in an inverted concave structure, two groups of protection cover plates (88) are arranged, and the bottom sides of the protection cover plates (88) are connected in the sliding rails (87) in a sliding mode.

4. The clean energy environment-friendly multifunctional bus stop according to claim 1, characterized in that: fixing base (81) middle part is provided with adjusting part (9), interior accommodate motor (91), movable box (92) and solar panel (95) of containing of adjusting part (9), on the diapire in fixing base (81) is worked as the value in adjusting motor (91) bottom, adjust motor (91) output fixedly connected with rotating screw (93).

5. The clean energy environment-friendly multifunctional bus station as claimed in claim 4, wherein: rotatory screw rod (93) tip activity runs through movable box (92) lateral wall and inwards extends, movable box (92) bottom fixed connection is on diapire in fixing base (81), threaded connection has slide (94) on rotatory screw rod (93), slide (94) both sides sliding connection is on movable box (92) inner wall, slide (94) top articulates there is movable rod (96), movable rod (96) other end activity articulates in solar panel (95) bottom side, solar panel (95) lateral wall is through pivot swing joint on movable box (92) inner wall solar panel (95) activity is placed in movable box (92).

6. The clean energy environment-friendly multifunctional bus stop according to claim 1, characterized in that: base station (1) top side is provided with umbrella case (10), umbrella case (10) set up in bill-board (4) interval department, be provided with transparent chamber door (101) on umbrella case (10), a plurality of umbrellas (102) have been placed in umbrella case (10).

7. The clean energy environment-friendly multifunctional bus stop according to claim 6, characterized in that: base station (1) top is provided with anti-skidding line (11), base station (1) top one side fixedly connected with classification garbage bin (12), base station (1) top opposite side fixedly connected with backup pad (7), inlay on backup pad (7) and be provided with and sell machine (71).
