Abstract

The present application relates to the technical field of construction equipment, and discloses an anti-seismic reinforcement device for modern buildings based on structural performance optimization. The bottom of the first connecting plate is provided with an adjusting mechanism, and the two sides of the first connecting plate are provided with a reinforcing mechanism. A first reinforcing plate is welded on one side of a connecting plate, an adjusting rod is slidably connected on the inner surface of the first connecting plate, and a first rotating block is welded on the top of the adjusting rod. The anti-seismic reinforcement device for modern buildings based on structural performance optimization, by adjusting the support angle of the first reinforcement plate, the first reinforcement plate is pressed against the wall, so that when the wall is slightly skewed, the first reinforcement plate can be used for the wall. Adjustments were made to make the building more stable and to improve the earthquake resistance of the walls.

Description

An anti-seismic reinforcement device for modern buildings based on structural performance optimization

technical field

The application relates to the technical field of building construction equipment, in particular to a modern building anti-seismic strengthening device based on structural performance optimization.

Background technique

Buildings include houses and structures. At present, when building walls are reinforced, the usual method is to use frames to support and reinforce the side of the wall. After a long period of use, the outside of the building wall will Slight skewing may occur, resulting in instability of the building, and the existing fixing frame body is inconvenient to adjust, resulting in the fixing frame body not being able to support the wall well.

Therefore, there is an urgent need for a modern building anti-seismic strengthening device based on structural performance optimization to solve the problem of inconvenient adjustment of the fixing frame.

Utility model content

Aiming at the deficiencies of the existing technology, the present application provides a modern building anti-seismic strengthening device based on structural performance optimization, which has the advantage of adjusting the support angle of the fixing frame and solves the problem of inconvenient adjustment of the fixing frame body.

In order to achieve the above purpose, the present application provides the following technical solutions: a modern building anti-seismic strengthening device based on structural performance optimization, including a base, the top of the base is welded with a first support frame, and the inner side of the first support frame is rotatably connected with a The first connecting plate, the bottom of the first connecting plate is provided with an adjustment mechanism, and the two sides of the first connecting plate are provided with reinforcing mechanisms;

The adjustment mechanism includes a second support frame that is rotatably connected to one end of the first connection plate away from the first support frame, and a first reinforcement plate is welded on the side of the second support frame away from the first connection plate. The inner surface of the plate is slidingly connected with an adjustment rod, the top of the adjustment rod is welded with a first rotating block, the outer surface of the adjustment rod is welded with two sets of limit blocks, the bottom of the adjustment rod is threaded with a threaded seat, and the threaded seat The bottom is welded to the top of the base.

The two sets of limit blocks drive the first connecting plate to rotate downward. When the first connecting plate moves down, the second support frame drives the first reinforcing plate to press against the wall, so that when the wall is slightly skewed, the first reinforcing plate The walls can be adjusted to make the building more stable.

Preferably, the two groups of limit blocks are respectively located on the upper and lower sides of the first connecting plate.

Preferably, four sets of fixing columns are welded on the top of the base, and clamping blocks are welded on the bottom of the fixing columns.

Preferably, the reinforcing mechanism includes connecting sleeves welded on both sides of the first connecting plate, the inner surface of the connecting sleeve is rotatably connected with a second rotating block, the outer side of the second rotating block is welded with a second connecting plate, the first The inner surface of the two connecting plates is rotatably connected with a threaded sleeve, one side of the threaded sleeve is threaded with a threaded rod, and the end of the threaded rod away from the threaded sleeve is welded with a second reinforcing plate.

The construction personnel can turn the rotating disk, and the rotating disk drives the threaded sleeve to rotate. When the threaded sleeve rotates, the telescopic length of the threaded rod is changed. When the threaded rod is extended, the second reinforcing plate is pressed, so that the second reinforcing plate is pressed against the wall, so that the wall During construction and reinforcement, stabilize the bottom of the wall so that the wall will not be skewed due to excessive pressure.

Preferably, a third connecting plate is welded on the outer surface of the threaded rod, and the third connecting plate is fixedly connected to two sets of threaded rods.

Preferably, the end of the threaded sleeve away from the threaded rod is welded with a rotating disc.

In summary, the present application includes at least one of the following beneficial effects:

1. The anti-seismic reinforcement device for modern buildings based on structural performance optimization enables the first reinforcement board to press against the wall by adjusting the support angle of the first reinforcement board when the first reinforcement board is supporting the outside of the wall, so that the wall When a slight skew occurs, the wall can be adjusted through the first reinforcing plate, making the building more stable and improving the seismic capacity of the wall.

2. The anti-seismic reinforcement device for modern buildings based on structural performance optimization, by adjusting the length of the second reinforcement plate, the second reinforcement plate can be pressed against the bottom of the wall, so that the bottom of the wall can be stabilized during construction and reinforcement , so that the wall will not be skewed due to excessive pressure, making the wall more stable.

Description of drawings

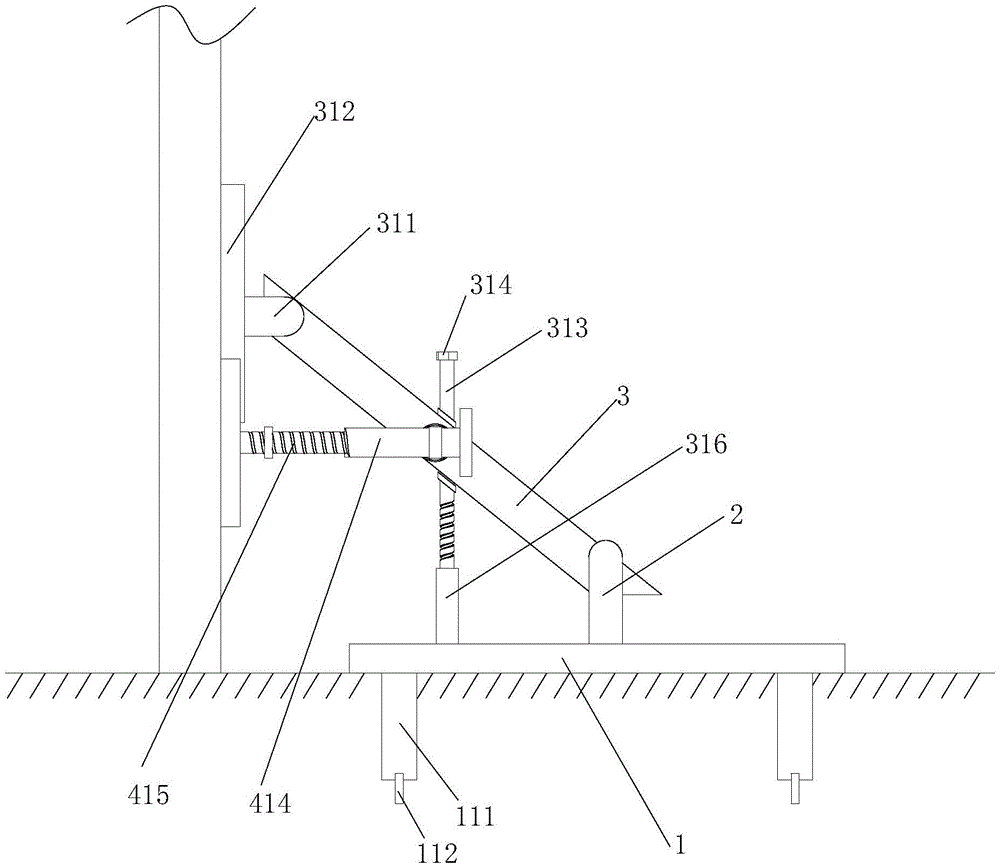

Fig. 1 is the front view of the anti-seismic reinforcing device of the present application;

Fig. 2 is the overall structural diagram of the anti-seismic reinforcing device of the present application;

Fig. 3 is the bottom view structural diagram of the anti-seismic reinforcing device of the present application;

Fig. 4 is a schematic top view of the anti-seismic strengthening device of the structure of the present application.

Among them: 1. base; 111. fixed column; 112. block; 2. first support frame; 3. first connecting plate; 311. second support frame; 312. first reinforcement plate; 313. adjustment rod; 314 , the first rotating block; 315, the limit block; 316, the threaded seat; 411, the connecting sleeve; 412, the second rotating block; 413, the second connecting plate; 414, the threaded sleeve; 415, the threaded rod; 416, the second Reinforcing plate; 417, the third connecting plate; 418, rotating disk.

Detailed ways

The following will clearly and completely describe the technical solutions in the embodiments of the application with reference to the drawings in the embodiments of the application. Apparently, the described embodiments are only some of the embodiments of the application, not all of them. Based on the embodiments in this application, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of this application.

Please refer to Figures 1-4, a modern building anti-seismic strengthening device based on structural performance optimization includes a base 1, a first support frame 2 is welded on the top of the base 1, and a first connecting plate 3 is connected to the inside of the first support frame 2 for rotation, An adjustment mechanism is provided at the bottom of the first connecting plate 3 , and reinforcing mechanisms are provided at both sides of the first connecting plate 3 .

Through the above technical solution, by adjusting the support angle of the first connecting plate 3 , the wall is supported when the wall is slightly skewed, thereby improving the stability of the building.

Specifically, the adjustment mechanism includes a second support frame 311 that is rotatably connected to one end of the first connecting plate 3 away from the first support frame 2, and a first reinforcement plate 312 is welded on the side of the second support frame 311 away from the first connecting plate 3, The inner surface of the first connecting plate 3 is slidably connected with an adjusting rod 313, the top of the adjusting rod 313 is welded with a first rotating block 314, and the outer surface of the adjusting rod 313 is welded with two sets of limit blocks 315, and the two sets of limit blocks 315 are located at the first position respectively. On the upper and lower sides of the connecting plate 3 , the bottom of the adjustment rod 313 is threadedly connected with a threaded seat 316 , and the bottom of the threaded seat 316 is welded to the top of the base 1 .

Through the above technical solution, construction workers can rotate the first rotating block 314, and when the first rotating block 314 rotates, it drives the adjusting rod 313 to rotate. A connecting plate 3 rotates downward, and when the first connecting plate 3 moves down, the second support frame 311 drives the first reinforcing plate 312 to press against the wall, so that when the wall body is slightly skewed, the first reinforcing plate 312 can be used to align the wall. The body is adjusted to make the building more stable and improve the earthquake resistance of the wall.

Specifically, four sets of fixing columns 111 are welded on the top of the base 1 , and clamping blocks 112 are welded on the bottom of the fixing columns 111 .

Through the above technical solution, the fixed column 111 is inserted into the preset slot hole on the ground, and then poured with cement, so that the base 1 is firmly fixed to the ground, and the clamping block 112 is stuck into the ground to prevent the fixed column 111 from detaching after long-term use ground.

Specifically, the reinforcement mechanism includes connecting sleeves 411 welded on both sides of the first connecting plate 3, the inner surface of the connecting sleeve 411 is rotatably connected with a second rotating block 412, and the outer side of the second rotating block 412 is welded with a second connecting plate 413. The inner surface of the plate 413 is rotatably connected with a threaded sleeve 414, the threaded sleeve 414 is connected with the second connecting plate 413 through a bearing, one side of the threaded sleeve 414 is threaded with a threaded rod 415, and the end of the threaded rod 415 away from the threaded sleeve 414 is welded with a second reinforcement The third connecting plate 417 is welded on the outer surface of the plate 416 and the threaded rod 415, and the third connecting plate 417 is fixedly connected with two groups of threaded rods 415, and the end of the threaded sleeve 414 away from the threaded rod 415 is welded with a rotating disc 418.

Through the above technical scheme, the staff can rotate the second connecting plate 413, and when the second connecting plate 413 rotates, the second rotating block 412 rotates inside the connecting sleeve 411, thereby adjusting the position of the threaded sleeve 414 on the second connecting plate 413, when the threaded When the sleeve 414 is rotated to the horizontal position, the construction personnel can rotate the rotating disk 418, and the rotating disk 418 drives the threaded sleeve 414 to rotate. When the threaded sleeve 414 rotates, the telescopic length of the threaded rod 415 is changed. When the threaded rod 415 is extended, the second reinforcement plate 416 is pressed. , so that the second reinforcing plate 416 is pressed against the wall, so that the bottom of the wall is stabilized when the wall is reinforced during construction, so that the wall will not be skewed due to excessive pressure, and the wall is more stable.

When in use, by adjusting the length of the second reinforcing plate 416, the second reinforcing plate 416 can be pressed against the bottom of the wall, so that the wall can stabilize the bottom of the wall during construction and reinforcement, so that the wall will not suffer from excessive Deviant under great pressure.

Although the embodiments of the present application have been shown and described, those skilled in the art can understand that various changes, modifications and substitutions can be made to these embodiments without departing from the principle and spirit of the present application. and modifications, the scope of the application is defined by the appended claims and their equivalents.

Claims (6)

1. A modern building anti-seismic strengthening device based on structural performance optimization, comprising a base (1), characterized in that: the top of the base (1) is welded with a first support frame (2), and the first support frame ( 2) The inner side is rotationally connected with a first connecting plate (3), the bottom of the first connecting plate (3) is provided with an adjustment mechanism, and both sides of the first connecting plate (3) are provided with reinforcing mechanisms; The adjustment mechanism includes a second support frame (311) rotatably connected to one end of the first connection plate (3) away from the first support frame (2), and the second support frame (311) is far away from the first connection plate (3) One side of the first connecting plate (3) is welded with a first reinforcement plate (312), the inner surface of the first connecting plate (3) is slidably connected with an adjustment rod (313), and the top of the adjustment rod (313) is welded with a first rotating block (314) , the outer surface of the adjusting rod (313) is welded with two sets of limit blocks (315), the bottom of the adjusting rod (313) is threadedly connected with a threaded seat (316), and the bottom of the threaded seat (316) is welded to the base ( 1) Top. 2. A modern building anti-seismic strengthening device based on structural performance optimization according to claim 1, characterized in that: two sets of limit blocks (315) are respectively located on the upper and lower sides of the first connecting plate (3) . 3. A kind of anti-seismic strengthening device for modern buildings based on structural performance optimization according to claim 1, characterized in that: the top of the base (1) is welded with four sets of fixed columns (111), and the fixed columns (111 ) bottom is welded with block (112). 4. A kind of anti-seismic reinforcing device for modern buildings based on structural performance optimization according to claim 1, characterized in that: said reinforcing mechanism comprises connecting sleeves (411) welded on both sides of the first connecting plate (3), the The inner surface of the connecting sleeve (411) is rotatably connected with a second rotating block (412), the outer side of the second rotating block (412) is welded with a second connecting plate (413), and the inner surface of the second connecting plate (413) A threaded sleeve (414) is rotatably connected, and one side of the threaded sleeve (414) is threadedly connected with a threaded rod (415), and the end of the threaded rod (415) away from the threaded sleeve (414) is welded with a second reinforcing plate (416) ). 5. A kind of anti-seismic reinforcement device for modern buildings based on structural performance optimization according to claim 4, characterized in that: the outer surface of the threaded rod (415) is welded with a third connecting plate (417), and the third The connecting plate (417) is fixedly connected with two groups of threaded rods (415). The anti-seismic reinforcement device for modern buildings based on structural performance optimization according to claim 4, characterized in that: the end of the threaded sleeve (414) away from the threaded rod (415) is welded with a rotating disk (418).
