Abstract

The utility model relates to the technical field of sheet metal production, in particular to an automatic roller conveying line equipment, comprising a frame body, a main beam is fixedly connected to both sides of the top of the frame body, and a motor is fixedly connected to the sides of the frame body, so that the The inner side of the main beam is rotatably connected with a transmission shaft 1 and a transmission shaft 2, the transmission shaft 1 and the transmission shaft 2 are fixedly connected, and the output end of the motor is connected with the transmission shaft 1 through a synchronous belt. The top is linearly equidistant and fixedly connected with a support seat, a roller is rotatably connected to the support seat, and the first transmission shaft and the second transmission shaft are connected with the roller through the second synchronous belt. The utility model is applied to the circulation station of the automatic plate production line. In the automatic production line, the material feeding inlet, the plate conveying line, the plate material outlet and the row drilling inlet can be adapted, so as to optimize the production capacity requirements of the whole line and avoid the occurrence of line jams. In case of blockage, it has the ability of rapid circulation.

Description

An automatic roller conveyor line equipment

technical field

The utility model relates to the technical field of plate production, in particular to an automatic roller conveying line equipment.

Background technique

During the production process of the board, the original board will be cut into boards of various shapes and sizes according to the needs, and when the board is transferred between various processes, the board is generally loaded on the transport vehicle and transferred to the next In the processing process, after the transfer is completed, the transport vehicle needs to be pushed to the original position. The whole transfer process is very cumbersome, time-consuming and labor-intensive, and the work efficiency is low. In view of this, an automatic roller conveyor line equipment is designed to be used in the circulation of the automatic plate production line. bit.

Utility model content

Aiming at the deficiencies of the existing technology, the utility model provides an automatic roller conveying line equipment, which solves the problem that when the plates are transferred between various processes, the plates are usually loaded on the transport vehicle, and then transferred to the next processing process by the transport vehicle , After the transfer is completed, the transport vehicle needs to be pushed to the original position. The whole transfer process is very cumbersome, time-consuming and labor-intensive, and the work efficiency is low.

In order to solve the above technical problems, the utility model provides the following technical solutions: an automatic roller conveying line equipment, including a frame body, the two sides of the top of the frame body are fixedly connected with main beams, and the sides of the frame body are fixedly connected There is a motor, and the inner side of the main beam is connected to the first transmission shaft and the second transmission shaft, the first transmission shaft and the second transmission shaft are fixedly connected, and the output end of the motor is connected to the first transmission shaft through a synchronous belt. The top of the main beam is linearly and equidistantly fixedly connected to a support seat, and a roller is connected to the support seat in rotation, and the transmission shaft 1 and the transmission shaft 2 are connected to the roller through the timing belt 2. The two inner sides of the main beam The terminals are respectively fixedly connected with sensor one and sensor two.

Preferably, the first synchronous wheel is fixedly sleeved on the output end of the motor, and the second synchronous wheel is fixedly sleeved on the outer surface of the first transmission shaft, and the first synchronous wheel is transmission-connected to the second synchronous wheel through the first synchronous belt.

Preferably, the outer surface of the transmission shaft 1 is fixedly sleeved with a bearing seat 1, and the bearing seat 1 is fixedly connected to the inner side of the main beam.

Preferably, the outer surface of the transmission shaft 2 is fixedly sleeved with a bearing seat 2, and the bearing seat 2 is fixedly connected to the inner side of the main beam.

Preferably, one end of the first transmission shaft is fixedly connected with a coupling, and one end of the second transmission shaft is fixedly connected with the coupling.

Preferably, four corners of the bottom of the frame body are fixedly connected with supporting legs, and the bottoms of the supporting legs are fixedly connected with an adjustment base.

Preferably, both the first sensor and the second sensor are displacement sensors.

By means of the above technical solution, the utility model provides an automatic roller conveying line equipment, which at least has the following beneficial effects:

1. The automatic roller conveying line equipment is applied to the circulation station of the sheet metal automatic production line. In the automatic production line, the feeding inlet, sheet metal conveying line, sheet material outlet, and row drilling inlet can be adapted to optimize the production capacity requirements of the entire line , to avoid the situation of connecting traffic jams and blocking boards, and has the ability of rapid circulation.

2. The automatic roller conveyor line equipment, the motor runs through the timing belt 1, drives the transmission shaft 1 to rotate, and drives the transmission shaft 2 to rotate through the transmission shaft 1, and the transmission shaft 1 and the transmission shaft 2 drive the roller to rotate through the timing belt 2, and the sheet can be It is transferred to the next processing procedure to facilitate the rapid circulation of the board.

3. The automatic roller conveying line equipment installs the first sensor and the second sensor on the inner side of the main beam. The first sensor and the second sensor can detect the moving position of the plate. When it is detected that the plate enters the roller, the signal is transmitted to the automatic roller conveyor. The line equipment makes the motor run, and the plate is conveyed. After the plate is completely out of the automatic roller conveyor line equipment, it stops running.

Description of drawings

The accompanying drawings described here are used to provide a further understanding of the utility model and constitute a part of the application:

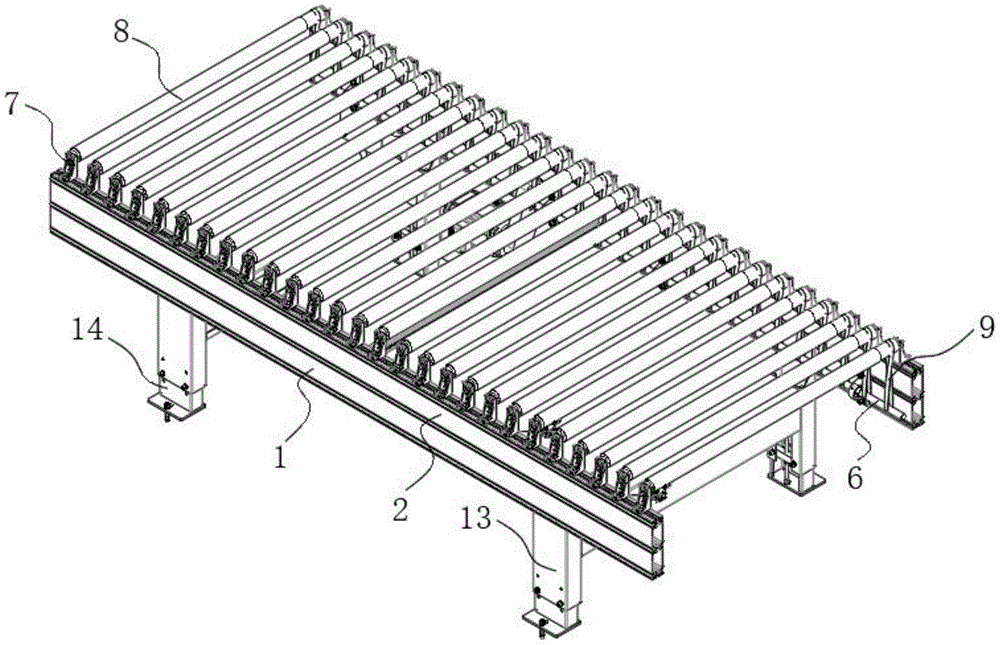

Fig. 1 is a perspective view of the structure of the utility model;

Fig. 2 is a top view of the structure of the utility model;

Fig. 3 is a partially enlarged view of A-A in Fig. 2 of the present invention.

In the figure: 1. frame body; 2. main beam; 3. motor; 4. synchronous belt 1; 5. transmission shaft 1; 6. transmission shaft 2; 10. Sensor one; 11. Sensor two; 12. Coupling; 13. Supporting legs; 14. Adjusting base.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

The utility model will be further described below in conjunction with FIGS. 1-3 and embodiments.

Embodiment one:

An automatic roller conveying line equipment, including a frame body 1, a main beam 2 is fixedly connected to both sides of the top of the frame body 1, a motor 3 is fixedly connected to the side of the frame body 1, and the motor 3 is fixedly connected to the frame body 1 through a mounting bracket Above, the inner side of main beam 2 is rotationally connected with transmission shaft one 5 and transmission shaft two 6, and the outer surface of transmission shaft one 5 is fixedly sleeved with bearing seat one, and bearing seat one is fixedly connected to the inner side of main beam 2, and transmission shaft two The outer surface fixing sleeve of 6 is provided with bearing seat 2, and bearing seat 2 is fixedly connected to the inner side of main beam 2, and transmission shaft 1 5 and transmission shaft 2 6 are fixedly connected, and one end of transmission shaft 1 5 is fixedly connected with shaft coupling 12, One end of the transmission shaft 2 6 is fixedly connected to the shaft coupling 12, the output end of the motor 3 is connected to the transmission shaft 1 5 through the synchronous belt 1 4, the output end of the motor 3 is fixedly sleeved with a synchronous wheel 1, and the transmission shaft 1 5 The outer surface of the fixed sleeve is provided with a synchronous wheel two, and the synchronous wheel one is connected with the synchronous wheel two through a synchronous belt one 4. The top of the main beam 2 is linearly equidistant and fixedly connected with a support seat 7, and the support seat 7 is rotatably connected with a roller 8. Transmission shaft one 5 and transmission shaft two 6 are connected to the drum 8 through the timing belt two 9. The four corners of the bottom of the frame body 1 are fixedly connected with support legs 13, and the bottom of the support legs 13 is fixedly connected with an adjustment base 14.

The automatic roller conveying line equipment is applied to the circulation station of the automatic plate production line. In the automatic production line, the feeding inlet, the plate conveying line, the plate outlet, and the drill inlet can all be adapted to optimize the production capacity requirements of the entire line and avoid In the event of a connection traffic jam, it has the ability to circulate quickly.

The motor 3 runs through the synchronous belt 1 4, drives the transmission shaft 1 5 to rotate, and drives the transmission shaft 2 6 to rotate through the transmission shaft 1 5, and the transmission shaft 1 5 and the transmission shaft 2 6 drive the drum 8 to rotate through the synchronous belt 2 9, and the plate can be rotated. It is transferred to the next processing procedure to facilitate the rapid circulation of the board.

Embodiment two:

An automatic roller conveying line equipment, including a frame body 1, a main beam 2 is fixedly connected to both sides of the top of the frame body 1, a motor 3 is fixedly connected to the side of the frame body 1, and the motor 3 is fixedly connected to the frame body 1 through a mounting bracket Above, the inner side of main beam 2 is rotatably connected with transmission shaft one 5 and transmission shaft two 6, the outer surface of transmission shaft one 5 is fixedly sleeved with bearing seat one, bearing seat one is fixedly connected to the inner side of main beam 2, and transmission shaft two The outer surface fixing sleeve of 6 is provided with bearing seat 2, and bearing seat 2 is fixedly connected to the inner side of main beam 2, and transmission shaft 1 5 and transmission shaft 2 6 are fixedly connected, and one end of transmission shaft 1 5 is fixedly connected with shaft coupling 12, One end of the transmission shaft 2 6 is fixedly connected to the shaft coupling 12, the output end of the motor 3 is connected to the transmission shaft 1 5 through the synchronous belt 1 4, the output end of the motor 3 is fixedly sleeved with a synchronous wheel 1, and the transmission shaft 1 5 The outer surface of the fixed sleeve is provided with the second synchronous wheel, the first synchronous wheel is connected with the second synchronous wheel through the synchronous belt 4, the top of the main beam 2 is linearly equidistant and fixedly connected with the support seat 7, and the support seat 7 is connected with the roller in rotation 8. Transmission shaft 1 5 and transmission shaft 2 6 are connected to the drum 8 through the timing belt 2 9. The two ends inside the main beam 2 are respectively fixedly connected with the sensor 10 and the sensor 2 11. The sensor 10 and the sensor 2 11 are both For the displacement sensor, support legs 13 are fixedly connected to the four corners of the bottom of the frame body 1 , and an adjustment base 14 is fixedly connected to the bottom of the support legs 13 .

Install the first sensor 10 and the second sensor 11 on the inner side of the main beam 2. The first sensor 10 and the second sensor 11 can detect the moving position of the plate. When it is detected that the plate enters the roller 8, the signal is transmitted to the automatic roller conveyor line equipment. The motor 3 is made to run, and the plate is conveyed. After the plate is completely out of the automatic roller conveying line equipment, it stops running.

When in use, sensor one 10 and sensor two 11 detect that the plate enters the roller 8, and transmit the signal to the automatic roller conveying line equipment, so that the motor 3 runs, and the motor 3 runs through the synchronous belt one 4 to drive the transmission shaft one 5 Rotate, drive the transmission shaft 2 6 to rotate through the transmission shaft 1 5, the transmission shaft 1 5 and the transmission shaft 2 6 drive the roller 8 to rotate through the synchronous belt 2 9, and the plate can be transferred to the next processing procedure, and the plate is completely conveyed by the automatic roller After disconnecting the device, the device stops working.

It should be noted that the term "comprising", "comprising" or any other variation thereof is intended to cover a non-exclusive inclusion such that a process, method, article or apparatus comprising a set of elements includes not only those elements, but also includes none other elements specifically listed, or also include elements inherent in such a process, method, article, or apparatus.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (7)

1. An automatic roller conveying line equipment, comprising a frame (1), characterized in that: both sides of the top of the frame (1) are fixedly connected with main beams (2), and the frame (1) The side is fixedly connected with a motor (3), and the inner side of the main beam (2) is rotatably connected with transmission shaft one (5) and transmission shaft two (6), and the transmission shaft one (5) and transmission shaft two (6) Fixedly connected, the output end of the motor (3) is connected to the drive shaft (5) through a synchronous belt one (4), and the top of the main beam (2) is fixedly connected with a support seat (7) in a linear equidistant manner , the support seat (7) is rotatably connected with a drum (8), the first transmission shaft (5) and the second transmission shaft (6) are connected to the drum (8) through a timing belt two (9), and the main Sensor one (10) and sensor two (11) are respectively fixedly connected to two ends of the inner side of the beam (2). 2. The automatic roller conveying line equipment according to claim 1, characterized in that: the output end of the motor (3) is fixedly sleeved with a synchronous wheel one, and the outer surface of the transmission shaft one (5) is fixedly sleeved Two synchronous wheels are arranged, and the first synchronous wheel is transmission-connected with the second synchronous wheel through a synchronous belt one (4). 3. The automatic roller conveying line equipment according to claim 1, characterized in that: the outer surface of the transmission shaft one (5) is fixedly covered with a bearing seat one, and the bearing seat one is fixedly connected to the main beam (2 ) inside. 4. The automatic roller conveying line equipment according to claim 1, characterized in that: the outer surface of the second drive shaft (6) is fixedly sleeved with a bearing seat 2, and the bearing seat 2 is fixedly connected to the main beam (2 ) inside. 5. The automatic roller conveying line equipment according to claim 1, characterized in that: one end of the transmission shaft one (5) is fixedly connected with a coupling (12), and one end of the transmission shaft two (6) is fixed Connect to the coupling (12). 6. The automatic roller conveying line equipment according to claim 1, characterized in that: the four corners of the bottom of the frame (1) are fixedly connected with supporting legs (13), and the bottom of the supporting legs (13) is fixed An adjustment base (14) is connected. 7. The automatic roller conveying line equipment according to claim 1, characterized in that: the first sensor (10) and the second sensor (11) are both displacement sensors.
