Abstract
The utility model relates to a golf training turning bar, which comprises a body; the body is arc-shaped and hollow, and handles are sleeved at two ends of the body; the middle part of the body is fixedly provided with an inner tube, the inner tube is provided with steel balls, and two ends of the inner tube are fixedly provided with stop plates. The utility model relates to a golf training turning stick, the handle is held to training person's both hands, utilizes the shoulder gyration to wave the turning stick, finds the correct turning crotch position, finds stable turning point in the training of relapse to practice into the correct pole of waving, rotate the in-process, steel ball striking backstop board can send out rhythmic sound, and the assistant user finds the correct turning, and also can not feel bored in the training of relapse. The utility model discloses can bring the correct pole of waving, correct health rotation, the correct pole of waving orbit and the most important rhythm of waving for the user.
Description
Technical Field
The utility model relates to a golf training turning bar. Belongs to the technical field of golf equipment.
Background
The game of golf is an item of sports that uses different golf clubs (club) to drive a golf ball into a hole (hole). The golf game is a game with special charm, which makes people exercise body, cultivate feelings and exercises, repair body and maintenance and exchange skills in beautiful natural environment, and is praised as fashionable and elegant game.
Swinging a club with the body's rotation as the core is the most important principle of a golf swing. The swing can only generate force by turning; only by turning around, the action is more easily repeated; and only the body is rotated, so that the player can hit a far, straight and stable shot.
In the prior art, no appliance for turning training exists, so that a plurality of beginners or trainers can not always find the feeling of turning to drive arms and a club to play when swinging, the hitting is frequently missed, and finally the confidence of swinging is gradually lost.
Disclosure of Invention
The utility model aims to overcome the defects and provide a golf training turning bar.
The purpose of the utility model is realized like this:
a golf training turning bar is characterized in that: comprises a body;
the body is arc-shaped and hollow, and handles are sleeved at two ends of the body;
the middle part of the body is fixedly provided with an inner tube, the inner tube is provided with steel balls, and two ends of the inner tube are fixedly provided with stop plates.
Furthermore, the handle is made of soft silica gel.
Furthermore, the handle is provided with a stripe anti-slip design.
Furthermore, a sponge sleeve is fixedly arranged in the middle of the body.
Furthermore, the inner pipe is made of PVC materials.
Further, ten steel balls are provided.
Compared with the prior art, the beneficial effects of the utility model are that:
the utility model relates to a golf training stick of turning round, user's both hands grasp the handle, utilize the shoulder gyration to wave the stick of turning round, find exact commentaries on classics crotch position, find stable turning point in the training that relapses to practise into exact pole, rotate the in-process, steel ball striking backstop board can send rhythmic sound, and the person of assisting the use finds exact turning round, and also can not feel bored in the training repeatedly.
The utility model discloses can bring the correct pole of waving, correct health rotation, the correct pole of waving orbit and the most important rhythm of waving for the user.
Drawings

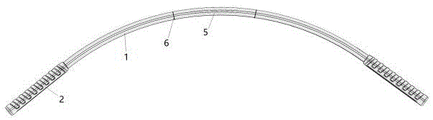

Fig. 1 is a schematic view of the golf training turning bar of the present invention.
Fig. 2 is a cross-sectional view of fig. 1.
Fig. 3 is the schematic diagram of the positions of the steel balls and the stop plates of the present invention.
In the figure:
the handle comprises a body 1, a handle 2, a sponge sleeve 3, an inner tube 4, steel balls 5 and a stop plate 6.
Detailed Description
The following description will further describe embodiments of the present invention with reference to the accompanying drawings and examples. The following examples are only for illustrating the technical solutions of the present invention more clearly, and the protection scope of the present invention is not limited thereby.
Referring to fig. 1-3, the utility model relates to a golf training turning bar, which comprises a body 1.
The body 1 is arc and is the cavity design, and in this embodiment, the both ends cover of body is equipped with handle 2, and the handle adopts soft silica gel to make, has the design of stripe antiskid on the handle 2.
The middle part of the body 1 is fixedly provided with a sponge sleeve 3. Under the effect of the sponge sleeve 3, the user has good comfort when doing the turning training.
The fixed inner tube 4 that is provided with in middle part of body 1, inner tube 4 adopt the PVC material to make, and inner tube 4 is provided with steel ball 5, and in this embodiment, steel ball 5 has 10, and the fixed backstop 6 that is provided with in both ends of inner tube 4, backstop 6 prevent that steel ball 5 from getting into the tip of body 1, and under the effect of backstop 6, steel ball 5 is in the middle part region of body 1 all the time.
The working principle is as follows:
the user grasps the handle 2 with both hands, swings the swing rod by utilizing the shoulders to find the correct turning position, finds the stable turning point in the repeated training, thereby practicing the correct swing, and in the rotating process, the steel ball 5 impacts the stop plate 6 to give out rhythmic sound to assist the user to find the correct swing and also can not feel bored in the repeated training.
The utility model discloses can bring the correct pole of waving, correct health rotation, the correct pole of waving orbit and the most important rhythm of waving for the user.
In the above embodiments, the present invention has been described only by way of example, but those skilled in the art, after reading the present patent application, can make various modifications to the present invention without departing from the spirit and scope of the present invention.
Claims (6)
1. A golf training turn bar, which is characterized in that: comprises a body;
the body is arc-shaped and hollow, and handles are sleeved at two ends of the body;
the middle part of the body is fixedly provided with an inner tube, the inner tube is provided with steel balls, and two ends of the inner tube are fixedly provided with stop plates.
2. A golf training turn bar as defined in claim 1 wherein: the handle is made of soft silica gel.
3. A golf training turn bar as defined in claim 1 wherein: the handle is provided with a stripe anti-slip design.
4. A golf training turn bar as claimed in claim 1, wherein: the middle part of the body is fixedly provided with a sponge sleeve.
5. A golf training turn bar as claimed in claim 1, wherein: the inner pipe is made of PVC material.
6. A golf training turn bar as claimed in claim 1, wherein: there are ten steel balls.
