CN217722367U - An automatic replenishment water supply tank for animal husbandry - Google Patents

Abstract

The utility model relates to the field of animal husbandry, in particular to an automatic water supply tank for animal husbandry, comprising a water tank body, two sides of the water tank body are provided with mounting plates, and one side of the water tank body is located below the mounting plate. There is a water tank at the position, an electric push rod is provided at the top of the mounting plate, one end of the electric push rod is provided with a connecting plate, one end of the connecting plate is provided with a screen frame, and the top side of the water tank is provided with The water injection port, the inside of the water tank body is provided with a liquid level sensor, the bottom of the water tank is provided with a water pipe, the interior of the water tank is provided with a pump body, and one side of the pump body is provided with a connecting wire; this arrangement is convenient for handling The debris left by livestock inside the tank is easy to clean; this setting has the function of automatic water replenishment, which reduces the work intensity of the staff.

Description

A water supply tank for livestock breeding with automatic water replenishment

technical field

The utility model relates to the field of animal husbandry, in particular to a water supply tank for automatic water replenishment for animal husbandry.

Background technique

Animal husbandry refers to the use of livestock, poultry and other animals that have been artificially raised and domesticated by humans, or the physiological functions of wild animals such as deer, musk deer, fox, mink, otter, quail, etc., through artificial breeding and breeding, so that they can use pasture and feed The process of converting plant energy into animal energy to obtain livestock products such as meat, eggs, milk, wool, cashmere, hides, silk, and medicinal materials. It is an extremely important link in the material exchange between human beings and nature. Animal husbandry is an important part of agriculture, and it is listed as the two pillars of agricultural production alongside planting. Animal Husbandry is a comprehensive discipline that studies related fields such as livestock breeding, reproduction, feeding, management, disease prevention and epidemic prevention, grassland construction, animal product processing, and animal husbandry management.

Most of the existing livestock breeding tanks do not have the function of automatic water replenishment, which increases the work intensity of the staff. Secondly, most of the livestock breeding tanks are not convenient to deal with the sundries left by livestock inside the tank, and the cleaning is cumbersome. Therefore, we propose an automatic The livestock breeding water supply tank for replenishing water solves the above problems.

Utility model content

The purpose of this utility model is to provide a kind of water supply tank for animal husbandry and breeding that automatically replenishes water, so as to solve the problem that most of the water supply tanks for animal husbandry and breeding with automatic water replenishment proposed in the above-mentioned background technology do not have the function of automatic water replenishment, which increases the work intensity of the staff. Secondly, Most of the livestock breeding tanks are not convenient to deal with the sundries left by the livestock inside the tank, and the cleaning is cumbersome.

The technical scheme of the utility model is:

A water supply tank for animal husbandry and breeding that automatically replenishes water, comprising a tank body, mounting plates are provided on both sides of the tank body, a water tank is provided on one side of the tank body and below the mounting plate, and the top of the mounting plate An electric push rod is provided, one end of the electric push rod is provided with a connecting plate, one end of the connecting plate is provided with a filter frame, the top side of the water tank is provided with a water injection port, and the inside of the tank body is provided with A liquid level sensor, the bottom of the water tank is provided with a water pipe, the inside of the water tank is provided with a pump body, and one side of the pump body is provided with a connecting wire.

In a further technical solution, the electric push rod is fixedly mounted on the top of the mounting plate, and the connecting plate is fixedly mounted on one end of the electric push rod.

The electric push rod can drive the connecting plate to expand and contract upwards, so as to drive the filter screen frame to stretch out to filter sundries.

In a further technical solution, the filter screen frame is fixedly installed at one end of the connecting plate.

The filter holder can filter the sundries in the sink and is easy to clean.

In a further technical solution, the water injection port is opened on the top side of the water tank through mechanical equipment, the water pipe is installed at the bottom of the water tank, one end of the water pipe runs through the water tank and is connected to the pump body inside it, and the water pipe The other end extends into the sink body.

The water injection port can fill the inside of the water tank with water in advance to ensure the use of subsequent water replenishment.

In a further technical solution, the liquid level sensor is embedded in the tank body through a groove.

The liquid level sensor can transmit the signal of lack of water in the water tank to the pump body, and the pump body will flow water into the water tank.

In a further technical solution, the pump body is installed inside the water tank through bolts.

The pump body can drive water into the water tank to ensure the normal drinking of livestock.

In a further technical solution, the connecting wire is electrically connected to the pump body, and the other end of the connecting wire runs through the tank body and is electrically connected to the liquid level sensor.

The connecting wire can connect the pump body with the liquid level sensor to realize the transmission of electrical signals, thereby realizing the function of replenishing water.

The beneficial effects of the utility model are:

1. The structure composed of the mounting plate is convenient for handling the sundries left by the livestock inside the water tank. The structure composed of the water tank and the liquid level sensor can make the water tank have the function of automatic water replenishment, which reduces the work of the staff, and the liquid level here The sensor is an existing technology, so there is no need to explain too much.

2. The electric push rod can drive the connecting plate to expand and contract upwards, so as to drive the filter frame to extend out to filter debris.

3. The filter frame can filter the sundries in the sink, and it is easy to clean.

4. The water injection port can fill the inside of the water tank with water in advance to ensure the use of subsequent water replenishment.

5. The liquid level sensor can transmit the signal of water shortage in the tank to the pump body, and the pump body will flow the water into the tank.

6. The pump body can drive water into the tank to ensure the normal drinking of livestock.

7. The connecting wire can connect the pump body with the liquid level sensor to realize the transmission of electrical signals, thereby realizing the function of replenishing water.

Description of drawings

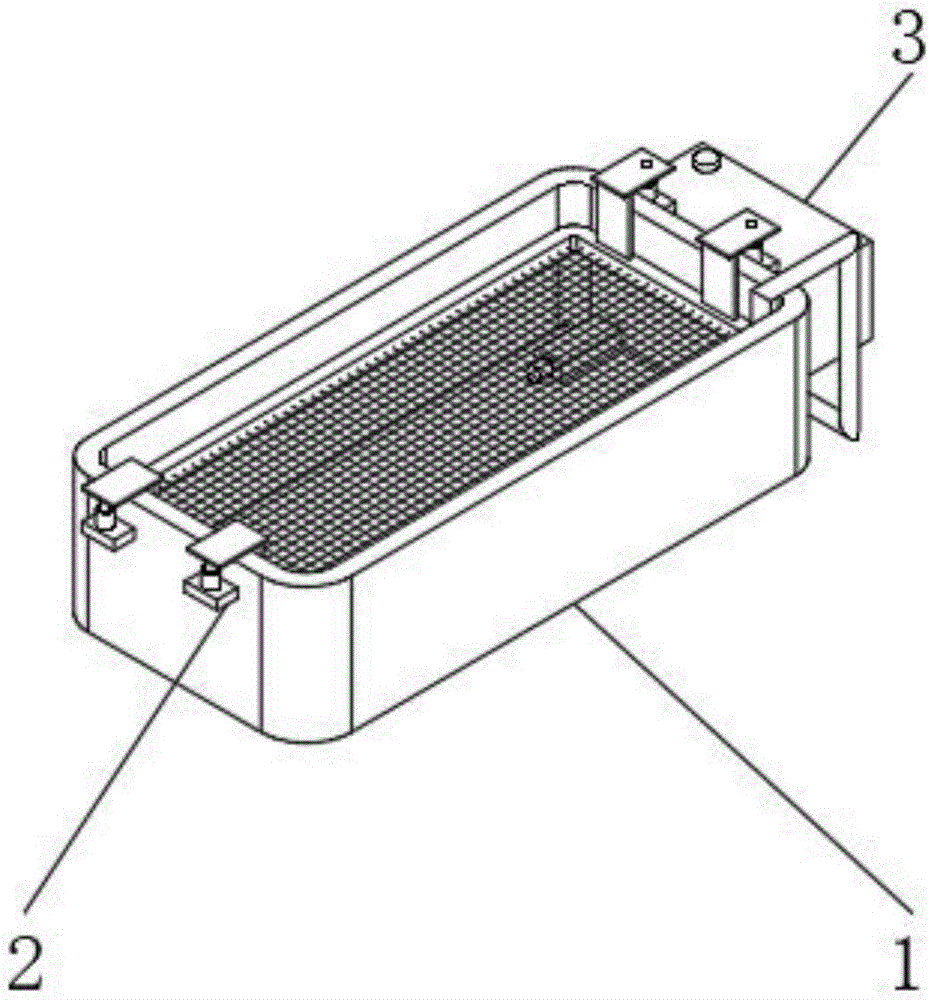

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the structural representation of the installation plate of Fig. 1 of the utility model;

Fig. 3 is an exploded view of the sink body of the utility model;

Fig. 4 is a schematic diagram of the internal structure of the water tank in Fig. 3 of the present utility model.

In the figure: 1. Tank body; 2. Installation plate; 3. Water tank; 4. Electric push rod; 5. Connecting plate; 6. Filter frame; 7. Water injection port; 8. Liquid level sensor; 9. Water pipe; 10 , Pump body; 11, connecting wires.

Detailed ways

Embodiments of the utility model will be further described below in conjunction with the accompanying drawings.

As shown in Figures 1 to 4, a water supply tank for livestock breeding with automatic water replenishment includes a tank body 1, installation plates 2 are provided on both sides of the tank body 1, and one side of the water tank body 1 is located below the installation plate 2 A water tank 3 is provided, an electric push rod 4 is provided on the top of the mounting plate 2, a connection plate 5 is provided at one end of the electric push rod 4, a filter screen frame 6 is provided at one end of the connection board 5, and a sprayer is provided at one side of the top of the water tank 3. A water outlet 7, a liquid level sensor 8 is provided inside the tank body 1, a water pipe 9 is provided at the bottom of the water tank 3, a pump body 10 is provided inside the water tank 3, and a connecting wire 11 is provided on one side of the pump body 10.

In another embodiment, the electric push rod 4 is fixedly mounted on the top of the mounting plate 2, the connecting plate 5 is fixedly mounted on one end of the electric push rod 4, the filter frame 6 is fixedly mounted on one end of the connecting plate 5, and the water injection port 7 passes through The mechanical equipment is installed on the top side of the water tank 3, and the water pipe 9 is installed at the bottom of the water tank 3. One end of the water pipe 9 runs through the water tank 3 and is connected with the pump body 10 inside, and the other end of the water pipe 9 extends into the tank body 1. The liquid level The sensor 8 is embedded in the tank body 1 through a groove, the pump body 10 is installed inside the water tank 3 through bolts, the connecting wire 11 is electrically connected to the pump body 10, and the other end of the connecting wire 11 runs through the tank body 1 and is connected to the liquid level. The sensor 8 is electrically connected.

Install the installation plate 2 on the water tank. When cleaning the water tank, connect the electric push rod 4 to the power supply. The electric push rod 4 drives the connecting plate 5 to expand and contract upward. The inner filter frame 6 is upward from the bottom and collects debris on its surface. After the electric push rod 4 stretches to the required height, the staff will clean up the debris on the filter frame 6. This setting is convenient for processing the inside of the sink. The sundries left by livestock are easy to clean up; the water tank 3 is installed on the water tank, and the water tank 3 is filled with water through the water injection port 7 in advance. Inside the body 10, the pump body 10 receives the signal. After the pump body 10 runs, under the action of the centrifugal force generated by the high-speed rotation of the impeller, the water in the impeller channel is thrown to the surroundings and pressed into the volute, and the impeller inlet forms a vacuum, and then the water tank 3. The water is thrown out by the impeller through the volute and enters the water pipe 9, and the water pipe 9 discharges the water into the water tank, thereby realizing automatic water replenishment. The liquid level sensor 8 in this structure is the prior art, and no further explanation is required. It is equipped with an automatic water replenishment function, which reduces the work intensity of the staff.

In the present utility model, unless otherwise specified and limited, for example, it may be a fixed connection, or a detachable connection, or integrated; it may be a mechanical connection, or it may be an electrical connection; it may be a direct connection, or It can be indirectly connected through an intermediary, or it can be the internal communication of two elements or the interaction relationship between two elements. Unless otherwise clearly defined, those of ordinary skill in the art can understand the above terms in this document according to the specific situation. Concrete meaning in utility model.

The above-mentioned embodiments only express the specific implementation manners of the utility model, and the description thereof is relatively specific and detailed, but it should not be construed as limiting the patent scope of the utility model. It should be noted that those skilled in the art can make several modifications and improvements without departing from the concept of the present invention, and these all belong to the protection scope of the present invention.

Claims (7)

1. The utility model provides an automatic water supply tank is bred in livestock-raising of moisturizing, includes the basin body, its characterized in that: the water tank comprises a water tank body and is characterized in that mounting plates are arranged on two sides of the water tank body, a water tank is arranged at a position below the mounting plates and on one side of the water tank body, an electric push rod is arranged at the top end of the mounting plates, a connecting plate is arranged at one end of the electric push rod, a filter screen frame is arranged at one end of the connecting plate, a water filling port is arranged on one side of the top end of the water tank, a liquid level sensor is arranged inside the water tank body, a water pipe is arranged at the bottom of the water tank, a pump body is arranged inside the water tank, and a connecting wire is arranged on one side of the pump body.

2. An automatic water replenishing livestock-raising water supply tank according to claim 1, characterized in that: the electric push rod is fixedly installed at the top end of the installation plate, and the connecting plate is fixedly installed at one end of the electric push rod.

3. An automatic water replenishing livestock-raising water supply tank according to claim 1, characterized in that: the filter screen frame is fixedly arranged at one end of the connecting plate.

4. The livestock-raising water supply tank capable of automatically replenishing water according to claim 1, characterized in that: the water filling port is arranged on one side of the top end of the water tank through mechanical equipment, the water pipe is arranged at the bottom of the water tank, one end of the water pipe penetrates through the water tank and is connected with the pump body inside the water pipe, and the other end of the water pipe extends into the water tank body.

5. An automatic water replenishing livestock-raising water supply tank according to claim 1, characterized in that: the liquid level sensor is embedded in the water tank body through the caulking groove.

6. The livestock-raising water supply tank capable of automatically replenishing water according to claim 1, characterized in that: the pump body is installed in the water tank through bolts.

7. The livestock-raising water supply tank capable of automatically replenishing water according to claim 1, characterized in that: the connecting wire is electrically connected with the pump body, and the other end of the connecting wire penetrates through the water tank body and is electrically connected with the liquid level sensor.
