本实用新型涉及装饰板技术领域，具体为一种具有防潮功能的建筑装修用装饰板，包括主材板和版面，所述主材板的一侧固定连接有连接块，所述连接块的上表面开设有第一螺丝孔，所述主材板的一侧固定连接有第一安装轨，所述主材板的上表面开设有第二螺丝孔，所述主材板的一侧开设有连接槽，所述主材板的一侧开设有第一安装槽，所述主材板的一侧开设有两条第二安装槽。本实用新型的优点在于：该具有防潮功能的建筑装修用装饰板，具有防水，防潮，保暖，版面采用容易清洁材质便于日常清洁，该装饰板采用装饰板版面与主材板分体式结构，可以在装修完之后不用整体拆除就可以更换自己想要的图案与颜色，解决了操作繁琐，效率低，成本高的问题。
The utility model relates to the technical field of decorative panels, in particular to a decorative panel for building decoration with moisture-proof function, comprising a main material board and a layout, one side of the main material board is fixedly connected with a connecting block, and the upper part of the connecting block is A first screw hole is opened on the surface, a first mounting rail is fixedly connected to one side of the main material plate, a second screw hole is opened on the upper surface of the main material plate, and a connection is opened on one side of the main material plate One side of the main material board is provided with a first installation groove, and one side of the main material board is provided with two second installation grooves. The advantages of the utility model are: the decorative board for building decoration with moisture-proof function is waterproof, moisture-proof and warm, and the layout is made of easy-to-clean materials, which is convenient for daily cleaning. After the decoration is completed, you can change the pattern and color you want without removing it as a whole, which solves the problems of cumbersome operation, low efficiency and high cost.
Description
Technical Field
The utility model relates to a decorative board technical field, especially a decorative board for building decoration with dampproofing function.
Background
The decorative board is a kind of furniture material, and is a kind of artificial board, and is a thermosetting laminated plastic made up by using several kinds of special-purpose paper through the processes of chemical treatment and high-temp. and high-pressure adhesive, and its board surface possesses various wood grains or patterns, and is bright, smooth, bright and beautiful in colour and lustre, and possesses the good physical properties of resisting wear, resisting heat, resisting cold and resisting fire, etc.. The wall and roof of many high-grade houses, the cabinets, tables and beds for making them, the working table of precision instruments, the laboratory table of laboratory, TV set, radio and other radio and telecommunication equipment, and the plastic decorative plate, which is plastic plate for building decoration, is made of resin plate, surface layer paper, bottom layer paper, decorative paper, covering paper and demoulding paper. The surface paper, the decorative paper, the covering paper and the bottom paper are respectively impregnated with resin, dried and assembled into a blank, and then hot pressed to obtain the veneered decorative board.
Most of the existing decorative boards are designed in an integrated mode, and once the decorative boards are decorated to replace patterns, the decorative boards need to be integrally dismantled and reinstalled, so that the decorative boards are not only complex in operation and low in efficiency, but also high in cost, and the existing decorative boards are attached to a wall body in an adhesive mode and are easy to fall off and cause accidents after long-time use.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to overcome prior art's shortcoming, provide a decorative board for building decoration with dampproofing function.
The purpose of the utility model is realized through the following technical scheme: the utility model provides a decorative board for building decoration with dampproofing function, includes main material board and face, one side fixedly connected with connecting block of main material board, first screw hole has been seted up to the upper surface of connecting block, the first installation rail of one side fixedly connected with of main material board, the second screw hole has been seted up to the upper surface of main material board, first connecting groove has been seted up to one side of main material board, first mounting groove has been seted up to one side of main material board, two second mounting grooves have been seted up to one side of main material board.
Optionally, the two sides of the board surface are fixedly connected with second connecting rails.
Optionally, the outer surface of the second connecting rail is slidably connected to the inner surface of the second mounting groove.
Optionally, the first layer of the main sheet material is a fire barrier layer.
Optionally, the second layer of the main board is an insulating layer.
Optionally, the third layer of the host sheet is a moisture barrier.
Optionally, the fourth layer of the master board is a base layer.
The utility model has the advantages of it is following:
1. this decorative board adopts the decorative board space of a whole page and the split type structure of main material board, can just can change the pattern and the colour that oneself wanted without whole demolising after finishing, has solved complex operation, and is inefficient, problem with high costs can satisfy the user house environment change of different periods, improves the indoor aesthetic property of user.
2. This decorative board has seted up the screw hole at main material board, can be through the screw with the stable fixing of decorative board on the wall body, can be fine through the looks adaptation of face and main material board shelter from the screw, has both guaranteed the aesthetic property of decorative board, guarantees again that the decorative board stabilizes on the wall.
3. This decorative board is pegged graft through the connecting block and is connected between the decorative board about making in the second spread groove, be connected between the decorative board about again through third installation rail sliding connection makes in first mounting groove, use the screw to pass third screw hole and first screw hole with the stable fixing of decorative board on the wall, the in close contact with between the decorative board has both been guaranteed, guarantee again that the decorative board fixes the condition that can not take place to drop on the wall, second installation rail through the face both sides is sliding connection in the second mounting groove at last, decorative board look aesthetic property has been guaranteed, shelter from the screw, the face adopts easy clear material, daily cleanness is cleaned in convenience later on.
Drawings

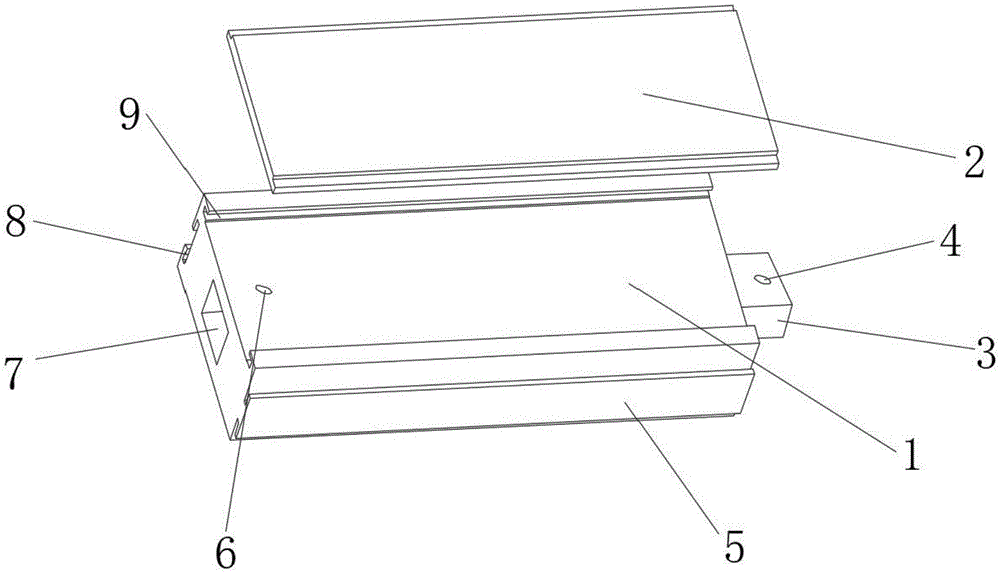

Fig. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic structural view of the board surface of the present invention;
fig. 3 is a schematic structural view of a cross-sectional view of the main plate of the present invention;
fig. 4 is a schematic structural view of the connection mode of the decorative plate of the present invention.
In FIGS. 1-4: 1-main board, 2-board surface, 3-connecting block, 4-first screw hole, 5-first mounting rail, 6-second screw hole, 7-first connecting groove, 8-first mounting groove, 9-second mounting groove, 10-second mounting rail, 101-fireproof layer, 102-insulating layer, 103-dampproof layer, 104-basal layer, 201-third mounting rail, 202-second connecting groove, 203-third screw hole.
Detailed Description
The invention will be further described with reference to the accompanying drawings, but the scope of the invention is not limited to the following description.
As shown in fig. 1-4, a decorative board for building decoration with dampproofing function, it includes main board 1 and face 2, one side fixedly connected with connecting block 3 of main board 1, first screw hole 4 has been seted up to the upper surface of connecting block 3, one side fixedly connected with first installation rail 5 of main board 1, second screw hole 6 has been seted up to the upper surface of main board 1, first connecting groove 7 has been seted up to one side of main board 1, first mounting groove 8 has been seted up to one side of main board 1, two second mounting grooves 9 have been seted up to one side of main board 1, this decorative board is pegged graft through connecting block 3 and is connected between the decorative board about making in second connecting groove 202, again through third installation rail 201 slide connection make between the decorative board about in first mounting groove 8, use the screw to pass third screw hole 203 and first screw hole 4 with the stable fixing of decorative board on the wall, both guaranteed the intimate contact between the decorative board, guarantee the condition that the decorative board can not take place to drop on the wall again, last second installation rail 10 through 2 both sides of face is in second mounting groove 9, the interior sliding connection of decorative board, the maintenance of convenience is clean, the clean after-up the daily use, the clean material of the easy cleaning of the maintenance.
As a preferred technical solution of the utility model: the rail 10 is connected to the both sides fixedly connected with second of face 2, and face 2 adopts the PVC material to make, and this material has lightly, and the anticollision is convenient for functions such as daily cleanness, can also change the colour and the pattern that oneself liked with lower price in the use in the future.
As a preferred technical solution of the utility model: the outer surface of the second connecting rail 10 is connected with the inner surface of the second mounting groove 9 in a sliding mode, so that the later dismounting and mounting are facilitated, the integral dismounting is not needed, and the problems of complex operation, low efficiency and the like are solved.
As an optimal technical solution of the utility model: the first layer of the main board 1 is a fireproof layer 101, and a high-temperature-resistant high polymer material is adopted, so that dangerous conditions caused by combustion of the decorative board due to a fire source are prevented well.
As an optimal technical solution of the utility model: the second layer of the main board 1 is an insulation layer 102, which is made of rock insulation.
As an optimal technical solution of the utility model: the third layer of the main board 1 is a moisture-proof layer 103, which adopts a honeycomb-shaped elastic structure to increase the buffer force for the whole decorative board.
As an optimal technical solution of the utility model: the fourth layer of main material board 1 is stratum basale 104, and this layer has all been laid the tarpaulin, has blockked steam from the source and has passed through the decorative board, has isolated steam, dampproofing and waterproofing's effect.
In summary, the following steps: this decorative board adopts decorative board space of a whole page 2 and 1 split type structure of main material board, can just can change the pattern and the colour that oneself wanted without whole demolising after finishing, the complex operation has been solved, low efficiency, the problem with high costs, can satisfy the change of user's house environment of different periods, improve the indoor aesthetic property of user, this decorative board has seted up the screw hole at main material board 1, can be through the stable fixing of screw with the decorative board on the wall body, can be fine sheltering from the screw through face 2 and main material board 1's looks adaptation, both guaranteed the aesthetic property of decorative board, guarantee again that the decorative board is firm on the wall, this decorative board is connected between the decorative board about pegging graft in second spread groove 202 through connecting block 3 makes, again through third installation rail 201 sliding connection in first mounting groove 8 make between the upper and lower decorative board be connected, use the screw to pass third screw hole 203 and the stable fixing of first screw hole 4 on the wall of decorative board, both guaranteed the in-touch between the decorative board, guarantee again the condition that the decorative board can not take place to drop on the wall, last second installation rail 10 through face 2 both sides is in second mounting groove 9 sliding connection, the beautifully guaranteed, the clean material of the convenience of sheltering from the screw, the clean back of the cleaning of the convenience.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. The utility model provides a decorative board for building decoration with dampproofing function which characterized in that: including main material board (1) and face (2), one side fixedly connected with connecting block (3) of main material board (1), first screw hole (4) have been seted up to the upper surface of connecting block (3), the first installation rail of one side fixedly connected with (5) of main material board (1), second screw hole (6) have been seted up to the upper surface of main material board (1), first connecting groove (7) have been seted up to one side of main material board (1), first mounting groove (8) have been seted up to one side of main material board (1), two second mounting grooves (9) have been seted up to one side of main material board (1).
2. The decorative plate for building finishing having moisture proof function as claimed in claim 1, wherein: and the two sides of the board surface (2) are fixedly connected with second connecting rails (10).
3. The decorative panel for building decoration having moisture-proof function as claimed in claim 2, wherein: the outer surface of the second connecting rail (10) is connected with the inner surface of the second mounting groove (9) in a sliding mode.
4. The decorative panel for building decoration having moisture-proof function as claimed in claim 1, wherein: the first layer of the main material plate (1) is a fire-resistant layer (101).
5. The decorative panel for building decoration having moisture-proof function as claimed in claim 1, wherein: the second layer of the main board (1) is an insulating layer (102).
6. The decorative panel for building decoration having moisture-proof function as claimed in claim 1, wherein: the third layer of the main board (1) is a moisture barrier (103).
7. The decorative panel for building decoration having moisture-proof function as claimed in claim 1, wherein: the fourth layer of the master board (1) is a base layer (104).
