CN217704409U

CN217704409U - Electronic toy casing injection moulding machine

Info

Publication number: CN217704409U
Application number: CN202221335814.7U
Authority: CN
Inventors: 何世明
Original assignee: Dongguan Xifu Plastic Products Co ltd
Current assignee: Dongguan Xifu Plastic Products Co ltd
Priority date: 2022-05-31
Filing date: 2022-05-31
Publication date: 2022-11-01
Anticipated expiration: 2032-05-31

Abstract

The utility model discloses an electronic toy shell injection molding machine, which comprises a base, a servo motor is arranged on the inner side of the base, a screw rod is fixedly installed on the top of the output shaft of the servo motor, and a vertical shaft is fixedly installed on the side of the top of the base away from the screw rod. A threaded block is installed on the upper thread, a sleeve block is sleeved on the retractable shaft, a hopper block is fixedly installed between the threaded block and the sleeve block, the top of the hopper block is provided with a feeding port, the back of the hopper block is fixedly installed with a rotating motor, and the front of the hopper block is installed. The injection barrel is fixedly connected, and the round shafts are fixedly installed on both sides of the base. The injection molding machine can not only be selectively installed according to actual needs to improve the installability of the equipment, but also can cooperate with each other through the servo motor, screw and hopper block. As a result, the device can adjust the height of adaptability according to the size of the mold, without repeating the installation of equipment, which effectively improves the practicability and adjustability of the injection molding machine.

Description

Electronic toy casing injection moulding machine

Technical Field

The utility model relates to an injection molding technical field specifically is an electronic toy casing injection moulding machine.

Background

The injection moulding machine is similar to the injection syringe for injection, and is a technological process in which the plasticized plastic in a molten state (i.e. viscous state) is injected into a closed mould cavity by means of the thrust of a screw (or a plunger), and the product is obtained after solidification and shaping. Injection molding is a cyclic process, each cycle consisting essentially of: quantitative feeding, melting and plasticizing, pressure injection, mold filling and cooling, mold opening and mold taking. And taking out the plastic part, closing the mold again, and performing the next cycle.

The shell of the electronic toy is basically formed by plastic injection, the existing injection molding machine generally sends plastic particles into the injection molding machine through a feed hopper, and then the plastic is conveyed into a mold cavity through the feed hopper for cooling and molding.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide an electronic toy casing injection moulding machine to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides an electronic toy casing injection moulding machine, includes the base, one side is provided with servo motor in the base, servo motor output shaft top fixed mounting has the screw rod, one side fixed mounting who keeps away from the screw rod on the base top has the vertical scroll, the screw thread is installed to the screw rod, contracts the cover is equipped with the cover piece on the vertical scroll, fixed mounting has the hopper piece between screw thread piece and the cover piece, hopper piece top is provided with the feed inlet, hopper piece back fixed mounting has the rotation motor, the hopper piece openly fixed intercommunication has the injection tube, base both sides fixed mounting has the circle axle.

Preferably, the one end fixed mounting that the base was kept away from to the circle axle has the fixed lantern ring, equal fixed mounting of fixed lantern ring one side opening part has two fixed plates.

Preferably, the same fixing bolt is inserted into the surface of the two fixing plates in a threaded manner, and a fixing nut is installed at one end of the fixing bolt in a threaded manner.

Preferably, the top ends of the screw rod and the vertical shaft are both provided with a stop block, and the stop block is in threaded connection with the top ends of the screw rod and the vertical shaft.

Preferably, the injection tube is provided with an injection nozzle on the front side, and the injection nozzle is fixedly communicated with the inside of the injection tube.

Preferably, the bottom of the front surface and the back surface of the base are fixedly provided with mounting plates, and the top surfaces of the mounting plates are provided with a plurality of fixing threaded holes.

Compared with the prior art, the beneficial effects of the utility model are that: this injection moulding machine not only can carry out the selectivity installation according to the actual demand, lifting means's installability, but also can be through servo motor, screw rod and hopper piece mutually support, make the device can carry out adaptation nature altitude mixture control according to the size of a dimension of mould, need not to carry out the repeatability installation of equipment, the effectual practicality and the controllability that has promoted this injection molding machine, further this equipment through set up that the piece still can be convenient carry out the equipment and the dismantlement of hopper piece, make things convenient for the maintenance of later stage equipment.

Drawings

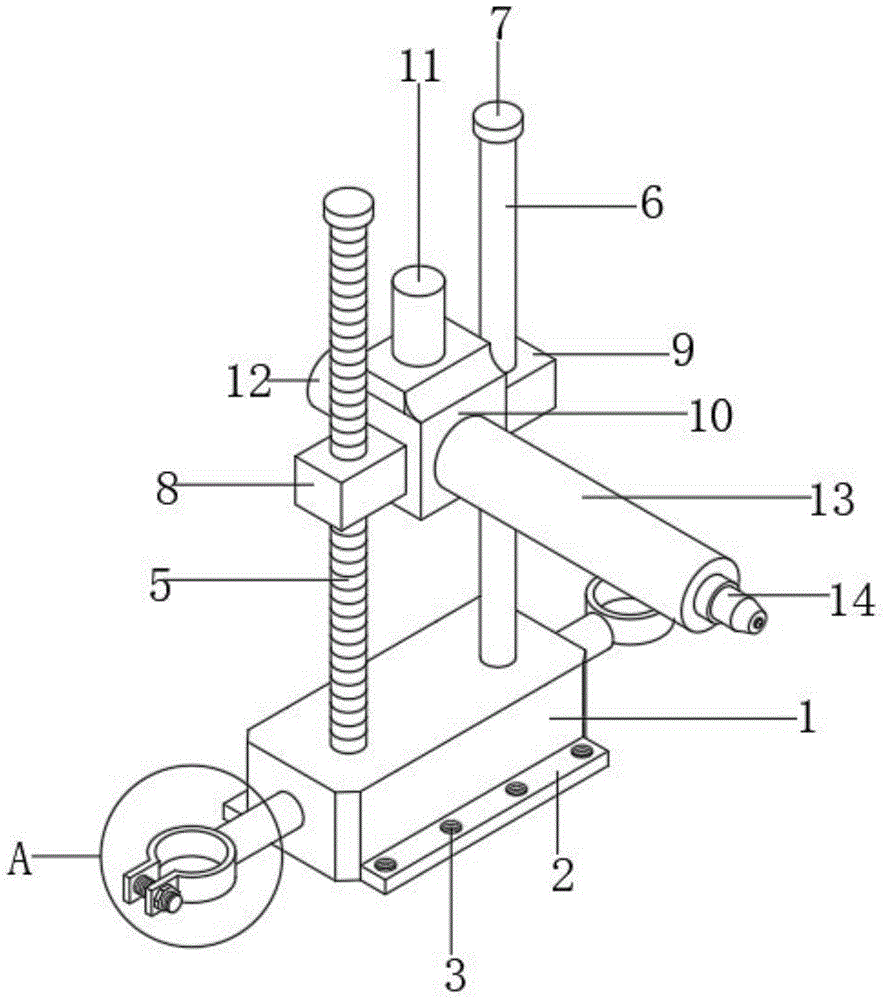

Fig. 1 is a schematic view of the overall three-dimensional structure of the present invention;

FIG. 2 is a schematic view of the inner plane structure of the base of the present invention;

FIG. 3 is an enlarged schematic view of the area A of FIG. 1 according to the present invention;

fig. 4 is a schematic view of the three-dimensional structure of the injection tube of the present invention.

In the figure: 1. a base; 2. mounting a plate; 3. fixing the threaded hole; 4. a servo motor; 5. a screw; 6. a vertical shaft; 7. blocking; 8. a thread block; 9. sleeving blocks; 10. a hopper block; 11. a feed inlet; 12. rotating the motor; 13. an injection tube; 14. an injection molding nozzle; 15. a circular shaft; 16. a fixed collar; 17. a fixing plate; 18. fixing the bolt; 19. and fixing the nut.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts all belong to the protection scope of the present invention.

Referring to fig. 1-4, the present invention provides a technical solution: the utility model provides an electronic toy casing injection moulding machine, includes base 1, one side is provided with servo motor 4 in the base 1, servo motor 4 output shaft top fixed mounting has screw rod 5, one side fixed mounting that screw rod 5 was kept away from on 1 top of base has vertical scroll 6, screw thread installs screw block 8 on the screw rod 5, contracts the cover is equipped with cover block 9 on the vertical scroll 6, fixed mounting has hopper piece 10 between screw block 8 and the cover block 9, hopper piece 10 top is provided with feed inlet 11, hopper piece 10 back fixed mounting has rotation motor 12, hopper piece 10 openly fixed intercommunication has

injection tube

13, 1 both sides fixed mounting of base has round axle 15, and the plastics that can make things convenient for the liquefaction through feed inlet 11 enter into inside hopper piece 10.

In this embodiment, a fixing collar 16 is fixedly mounted at one end of the circular shaft 15 far away from the base 1, two fixing plates 17 are fixedly mounted at an opening on one side of the fixing collar 16, two same fixing bolts 18 are inserted into surface threads of the fixing plates 17, fixing nuts 19 are mounted at one end threads of the fixing bolts 18, and the two fixing plates 17 are locked and fixed through cooperation of the fixing bolts 18 and the fixing nuts 19.

Furthermore, the top ends of the screw rod 5 and the vertical shaft 6 are respectively provided with a stopping block 7, the stopping blocks 7 are in threaded connection with the top ends of the screw rod 5 and the vertical shaft 6, the stopping blocks 7 can play a limiting role, the hopper block 10 is prevented from being separated from the screw rod 5 in the lifting process, meanwhile, the stopping blocks 7 can be detached when the hopper block 10 needs to be detached and maintained, and therefore the hopper block 10 can be detached and detached from the top end of the screw rod 5.

Still further, the injection tube 13 is provided with an injection nozzle 14 on the front surface, the injection nozzle 14 is fixedly communicated with the inside of the injection tube 13, and liquefied plastic can be introduced into a mold through the injection nozzle 14, so that the plastic can be cooled and molded in the mold.

Furthermore, the mounting plate 2 is fixedly mounted at the bottom of the front surface and the bottom of the back surface of the base 1, the top surface of the mounting plate 2 is provided with a plurality of fixing threaded holes 3, and the injection molding machine can be fixedly mounted on the ground by inserting the bolt threads into the fixing threaded holes 3 formed in the upper surface of the mounting plate 2.

During the use, can select the mesa fixed or the cover post is fixed according to actual demand, the mesa is fixed only need place base 1 on the mesa, insert the fixed screw hole 3 that the mounting panel 2 upper surface was seted up through the bolt screw afterwards can, if need carry out the cover post fixed, only need through the fixed lantern ring 16 with whole equipment install on the take the altitude of mesa post can, after installing through fixing bolt 18 and fixation nut 19 cooperation, lock two fixed plates 17 and fix, can carry out the high demand of actual moulding plastics after fixing, be that the injection port position of mould carries out the adaptation, only need open servo motor 4 during the adaptation, servo motor 4 rotates and can drive screw rod 5 and rotate, screw rod 5 rotates and can drive the screw block 8 of its screw thread installation and go up and down along the direction of screw rod 5, and screw block 8 again with hopper block 10 side fixed connection, consequently, can drive hopper block 10 under the drive of screw block 8 and go up and down, and then adjust hopper block 10 to the adaptation height, make injection tube 13 and the mouth 14 of moulding plastics of hopper block 10 front fixed mounting just can be to the mould plastics to the injection port, and make both carry out the butt joint injection port.

To sum up, this injection moulding machine not only can carry out the selectivity installation according to the actual demand, lifting means's installability, but also can be through servo motor, screw rod and hopper piece mutually support for the device can carry out adaptation nature altitude mixture control according to the size of a dimension of mould, need not to carry out the repeatability installation of equipment, the effectual practicality and the controllability that has promoted this injection molding machine, and further this equipment is through setting up the equipment and the dismantlement that block still can be convenient carry out the hopper piece, makes things convenient for the maintenance of later stage equipment.

In the description of the present invention, it is to be understood that the terms "coaxial", "bottom", "one end", "top", "middle", "other end", "upper", "one side", "top", "inner", "front", "center", "both ends", and the like, indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.

Furthermore, the terms "first", "second", "third", "fourth" are used for descriptive purposes only and are not to be construed as indicating or implying a relative importance or implicitly indicating the number of technical features indicated, whereby the features defined as "first", "second", "third", "fourth" may explicitly or implicitly include at least one such feature.

In the present invention, unless otherwise expressly specified or limited, the terms "mounted," "disposed," "connected," "fixed," "screwed" and the like are to be construed broadly, e.g., as meaning fixed, connected, detachably connected, or integral; can be mechanically or electrically connected; they may be directly connected or indirectly connected through an intermediate medium, and may be connected through the inside of two elements or in an interaction relationship between two elements, unless otherwise specifically defined, and the specific meaning of the above terms in the present invention will be understood by those skilled in the art according to specific situations.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. An injection molding machine for an electronic toy shell, characterized in that it comprises a base (1), a servo motor (4) is arranged on one side of the base (1), and the top of the output shaft of the servo motor (4) is fixed A screw (5) is installed, and a vertical shaft (6) is fixedly installed on the side away from the top of the base (1) away from the screw (5), and a threaded block (8) is installed on the screw (5) to shrink the vertical shaft. (6) A sleeve block (9) is set on the upper sleeve, a hopper block (10) is fixedly installed between the threaded block (8) and the sleeve block (9), and a feed inlet is provided at the top of the hopper block (10) (11), the back of the hopper block (10) is fixedly equipped with a rotating motor (12), the front of the hopper block (10) is fixedly connected with an injection cylinder (13), and the two sides of the base (1) are fixedly installed with round Shaft (15).

2. An electronic toy casing injection molding machine according to claim 1, characterized in that, the end of the circular shaft (15) away from the base (1) is fixedly mounted with a fixed collar (16), and the fixed Two fixing plates (17) are fixedly installed at the opening on one side of the collar (16).

3. A kind of electronic toy casing injection molding machine according to claim 2, is characterized in that, the same fixing bolt (18) is threadedly inserted on the surface of two said fixing plates (17), and said fixing bolt ( 18) a fixed nut (19) is installed on one end thread.

4. An electronic toy shell injection molding machine according to claim 1, characterized in that, a block (7) is provided at the top of the screw (5) and the vertical shaft (6), and the block (7) It is all threadedly connected with the screw rod (5) and the top of the vertical shaft (6).

5. A kind of electronic toy housing injection molding machine according to claim 1, characterized in that, the front of the injection cylinder (13) is provided with an injection nozzle (14), and the injection nozzle (14) and the injection cylinder (13) ) is connected internally.
