CN217698114U - Heat preservation water tank with filtering component - Google Patents

Abstract

The utility model relates to the technical field of thermal insulation water tanks, in particular to an thermal insulation water tank with a filter assembly, comprising a thermal insulation water tank body, an installation sleeve is detachably mounted on the thermal insulation water tank body, and a mounting sleeve is fixedly connected to the thermal insulation water tank body. The first filter plate, the installation sleeve is provided with a cleaning structure, a collection structure and a discharge structure, the cleaning structure includes a rotating shaft, a rotating shaft is rotatably connected to the installation sleeve, and a cleaning scraper is fixedly connected to the rotating shaft , the cleaning scraper is rotatably connected with the first filter plate, and the rotating shaft is fixedly connected with a spring and a rotating plate; by setting the installation sleeve, the first filter plate and the cleaning structure, under the action of the first filter plate, the It directly filters the water extracted from the inside of the heat preservation water tank body, and at the same time, the cleaning structure can clean the first filter plate.

Description

An insulated water tank with a filter assembly

technical field

The utility model relates to an insulated water tank, in particular to an insulated water tank with a filter assembly, and belongs to the technical field of insulated water tanks.

Background technique

Insulated water tanks are common in daily life and are easy to use. By adding insulating materials to the interlayer of the water tank, the effect of heat preservation can be achieved, so that the water tank can meet the needs of life or industry. There are many types of insulated water tanks on the market.

In traditional heat preservation water tanks, when it is necessary to take out the water stored in the water tank, most of the water can be directly exported. However, because scale or rust is easy to appear inside the water tank, direct export will easily affect the later use of the operator and increase the number of operators. Difficulty of operation.

Utility model content

The purpose of this utility model is to provide a kind of heat-retaining water tank with filter assembly in order to solve the above-mentioned problems, by setting the installation sleeve, the first filter plate and the cleaning structure, under the action of the first filter plate, can directly clean the heat-retaining water tank The water exported from the inside of the body is filtered, and the cleaning structure can clean the first filter plate, which is simple and quick to operate, avoids affecting the later use of the operator, and reduces the difficulty of operation for the operator.

The utility model achieves the above object through the following technical solutions. A thermal insulation water tank with a filter assembly includes a thermal insulation water tank body. The thermal insulation water tank body is detachably mounted with an installation sleeve, and the installation sleeve is fixedly connected with a second A filter plate, the installation sleeve is provided with a cleaning structure, a collection structure and a discharge structure, the cleaning structure includes a rotating shaft, the installation sleeve is rotatably connected with a rotating shaft, and the rotating shaft is fixedly connected with a cleaning scraper, The cleaning scraper is rotatably connected to the first filter plate, and a spring and a rotating plate are fixedly connected to the rotating shaft.

Preferably, the rotating shaft is rotatably connected to the first filter plate, and one end of the spring is fixedly connected to the installation sleeve.

Preferably, a protective cover is fixedly connected to the installation sleeve, and the rotating shaft is rotatably connected to the protective cover.

Preferably, the rotating plate is rotationally connected with the protective cover, and the spring is located inside the protective cover.

Preferably, the collection structure includes a collection cover, the installation sleeve is threadedly connected with the collection cover, and the collection cover is slidably connected with a funnel.

Preferably, the funnel fits with the installation sleeve, and the cross-sectional shape of the end of the funnel is set as an isosceles trapezoid.

Preferably, a gasket is provided on the installation sleeve, and the gasket is closely attached to the body of the thermal insulation water tank.

Preferably, a seal cover is threadedly connected to the installation sleeve, and the seal cover is located at the top of the installation sleeve.

Preferably, the discharge structure includes a second filter plate and a water outlet pipe, the installation sleeve is fixedly connected with the second filter plate and the water outlet pipe, and the second filter plate and the water outlet pipe are attached to each other.

The beneficial effects of the utility model are: when the operator uses the device, when the water stored in the heat preservation water tank body enters the installation sleeve, the first filter plate performs preliminary filtration treatment on it, and at the same time, the operator can filter the water inside the installation sleeve. The filter material is placed on the side close to the discharge structure, so that the water discharged from the insulated water tank body is filtered for the second time. When the first filter plate is blocked during long-term work, the operator directly turns the rotating plate, and the rotating plate Drive the rotating shaft to rotate, and the rotating shaft drives the cleaning scraper to rotate. When the operator loosens the rotation of the rotating plate, under the action of the spring, the rotating shaft automatically drives the cleaning scraper to rotate in the opposite direction, so that the cleaning scraper is on the first The surface of the filter plate is cleaned. By setting the installation sleeve, the first filter plate and the cleaning structure, under the action of the first filter plate, it can directly filter the water exported from the inside of the thermal insulation water tank. At the same time, the cleaning structure can clean the second filter plate. One filter plate is cleaned, and the operation is simple and fast, which avoids affecting the later use of the operator and reduces the difficulty of operation for the operator.

Description of drawings

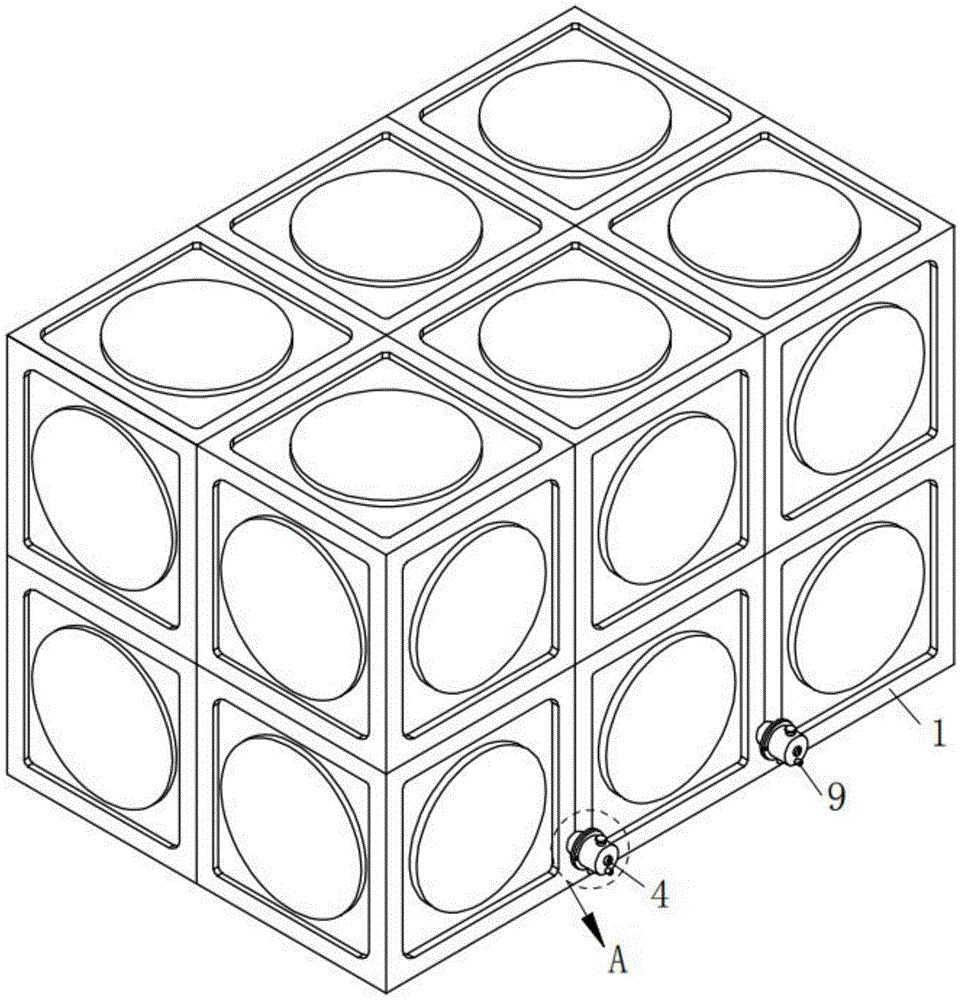

Fig. 1 is the overall structural representation of the utility model;

Fig. 2 is a schematic diagram of the connection structure of the thermal insulation water tank body and the installation sleeve of the present invention;

Fig. 3 is a schematic diagram of the enlarged structure of part A shown in Fig. 1;

FIG. 4 is a schematic diagram of the enlarged structure of part B shown in FIG. 2 .

In the figure: 1. Insulation water tank body; 2. Installation sleeve; 3. First filter plate; 4. Cleaning structure; 401, rotating shaft; 402, cleaning scraper; 403, spring; 404, rotating plate; 5, protective cover 6, collection structure; 601, collection cover; 602, funnel; 7, sealing gasket; 8, sealing cover; 9, discharge structure; 901, second filter plate;

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Fig. 1-4, a thermal insulation water tank with a filter assembly includes a thermal insulation water tank body 1, a mounting sleeve 2 is detachably installed on the thermal insulation water tank body 1, and a mounting sleeve 2 is fixedly connected to the thermal insulation water tank 2. The first filter plate 3, the installation sleeve 2 is provided with a cleaning structure 4, a collection structure 6 and a discharge structure 9, the cleaning structure 4 includes a rotating shaft 401, and the installation sleeve 2 is rotatably connected with a rotating shaft 401, so A cleaning scraper 402 is fixedly connected to the rotating shaft 401 , the cleaning scraper 402 is rotatably connected to the first filter plate 3 , and a spring 403 and a rotating plate 404 are fixedly connected to the rotating shaft 401 .

As a technical optimization scheme of the present utility model, the rotating shaft 401 is rotationally connected with the first filter plate 3, and one end of the spring 403 is fixedly connected with the installation sleeve 2. By setting the spring 403, it is convenient for the rotating shaft 401 to drive the cleaning scraper 402 to rotate to improve the convenience of the operator.

As a technical optimization scheme of the present invention, the installation sleeve 2 is fixedly connected with a protective cover 5, the rotating shaft 401 is rotatably connected with the protective cover 5, the rotating plate 404 is rotatably connected with the protective cover 5, and the The spring 403 is located inside the protective cover 5. By setting the protective cover 5, the protective cover 5 provides a certain protection for the spring 403, ensuring the service life of the device.

As a technical optimization scheme of the present utility model, the collection structure 6 includes a collection cover 601, the installation sleeve 2 is threadedly connected with the collection cover 601, and the collection cover 601 is slidably connected with a funnel 602, and the funnel 602 is attached to the installation sleeve 2, and the cross-sectional shape of the end of the funnel 602 is set as an isosceles trapezoid. By setting the collection cover 601 and the funnel 602, it is convenient to collect and store the foreign matter cleaned from the surface of the first filter plate 3 .

As a technical optimization scheme of the present utility model, the installation sleeve 2 is provided with a gasket 7, the gasket 7 is closely attached to the heat preservation water tank body 1, and the installation sleeve 2 is threadedly connected with a sealing cover 8. The sealing cover 8 is located at the top of the installation sleeve 2, the discharge structure 9 includes a second filter plate 901 and a water outlet pipe 902, and the installation sleeve 2 is fixedly connected with the second filter plate 901 and the water outlet pipe 902 , the second filter plate 901 and the water outlet pipe 902 are attached to each other, and the sealing cover 8 is provided to facilitate the operator to replace the filter material inside the installation sleeve 2 .

When the utility model is in use, the operator first opens the sealing cover 8, places the filter material on the side of the installation sleeve 2 close to the discharge structure 9, and then rotates the sealing cover 8 to the installation sleeve 2, and the insulation water tank body When the water stored in 1 enters the interior of the installation sleeve 2, the first filter plate 3 performs preliminary filtration treatment on it, and the filter material on the side of the installation sleeve 2 close to the discharge structure 9 is used to filter the water discharged from the interior of the thermal insulation water tank body 1. In the second filtration process, when the first filter plate 3 is clogged during long-term work, the operator directly rotates the rotating plate 404, and the rotating plate 404 drives the rotating shaft 401 to rotate, and the rotating shaft 401 drives the cleaning scraper 402 to rotate. After the operator releases the rotation of the rotating plate 404, under the action of the spring 403, the rotating shaft 401 automatically drives the cleaning scraper 402 to reversely rotate, so that the cleaning scraper 402 cleans the surface of the first filter plate 3, and the second The sundries cleaned on the surface of the filter plate 3 are collected and stored inside the collection cover 601 through the funnel 602 downwards. At the same time, since the cross-sectional shape of the end of the funnel 602 is set as an isosceles trapezoid, it is difficult for the sundries stored inside the collection cover 601 to flow out. The filtered water is discharged through the water outlet pipe 902. When the filter material inside the installation sleeve 2 needs to be replaced, the operator opens the sealing cover 8 to replace it.

It is obvious to those skilled in the art that the present invention is not limited to the details of the above exemplary embodiments, and that the present invention can be implemented in other specific forms without departing from the spirit or essential features of the present invention. Therefore, no matter from all points of view, the embodiments should be regarded as exemplary and non-restrictive, and the scope of the present invention is defined by the appended claims rather than the above description, so it is intended to be included in the claims All changes within the meaning and range of equivalents of the required elements are included in the present invention. Any reference sign in a claim should not be construed as limiting the claim concerned.

In addition, it should be understood that although this specification is described according to implementation modes, not each implementation mode only contains an independent technical solution, and this description in the specification is only for clarity, and those skilled in the art should take the specification as a whole , the technical solutions in the various embodiments can also be properly combined to form other implementations that can be understood by those skilled in the art.

Claims (9)

1. An insulated water tank with a filter assembly, comprising an insulated water tank body (1), characterized in that: the insulated water tank body (1) is detachably mounted with an installation sleeve (2), and the installation sleeve (2) ) is fixedly connected with a first filter plate (3), and the installation sleeve (2) is provided with a cleaning structure (4), a collection structure (6) and a discharge structure (9), and the cleaning structure (4) includes A rotating shaft (401), the installation sleeve (2) is rotatably connected with a rotating shaft (401), the rotating shaft (401) is fixedly connected with a cleaning scraper (402), and the cleaning scraper (402) is connected with the first The filter plate (3) is connected in rotation, and a spring (403) and a rotating plate (404) are fixedly connected to the rotating shaft (401). 2. A thermal insulation water tank with a filter assembly according to claim 1, characterized in that: the rotating shaft (401) is rotatably connected to the first filter plate (3), and one end of the spring (403) is connected to the mounting sleeve Tube (2) is fixedly connected. 3. A thermal insulation water tank with a filter assembly according to claim 1, characterized in that: a protective cover (5) is fixedly connected to the installation sleeve (2), and the rotating shaft (401) is connected to the protective cover ( 5) Turn the connection. 4. A thermal insulation water tank with a filter assembly according to claim 3, characterized in that: the rotating plate (404) is rotatably connected to the protective cover (5), and the spring (403) is located on the protective cover (5) internal. 5. A thermal insulation water tank with a filter assembly according to claim 1, characterized in that: the collection structure (6) includes a collection cover (601), and the installation sleeve (2) is threadedly connected to the collection cover (601), a funnel (602) is slidably connected to the collection cover (601). 6. A thermal insulation water tank with a filter assembly according to claim 5, characterized in that: the funnel (602) is attached to the installation sleeve (2), and the cross-sectional shape of the end of the funnel (602) is set as Isosceles trapezoid. 7. A thermal insulation water tank with a filter assembly according to claim 1, characterized in that: the installation sleeve (2) is provided with a gasket (7), and the gasket (7) is in contact with the thermal insulation water tank body (1) Tight fit. 8. A thermal insulation water tank with a filter assembly according to claim 1, characterized in that: said installation sleeve (2) is threadedly connected with a sealing cover (8), and said sealing cover (8) is located on the installation sleeve the top of the barrel (2). 9. A thermal insulation water tank with a filter assembly according to claim 1, characterized in that: the discharge structure (9) includes a second filter plate (901) and a water outlet pipe (902), and the installation sleeve ( 2) A second filter plate (901) and a water outlet pipe (902) are fixedly connected to it, and the second filter plate (901) and the water outlet pipe (902) are attached to each other.
