Abstract

The utility model discloses an elevating desk, comprising a desk body and a side cabinet arranged on one side of the desk body, a side close to the desk body is provided with a notch, and the desk body includes a left and right side cabinet. Lifting table legs arranged at intervals, one of the lifting table legs is arranged in the groove, and the left and right two lifting table legs are provided with connecting frames, the connecting frames are provided with a table board, and the missing grooves A rack for placing the computer case is also arranged inside, and the rack is fixedly arranged on the connecting rack or the table top. In the utility model, the side cabinet is provided with a notch with an upper end open on one side and a side close to the table body is also opened, so that the rack can be embedded in the notch, and the upper part of the rack can be connected with the table or the table. The connection frame is fixedly connected. Driven by the lifting table legs, the height of the table board can be adjusted, and at the same time, when the table board is adjusted up and down, the rack will also follow the movement.

Description

A lifting desk

technical field

The utility model relates to a lifting desk.

Background technique

The lift-type desk is a desk that can be lifted and lowered electrically and adjusted in height through an electric telescopic rod. This desk can be used by people of different heights.

However, the existing lift-type desks are not provided with racks for placing computer cases, so that users need to place the mainframe on the desk. Not only does it take up space on the desktop, but the various wiring harnesses of the main unit cannot be hidden and are exposed above the table.

For this reason, be badly in need of a kind of lifting desk that can place cabinet to solve this problem.

Utility model content

The utility model aims at at least solving one of the technical problems existing in the prior art. For this reason, the utility model proposes a kind of lifting type desk that can place cabinet.

A lifting desk designed according to this purpose includes a table body and a side cabinet arranged on one side of the table body, the side cabinet close to the table body is provided with a slot, and the table body includes The left and right lifting table legs are arranged at intervals, one of the lifting table legs is arranged in the slot, and the left and right two lifting table legs are provided with a connecting frame, and a table board is arranged on the connecting frame. A rack for placing a computer case is also arranged in the groove, and the rack is fixedly arranged on the connecting frame or the table.

Preferably, a through hole and a wiring hole are provided on the lower end surface of the slot, and the lift table leg located in the slot passes through the through hole and contacts the bottom surface.

Preferably, a baffle plate is provided on the front and lower side of the table board, and a plurality of connection angle brackets are arranged on the board, and the connection angle brackets are fixedly connected to the lower end surface of the table board.

Preferably, the connecting frame includes a telescopic frame fixedly arranged on the leg of the lifting table, a fixed frame is provided between the two telescopic frames, and the telescopic frame is plugged and fitted with the fixed frame. A supporting rod is provided on the telescopic frame, and the table board is fixedly connected with the supporting rod and the telescopic frame respectively.

Preferably, the legs of the lifting table are composed of a fixed plate and an electric telescopic rod arranged on the fixed plate, and an upwardly extending support ring is provided on the lower end surface of the side cabinet, and inside the support ring An accommodating space is formed, and the fixing plate in the leg of the lifting table located in the notch is arranged in the accommodating space.

The utility model has the advantages of simple and reasonable structure, reasonable placement of the cabinet, and hidden wiring at the rear of the cabinet. One side of the table body is provided with a slot, and the table body includes lifting table legs arranged at intervals on the left and right, one of the lifting table legs is arranged in the slot, and a connecting frame is provided on the left and right two lifting table legs , a table board is provided on the connecting frame, and a rack for placing a computer case is also provided in the slot, and the rack is fixedly arranged on the connecting frame or the table board. The utility model provides a slot on the side cabinet with an opening at the upper end of one side and an opening near the side of the table body. In this way, the frame can be embedded in the slot, and the upper part of the frame can be connected with the table or the table. The connecting frame is fixedly connected. Driven by the lifting table legs, the height of the table board can be adjusted, and at the same time, when the table board is adjusted up and down, the frame will also move accordingly.

Description of drawings

Fig. 1 is the three-dimensional structure schematic diagram of the present utility model;

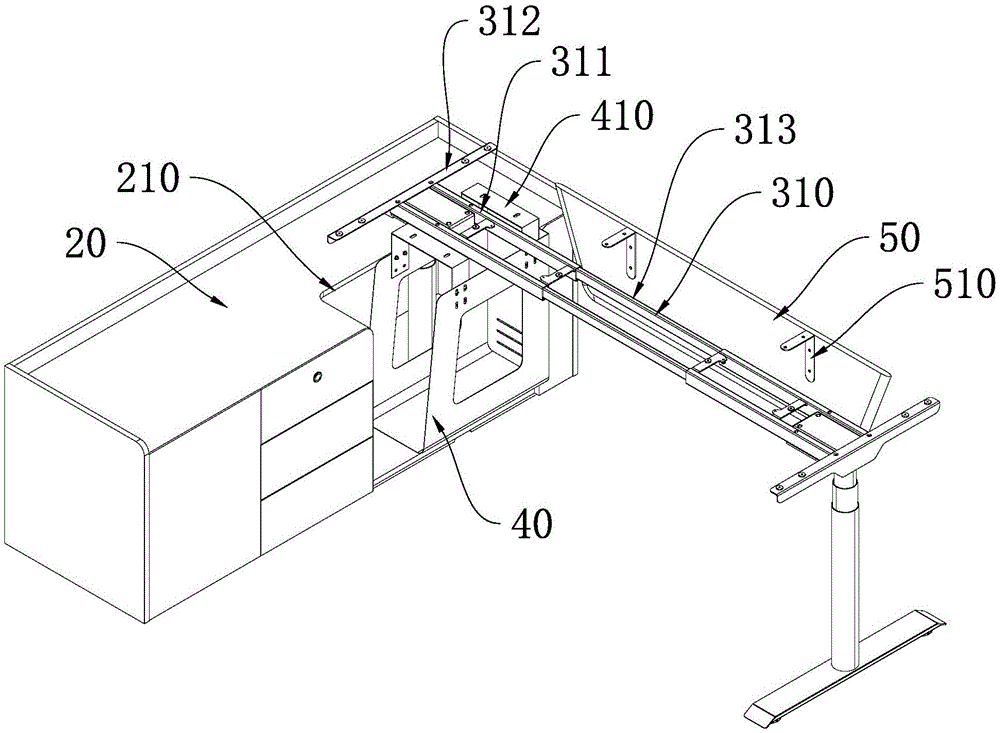

Fig. 2 is a schematic diagram of the decomposition structure of the utility model;

Fig. 3 is a schematic cross-sectional structure diagram of the side cabinet of the present invention;

Fig. 4 is one of planar structure schematic diagrams of the present utility model;

Fig. 5 is the second schematic diagram of the planar structure of the utility model.

Detailed ways

Below in conjunction with accompanying drawing and embodiment the utility model is described further.

Referring to Fig. 1-Fig. 5, an elevating desk includes a table body 100 and a side cabinet 20 arranged on one side of the table body 100, and a side cabinet 20 close to the table body 100 is provided with a notch. Groove 210, the table body 100 includes lifting table legs 30 arranged at intervals on the left and right, one of the lifting table legs 30 is arranged in the missing groove 210, and a connecting frame 310 is provided on the left and right lifting table legs 30. The connecting frame 310 is provided with a table board 10, and a frame 40 for placing a computer case is also provided in the slot 210, and the frame 40 is fixedly arranged on the connecting frame 310 or the table board 10. superior.

The utility model provides a slot on the side cabinet with an opening at the upper end of one side and an opening near the side of the table body. In this way, the frame can be embedded in the slot, and the upper part of the frame can be connected with the table or the table. The connecting frame is fixedly connected. Driven by the lifting table legs, the height of the table board can be adjusted, and at the same time, when the table board is adjusted up and down, the frame will also move accordingly.

Referring to FIG. 3 , a through hole 220 and a wiring hole 230 are provided on the lower surface of the slot 210 , and the lift table leg 30 located in the slot 210 passes through the through hole 220 to contact the bottom surface.

The external lines pass through the wiring holes 230 into the slots of the side cabinets, and are connected with the cabinets on the rack.

A slot 101 is provided on the table top 10 , and a threading box 102 is provided in the slot 101 .

A baffle plate 50 is provided on the front and lower side of the table top 10 , and a plurality of connection angle brackets 510 are arranged on the bottom bracket 50 , and the connection angle brackets 510 are fixedly connected to the lower end surface of the table top 10 .

Referring to Fig. 2, the connecting frame 310 includes a telescopic frame 311 fixedly arranged on the lift table legs 30, a fixed frame 313 is arranged between the two telescopic frames 311, and the telescopic frame 311 is connected to the fixed frame 311. The frame 313 is plugged and fitted, and the telescopic frame 311 is provided with a supporting rod 312 , and the table board 10 is fixedly connected with the supporting rod 312 and the telescopic frame 311 respectively. The structure is simple, the assembly is convenient, and it meets the needs of use.

Referring to Fig. 3 and Fig. 4, the lifting table leg 30 is composed of a fixed plate 300 and an electric telescopic rod 301 arranged on the fixed plate 300, and the lower end surface of the side cabinet 20 is provided with an upwardly extending support ring 200 , a receiving space 201 is formed in the supporting ring 200 , and the fixing plate 300 in the lifting table leg 30 located in the notch 210 is set in the receiving space 201 . The structure is simple and the assembly is convenient.

Further, the fixing plate is fixedly arranged on the lower end surface of the side cabinet, and is fixedly connected by existing structures such as bolts. It can effectively ensure the stability of the lifting table legs on one side of the side cabinet.

In describing the present invention, it should be understood that the terms "center", "longitudinal", "transverse", "length", "width", "thickness", "upper", "lower", "front", Orientation indicated by "back", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", etc. Or the positional relationship is based on the orientation or positional relationship shown in the drawings, which is only for the convenience of describing the utility model and simplifying the description, and does not indicate or imply that the referred device or element must have a specific orientation, be configured in a specific orientation, and Therefore, it cannot be construed as a limitation of the present utility model, and the terms "first" and "second" are only used for descriptive purposes, and cannot be interpreted as indicating or implying relative importance or implicitly specifying the number of indicated technical features.

The basic principles and main features of the present utility model and the advantages of the present utility model have been shown and described above. Those skilled in the art should understand that the utility model is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions only illustrate the principle of the utility model. Without departing from the spirit and scope of the utility model, the utility model The new model also has various changes and improvements, and these changes and improvements all fall within the scope of the claimed utility model. The protection scope of the utility model is defined by the appended claims and their equivalents.

Claims (5)

1. The utility model provides a lifting type office table, includes the table body (100) and sets up limit cabinet (20) of table body (100) one side, its characterized in that: side cabinet (20) are close to one side of the table body (100) is equipped with scarce groove (210), the table body (100) is including the lift table leg (30) that the interval set up about, one of them lift table leg (30) set up lack in groove (210), be equipped with link (310) on controlling two lift table legs (30) be equipped with table (10) on link (310 lack in groove (210) still be equipped with frame (40) that are used for placing computer machine case, frame (40) are fixed to be set up link (310) or on table (10).

2. The elevating desk as set forth in claim 1, wherein: the lower end face of the cutaway groove (210) is provided with a through hole (220) and a wiring hole (230), and the lifting table legs (30) in the cutaway groove (210) penetrate through the through hole (220) to be in contact with the bottom face.

3. The lift-type desk of claim 1, wherein: preceding below of table (10) is equipped with baffle (50), be equipped with a plurality of connection angle sign indicating numbers (510) on baffle (50), connect angle sign indicating number (510) with the lower terminal surface fixed connection of table (10).

4. The elevating desk as claimed in any one of claims 1 to 3, wherein: connecting frame (310) is including fixed setting expansion bracket (311) on lift table leg (30), two expansion bracket (311) between be equipped with mount (313), expansion bracket (311) with mount (313) cooperation of pegging graft be equipped with bearing rod (312) on expansion bracket (311), table (10) respectively with bearing rod (312) and expansion bracket (311) fixed connection.

5. The elevating desk as claimed in any one of claims 1 to 3, wherein: elevating table leg (30) are in by fixed plate (300) and setting electric telescopic handle (301) on fixed plate (300) are constituteed, be equipped with the bearing ring (200) of upwards extending on the lower terminal surface of limit cabinet (20) form accommodation space (201) in bearing ring (200), be located fixed plate (300) in elevating table leg (30) in scarce groove (210) set up in accommodation space (201).
