Abstract

The utility model discloses a sponge city water storage tank with sterilization and cleaning functions, which relates to the technical field of sponge cities. The sponge city water storage tank with sterilization and cleaning functions comprises a water storage tank. The collection box, the inside of the collection box is provided with a filter box, the bottom surface of the filter box is a filter screen, the top of the water storage tank is fixedly connected with a support frame, the support frame is in the shape of a zigzag, and the interior of the filter box is provided with a cleaning frame, a cleaning frame The bottom of the filter is fixedly connected with a brush, and the interior of the vertical line plate of the support frame is a hollow structure. This sponge city water tank with sterilization and cleaning functions cleans the impurities attached to the top of the filter screen through the brush, so that to a certain extent Reduce the accumulation of impurities on the top of the filter for a long time, and block the mesh of the filter, resulting in a decrease in the speed of rainwater passing through the mesh of the filter, which reduces the speed of rainwater collection, so that rainwater can be collected more smoothly.

Description

A sponge city water storage tank with sterilization and cleaning functions

technical field

The utility model relates to the technical field of sponge cities, in particular to a sponge city water storage tank with the functions of sterilization and cleaning.

Background technique

The sponge city system means that the city, like a sponge, has good flexibility in adapting to environmental changes and responding to natural disasters. When it rains, it absorbs, stores, infiltrates, and purifies water, and releases and utilizes the stored water when needed. , the water storage system is an important part of the sponge city system.

A patent has been published at present: CN215715711U, which discloses a sponge city system that is easy to maintain. During the flow of accumulated water, the through-hole box is pressed down to enter the filter screen, so that the through-hole box slides down and compresses the spring, so that the support rod moves and pushes two The cover plate rotates and separates to open the water storage tank. At this time, the flowing accumulated water passes through the filter screen to filter and flows into the water storage tank for storage, which is beneficial to water storage for utilization.

However, the following problems will also appear in the process of using this scheme: Although the device in the comparison scheme is conducive to water storage and utilization, since the filter screen of the device in the comparison scheme is filtering rainwater, impurities are easy to adhere to and accumulate in the filter. The top of the filter screen, and impurities accumulated on the top of the filter screen for a long time, it is easy to block the mesh of the filter screen, causing the speed of rainwater to pass through the mesh of the filter screen to decrease, and the speed of rainwater collection to decrease.

Utility model content

The purpose of this utility model is to at least solve one of the technical problems in the prior art, to provide a sponge city water storage tank with sterilization and cleaning functions, which can solve the problem of long-term accumulation of impurities on the top of the filter screen The mesh is clogged, causing the problem that the speed of rainwater passing through the mesh of the filter is reduced.

In order to achieve the above purpose, the utility model provides the following technical solutions: a sponge city water storage tank with sterilization and cleaning functions, including a water storage tank, a collection box is arranged inside the water storage box, and a filter box is arranged inside the collection box , the bottom surface of the filter box is a filter screen, the top of the water storage tank is fixedly connected with a support frame, the support frame is in the shape of a 匚, the inside of the filter box is provided with a cleaning frame, the bottom of the cleaning frame is fixedly connected with a brush, and the support frame is vertical The inside of the line plate is hollow structure, the bottom of the longitudinal plate of the support frame is provided with a moving groove, the top of the cleaning frame is provided with a slider slidingly connected with the inside of the moving groove, the inside of the slider is provided with a power groove, and the inside of the power groove is provided with a Install the dismounting device.

Preferably, the inner wall of the longitudinal plate of the support frame is fixedly connected with a motor, the output end of the motor is fixedly connected with a threaded rod rotatably connected with the inner wall of the support frame, and the surface of the threaded rod is threaded with the inside of the slider.

Preferably, the front and rear sides of the slider are respectively fixedly connected with a first protective cover and a second protective cover that are movably socketed on the threaded rod, and the first protective cover and the second protective cover are both elastic and stretchable materials. A side of the protective cover away from the slider is fixedly connected with the inner wall of the support frame, and a side of the second protective cover away from the slider is fixedly connected with the surface of the motor shell.

Preferably, the bottom of the slider is provided with a mounting groove, and the top of the cleaning frame is fixedly connected with a mounting block slidingly connected to the inside of the mounting groove, and the cross sections of the mounting block and the mounting groove are both trapezoidal.

Preferably, a filter plate is fixedly connected to the inner wall of the collection box.

Preferably, the installation and disassembly device includes a fixed rod, the surface of the fixed rod is slidingly connected with the inside of the power groove, the surface of the fixed rod is provided with teeth, and the top of the mounting block is provided with a fixed groove that is slidingly connected with the surface of the fixed rod, and the power The inner wall of the groove is rotatably connected with a gear meshed with the surface of the fixed rod. The front side of the gear is fixedly connected with a rotating column. The side of the rotating column away from the gear rotates through the inside of the slider and extends to the outside of the slider. The top of the fixed rod A spring is fixedly connected, and the top of the spring is fixedly connected with the inner wall of the power tank.

Compared with the prior art, the beneficial effects of the utility model are:

(1) The sponge city water storage tank with sterilizing and cleaning functions cleans the impurities attached to the top of the filter screen through the brush, thereby reducing the long-term accumulation of impurities on the top of the filter screen to a certain extent, and making the filter screen The mesh is blocked, causing the speed of rainwater to pass through the mesh of the filter to decrease, which reduces the speed of rainwater collection, so that rainwater can be collected more smoothly.

(2), the sponge city water storage tank with sterilization and cleaning functions, through the fixed release of the installation block and the cleaning frame, the installation and disassembly of the cleaning frame are more convenient, and at the same time, the installation speed of the cleaning frame is reduced to a certain extent, And when the cleaning frame breaks down, the staff can repair the cleaning frame more conveniently, so that the later maintenance of the cleaning frame is more convenient, and the staff can use the device more conveniently.

Description of drawings

Below in conjunction with accompanying drawing and embodiment the utility model is further described:

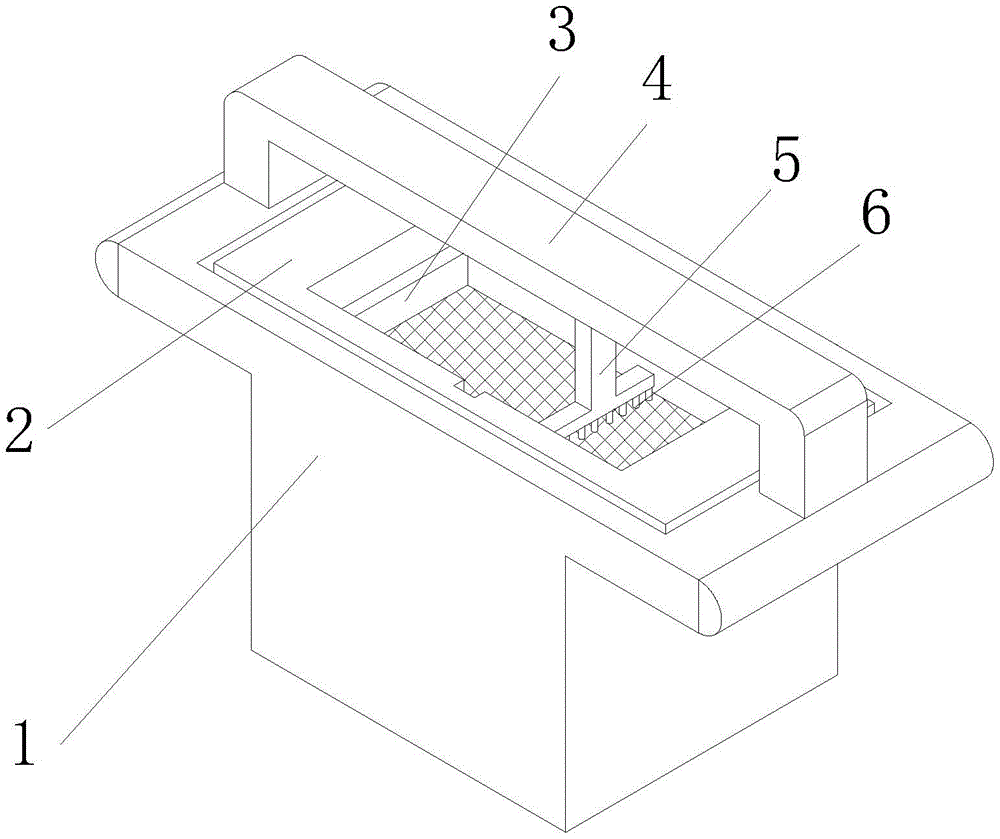

Fig. 1 is the structural representation of the utility model water storage tank;

Fig. 2 is a left-view plane schematic diagram of the utility model support frame;

Fig. 3 is a left-view plane schematic diagram of the collection box of the utility model;

Fig. 4 is a front view plan view of the slider of the utility model.

Reference signs: 1. Water storage tank; 2. Collection box; 3. Filter box; 4. Support frame; 5. Cleaning frame; 6. Brush; 7. First protective cover; 8. Filter plate; 9. Thread Rod; 10, second protective cover; 11, moving slot; 12, installation block; 13, installation slot; 14, slide block; 15, rotating column; 16, spring; 17, power slot; 18, gear; 19, fixed Rod; 20, fixing groove; 21, motor.

Detailed ways

Please refer to Fig. 1-2, the utility model provides a kind of technical proposal: a kind of sponge city water storage tank with sterilization and cleaning function, comprises water storage tank 1, and the interior of water storage tank 1 is provided with collection box 2, and collection box 2 is provided with a filter box 3, the bottom surface of the filter box 3 is a filter screen, through which the impurities in the rainwater can be filtered, the top of the water storage tank 1 is fixedly connected with a support frame 4, and the support frame 4 is in the shape of a 匚, The inside of the filter box 3 is provided with a cleaning frame 5, and the bottom of the cleaning frame 5 is fixedly connected with a hairbrush 6, and the cleaning frame 5 can clean the impurities attached and accumulated on the top of the filter screen through the brush 6.

Please refer to Fig. 2-4, the inside of the longitudinal plate of the support frame 4 is a hollow structure, the bottom of the longitudinal plate of the support frame 4 is provided with a moving groove 11, and the top of the cleaning frame 5 is provided with a slider 14 that is slidingly connected to the inside of the moving groove 11 , The inside of the slider 14 is provided with a power groove 17, and the inside of the power groove 17 is provided with an installation and disassembly device.

Further, the inner wall of the longitudinal plate of the support frame 4 is fixedly connected with a motor 21, the motor 21 is a positive and negative motor, and the motor 21 is an existing structure, so it will not be repeated here, the output end of the motor 21 is fixedly connected with the support frame 4 The inner wall is rotatably connected to the threaded rod 9 , and the surface of the threaded rod 9 is connected to the inner thread of the slide block 14 .

Further, the front and rear sides of the slider 14 are respectively fixedly connected with the first protective sleeve 7 and the second protective sleeve 10 which are movably sleeved on the threaded rod 9, and the first protective sleeve 7 and the second protective sleeve 10 are both elastic and flexible. For telescopic materials, the side of the first protective cover 7 away from the slider 14 is fixedly connected to the inner wall of the support frame 4, and the side of the second protective cover 10 away from the slider 14 is fixedly connected to the shell surface of the motor 21. 7 and the second protective sleeve 10 can protect the threaded rod 9 to a certain extent.

Further, the bottom of the slide block 14 is provided with an installation groove 13, and the top of the cleaning frame 5 is fixedly connected with an installation block 12 slidingly connected to the inside of the installation groove 13, and the cross sections of the installation block 12 and the installation groove 13 are trapezoidal, so that cleaning The position of the rack 5 is restricted to prevent the cleaning rack 5 from moving downward.

The staff starts the motor 21, and the motor 21 rotates positively and negatively, so that the threaded rod 9 rotates positively and negatively. At the same time, through the restriction of the moving groove 11, the threaded rod 9 can drive the slider 14 and the cleaning frame 5 to move back and forth. The cleaning rack 5 can clean the impurities attached to the top of the filter screen through the brush 6, thereby reducing the long-term accumulation of impurities on the top of the filter screen to a certain extent, and causing the mesh of the filter screen to be blocked, causing rainwater to pass through the filter screen. The speed of the hole is reduced, so that the rainwater collection speed is reduced, so that the rainwater can be collected more smoothly.

Further, the inner wall of the collection box 2 is fixedly connected with a filter plate 8, and the filter plate 8 is provided with a mesh hole, so that the rainwater can be collected more smoothly. The top of the filter plate 8 is provided with a sterilizing material, and the rainwater passes through the sterilizing material. Make rainwater sterilizable.

The installation and removal device includes a fixed rod 19, the surface of the fixed rod 19 is slidably connected with the inside of the power groove 17, the surface of the fixed rod 19 is provided with teeth, and the top of the mounting block 12 is provided with a fixed groove 20 that is slidably connected with the surface of the fixed rod 19 , the inner wall of the power groove 17 is rotatably connected with a gear 18 meshed with the surface of the fixed rod 19, and the front side of the gear 18 is fixedly connected with a rotating column 15, and the side of the rotating column 15 away from the gear 18 rotates through the inside of the slider 14 and extends to the outside of slider 14.

Furthermore, the top of the fixed rod 19 is fixedly connected with a spring 16, and the top of the spring 16 is fixedly connected with the inner wall of the power tank 17, and the spring 16 can be compressed and reset by moving the fixed rod 19 up and down.

The rotating column 15 is rotated by the staff, and the fixed rod 19 is slid out of the fixed groove 20 through the meshing connection between the gear 18 and the fixed rod 19, and the spring 16 is compressed, so that the fixing of the mounting block 12 and the cleaning frame 5 is released , so that the installation and disassembly of the cleaning frame 5 are more convenient, and at the same time reduce the installation speed of the cleaning frame 5 to a certain extent, and when the cleaning frame 5 breaks down, the staff can repair the cleaning frame 5 more conveniently, so that The post-maintenance of the cleaning frame 5 is more convenient, so that the staff can use the device more conveniently.

Working principle: The sponge city water storage tank with sterilization and cleaning functions, when in use, the motor 21 is started by the staff, and the motor 21 rotates positively and negatively, so that the threaded rod 9 rotates positively and negatively, and at the same time, it is limited by the moving groove 11 , so that the threaded rod 9 can drive the slider 14 and the cleaning frame 5 to reciprocate back and forth, so that the cleaning frame 5 can clean the impurities attached to the top of the filter screen through the brush 6, thereby reducing the long-term accumulation of impurities on the filter screen to a certain extent the top of the filter screen, and the mesh of the filter screen is blocked, causing the speed of rainwater to pass through the mesh screen of the filter screen to decrease, and the speed of rainwater collection to decrease. Connect, make the fixed rod 19 slide out of the inside of the fixed groove 20, the spring 16 is compressed, thereby the fixing of the mounting block 12 and the cleaning frame 5 is released, the installation and disassembly of the cleaning frame 5 are more convenient, and at the same time reduce the The installation speed of the cleaning frame 5 is improved, and when the cleaning frame 5 breaks down, the staff can repair the cleaning frame 5 more conveniently.

The above embodiments of the utility model have been described in detail in conjunction with the accompanying drawings, but the utility model is not limited to the above-mentioned embodiments. Make various changes below.

Claims (6)

1. A sponge city water storage tank with sterilization and cleaning functions, comprising a water storage tank (1), the inside of the water storage tank (1) is provided with a collection box (2), and the inside of the collection box (2) is provided with a filter Box (3), the bottom surface of filter box (3) is filter screen, it is characterized in that: the top of described water storage tank (1) is fixedly connected with support frame (4), and support frame (4) is 匚 font, filter box The inside of (3) is provided with a cleaning frame (5), and the bottom of the cleaning frame (5) is fixedly connected with a hairbrush (6). The inside of the support frame (4) longitudinal plate is a hollow structure, and the support frame (4) longitudinal The bottom of the cleaning rack (5) is provided with a sliding block (14) slidingly connected to the inside of the moving slot (11), and the inside of the sliding block (14) is provided with a power slot (17). The inside of the power tank (17) is provided with an installation and disassembly device. 2. A kind of sponge city water storage tank with sterilization and cleaning functions according to claim 1, characterized in that: the inner wall of the longitudinal plate of the support frame (4) is fixedly connected with a motor (21), and the motor (21) The output end is fixedly connected with a threaded rod (9) that is rotatably connected to the inner wall of the support frame (4), and the surface of the threaded rod (9) is connected with the internal thread of the slide block (14). 3. A kind of sponge city water storage tank with sterilizing and cleaning functions according to claim 1, characterized in that: the front and rear sides of the slider (14) are respectively fixedly connected with movable sockets on the threaded rod (9 ) on the first protective cover (7) and the second protective cover (10), the first protective cover (7) and the second protective cover (10) are elastic stretchable materials, the first protective cover (7) is far away from the sliding One side of the block (14) is fixedly connected with the inner wall of the support frame (4), and the side of the second protective cover (10) away from the slider (14) is fixedly connected with the shell surface of the motor (21). 4. A kind of sponge city water storage tank with sterilization and cleaning functions according to claim 1, characterized in that: the bottom of the slider (14) is provided with a mounting groove (13), and the cleaning frame (5) The top is fixedly connected with a mounting block (12) that is slidingly connected to the inside of the mounting groove (13), and the cross sections of the mounting block (12) and the mounting groove (13) are trapezoidal. 5. A sponge city water storage tank with sterilization and cleaning functions according to claim 1, characterized in that: the inner wall of the collection box (2) is fixedly connected with a filter plate (8). 6. A kind of sponge city water storage tank with sterilization and cleaning functions according to claim 1, characterized in that: said mounting and dismounting device comprises a fixed rod (19), the surface of the fixed rod (19) and the power tank ( 17) internal sliding connection, the surface of the fixed rod (19) is provided with teeth, the top of the mounting block (12) is provided with a fixed groove (20) that is slidably connected with the surface of the fixed rod (19), and the power slot (17) The inner wall is rotatably connected with a gear (18) engaged with the surface of the fixed rod (19), and the front side of the gear (18) is fixedly connected with a rotating column (15), and the side of the rotating column (15) away from the gear (18) rotates through The inside of slide block (14) extends to the outside of slide block (14), and the top of fixed rod (19) is fixedly connected with spring (16), and the top of spring (16) is fixedly connected with the inwall of power tank (17).
