CN217663631U - A self-cleaning knife chain crusher - Google Patents

Abstract

The utility model provides a self-cleaning knife chain crusher, which comprises a cylinder body, a rotary shaft in the cylinder body is fixedly sheathed with a knife chain shaft mechanism, and the knife chain shaft mechanism comprises a crushing chain and a crusher which are fixedly sheathed on the rotary shaft. Cutter plate; a wall cleaning mechanism is installed in the cylinder, and the wall cleaning mechanism includes left and right electric cylinders fixed on the top of the cylinder. The frame includes a transmission rod, the lower part of the transmission rod passes through the top of the cylinder body and extends into the cylinder body, a plurality of annular scraper racks distributed at intervals are fixed between the extending parts of the transmission rod, and the annular scraper rack is located between the inner cylinder body and the inner cylinder. Between the knife chain shaft mechanisms, each annular scraper frame is provided with a plurality of scrapers distributed at intervals and matched with the inner wall of the inner cylinder. The utility model has the advantages of good crushing effect and high efficiency, one machine is suitable for the crushing of various materials and also for the crushing of sticky wall materials, can automatically clean the wall, and can realize continuous and stable operation.

Description

A self-cleaning knife chain crusher

technical field

The utility model belongs to the technical field of crushers, in particular to a self-cleaning knife chain crusher.

Background technique

Most of the traditional vertical vertical crushers are suitable for crushing materials with low moisture content and low viscosity, which are not suitable for sticking to the wall. Such as various ore crushers. However, with the development of China's industry, materials with high water content and high viscosity need to be crushed for subsequent resource utilization, such as semi-dried oil sludge, municipal sludge, phosphogypsum, etc., which are processed by traditional vertical vertical crushers. Crushing needs The stable working conditions and uniform discharge particle size cannot be guaranteed, the failure rate is high during use, and the unstable working conditions affect the normal process operation.

Contents of the invention

In order to make up for the defects in the prior art, the utility model provides a self-cleaning knife chain crusher, which can be used to process bulk materials with high water content and high viscosity, with low failure rate and stable working conditions.

A self-cleaning knife chain crusher, including a cylinder, the top of the cylinder is provided with a feeding port, the bottom is provided with a discharge port, and a rotating shaft is installed in the rotating shaft, and it is characterized in that a knife chain shaft is fixed on the rotating shaft Mechanism, the knife chain shaft mechanism includes a plurality of crushing chains and crushing blades fixedly sleeved on the rotating shaft; a wall cleaning mechanism is installed in the cylinder, and the wall cleaning mechanism includes a left , Right electric cylinder, the piston rods of the left and right electric cylinders face upwards and the tops of the piston rods are fixedly connected with the wall-clearing drive frames distributed on both sides of the cylinder, the wall-cleaning drive frames all include transmission rods, the lower part of which is Both pass through the top of the cylinder and extend into the cylinder. A plurality of annular scraper holders are fixed between the protruding parts of the transmission rod. The annular scraper holders are located between the cylinder and the knife chain shaft mechanism. Each ring A plurality of scrapers distributed at intervals and cooperating with the inner wall of the inner cylinder are installed on the scraper frame.

Preferably, the above-mentioned self-cleaning knife chain crusher is characterized in that: the inner cylinder is fixedly fitted with an integral mirror stainless steel inner cylinder, and the blade of the scraper cooperates with the inner wall of the inner cylinder to clean the wall.

Preferably, the self-cleaning knife chain crusher is characterized in that: the crushing chain and the crushing knife plate on the knife chain shaft mechanism are fixed on the rotating shaft through a flange, and the crushing chain is distributed With the top of the broken knife plate.

Preferably, the self-cleaning knife chain crusher is characterized in that: the bottom of the cylinder is located on the upper side of the discharge port with a hollow support frame, and the rotating shaft is rotated and mounted on the support frame through a transmission thrust ball bearing On the top, the top of the rotating shaft is rotatably installed on the top of the cylinder through a thrust ball bearing.

Preferably, the self-cleaning knife chain crusher is characterized in that: the wall-clearing transmission frame includes a cross bar fixed on the top of the corresponding electric cylinder piston rod, and the two ends of the cross bar are distributed and fixedly connected with transmission rods.

Preferably, the self-cleaning knife chain crusher is characterized in that: the rotation of the rotating shaft is controlled by a motor.

The cylinder body of the utility model has a diameter of 0.8-2m and a height of 1-2m.

The working principle of the utility model is:

Start the motor, and the rotating shaft drives the crushing chain and the crushing blade to rotate. Materials with high water content and high viscosity are fed into the cylinder from the feeding port, and the crushing chain in the cylinder crushes the larger materials initially, reducing the direct impact damage of large materials on the knife plate, and the crushing knife plate in the cylinder Small materials are precisely crushed. Through the cooperation of the crushing chain and the crushing blade, the crushing effect on materials with high water content and high viscosity is improved.

When the material tends to stick to the wall, start the left and right electric cylinders, so that the piston rods of the left and right electric cylinders move up and down, and then through the action of the horizontal bar, the transmission rod and the ring scraper frame, the scraper blade is pushed along the inner cylinder. Scrape the wall up and down to achieve the purpose of clearing the wall. Then the purpose of continuous and high-efficiency operation of the equipment is realized.

The utility model selects suitable crushing chains and layers of crushing blades according to the state of materials and the granularity and fineness of discharge. During production, the high-speed rotating shaft drives the crushing chain and the crushing blade to rotate at a high speed, and collides violently with the materials coming in from the feeding port. After multiple layers of collisions, the materials can be broken.

Since the inner cylinder is made of mirror stainless steel with a thickness greater than 3mm, the chance of material sticking to the wall is also reduced.

The utility model has the following advantages:

The utility model improves the crushing effect on materials with high water content and high viscosity through the compound use of the crushing chain and the crushing knife plate, improves the wall cleaning effect through the wall cleaning mechanism, realizes continuous and efficient operation of the equipment, low failure rate, and The situation is stable and meets the needs of enterprises.

Description of drawings

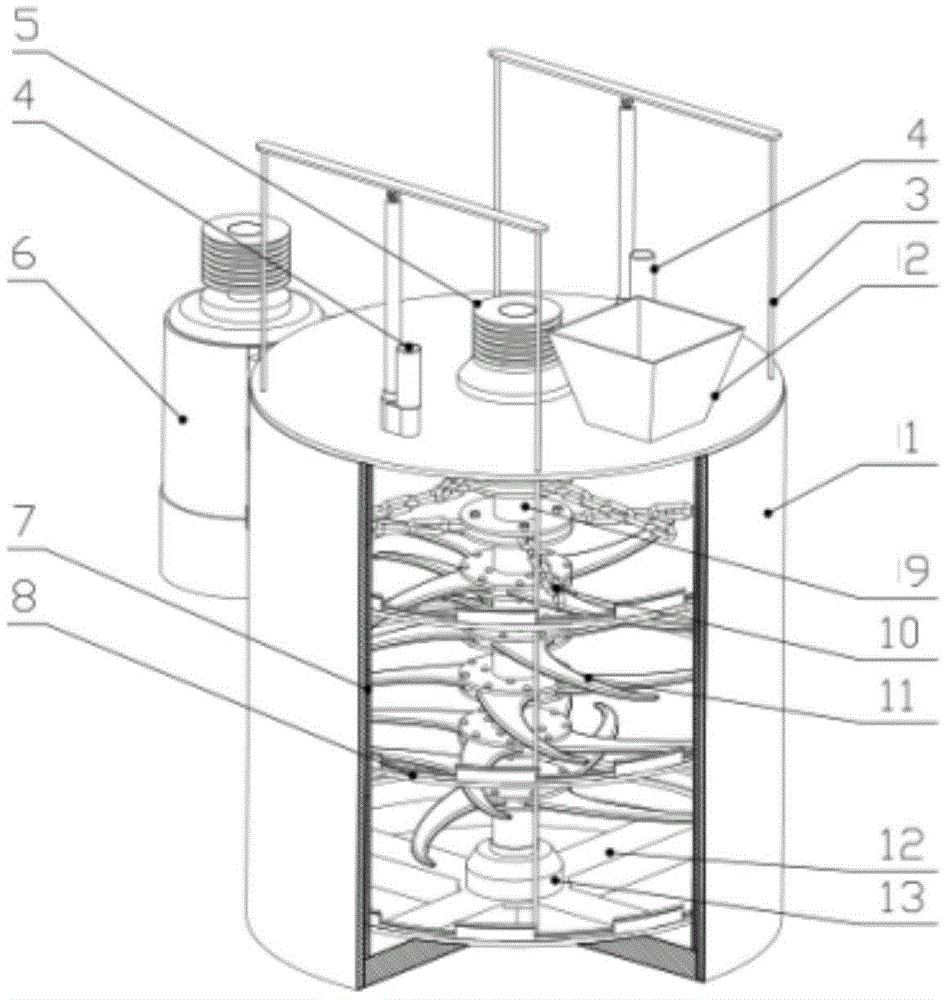

Fig. 1 is the structural representation of the utility model.

Fig. 2 is a structural schematic diagram of the knife chain shaft mechanism.

Fig. 3 is a structural schematic diagram of the wall cleaning mechanism.

Detailed ways

Below in conjunction with accompanying drawing and embodiment the utility model is further described.

A self-cleaning knife chain crusher, including a cylinder body 1, the top of the cylinder body 1 is provided with a feeding port 2, and the bottom is provided with a discharge port. The cylinder body 1 is rotated and installed with a rotating shaft 9, and the rotating shaft 9 is fixedly fitted with a The knife chain shaft mechanism, the knife chain shaft mechanism includes a plurality of crushing chains 10 and crushing blades 11 fixedly set on the rotating shaft 9; the crushing chains 10 and crushing blades 11 on the knife chain shaft mechanism are all passed through the flange The disc is fixedly installed on the rotating shaft 9, and the crushing chain is distributed above the crushing knife plate. A wall cleaning mechanism 8 is installed in the cylinder body 1, and the wall cleaning mechanism 8 includes left and right electric cylinders 4 fixed on the top of the cylinder body 1, the piston rods of the left and right electric cylinders 4 face upward and the top of the piston rod Both are fixedly connected with the clearing drive frame distributed on both sides of the cylinder, the clearing drive frame all includes a transmission rod 3, and the lower part of the transmission rod 3 passes through the top of the cylinder 1 and extends into the cylinder 1. A plurality of annular scraper holders 14 distributed at intervals are fixed between the protruding parts of the transmission rod 3. The annular scraper holders 14 are located between the cylinder body 1 and the knife chain shaft mechanism, and each annular scraper holder 14 is equipped with a plurality of intervals. Scraper 8 that is distributed and cooperates with the inner wall of the inner cylinder.

The cylinder body 1 is fixedly fitted with an integrated inner cylinder body 7 made of mirror-finished stainless steel, and the blade of the scraper cooperates with the inner wall of the inner cylinder body 7 to clear the wall.

The bottom of the cylinder body 1 is located on the upper side of the discharge port, and a hollow support frame 12 is provided. The rotating shaft 9 is mounted on the support frame 12 through a transmission thrust ball bearing 13, and the top of the rotating shaft 9 is mounted on the support frame through a thrust ball bearing. at the top of cylinder 1.

The wall-clearing transmission frame includes a cross bar 15 fixed on the top of the corresponding electric cylinder 4 piston rods, and the two ends of the cross bar 15 are distributed and fixedly connected with a transmission rod 3 .

The rotation of the rotating shaft 9 is controlled by the motor 6 , and the rotating shaft 9 is connected to the motor shaft of the motor 6 through a rotating belt pulley 5 .

The cylinder body of the utility model has a diameter of 0.8-2m and a height of 1-2m.

Choose the appropriate crushing chain and the number of layers of crushing blades according to the state of the material and the output granularity and fineness. During production, the rotating shaft 9 rotates at a high speed, driving the crushing chain 10 and the crushing knife plate 11 to rotate at a high speed, and violently collides with the materials coming in from the feeding port 2. After multiple layers of collisions, the materials can be crushed.

The annular scraper frame 14 is multi-layer design, which can shorten the stroke of the piston rod of the electric cylinder 4. The annular scraper frame 14 is provided with a scraper, which is in close contact with the inner wall of the inner cylinder body 07. The reciprocating movement of the scraper can remove the sticky wall material and scrape the wall The mechanism has an independent transmission mechanism, which can adjust the operating frequency according to the material sticking to the wall.

Claims (6)

1. The utility model provides a self-cleaning cutter chain crusher, including the barrel, the barrel top is equipped with the dog-house, and the bottom is equipped with the discharge gate, and the axis of rotation, its characterized in that are installed to the barrel internal rotation: a cutter chain shaft mechanism is fixedly sleeved on the rotating shaft and comprises a plurality of crushing chains and crushing cutter plates which are fixedly sleeved on the rotating shaft; install wall cleaning mechanism in the barrel, wall cleaning mechanism is including fixing the electronic jar in the left and right side at barrel top, and the piston rod of the electronic jar in the left and right side up and the equal fixedly connected with in piston rod top distribute in the wall cleaning transmission frame of barrel both sides, and wall cleaning transmission frame is all including the transfer line, and the transfer line lower part all passes the barrel top and stretches into in the barrel, the annular of transfer line is scraped the frame between stretching into the position and is fixed with a plurality of interval distribution, and the annular is scraped the frame and is located between barrel and the sword chain axle mechanism, all install a plurality of interval distribution on every annular scrape the frame and with interior barrel inner wall complex scraper.

2. A self-cleaning cutter chain crusher as claimed in claim 1, wherein: an integrated inner barrel body made of mirror surface stainless steel is fixedly sleeved in the barrel body, and the blade of the scraper is matched with the inner wall of the inner barrel body for wall cleaning.

3. A self-cleaning cutter chain crusher as claimed in claim 1, wherein: the crushing chain and the crushing cutter plate on the cutter chain shaft mechanism are fixedly arranged on the rotating shaft through flange plates, and the crushing chain is distributed above the crushing cutter plate.

4. A self-cleaning cutter chain crusher as claimed in claim 1, wherein: the barrel bottom is located the discharge gate upside and is equipped with the support frame of fretwork, the axis of rotation passes through transmission thrust ball bearing and rotates and install on the support frame, the axis of rotation top is passed through thrust ball bearing and is rotated and install at the barrel top.

5. A self-cleaning cutter chain crusher as claimed in claim 1, wherein: the wall cleaning transmission frame comprises a cross rod fixed at the top of a piston rod of the corresponding electric cylinder, and transmission rods are fixedly connected to the two ends of the cross rod.

6. A self-cleaning cutter chain crusher as claimed in claim 1, wherein: the rotating shaft is controlled to rotate by a motor.
